Uniden UH7760NB Manual de usuario

UH7760NB

Remote Speaker MIC

UHF CB Transceiver

For more exciting new products please visit our website:

Australia: www.uniden.com.au

New Zealand: www.uniden.co.nz

Introduction 3

Controls & Connectors 4

Indicators 6

Included with your UH7760NB Transceiver 7

Connecting the Microphone 8

Mounting the MIC Hanger 9

Operation 12

Turning on the Power 12

Setting the Auto Squelch 13

Monitor 14

Selecting a Channel 14

Programming the Instant Priority Channel 15

Recalling the Instant Channel 15

Transmitting 15

Call Function 15

DUAL Watch 16

Using Repeater Channels 16

Operating the UHF CB Radio in Duplex Mode 17

Scanning 18

Open Scan (OS) Mode 18

Group Scan (GS) Mode 19

Priority Watch 20

Add/Remove Channels from SCAN Memory 20

Selecting the Call tone 21

Busy Channel Lockout 21

Roger Beep 22

CTCSS (Continuous Tone Coded Squelch System) 22

DCS (Digital Coded Squelch) 23

Beep On/Off 23

Backlight 24

LCD Contrast 24

CTCSS Codes Table 25

DCS Codes Table 26

UHF CB Channel Guidelines 27

UHF CB Channels & Frequencies 28

Warranty 30

Contents

UNIDEN UH7760NB UHF CB Transceiver

The Uniden UH7760NB is designed to provide you with years of trouble

free service. Its rugged components and materials are capable of

withstanding harsh environments. Please read this Operating Manual

carefully to ensure you gain the optimum performance of the unit.

NOTE

The citizen band radio service is licenced in Australia by

ACMA Radio-communications (Citizen Band Radio Stations)

Class Licence and in New Zealand by MED General User

Licence for Citizen Band Radio and operation is subject to

conditions contained in those licenses.

Features

 

Radio*

 

 

Microphone (Remote SPK/MIC)

and Extension Cable

 

 †

 

 

 

(“HI”, “LO”, “Off”)

 

 

 

 

 

 

Watch

 

 

separately with Open Scan,

Group Scan

 

 

 

 

 

Tone Coded Squelch System)

and 104 additional DCS (Digital

Coded Squelch) codes that are

user selectable

 

 

 

 

 

 

 

function

* Refer to p.27 - p.29 for channel

information

† 

detects and manages incoming

audio to comparable levels.

Introduction

UHF CB TransceiverUNIDEN UH7760NB

Controls & Connectors

11 18

UNIDEN UH7760NB

UHF CB Transceiver

1 

2Speaker

3Power Input Connection

 

4EXT SP - External Speaker

 

5UHF Antenna Connection

6CALL - Call Tone Button

7INST - Instant Channel Button

8PTT - Push To Talk Button

9MENU/ENTER - Menu and

Select Button

10 MEM - Memory Scan Channel

11 SCAN - Scan Button

OS/GS - Open Scan/Group

Scan

12 MICROPHONE

13 SPEAKER

14 Liquid Crystal Display (LCD)

15 VOL 

16 VOL 

Button

17 POWER - Power ON/OFF

Button

18 SQL - Auto Squelch

MON - Monitor Button

19 DCS/CTCSS - DCS &

CTCSS Button

DUAL - Dual Watch Button

20 / - Select Up and

Down Buttons

21  

22  

Controls & Connectors

UNIDEN UH7760NB UHF CB Transceiver

Indicators

UNIDEN UH7760NB

1BUSY - Channel Active

2CALL - Call Tone

3M- Channel in Memory

4Channel Number

5DCS - Digital Coded Squelch

6MON - Monitor

7INST - Instant Channel

8DUAL - Dual Watch

9SCAN - Scan mode

10 Signal Power Level

11 GS - Group Scan

12 S/RF- Receive Signal or

Transmit

13 PRI - Priority Channel Watch

14 Channel Frequency

15 BCL - Busy Channel Lockout

16 DCS/CTCSS Code Number

13 14 15

1 2 3 4 5

UHF CB Transceiver

Optional Accessories:

 

 



availability of optional accessories;

www.uniden.com.au for Australia

www.uniden.co.nz for New Zealand

Included in your UH7760NB Transceiver

UNIDEN UH7760NB

Remote LCD Speaker

Microphone

(RM770)

Owner’s Manual Microphone Hanger

with screws, washers

Mounting Bracket with

mounting screws

DC Power Cord

with fuse

Extension Cable

(EC770)

UH7760NB

Black Box

UHF Mobile Radio

For more exciting new products please visit our website:

Australia: www.uniden.com.au

New Zealand: www.uniden.co.nz

UHF CB Transceiver

MIC Jack



metre Extension Cable - simply connect the MIC plug into the jack end of

the Extension Cable

Push the MIC plug or Extension Cable plug into the MIC jack of the radio

until the connection locks into place. Gently tug the MIC or Extension

Cable cord to test that the connection is locked. Use the rubber cover

which is on the cord to seal the MIC jack entry from dust.

Disconnecting the MIC from the MIC Jack

Pull back the rubber cover and move it down along the cord. Using the



the MIC plug towards the MIC cord and at the same time tug on the MIC

cord to draw back the MIC plug.

Connecting the Microphone

UNIDEN UH7760NB UHF CB Transceiver

The Microphone Hanger comes in two parts. How and where you mount

the MIC hanger will determine which parts to use.

Conventional Mounting with Screws

Use the front part of the MIC Hanger only.

Locate a suitable mounting position and mark and drill two 3mm holes.

Fix the MIC Hanger into place with screws.

Mounting the MIC Hanger

UNIDEN UH7760NB UHF CB Transceiver

UNIDEN UH7760NB

Conventional Mounting with Double Sided Tape

(not supplied)

High quality Double-Sided tape can be found at good retail stores.

Secure the front and back pieces of the MIC Hanger using the supplied

binding screws.

Locate a suitable mounting position.





Mounting the MIC Hanger

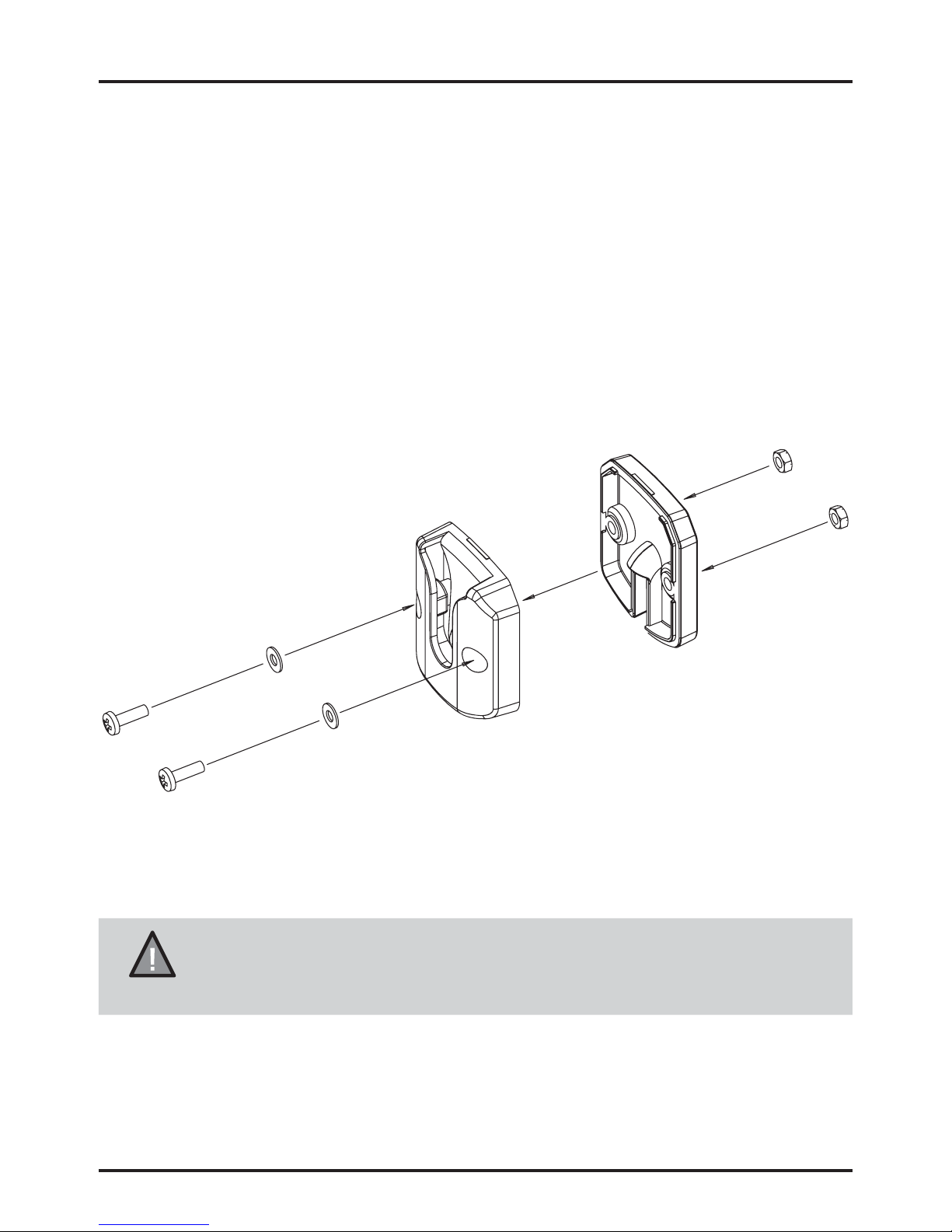

MIC Hanger mounted over MIC Cable

NOTE

The curly cord of the Remote SPK/MIC can extend up to

1.5m. For practical installation of the MIC Hanger mounted

over MIC Cable use this method with the Extension Cable.

UHF CB Transceiver
