Ultimate Support SECOND TIER PRO Manual de usuario

V-STAND®PRO / IQ-3000

SECOND TIER PRO

Manual

V-Stand Pro

IQ-3000

Page 2

STEP 1 – PREPARE

V-STAND® PRO OR IQ-3000

Back End

End

Cap

Sleeve

STEP 1A

Identify the back end of

the support arm of the

V-Stand Pro.

STEP 1B

Slide the support arm

back to make room for

second tier assembly

by lifting it up at an

angle, then sliding

it down until fully

extended. Lay arm flat

onto collar.

STEP 1C

Using a flathead

screwdriver, carefully

detach end cap.

STEP 1A

Identify the back end of

the support arm of the

IQ-3000.

STEP 1B

Slide sleeve forward to

make room for second

tier pro assembly.

STEP 1C

Using a flathead

screwdriver, carefully

detach end cap.

Page 3

STEP 2 – ASSEMBLE

SUPPORT ARMS

Small Spring

Riser Tube

Nut

Z-knob

Washer

Support Arm

STEP 2A

Place nut (H) in well of riser tube (B) on opposite side

of teeth. (NOTE: Until assembled, may fall

out – do not lose!)

STEP 2B

Place one small spring (G) in the well at the center of

the teeth of both support arm (A) and riser tube (B).

Press and hold together.

STEP 2C

Place washer on z-knob (E). Assemble by screwing

z-knob (E) into Nut (H) through riser tube (B) and

support arm (A).

STEP 2D

Repeat STEPS 2A-2C for second assembly.

PARTS USED

A. Two (2) Support Arms

B. Two (2) Riser Tubes

E. Two (2) Z-knobs

F. Two (2) Washers

G. Two (2) Small Springs

H. Two (2) Nuts

Page 4

STEP 3B

Release the quick release lever. Slide end clamp onto end of

stand support arm. (NOTE: Make sure end clamp is as far onto

the support arm as possible.)

STEP 3C

Utilizing the leveling bubble, ensure end clamp is level. Secure

by flipping the quick release lever toward end clamp (which

can be tightened, or loosened using a flathead screwdriver).

STEP 3A

Loosen z-knob on end clamp and rotate until bubble level

and riser tube receiver are perpendicular.

STEP 3 – ATTACH CLAMPS AND

ARMS TO STAND

Z-Knob

Support Arm End Clamp

Quick Release Lever

Flathead screwdriver

Riser Tube

Bubble Level

Page 5

STEP 3D

Using printed height markers, choose desired height and adjust

memory collar position to that line. Use included allen wrench

to lock in place. (NOTE: Leave slightly loose, as you will tighten

completely in STEP 3F.)

STEP 3E

Slide riser tub with memory clamp into end clamp receiver.

STEP 3F

Memory Collar will lock into place in end clamp receiver

groove. After ensuring desired height, make sure 1st tier and

2nd tier support arms are parallel. Finally, tighten completely

using included allen wrench.

Allen Wrench

Memory Collar

Riser tub

End Clamp

Receiver Grove

End Clamp Receiver

Page 6

STEP 4A – Adjust Level

Utilizing the leveling bubble, ensure end clamp is level. If desired,

arms can be adjusted to desired angle, in or out of center, by

loosening Z-knob, adjust to desired angle, then tighten.

STEP 4C – Adjust Angle

Adjust angle of support arm by loosening z-knob, adjust to

desired angle, then tighten.

STEP 4B – Set Height

Set and/or change height by installing memory collar at desired

height (use included allen wrench to tighten).

STEP 4 – Adjust Angles

and Height

Page 7

Included Parts:

A. Two (2) Support Arms

B. Two (2) Riser Tubes

C. Two (2) Memory Collar

D. Two (2) End Clamps

E. Two (2) Z-knobs

F. Two (2) Washers

G. Two (2) Small Springs

H. Two (2) Nuts

Included Tool:

I. One (1) Allen Wrench

Other Tool needed:

J. One (1) Flathead

Screwdriver

(Not Included)

Visit ultimatesupport.com

to download a detailed

product manual, read full

warranty details and to

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rack y soporte de Ultimate Support

Ultimate Support

Ultimate Support JAMSTANDS JS-SRR100 Manual

Ultimate Support

Ultimate Support IQ-3000 Manual de usuario

Ultimate Support

Ultimate Support MC-125 Manual de usuario

Ultimate Support

Ultimate Support GENESIS Series Manual de usuario

Ultimate Support

Ultimate Support GENESIS Series Guía

Ultimate Support

Ultimate Support BOX 5 Manual de usuario

Ultimate Support

Ultimate Support Live Mic Stand Series Manual de usuario

Ultimate Support

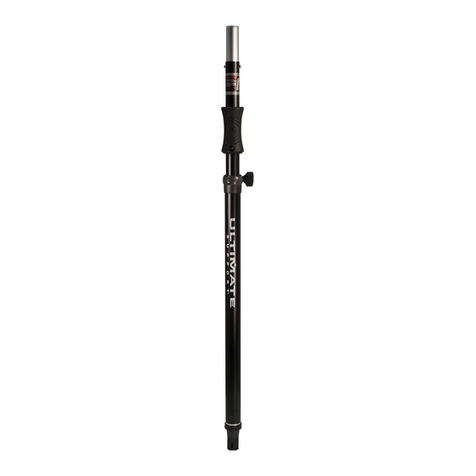

Ultimate Support SP-100 Manual de usuario
