Ultimate Support MC-125 Manual de usuario

Visit www.ultimatesupport.com, click on Music Gear and Instrument Stands/Customer

Support/Warranty Registration. This is a quick and convenient process for registering your

new Ultimate Support product. Warranty Registration and Proof of Purchase are required

for warranty fulfillment.

Warranty Information

In its commitment to uncompromising product quality, Ultimate Support provides

warranties on all products. There is a Five Year Limited Warranty on MC-125 Professional

Studio Boom Stand (#16124), This Limited Warranty is to the original user/purchaser of

Ultimate Support products. Ultimate Support warrants these products to be free from

manufacturing defects. This warranty does not include damage to the product resulting

from accident, misuse, improper installation or operation, unauthorized repair or alter-

ations. If the product should become defective within the warranty provisions, we will elect

to repair or replace it free of charge at our option, including free return postage, provided

it is delivered prepaid to Ultimate Support. Proof of purchase must be submitted with the

returned product.

THE PURCHASER’S/USER’S SOLE REMEDY SHALL BE SUCH REPAIR OR REPLACE-

MENT AS IS EXPRESSLY PROVIDED ABOVE, AND ULTIMATE SUPPORT SYSTEMS, INC.

SHALL IN NO EVENT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL

DAMAGES ARISING OUT OF THE USE OR INABILITY TO USE THIS PRODUCT FOR ANY

PURPOSE WHATSOEVER.

For answers to any questions regarding warranty/service, call Customer Support

800-525-5628. Please visit www.ultimatesupport.com to register your product warranty

online.

Some states do not allow the exclusion or limitation of incidental or consequential

damages, so the above limitation or exclusion may not apply to you. This warranty gives

you specific legal rights, you may also have other rights which vary from state to state.

2506 Zurich Drive

Ft. Collins, CO 80524

Phone: 800-525-5628

www.ultimatesupport.com

Product Manual for

Ultimate Support MC-125

Professional Studio Boom stand

(#16124)

Product Manual Item #16316

Warranty Registration

Elevating Performances

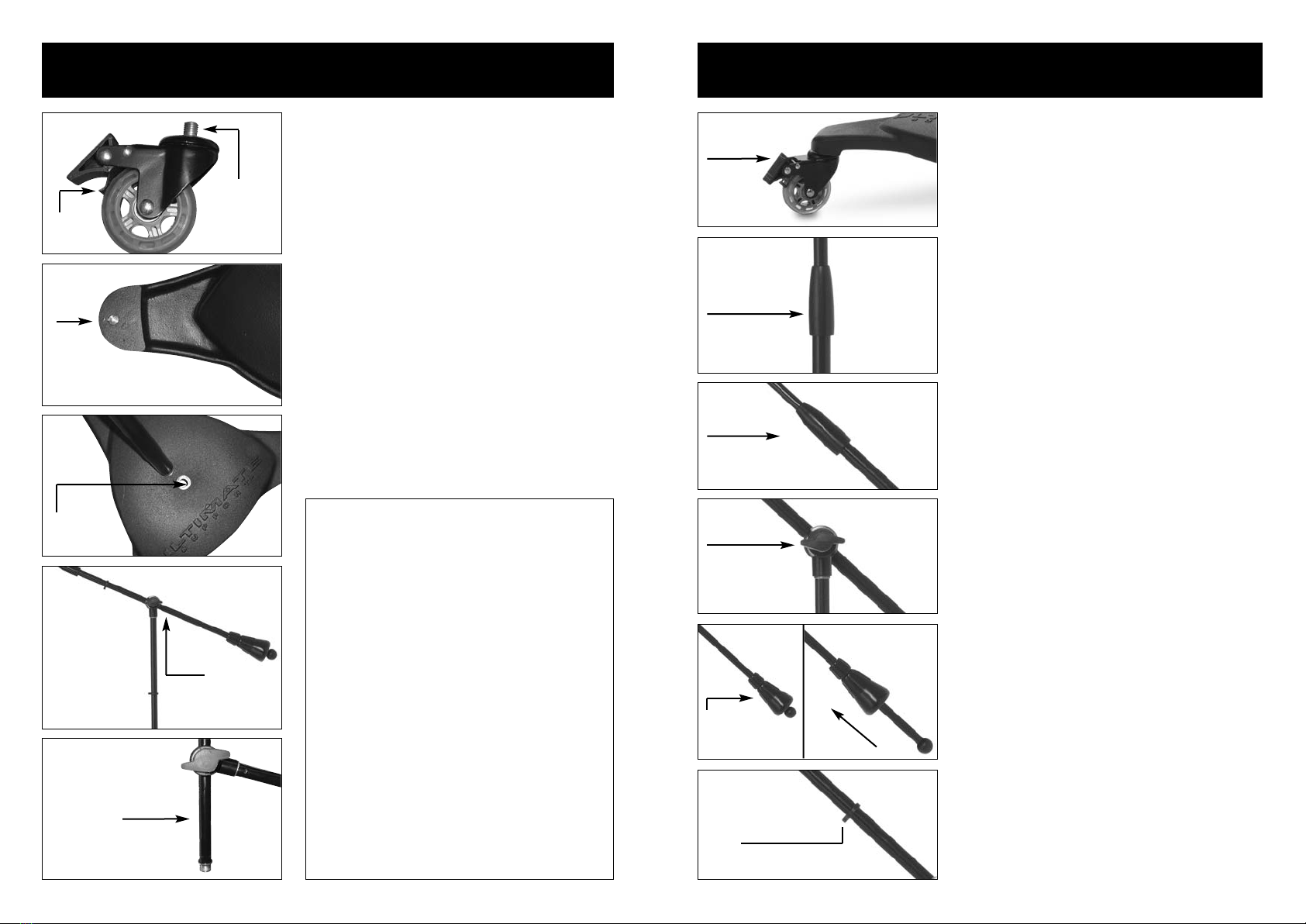

Assembly Instructions User Instructions

STEP 1 - Casters:

Unlock to move the stand on the smooth-

rolling casters. Lock in place (1).

STEP 2 - Height Adjustment:

Loosen the upright clutch (2) by turning coun-

terclockwise. Adjust to your desired height.

Tighten the clutch by turning clockwise.

STEP 3 - Boom Length Adjustment:

Loosen the clutch (3) by turning counterclock-

wise. Adjust to your desired length. Tighten

the clutch by turning clockwise.

STEP 4- Boom Positioning:

The boom has 3-way adjustment: front-to-

back, up-and-down, and rotationally.

Simply loosen the control knob (4), make

all three adjustments and tighten snugly.

STEP 5- Counterweight:

For optimum balance, the boom counter-

weight (5a) can be repositioned. Simply

unscrew the two halves of the counter-

weight, position (5b) along the boom

portion of the stand and tighten.

STEP 6 - Boom Extension:

Set boom extension to vertical or hanging

straight down (see figure 4, page 2).

Securely tighten. Attach microphone.

STEP 7 - Cable Management:

Easy-to-use cable management clips (6) are

conveniently located in 2 places along the

boom and on the upright portion of the stand.

Simply press your mic cable into the clip for a

clean look. Gently pull the cable to remove.

mc-125 specs

• item #16124 - black

• stand height with casters 51 ½" - 82 ¾"

(1308 mm - 2102 mm)

• boom length 28” - 55” (711 mm - 1397 mm),

plus 5 ½” 140 mm) arm extension

•total stand weight 35 lbs. (15.88 kg)

•base weight with casters 22 ½ lbs. (10.2 kg)

•base diameter 22 ½” (572 mm)

•caster diameter 3" (76 mm)

•caster assembly height 3 ¾” (95 mm)

•load capacity 5 lbs. (2.3 kg)

•counterweight weight 5 ¾ lbs. (2.6 kg)

•folded assembled with casters 58 ¾" x 22 ½"

(1492 mm x 508 mm)

• 5-year warranty:

see

Warranty Information

section, pg. 4, for details

Threaded

Caster

Threaded

Corner

Threaded

Base

Boom

Extension

STEP 1 - Attaching Swivel Casters:

Put caster into “Lock” position (1a). Screw

all three swivel casters into the threaded

corners on the underside of the base (1b).

Securely tighten.

STEP 2 - Attaching Upright Shaft:

Thread upright assembly securely into the

base (2).

STEP 3 - Attaching Boom:

Thread the boom portion of the stand onto

the top of the upright shaft (3). Securely

tighten.

STEP 4 - Attaching Boom Extension:

Screw the boom extension onto the

threaded end of the main boom portion of

the stand (4).

Caster

with

Lock

Upright

Clutch

Boom

Clutch

1a 1

Wheel

Lock

Boom

Upright

Boom

Adjustment

Knob

Cable

Management

Clip

Counter-

weight

2 3
