Ubiquiti UniFi UAP Manual de usuario

Enterprise WiFi System

Models: UAP, UAP-LR (Long Range)

Table of ContentsUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

Table of Contents

Chapter 1: Product Overview .......................................1

Package Contents ................................................................1

System Requirements ............................................................1

Network Topology Requirements .................................................1

Front.............................................................................2

Back .............................................................................2

Chapter 2: Installation ..............................................3

Hardware Installation.............................................................3

Software Installation..............................................................5

Chapter 3: Using the UniFi Controller Software ......................7

Interface Tabs ....................................................................7

Common Interface Options .......................................................7

Recent Events ....................................................................7

Settings ..........................................................................8

Admin ..........................................................................12

Chapter 4: Map Tab................................................13

Adding Custom Maps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Adding a Google Map™..............................................14

Placing Access Points on the Map ................................................16

Setting the Map Scale ...........................................................18

Chapter 5: Statistics Tab ...........................................20

Clients ..........................................................................20

Quick Look ......................................................................20

Current Usage - Top Access Points ...............................................21

Recent Activities.................................................................21

Chapter 6: Access Points Tab.......................................22

Chapter 7: Users Tab...............................................23

Chapter 8: Guests Tab .............................................24

Chapter 9: Offline Clients Tab ......................................25

Chapter 10: Access Point Details ...................................26

Details .........................................................................26

Users ...........................................................................27

Guests .........................................................................28

Configuration ..................................................................28

Table of ContentsUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

Chapter 11: User/Guest Details ....................................34

Details ..........................................................................34

Statistics ........................................................................34

History ..........................................................................35

Configuration ...................................................................35

Chapter 12: HotSpot Manager .....................................36

Appendix A: Portal Customization .................................38

Overview........................................................................38

Enabling Portal Customization...................................................38

Viewing the Default Portal .......................................................38

Setup ...........................................................................38

Appendix B: UniFi Discovery Utility ................................40

Overview........................................................................40

Appendix C: Specifications ........................................42

Appendix D: Safety Notices........................................44

Electrical Safety Information .....................................................44

Appendix E: Warranty .............................................45

General Warranty................................................................45

Appendix F: Compliance Information ..............................46

Installer Compliance Responsibility ..............................................46

FCC .............................................................................46

Industry Canada.................................................................46

RF Exposure Warning ............................................................46

CE Marking......................................................................46

RoHS/WEEE Compliance Statement ..............................................46

Appendix G: Declaration of Conformity ............................48

Appendix H: Contact Information..................................49

Ubiquiti Networks Support ......................................................49

Chapter 1: Product OverviewUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

Chapter 1: Product Overview

Thank you for purchasing the Ubiquiti UniFi Enterprise

WiFi System. The UniFi Enterprise WiFi System includes

the UniFi Controller software that allows you to manage

your wireless network using your Web browser.

This User Guide is for use with version 2.0 or above of

the UniFi Controller software with the following UniFi

Enterprise WiFi System Access Point models:

Model Maximum Power

Consumption

Maximum TX

Power

UniFi AP

(UAP) 4W 20 dBm

UniFi AP Long Range

(UAP-LR) 6W 27 dBm

Unless otherwise needed to specify differences between

the two models, this Quick Start Guide will refer to both as

UniFi AP.

The UniFi Enterprise WiFi System also includes the

necessary hardware for mounting the unit on a wall or a

ceiling. The UniFi Enterprise WiFi System supports Passive

PoE which works with the included PoE adapter. If you

want to power the UniFi AP from an 802.3af compliant

switch, Ubiquiti Networks offers the optional Instant

802.3af Adapter to instantly transform any PoE device into

a fully 48V 802.3af compliant product. Product details are

available on our website at http://ubnt.com/8023af

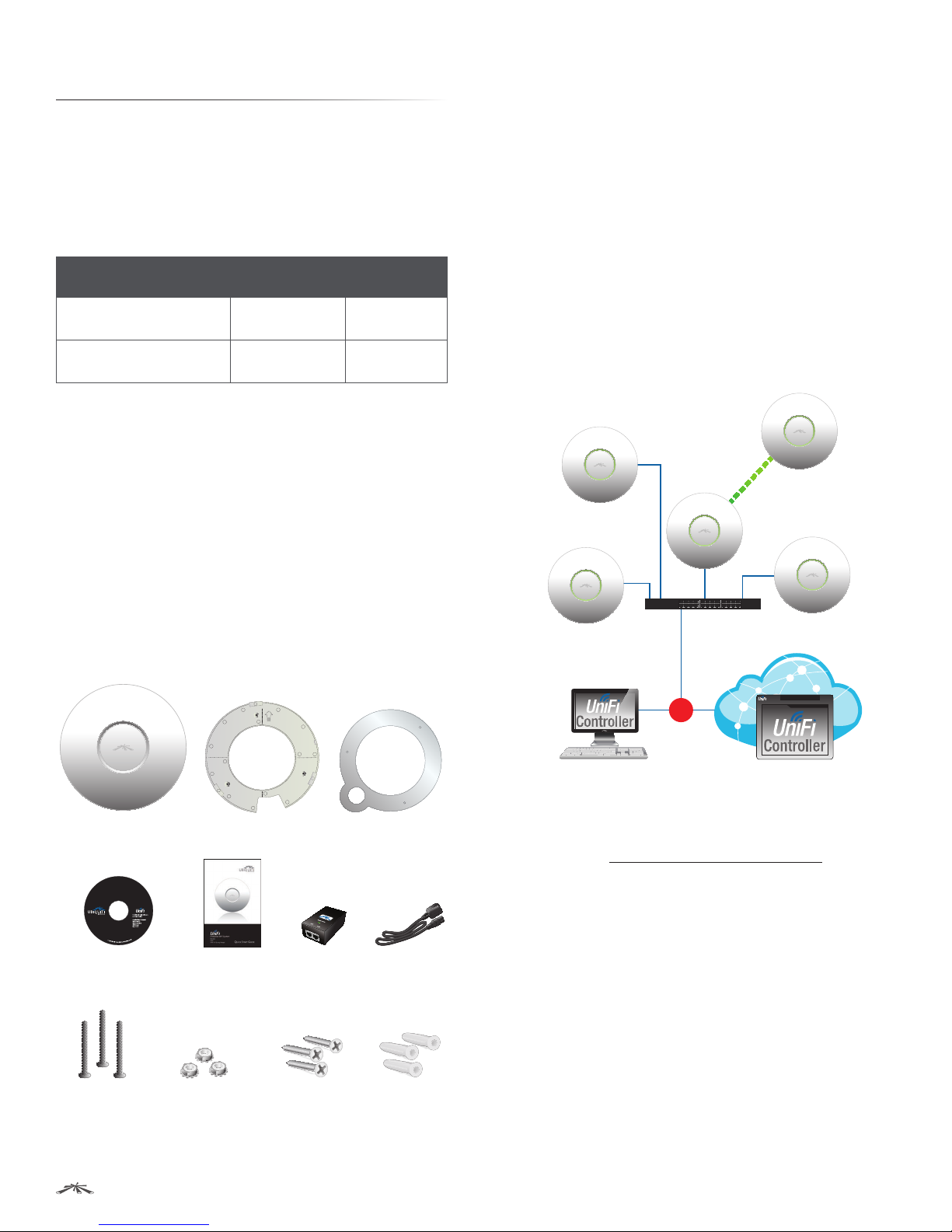

Package Contents

Wall Mount

UniFi AP Wall-Mount Bracket Ceiling-Mount Plate

UniFi Controller

CD with User Guide Quick Start Guide 24v PoE

Adapter Power Cord

M3X30 Flat Head

Screw (Qty. 3)

M3 Keps Nut with

Tooth Washer

(Qty. 3)

M2.9x20 Self Tapping

Screw (Qty. 3)

M3x20 Screw

Anchor (Qty. 3)

System Requirements

 Microsoft Windows XP, Windows Vista, Windows 7, or

Mac OS X

 Java Runtime Environment 1.6 (or above)

 Web Browser: Mozilla Firefox, Google Chrome, or

Microsoft Internet Explorer 8 (or above)

Network Topology Requirements

 A DHCP-enabled network (for the wired Access Point to

obtain an IP address as well as for the wireless Access

Points after the deployment).

 Access Point(s) and either an on-site management

station computer running the UniFi Controller software

connected to the same Layer-2 network or located in an

off-site cloud or NOC.

Router

O-Site

Cloud/NOC2

On-Site

Management Station

Wired UAP/UAP-LR

Wireless

Uplinked1

UAP/UAP-LR

Sample Network Topology

¹ Please refer to “Wireless Uplinks” on page 31 for

setting up Wireless-Linked APs.

² All UniFi APs support Off-Site Management Controllers.

Chapter 1: Product OverviewUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

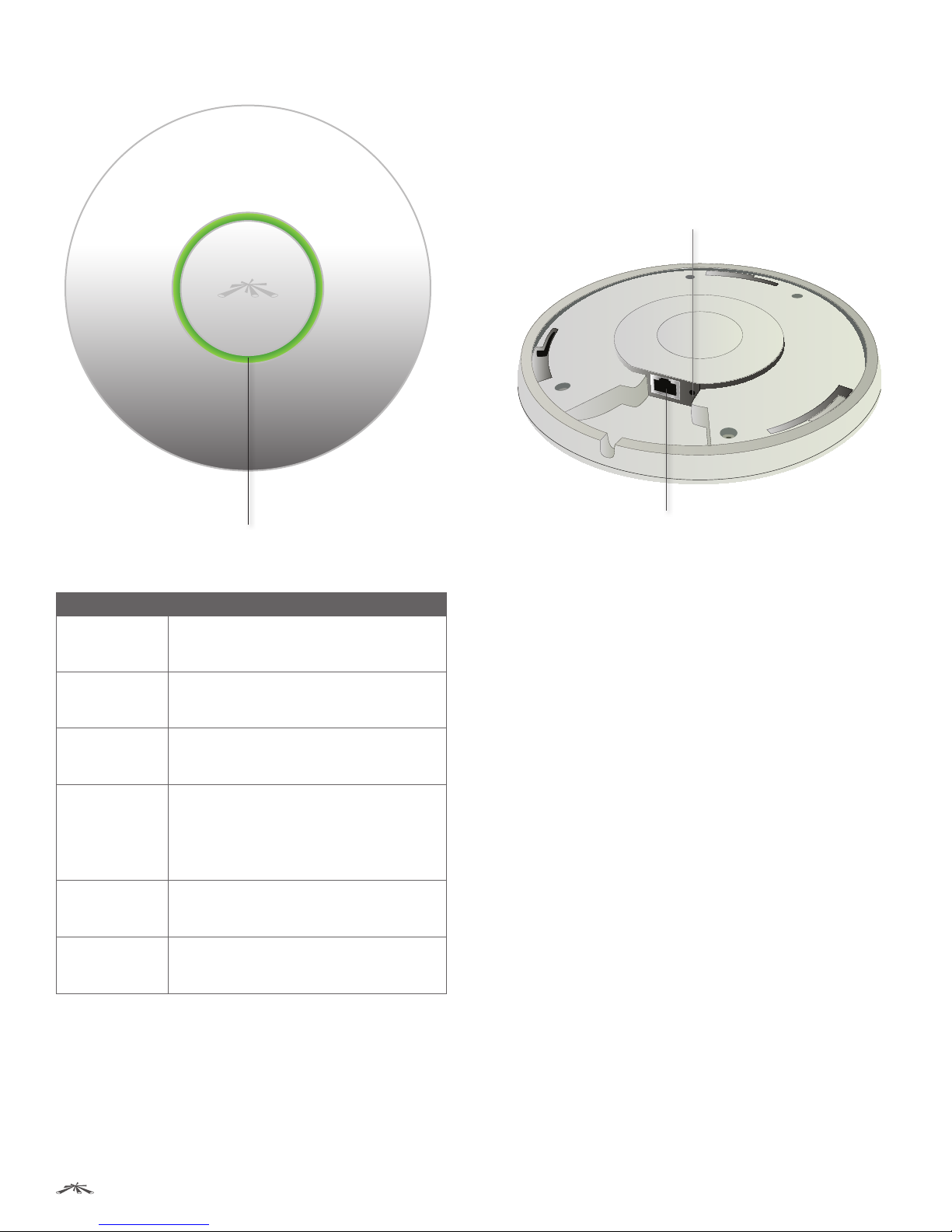

Front

LED Indicates the status of the device. See

the table below for details.

LED Color Status

Flashing Amber Initializing

Steady Amber Factory default, waiting to be integrated

Alternating

Amber/Green

Device is busy, do not touch or unplug it,

this usually indicates a process such as a

firmware upgrade is taking place

Quickly Flashing

Green

This is used to locate an AP.

When you click on Locate in the UniFi

Controller software, the AP will blink. It will

also display the location of the AP on the

map.

Steady Green

Indicates the device has been successfully

integrated into a network and is working

properly.

Steady Green

with occassional

flashing

Indicates the device is in an isolated state

(all WLANS are brought down until an

uplink is found).

Back

Ethernet Port Connects to the 24v PoE

Adapter to provide power to the unit.

Reset Button The reset button serves two functions:

 Restart It will restart the device when you press

and release it quickly.

 Restore Factory Defaults When you press and

hold it for more then 5 seconds, it will restore the

device to the factory default settings.

Chapter 2: InstallationUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

Chapter 2: Installation

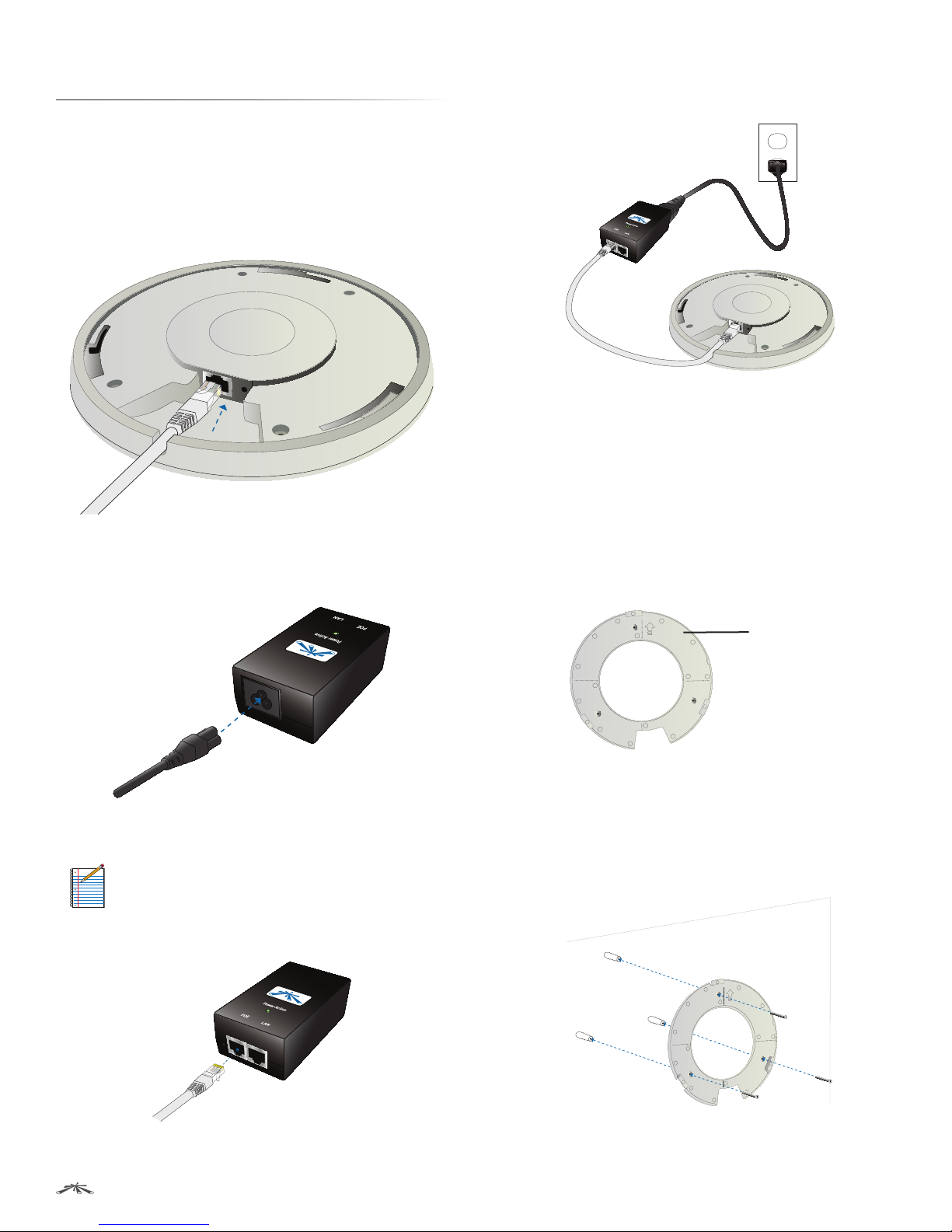

Hardware Installation

The UniFi Enterprise WiFi System is powered by the

included PoE (Power over Ethernet) adapter. To install the

AP, perform the following steps:

1. Connect an Ethernet cable to the Ethernet port on the

UniFi Enterprise WiFi System.

2. Connect the power cord to the power port on the PoE

Adapter. Connect the other end to of the power cord to

a power outlet.

3. Connect the other end of the Ethernet cable to the

Ethernet port labeled PoE on the PoE Adapter.

Note: If you plan to mount the AP on your

ceiling, perform the ceiling mount installation

steps before connecting the Ethernet cable to

the PoE Adapter.

Below is an overview of the Power over Ethernet

connections.

Power Connection Diagram

Mounting the Access Point

The UniFi Enterprise WiFi System can be wall-mounted or

mounted on a ceiling. Perform the following steps for the

appropriate installation:

Wall-Mount

1. Align the wall-mounting bracket with the Wall Mount

text facing up. There are horizontal and vertical lines on

the bracket to help with orientation.

Wall Mount

Wall Mount text

2. Use a pencil to mark the holes on the wall.

3. Use a 6 mm drill bit to drill the holes in the wall.

4. Insert the 3 screw anchors into the wall.

5. Secure the wall-mount bracket to the wall by inserting

the self tapping screws into the anchors.

Wall Mount

Chapter 2: InstallationUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

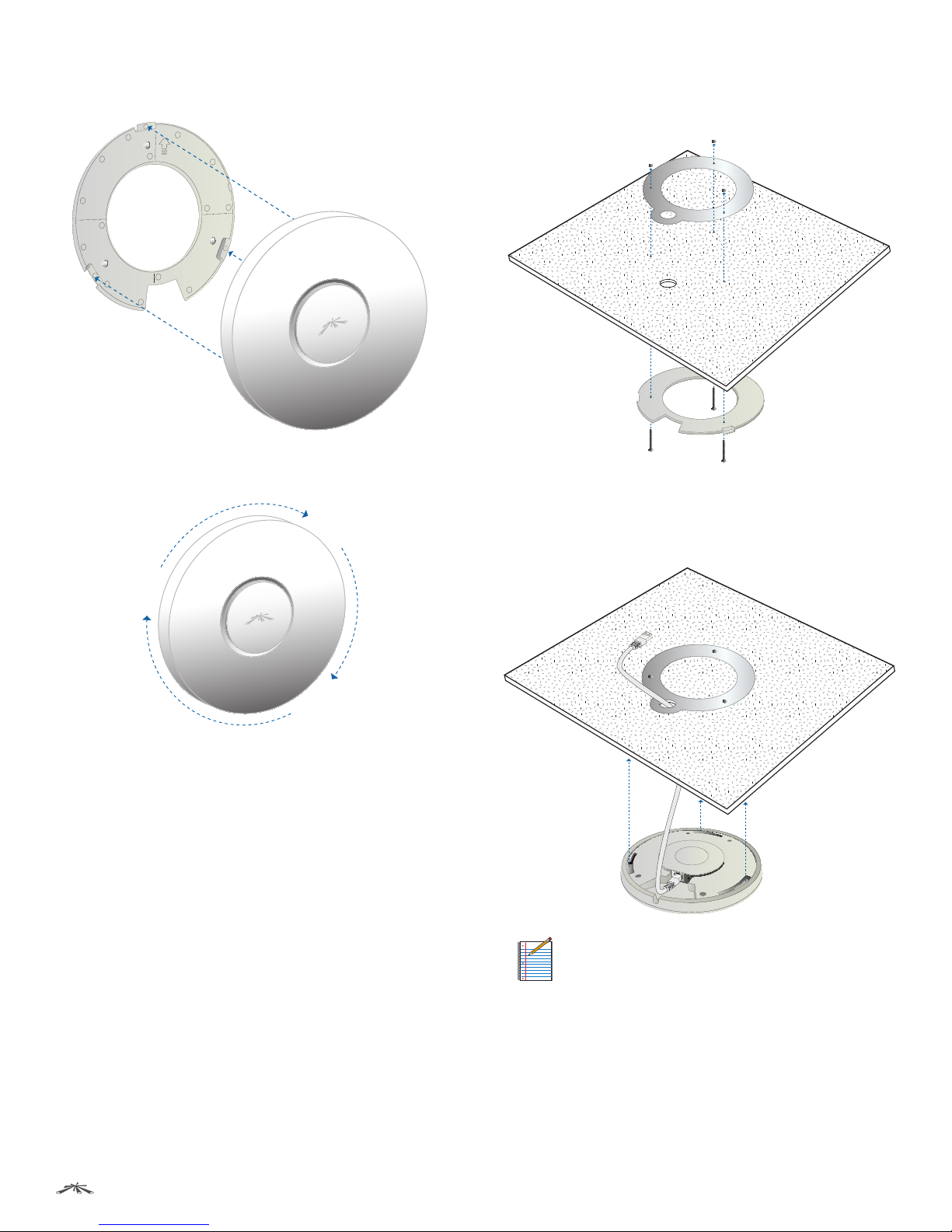

6. Align the notches on the AP with the notches on the

wall-mount bracket.

Wall Mount

7. Turn the AP clockwise until it locks into place.

Wall Mount

Ceiling-Mount

1. Remove the ceiling tile.

2. Align the ceiling-mount plate to the center of the top

side of the ceiling tile.

3. Use a 3.5 mm drill bit to drill holes for the three flat

head screws.

4. Cut or drill a circle approximately 25 mm in size that

lines up with the larger circle on the ceiling-mount

plate. This will be used for the Ethernet cabling.

5. Secure the wall-mount bracket and ceiling-mount plate

to the ceiling tile using the 3 flathead screws and 3 nuts

with tooth washers.

6. Feed the Ethernet cable through the hole and then

align the UniFi AP with the notches on the wall-mount

bracket.

Note: The UniFi AP supports Passive PoE which

works with the included PoE adapter. If you

want to power the UniFi AP from an 802.3af

compliant switch, Ubiquiti Networks offers the

optional Instant 802.3af Adapter to instantly

transform any PoE device into a fully 48V

802.3af compliant product.

Product details are available on our website at

http://ubnt.com/8023af

7. Turn the AP clockwise until it locks into place.

Chapter 2: InstallationUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

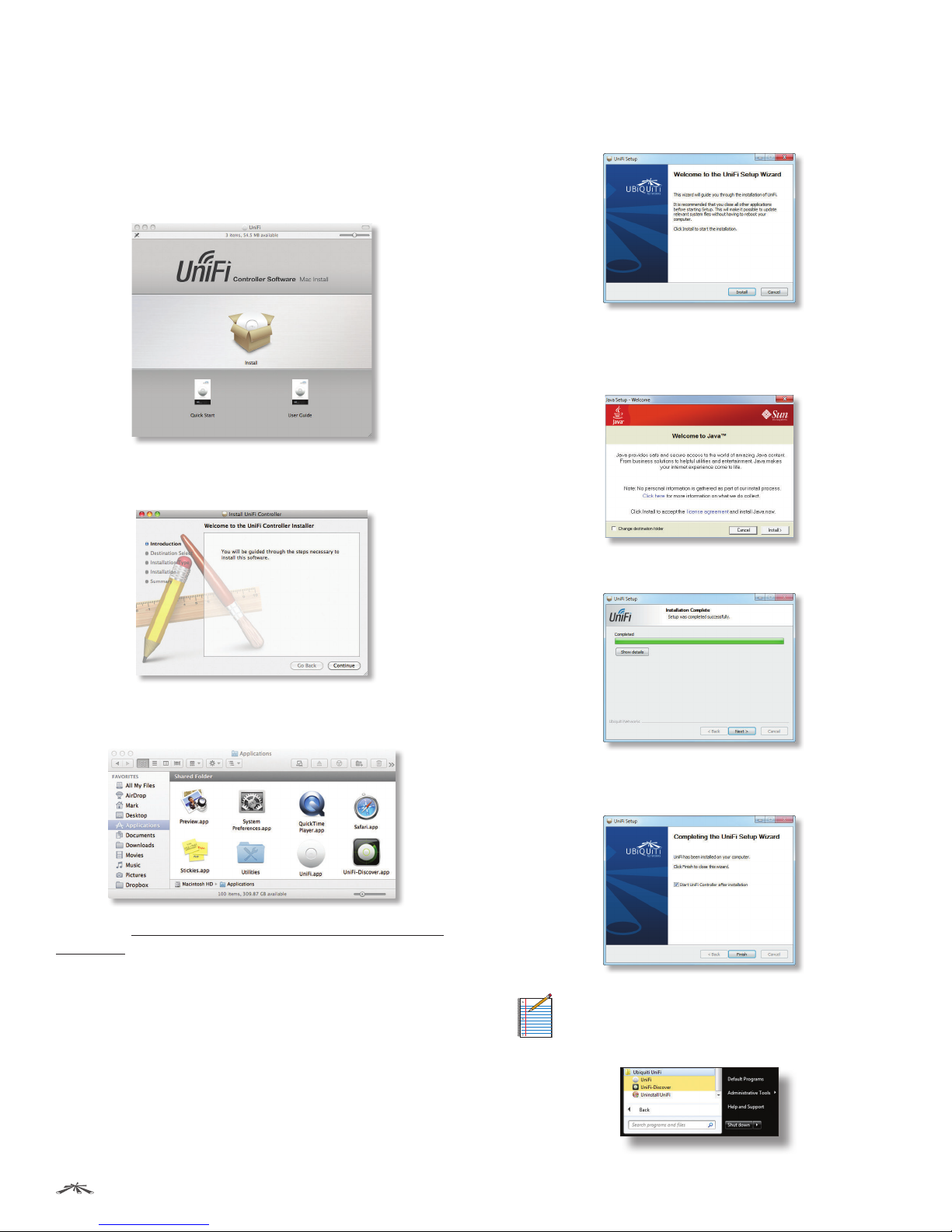

Software Installation

Insert the UniFi Controller software CD into your CD-ROM

drive and follow the instructions for your specific

computer type.

Mac Users

1. Click on the Install icon.

2. Click Continue and follow the on-screen instructions to

install the software.

3. Go to Go > Applications and double-click the UniFi

icon.

Proceed to “Configuring the UniFi Controller Software”

on page 6.

PC Users

1. Launch UniFi-installer.exe.

2. Click Install.

3. If your computer doesn’t have Java 1.6 or above

installed, you will be prompted to install it. Click Install

to continue.

4. Click Next.

5. Be sure the Start UniFi Controller after installation option

is checked and click Finish.

Note: The UniFi Controller software can also be

launched from Start > All Programs > Ubiquiti

UniFi.

Chapter 2: InstallationUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

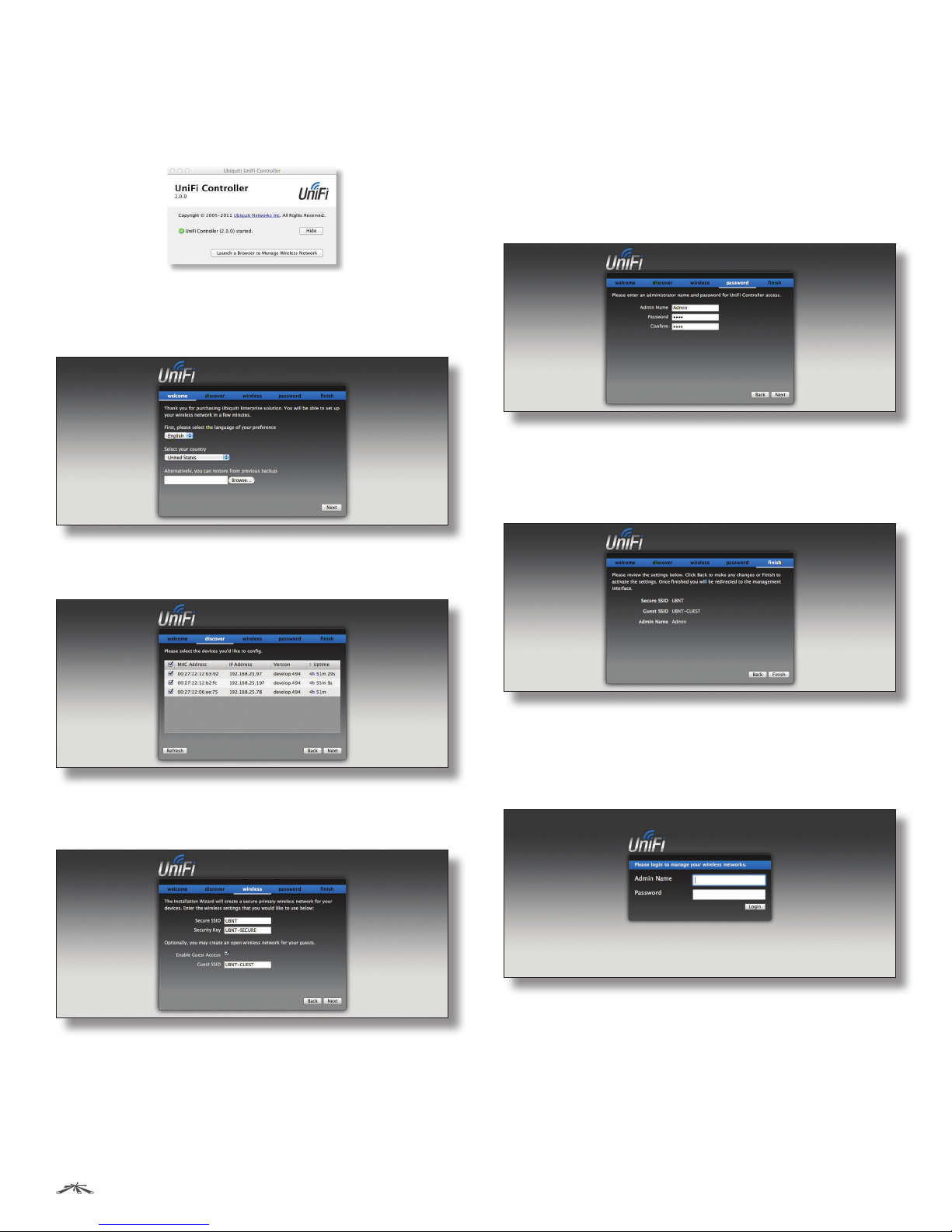

Configuring the UniFi Controller Software

1. The UniFi Controller software startup will begin. When

the option becomes available, click Launch a Browser

to Manage Wireless Network.

2. Select your language and country. Alternatively you

can restore from a previous backup by clicking Browse.

Click Next.

3. Select the devices that you want to configure and click

Next.

4. The UniFi Installation Wizard will create a secure

primary wireless network for your devices. Perform the

following steps:

a. Enter a unique wireless network name (SSID) in the

Secure SSID field.

b. Enter a unique passphrase to be used for your

primary network in the Security Key field.

c. To enable guest access, select Enable Guest Access

and enter a guest network name in the Guest SSID

field.

d. Click Next.

5. Enter an admin name in the Admin Name field and

password in the Password field to use when accessing

the management interface. Confirm your password in

the Confirm field. Click Next.

6. On the Finish tab, review your settings. Click Back to

make changes or Finish to save your settings. Once

finished you will be redirected to the management

interface via your web browser.

Congratulations, your wireless network is now configured.

A login screen will appear for the UniFi Controller

management interface. Enter the admin name and

password that you created and click Login.

Proceed to the next chapter for information on using the

UniFi Controller software.

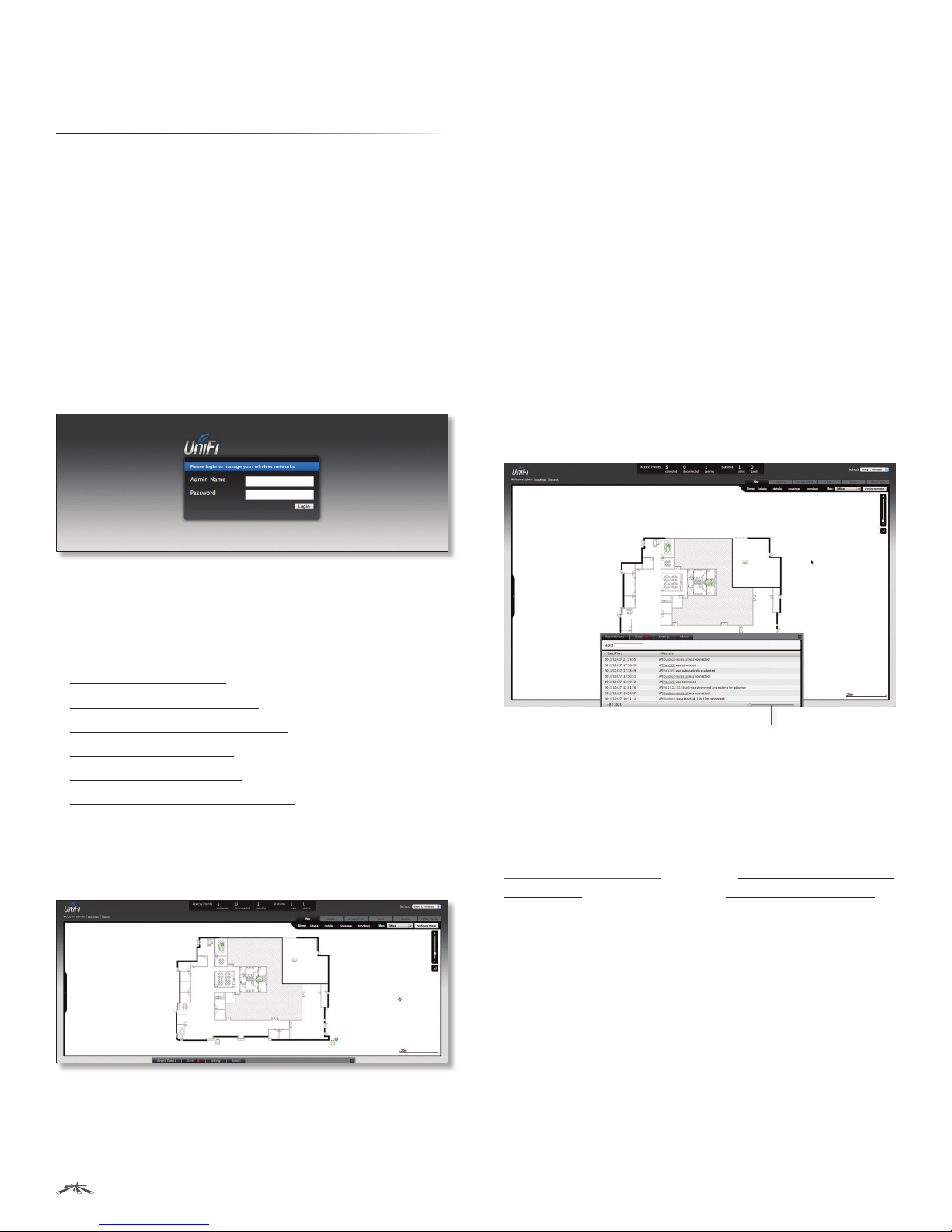

Chapter 3: Using the UniFi Controller SoftwareUniFi AP/AP-LR User Guide

Ubiquiti Networks, Inc.

Chapter 3: Using the UniFi

Controller Software

The UniFi Controller software that comes with your UniFi

Enterprise WiFi System has a browser-based interface for

easy configuration and management.

To access the interface, perform the following steps:

1. Launch the UniFi Controller application if hasn’t already

been started.

Mac users: Go > Applications > UniFi

Windows users: Start > All Programs > Ubiquiti

UniFi.

2. The UniFi login screen will appear. Enter the admin

name and password in the appropriate fields and click

Interface Tabs

The UniFi software consists of six primary tabs. This User

Guide covers each tab with a chapter. For details, on a

specific tab, refer to the appropriate chapter.

 “Map Tab” on page 13

 “Statistics Tab” on page 20

 “Access Points Tab” on page 22

 “Users Tab” on page 23

 “Guests Tab” on page 24

 “Offline Clients Tab” on page 25

Common Interface Options

The common interface options are accessible from all tabs

in the UniFi interface.

Access Points

 connected Drop-down clickable list of all of the Access

Points that are online.

 disconnected Displays a list of Access Points that were

previously online but are no longer accessible.

 pending Drop-down clickable list of all of the Access

Points that are not yet managed but are available for

management.

Stations

 users Displays the total number of users connected to

the primary network.

 guests Displays the total number of users connected to

the guest network.

Recent Events

Displays a list of recent events including the date and time

the event occurred and the details of the event. The User

and Access Point names are clickable links.

Event Slider Move the slider right and left to navigate

between pages of events.

Search Allows you to enter text you want to search for.

Simply begin typing, there is no need to press Enter.

Clicking on an Event Device Link

The event messages have clickable links [in brackets

underlined in gray text] for AP (See “Access Point Details”

on page 26), User and Guest (See “User/Guest Details”

on page 34). Details vary based on the selection.

Otros manuales para UniFi UAP

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de Ubiquiti

Ubiquiti

Ubiquiti LiteBeam LBE-5AC-LR Manual de usuario

Ubiquiti

Ubiquiti NanoStatonM Series Manual de usuario

Ubiquiti

Ubiquiti PowerBeam PBE-5AC-Omni Manual de usuario

Ubiquiti

Ubiquiti UniFi AP AC Lite Manual de usuario

Ubiquiti

Ubiquiti IsoStation AC IS-5AC Manual de usuario

Ubiquiti

Ubiquiti BulletAC-IP67 Manual de usuario

Ubiquiti

Ubiquiti PowerBeam AC PBE-5AC-300 Manual de usuario

Ubiquiti

Ubiquiti NBE-M5-16 Manual de usuario

Ubiquiti

Ubiquiti NB?2G18 Manual de usuario

Ubiquiti

Ubiquiti PowerBeam AC PBE-5AC-620 Manual de usuario

Ubiquiti

Ubiquiti RocketM Series Manual de usuario

Ubiquiti

Ubiquiti UniFi Dream Machine Manual de usuario

Ubiquiti

Ubiquiti NanoStation M2 Manual de usuario

Ubiquiti

Ubiquiti airFiber AF-11 Manual de usuario

Ubiquiti

Ubiquiti UAP-PRO UNIFI Manual de usuario

Ubiquiti

Ubiquiti NanoStation 5AC Loco Manual de usuario

Ubiquiti

Ubiquiti RocketM Series Manual de usuario

Ubiquiti

Ubiquiti Rocket Prism 5AC Manual de usuario

Ubiquiti

Ubiquiti NBE--2AC--13 Manual de usuario

Ubiquiti

Ubiquiti UniFi nanoHD AP Manual de usuario

Ubiquiti

Ubiquiti NanoBeam 5AC Gen 2 NBE-5AC-Gen2 Manual de usuario

Ubiquiti

Ubiquiti NanoStation M Manual de usuario

Ubiquiti

Ubiquiti UAP Manual de usuario

Ubiquiti

Ubiquiti NBE--2AC--13 Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

D-Link

D-Link DAP-3662 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario

Draytek

Draytek VIGORAP 902 Manual de usuario

EnGenius

EnGenius EAP350 Manual de usuario
