Ubiquiti UAP-AC-LITE Manual de usuario

802.11ac Dual Radio

Access Point

Model: UAP-AC-LITE

Introduction

Thank you for purchasing the Ubiquiti Networks® UniFi®AP.

This Quick Start Guide is designed to guide you through

installation and includes warranty terms.

IMPORTANT:

The UAP-AC-LITE requires the UniFi Controller

v4.7 or higher, available at: downloads.ubnt.com/unifi

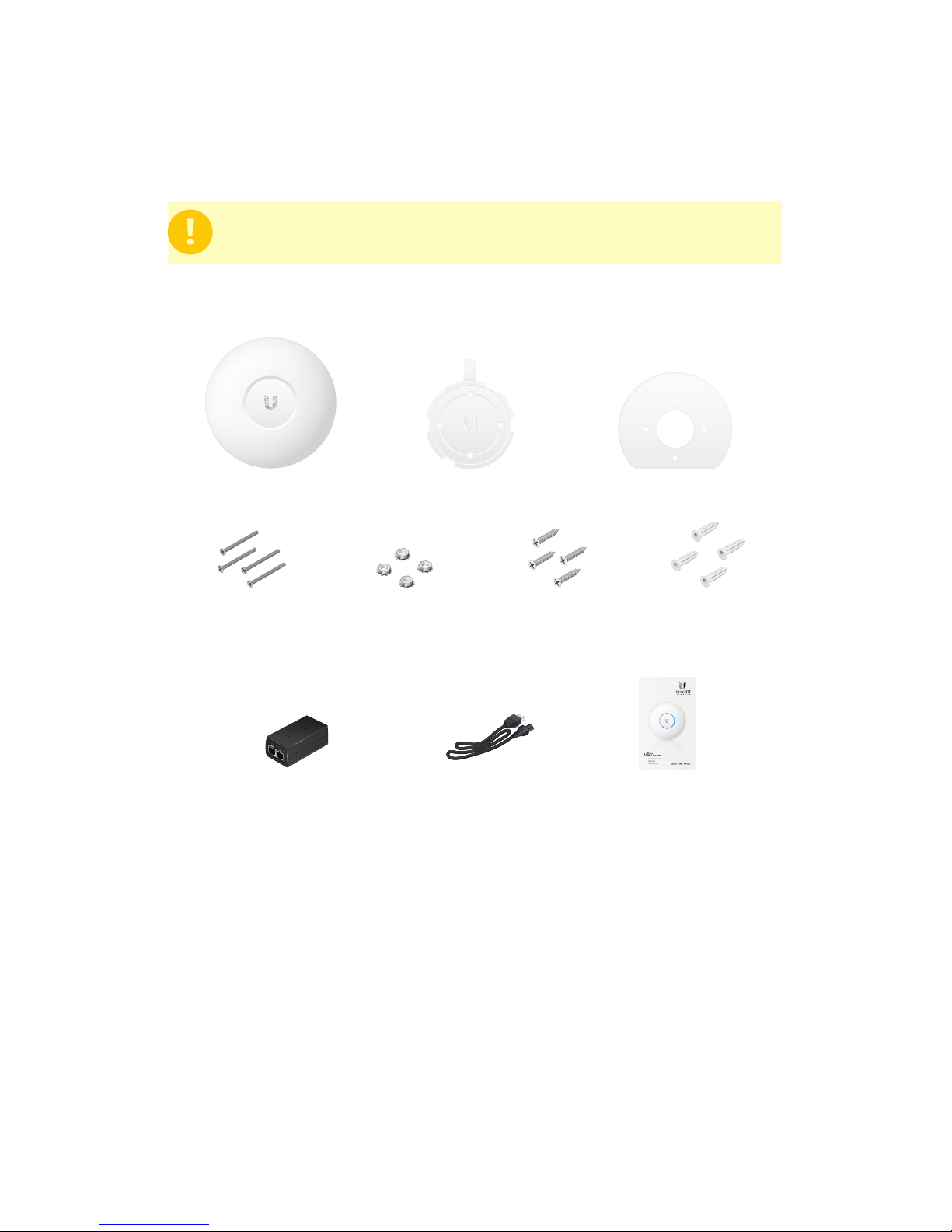

Package Contents

UniFi AP AC Lite Mounting Bracket Ceiling Backing Plate

Flat Head Screws

(M3x50, Qty. 4)

Keps Nuts

(M3, Qty. 4)

Screws

(M2.9x20, Qty. 4)

Screw Anchors

(M3x20, Qty. 4)

802.11ac Dual Radio

Access Point

Model: UAP-AC-LITE

Gigabit PoE* (24V, 0.5A)

with Mounting Bracket

Power Cord* Quick Start Guide

* Included only in the single-pack of the UAP-AC-LITE.

Installation Requirements

• CAT5/6 cable

• Phillips screwdriver

• Drill and drill bit (6 mm for wall-mounting or 3 mm for

ceiling-mounting)

• Optional: Drywall or keyhole saw (to cut 18 mm hole for

Ethernet cable feed)

responsibility to follow local country regulations, including operation within legal frequency

channels, output power, indoor cabling requirements, and Dynamic Frequency Selection

(DFS) requirements.

System Requirements

• Microsoft Windows 7/8, MacOSX, or Linux

• Java Runtime Environment 1.6 (or above)

• Web Browser: Mozilla Firefox, Google Chrome, or Microsoft

Internet Explorer 10 (or above)

• UniFi Controller software v4.7 or higher (available at:

downloads.ubnt.com/unifi)

Network Topology Requirements

• A DHCP-enabled network (for the AP to obtain an IP address

as well as for the wireless clients after deployment)

• A management station running the UniFi Controller

software, located either on-site and connected to the same

Layer-2 network, or off-site in a cloud or NOC

UAP-AC-LITE

UAP-AC Outdoor

NetworkHealth

www WAN LAN

WLAN

VOIP

www WAN LAN WLAN VOIP

DNS

GATEWAY

ACTIVECLIENTS

DOWN

SWITCHES

USERS

GUESTS

DOWN

APS

USERS

GUESTS

DOWN

PHONES

EXTENSION

CALLSIN

CALLSOUT

XXX.XXX.XXX.XXX

XXX.XXX.XXX.XXX 192

162

DASHBOARD

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

SETTINGS

CURRENTSITE

Default

REFRESHRATE

2minutes

NetworkHealth

www WAN LAN

WLAN

VOIP

www WAN LAN WLAN VOIP

DNS

GATEWAY

ACTIVECLIENTS

DOWN

SWITCHES

USERS

GUESTS

DOWN

APS

USERS

GUESTS

DOWN

PHONES

EXTENSION

CALLSIN

CALLSOUT

XXX.XXX.XXX.XXX

XXX.XXX.XXX.XXX 192

162

DASHBOARD

MAP

DEVICES

CLIENTS

CALLS

STATISTICS

INSIGHTS

SETTINGS

CURRENTSITE

Default

REFRESHRATE

2minutes

O-Site

Cloud/NOC

On-Site

Management

Station

UniFi Switch

UniFi

Security

Gateway

Internet

UAP-PRO

LAN

WAN

Sample Network Diagram

All UniFi devices support off-site management controllers.

For setup details, see the User Guide on the website:

documentation.ubnt.com/unifi

Hardware Overview

LED

LED Color Status

White Factory default, waiting to be integrated.

Flashing White Initializing.

Alternating

White/Blue

Device is busy; do not touch or unplug it.

This usually indicates that a process such

as a firmware upgrade is taking place.

Blue

Indicates the device has been successfully

integrated into a network and is working

properly.

Quickly

Flashing Blue

This is used to locate an AP.

When you click Locate in the UniFi

Controller software, the LED on the AP will

flash. It will also display the location of the

AP on the map.

Steady Blue

with occasional

flashing

Indicates the device is in an isolated state

(all WLANs are brought down until an

uplink is found).

Ports

Ethernet

Port

Reset

Button

Locking Notch

Cable

Feed Plug

Locking Notch The Locking Notch will be used with the

Mounting Bracket to help secure the UniFi AP. (This is described

further in the Mounting Bracket section.)

Ethernet This Gigabit Ethernet port is used to connect the

power and should be connected to the LAN and DHCP server.

Power can be provided by a Ubiquiti Networks UniFi Switch or

Gigabit PoE adapter (included with single-pack only).

Reset The Reset button serves two functions for the UniFi AP:

• Restart Press and release the Reset button quickly.

• Restore to Factory Default Settings Press and hold the

Reset button for more than five seconds.

Alternatively, the UniFi AP may be reset remotely via a Reset

button located on the bottom of the Gigabit PoE adapter.

Cable Feed Plug If your Ethernet cable feeds along the

mounting surface, remove the Cable Feed Plug.

Mounting Bracket

Locking Tab

Locking Tab During installation, the Locking Tab on the

Mounting Bracket moves from the Initial Position to the Final

Position, where the Locking Tab fits securely into the Locking

Notch on the UniFi AP to help prevent theft.

Initial Position Final Position Slot

Note:

If you need to remove the UniFi AP from the

Mounting Bracket, insert a paper clip in the Slot to release

the Locking Tab and turn the UniFi AP counterclockwise.

Hardware Installation

The UniFi AP can be mounted on the wall or ceiling. Perform

the steps for the appropriate installation:

Wall Mount

1. Position the Mounting Bracket at the desired location on

the wall with the arrow pointing up.

2. Use a pencil to mark the four mounting holes. Use a 6 mm

drill bit to drill the mounting holes.

Arrow

3. If your Ethernet cable feeds through the wall, then cut or

drill a circle approximately 18 mm in diameter. Then feed

the CAT5/6 cable through the hole.

25 mm

Note: 25 mm is the distance from the center of the

bottom mounting hole to the center of the cable hole.

4. Insert the Screw Anchors into the 6 mm holes. Secure the

Mounting Bracket to the wall by inserting the Screws into

the anchors.

5. If the Ethernet cable runs along the mounting surface,

remove the Cable Feed Plug.

6. Connect the Ethernet cable to the Ethernet port.

7. Align the arrow on the UniFi AP with the arrow on the

Locking Tab of the Mounting Bracket.

Arrow

Locking Tab

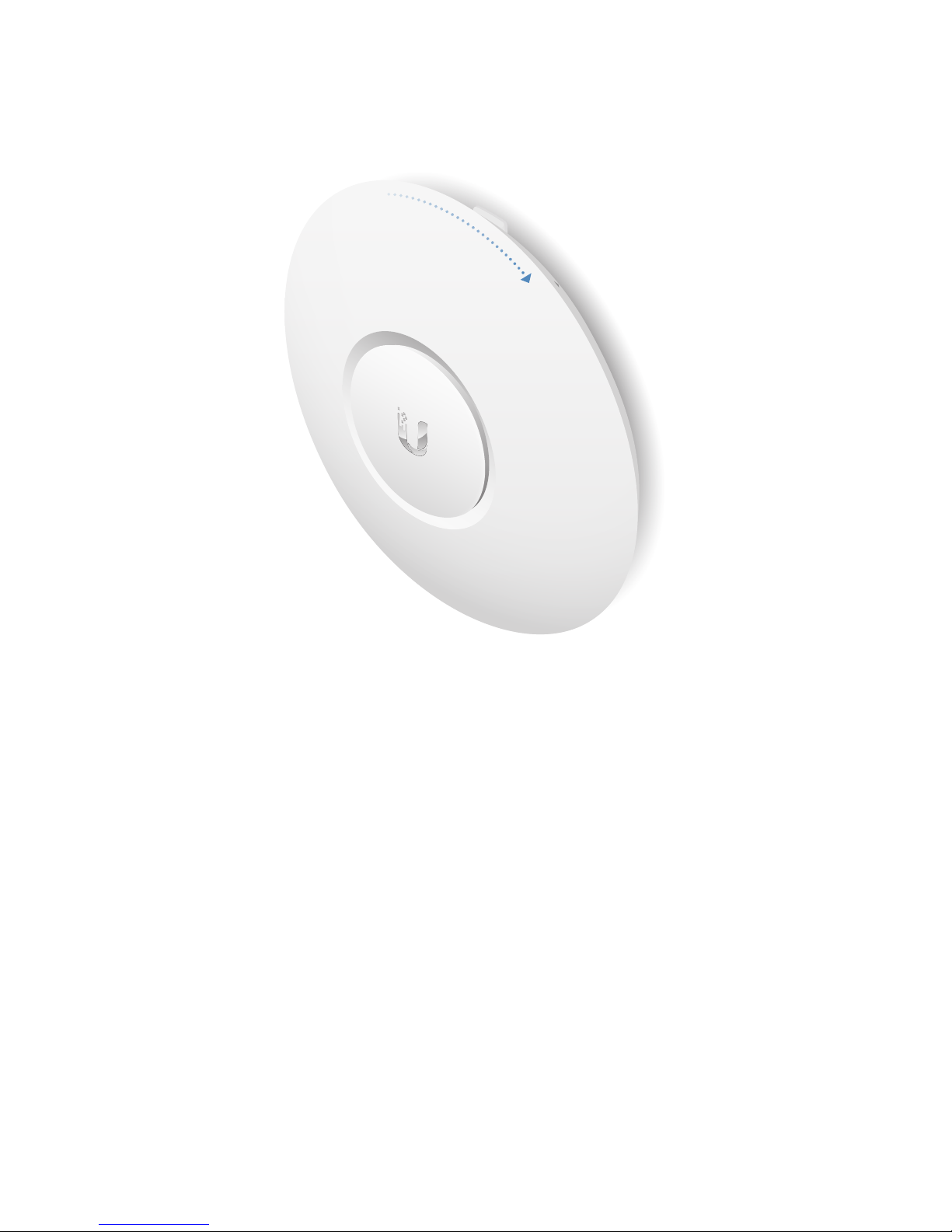

8. Ensure that the UniFi AP is firmly seated on the Mounting

Bracket. Turn the UniFi AP clockwise until it locks into place

and the Locking Tab fits securely into the Locking Notch.
