Ubiquiti USW-24 Manual de usuario

UniFi Switch Rack-Mount Brackets (Qty. 2) Bracket Screws (Qty. 8)

Mounting Screws (Qty. 4) Cage Nuts (Qty. 4) Power Cord

Package Contents

System Requirements

Linux, Mac OS X, or Microsoft Windows 7/8/10

Java Runtime Environment 1.6 (1.8 or newer recommended)

Web Browser: Google Chrome (Other browsers may have limited functionality.)

UniFi Controller software v5.12.x (or newer), available at:

ui.com/download/uniﬁ

IMPORTANT:

We strongly recommend using UPS backup and power regulation to

prevent equipment damage due to stability issues with local AC power.

Hardware Overview

USW-24 Quick Start Guide

Touchscreen Display

RJ45 Speed/Link/Activity LED (Ports 1 - 24)

SFP Link/Activity LED (Ports 25 - 26)

Bootup Animation Initializing.

Steady White Factory defaults, waiting for adoption.

Steady Blue Successfully adopted by a network and working

properly.

Location Animation This indicates that you clicked Locate in the UniFi

Controller software. The software will also display the

location of the device on the map.

Oﬀ No Link

Amber Link Established at 10/100 Mbps

Flashing Indicates Activity

Green Link Established at 1000 Mbps

Flashing Indicates Activity

Oﬀ No Link

USW-24 Quick Start Guide

RJ45 (Ports 1 - 24)

SFP (Ports 25 - 26)

Reset Button

Power Port

Green Link Established at 1 Gbps

Flashing Indicates Activity

RJ45 ports support 10/100/1000 Ethernet connections.

Hot-swappable SFP ports support 1 Gbps connections.

This button serves two functions for the UniFi Switch:

Restart

Press and release the Reset button quickly.

Restore to Factory Default Settings

Press and hold the Reset button for more than

ﬁve seconds.

Connect the included Power Cord to the Power port.

Installation Requirements

Phillips screwdriver

Standard-sized, 19" wide rack with a minimum of 1U height available

For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.

For outdoor applications, shielded Category 5 (or above) cabling should be used for all

wired Ethernet connections and should be grounded through the AC ground of the

power supply.

We recommend that you protect your networks from harmful outdoor environments

and destructive ESD events with industrial-grade, shielded Ethernet cable from Ubiquiti.

For more details, visit:

ui.com/toughcable

Note:

Although the cabling can be located outdoors, the UniFi Switch itself

should be housed inside a protective enclosure.

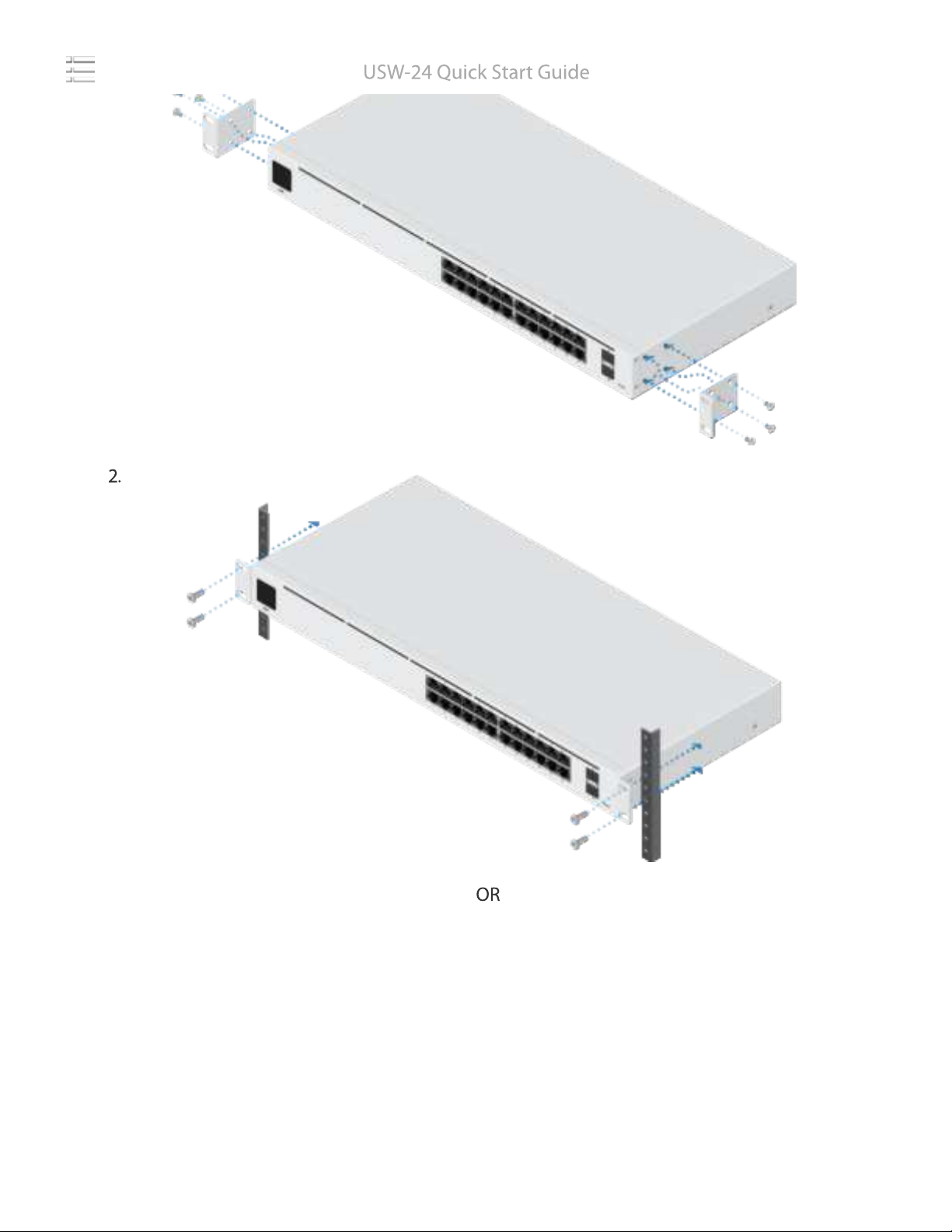

Hardware Installation

USW-24 Quick Start Guide

Connecting Power

USW-24 Quick Start Guide

Connecting Ethernet

USW-24 Quick Start Guide

Connecting SFP

USW-24 Quick Start Guide

For information about compatible ﬁber SFP modules, visit:

ubnt.link/UniFi_SFP_DAC_Compatibility

Software Installation

USW-24 Quick Start Guide

Download and install the latest version of the UniFi Controller software at

ui.com/download/uniﬁ

and follow the on-screen instructions.

Note:

If you already have UniFi Controller v5.12.x or newer installed, skip to

“Adopting the UniFi Switch”

After you have installed the software and run the UniFi Installation Wizard, a login screen

will appear for the UniFi Controller management interface. Enter the admin name and

password that you created and click Sign In.

You can manage your network and view network statistics using the UniFi Controller

management interface.

To adopt the UniFi Switch, proceed to

“Adopting the UniFi Switch”

For information on conﬁguring and using the UniFi Controller software, refer to the User

Guide on the website:

ui.com/download/uniﬁ

Adopting the UniFi Switch

1. From the UniFi Controller dashboard, click Devices in the left menu bar.

USW-24 Quick Start Guide

2. On the Devices screen, locate the UniFi Switch in the list of devices under the Model

column. To adopt the UniFi Switch, click Adopt.

3. The display will turn blue to conﬁrm that the UniFi Switch has been successfully

adopted.

Speciﬁcations

USW-24

USW-24 Quick Start Guide
