Operating Instructions

TBE400

Index 001

10999936 en / 04.01.2022

Manufacturer's address:

TYROLIT Hydrostress AG

Witzbergstrasse 18

CH-8330 Pfäffikon

Switzerland

Tel. +41 (0)44 952 18 18

Fax +41 (0)44 952 18 00

www.hydrostress.com

TYROLIT Hydrostress AG reserves the right to make technical changes without prior notice.

Printing of this operating manual, including extracts from it, is prohibited.

No parts of it may be reproduced in any form or processed using electronic systems, duplicated or

disseminated without the written permission of TYROLIT Hydrostress AG.

TBE400 Owner manual text

TABLE OF CONTENTS

Contents……………………………...........

Safety precautions………………………..

General safety rules………………………

Health warnings…………………………...

Unpack, assembly & set-up……………..

Diamond blade installation……………....

Inspection & specification………………..

Features……………………………………

Cutting table assembly………………..….

The rip guide…………………………...….

Cutting depth……………………………...

Water pump installation………………….

Folding legs ………………………………

Electric motor specifications…………….

Do’s & Don’ts for blades…………………

Saw maintenance…………………………

Troubleshooting…………………………..

Customer service…………………………

Disposal …………… …………….………

Spare parts list……………………………

Declaration of conformity ……………….

SAFETY PRECAUTIONS

Saw blade should be inspected daily for excessive wear, core cracks, and arbor

damage. Replace any blade that shows signs of damage.

•To mount blade, clean arbor and outer flanges, tightening nut securely.

•DO NOT place any portion of body in line with blade while it is rotating.

•To reduce risk of electrical shock, it is recommended to use GFCI and refer servicing

to qualified professional.

We recommends the use of these safety items when operating the saw:

USE PROPER GROUND CICUIT !

USE BLADE GUARD WHEN OPERATING SAW !

ALWAYS WEAR SAFETY GEAR !

GENERAL SAFETY RULES

•Never use the machine improperly or work in an unsafe manner.

•Always wear safety goggles, dust mask, and ear protection while operating the saw.

•Always remain alert when the saw is in use. Failure to pay attention on the

operator’s part may lead to serious injury.

•Before you start working, familiarize yourself with the work site and its surroundings.

Take notice of circumstances, which may impede working or traffic, observe soil

conditions (good bearing or not), and take measures to ensure safety (i.e. the

shielding of road works from public traffic).

•Take measures to ensure that the machine is in a safe and trouble-free condition

prior to usage. Use the machine only when all protective devices (i.e. guards, noise

absorbers, emergency-off devices) are operating in the intended locations.

•A visual check of the machine must be made at least once a shift to ensure that

visible damages or faults are recognized. Any changes (including changes in the

performance or behavior of the machine) must be reported to the supervisor. If

necessary, stop the machine at once and secure it.

•In the case of a malfunction, stop the machine immediately and secure it. Fix the

problem as soon as possible.

•For starting and stopping the machine follow the operating instruction steps and

observe any indicator lights.

•Before switching the machine on make sure that the activated machine will be of no

danger to anyone.

•Be sure to connect the plug to a properly grounded receptacle to reduce the risk of

electric shock.

HEALTH WARNINGS

Some dust are created by power sanding, sawing, grinding, drilling, and cause other

construction activities contains chemicals known to cause cancer, birth defects or other

reproductive harm. Some examples of these chemicals are:

•Lead from lead based paints.

•Crystalline silica from bricks and cement and other masonry products.

•Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of

work. To reduce your exposure to these chemicals: work in a well ventilated area, and

work with approved safety equipment, such as those dust masks that are specially

designed to filter out microscopic particles.

UNPACKING, ASSEMBLY & SET-UP

Open the container, carefully lift the saw frame handles and place it on a flat, level

working area. Be certain that you have the following items before you discard the

container:

•Saw

•45° / 90° rip guide

•Universal wrench

•Owner’s manual

DIAMOND BLADE INSTALLATION

1. Move the blade shaft cover upwards.

To remove the blade lock nut, open

the shaft space.

2. Place the blade onto the blade shaft.

Make sure that the directional arrow is

pointing in the direction of the shaft

rotation

3. Lock the blade lock nut with the outer

flange. Use the multiple wrench

provided to fasten the blade tightly

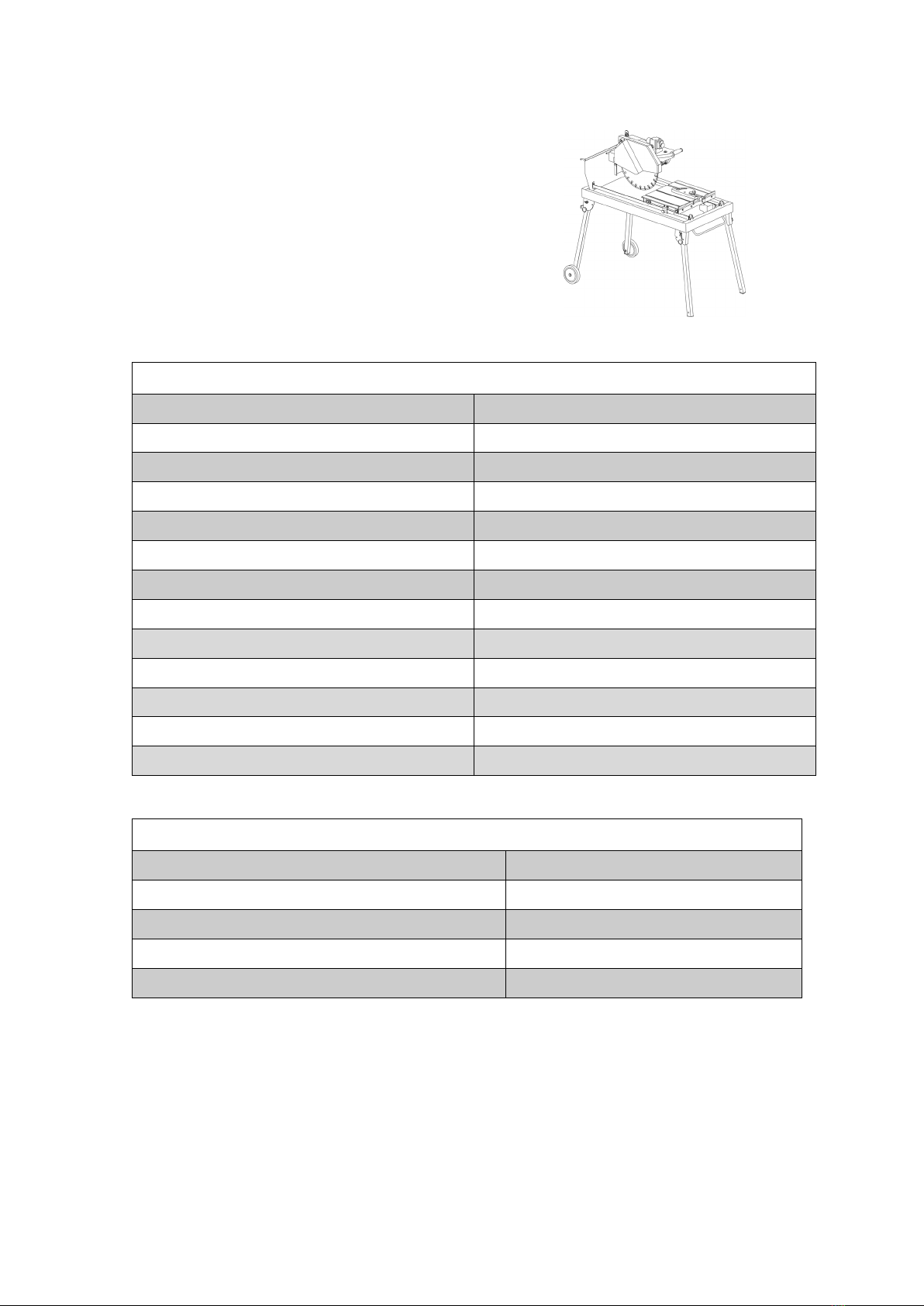

INSPECTIONS & SPECIFICATION

The compact TBE400 table saws are

shipped completely assembled and ready

for use except for the diamond blade.

Inspect the saw for shipping damage. If any

damage is found, contact the shipper

immediately and file a freight claim. We are

not responsible for any freight related

damages. Remove the saw from the

shipping container.

TBE400SPECIFICATIONS

Power 2,2 kW

Volts 230 V (110 V)

Amps 10 A (20)

Cycles 50 Hz (60 Hz)

Blade Shaft Speed 2,800 rpm

Max. Blade Size 15,7” / 400 mm

Arbor Size 1” / 25,4 mm

Max. Cutting Length 23,6” / 600 mm

Length 1210 mm

Width 655 mm

Hight 1285 mm

Wight 86 Kg

Degree of protection IP54

NOISE LEVEL AND VIBRATIONS

Parameter Wert

Noise level at the ear of the user (Leq) 81.9 dB(A)*

Noise level at workplace (LPA) 69.3 dB(A)*

Sound power level in acc. ISO 3744 (LwA) 89.3 dB(A)*

Vibrations DIN EN ISO 5349-2 < 2.5 m/s²

*Value applies under the following condition: With Sawblade Ø350mm Type

EB No. 5696.

Higher noise levels may be generated in cutting operation.

ATTENTION! Hearing protection must be worn when 85 dB(A) is exceeded!

FEATURES

The TBE400 table saw is designed for the professional contractor in mind. It enhances

performance with a multitude of features facilitating operation.

1 Sturdy handle and Spring Lever allow for quick pluge cuts

2 Miter Cutting Capability

3 Rear Splash Guard protects the jobsite against dust and water

4 Stainless Steel Water Tray

5 Folding legs with Wheels facilitate transport

6 45° / 90° Rip Guide

7 Powerful Induction Motor

CUTTING TABLE ASSEMBLY

To install the cutting table to the machine:

1. Set the cutting table on the rails

2. Install the screw and brackets to

the cutting table

3. To remove the cutting table do

the reverse of the above two

steps.

THE CUTTING TABLE

Features:

•The heavy-duty cutting table with

steel wheels provides the durability

to handle large materials.

Only use the Ø16" (400 mm) blade for this saw. Setting smaller size of

diamond blade may grab the material being cut, causing damage and

possibly injury.

USE PROPER GROUND CICUIT !

USE BLADE GUARD WHEN OPERATING SAW !

ALWAYS WEAR SAFETY GEAR !

THE RIP GUIDE

Steps to use the 45º / 90º rip guide

1. Set the rip guide by positioning it on the desired dimension and tighten the threaded

knob. Make sure that the rip guide is firmly tightened to avoid slippage. The rip guide

can be used for 90º rip cuts and 45º angle cuts from both the left and right side.

(Note the straight and 45º angled slits on the bottom of the rip guide

2. After the rip guide is positioned for the desired cut, place material flat against the rip

guide and the measurement rail. After the rip guide is positioned for the desired cut,

place material flat against the rip guide and the measurement rail. For 45º rip cuts,

place the corner of material in the open slot of the measurement rail.

3. Simply line up the material being cut with the appropriate pre-marked lines on the

cutting table.

4. Now you are ready to make your cut

CUTTING DEPTH

The recommended cutting depth is 0.6cm (¼") below the cutting table surface. The

cutting clearance has been fixed from original designed.

Only use the Ø16" (400 mm) blade for this saw. Setting smaller size of

diamond blade may grab the material being cut, causing damage and

possibly injury.

max. Blade Diameter

max. Cutting Depth

400 mm 125 mm
