TYAN Thunder K8W S2885 Manual de usuario

http://www.TYAN.com

Thunder K8WS2885

Revision 1.00

part of this manual may be reproduced or translated without prior written

consent from TYAN Computer Corp.

All registered and unregistered trademarks and company names contained in

this manual are property of their respective owners including, but not limited to

the following.

TYAN, ThunderK8W are trademarks of TYAN Computer Corporation.

AMD, Opteron, and combinations thereof are trademarks of AMD Corporation.

AMI, AMIBIOS8 are trademarks of American Megatrends Inc.

Phoenix, PhoenixBIOS are trademarks of Phoenix Technologies Ltd.

Microsoft, Windows are trademarks of Microsoft Corporation.

SuSE,is a trademark ofSuSE AG.

Linux is a trademark of Linus Torvalds

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.Winbond is a

trademark of Winbond Electronics Corporation.

Broadcom®is a trademark of Broadcom Corporation and/or its subsidiaries

ATI and Rage XL are trademarks of ATI Corporation

Silicon Image, SATALink are trademarksof Silicon Image

Information contained in this document is furnished by TYAN Computer

Corporation and has been reviewed for accuracy and reliability prior to

printing. TYAN assumes no liability whatsoever, and disclaims any express or

implied warranty, relating to sale and/or use of TYAN products including

liability or warranties relating to fitness for a particular purpose or

merchantability. TYAN retains the right to make changes to product

descriptions and/or specifications at any time, without notice. In no event will

TYAN be held liable for any direct or indirect, incidental or consequential

damage, loss of use, loss of data or other malady resulting from errors or

inaccuracies of information contained in this document.

WWW.TYAN.COM

BEFORE YOU BEGIN… .............................................................3

CHAPTER 1: INTRODUCTION....................................................4

HARDWARE SPECIFICATIONS .......................................................4

SOFTWARE SPECIFICATIONS ........................................................5

CHAPTER 2: BOARD INSTALLATION........................................6

2.00 –BOARD IMAGE..................................................................7

2.01 –BLOCK DIAGRAM..............................................................8

2.02 –BOARD PARTS,JUMPERS AND CONNECTORS .......................9

2.03 –CPU AND CHASSIS FAN CONNECTORS ...............................14

2.04 –OEMRESERVED CONNECTORS AND JUMPERS ....................15

2.05 –INSTALLING THE PROCESSOR(S)........................................16

2.06 –INSTALLING MOTHERBOARD IN CHASSIS.............................19

2.07 –INSTALLING THE MEMORY.................................................19

2.08 –ATTACHING DRIVE CABLES...............................................22

2.09 –CONNECTING AUX/CDSOUND CABLES &SPEAKERS...........23

2.10 –INSTALLING ADD-IN CARDS...............................................24

2.11 –CONNECTING EXTERNAL DEVICES......................................25

2.12 –INSTALLING THE POWER SUPPLY .......................................26

2.13 –FINISHING UP.................................................................27

CHAPTER 3: BIOS....................................................................28

3.00 –BIOS SETUP UTILITY.......................................................28

3.01 –BIOS MAIN MENU...........................................................30

3.02 –BIOS ADVANCED MENU...................................................31

3.03 –BIOS PCI/PNPMENU......................................................42

3.04 –BIOS BOOT MENU ..........................................................44

3.05 –BIOS SECURITY MENU.....................................................46

3.06 –BIOS CHIPSET SETTING MENU..........................................47

3.07 –POWER MENU.................................................................53

3.08 –BIOS EXIT MENU............................................................57

CHAPTER 4: DIAGNOSTICS.....................................................58

APPENDIX I: GLOSSARY .........................................................59

TECHNICAL SUPPORT.............................................................64

WWW.TYAN.COM

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1 x Thunder K8W motherboard

1 x 34-Pin floppy drive cable

1 x SATA Data Cable

1 x SATA Drive Power Adapter

1 x Ultra-DMA-100/66IDEcable

1 x Thunder K8W user’s manual

1 x Thunder K8W Quick Reference guide

1 x TYAN driver CD

1 x Silicon Image SATA driver disk

1 x I/O shield

2 x CPU Retention Frame

If any of these items are missing, please contact your vendor/dealer for replacement

before continuing with the installation process.

WWW.TYAN.COM

Chapter 1: Introduction

Congratulations

You are now the owner of a stable, high performancesolution for powering CAD,

digital content creation, 3D modeling, and other multimedia applications.

bit support, this platform supports AGP 8X/AGP PRO 110 slot, eight DIMM slots

for 16GB of PC2700 DDR memory with ECC, Gigabit Ethernet, integrated Serial

ATA, FireWire, and six-channel audio with SPDIF support.

Hardware Specifications

Processor

Dual µPGA 940-pin ZIF sockets

Supports up to two AMD Opteron™

processors

Two onboard 3-phase VRMs

128-bit DDR dual-channel memory

controller integrated in CPU

Chipset

AMD-8131™ PCI-X Tunnel

AMD-8151™ AGP Tunnel

AMD-8111™I/O Hub

Winbond W83627HF Super I/O

Memory

128-bit DDR dual-channel memory bus

Eight DIMM sockets(four per CPU)

Supports a total of 16GB of DDR RAM

Requiresregistered RAM

SupportsECC or non-ECC

SupportsPC2700,PC2100,&PC1600

Integrated I/O

One floppy, Two serial (one header

and one connector), and one parallel

port connector

PS/2KB/mouse connectors

Total five USB connections (three rear

connectors and two front

USB headers)

Expansion Slots

One 8xAGP/AGP-PRO110Wslot

FourPCI-X slots

-Two 64-bit (3.3v)PCI-X slots support

up to 133 MHz onBus B

-Two 64-bit (3.3v)PCI-X slots support

up to 100 MHz on Bus A

One legacy 32-bit 33MHz PCI slot (5v)

Total of six usable slots

System Management

Analog Devices ADT7463 monitor IC

connected to SMBus 1.0

Total six 3-pin fan headers with

tachometermonitoring and PWM

3-pin Chassis Intrusion header

Integrated Enhanced IDE Controller

Two ports for up to four EIDE devices

Supports up to ATA-133 IDE devices

Integrated Audio

AMD-8111 AC97 Audio Controller

Analog Devices AD1981b Audio Codec

One RCA SPDIF digital connector

Line-in, line-out, mic-in, rear connectors

Headphone & MIC front panel headers

Two 4-pin ATAPI Audio headers

WWW.TYAN.COM

Integrated SATA Controller

Silicon Image SIL3114 SATA

FourSATA1.0channels

IDE RAID 0, 1, 0+1 (option)

48-bit LBA support

Integrated PCI Firewire

TI TSB43AB22 IEEE1394A controller

One external and one internal

connector

IntegratedGigabitEthernet

Broadcom ®BCM5703C Gigabit

Ethernet

RJ-45LAN connectors with LEDs

Connected to PCI-X Bridge A

(64-bit 100MHz)

Regulatory

FCC Class B (Declaration of

Conformity)

European Community CE (Declaration

of Conformity)

BIOS

AMIBIOS8®on 4Mbit LPC Flash ROM

ACPI 1.0b & 2.0

Serial Console Redirect

PXE via Ethernet

USB device boot

48-bit LBA Support

Form Factor

SSI EEB v3.0 footprint (13 x12”

330.2x304.8 mm) Fits many EATX &

SSI-compliant tower chassis

EPS12V SSI Workstation Spec 2.0

(24pin + 8pin+6pin) power connector

Serial (one) and VGA (one) connector

Stacked USB 1.1 (three)connectors

Stacked PS/2KB/Mouseconnectors

One RJ-45 LAN connectors with LED

Line-in/Out, Mic, & SPDIF Audio

Connectors

Software Specifications

OS (Operating System) Support

MicrosoftWindows2000, XP, Server 2003

SuSE Server 8.xfor AMD-64

Red Hat 8.0 and 9.0

Turbo Linux for AMD64

Other distributions of Linux pending validation

TYAN reserves the right to add support or discontinue support for any OS with or

without notice.

Remember to visit TYAN’s Website at http://www.TYAN.com. There you can find

information on all of TYAN’s products with FAQs, online manuals and BIOS

upgrades.

WWW.TYAN.COM

Chapter 2: Board Installation

Precaution:The Thunder K8WsupportsEPS12V/SSI type power supplies

(24pin + 8pin+ 6pin) and will not operate with any other types.For proper power

supply installation procedures see page 26.

DO NOT USE ATX 2.x, ATX12V or ATXGES power supplies as they will damage

the board and void your warranty.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important

information that will make configuration and setup much easier. Here are some

precautions you should take when installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the

antistatic bag. Unplug the power from your computer power supply and

then touch a safely grounded object to release static charge (i.e. power

supply case). For the safest conditions, TYAN recommends wearing a

static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the

board, or flex the board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors,

memory modules, and leads.

(4) Place the motherboard on a grounded antistatic surface or on the

antistatic bag that the board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your

chassis, as well as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN

DAMAGED

WWW.TYAN.COM

2.00 –Board Image

This picture is representative of the latest board revision available at the

time of publishing. The board you receive may or may not look exactly like

the above picture.

The following page includes details on the vital components of this motherboard.

WWW.TYAN.COM

2.01 –BlockDiagram

S2885Thunder K8WBlock Diagram

DIMM2

DIMM4

DIMM1

DIMM3

DIMM1

DIMM3

DIMM4

DIMM2

CPU 0

CPU 1

AGP

8151

AGP8XPro

PCI

8131

PCI-XSlot3

Broadcom

5703C

PCI-X Slot4

PCI-XSlot 1

PCI-X Slot 2

I/O Hub

ATA

EIDEx2

USB1.1 front & rear

AD1981

Codec

AUX

SPDIF

Audio-out

Super

I/O

BIOS

ADT

7463

PCISlot 5

SATA

3114

Floppy

PS/2

Serial&Parallel

Lower 64

bit

Upper 64

bit

Upper 64

bit

Lower 64

bit

128-Bit Dual Channel128-Bit Dual Channel

PCI32bit/33MHz

SMBUS

LPC

PCI

X BUS B

PCI-X BUS A

WWW.TYAN.COM

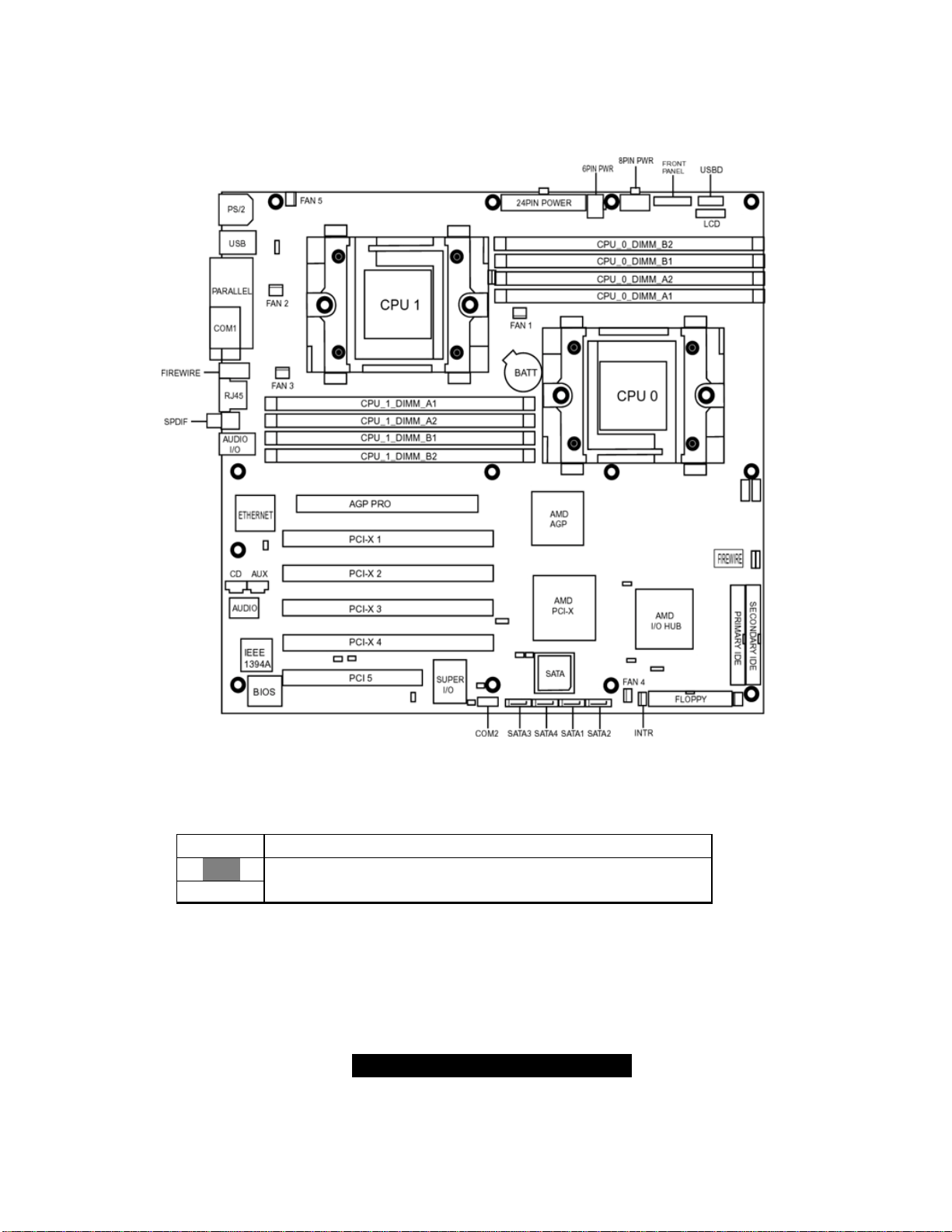

2.02–Board Parts, Jumpers and Connectors

This diagram is representative of the latest board revision available at the time of

publishing. The board you receive may not look exactly like the above diagram.

Jumper Legend

©© OPEN -Jumper OFF without jumper cover

©© CLOSED -Jumper ON with jumper cover

£KeyPin Missing pin to indicate proper orientation

WWW.TYAN.COM

J4 SMBus 1.1 Connector Pin1 :SMBUS_DATA Pin2 : GND

©©©© Use this connector to connect

external SMBUS devices Pin3 : SMBUS_CLK Pin4 : NC

J14 Onboard Buzzer/Speaker header

©©©© Close Pin-3and 4 (Default)-Onboard Buzzer Enabled

©©©© OpenPin-3 and 4 -Disable onboard buzzer or connect to chassis

speaker

J14

J34

J39

J42

J43

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de TYAN

TYAN

TYAN Tempest i5100X S5375 Manual de usuario

TYAN

TYAN S7105 Manual de usuario

TYAN

TYAN Tiger i7500 Manual de usuario

TYAN

TYAN Toledo i965R (S5180AG2N) Manual de usuario

TYAN

TYAN THUNDER K8QS Manual de usuario

TYAN

TYAN THUNDER N4250QE Manual de usuario

TYAN

TYAN THUNDER 2400 Manual de usuario

TYAN

TYAN Tempest i5400PW Manual de usuario

TYAN

TYAN THUNDER I7520, D, R, RD Manual de usuario

TYAN

TYAN THUNDER N3600S Manual de usuario

TYAN

TYAN TOMCAT I845 Manual de usuario

TYAN

TYAN TRINITY 450 Manual de usuario

TYAN

TYAN TOMCAT I7230A Manual de usuario

TYAN

TYAN TRINITY GC-SL Manual de usuario

TYAN

TYAN TOMCAT I815EF Manual de usuario

TYAN

TYAN TRINITY I875P Manual de usuario

TYAN

TYAN THUNDER 2500 Manual de usuario

TYAN

TYAN S1570 AT Manual de usuario

TYAN

TYAN TOMCAT I875PF Manual de usuario

TYAN

TYAN TOMCAT IIIS D Manual de usuario

TYAN

TYAN S5501 Manual de operación y mantenimiento

TYAN

TYAN THUNDER K8SE Manual de usuario

TYAN

TYAN S8236 Instrucciones de uso

TYAN

TYAN S7063 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
