TYAN TRINITY GC-SL Manual de usuario

http://www.TYAN.com

Trinity GC-SL ///

S2707

Revision 1.02

may be reproduced or translated without prior written consent from TYAN Computer Corp.

All registered and unregistered trademarks and ompany names contained in this manual are

property of the r respective owners including, but not limited to the following.

TYAN, Trinity GC-SL S2707 are trademarks of TYAN Computer Corporation.

Intel, Pentium, and combinations thereof are trademarks of Intel Corporation.

Adaptec is a trademark of Adaptec, Incorporated.

AMI, AMIBIOS are trademarks of American Megatrends, Incorporated.

Microsoft, Windows are trademarks of Microsoft Corporation.

National is a trademark of National Semiconductor.

Promise is a trademark of Promise Technology.

IBM, PC, AT, and PS/2 are trademarks of IBM Corporation.

Winbond is a trademark of Winbond Electronics Corporation.

Portable Document Format (PDF) is a trademark of Adobe Corporation.

Information contained in this document is furnished by TYAN Computer Corporation and has been

reviewed for accuracy and reliability prior to printing. TYAN assumes no liability whatsoever, and

disclaims any express or implied warranty, relating to sale and/or use of TYAN products including

liability or warranties relating to fitness for a particular purpose or merchantability. TYAN retains the

right to make changes to product descriptions and/or specifications at any time, without notice. In

no event will TYAN be held liable for any direct or indirect, incidental or consequential damage,

loss of use, loss of data or other malady resulting from errors or inaccuracies of information

contained in this document.

http://www.TYAN.com

Table of Contents

Before you begin…

Chapter 1: Introduction

1.0 Congratulations!

1.1 HardwareSpecifications

Chapter 2: Board Installation

2.0 Board Image

2.1 Board Parts

2.2 JumperSettings

2.3 Connectors

2.4 Front Panel Connector (J22)

2.5 Clear CMOS (JP1)

2.6 64-bit PCI Slot Selection (JP9)

2.7 Intel 82545EM Gigabit NIC (JP22)

2.8 Onboard Intel 82545EM LAN

LEDHeader(J38)

2.9 Intel 82551QM/82540EM NIC (JP24)

2.10 Onboard Intel 82551QM/82540EM

LAN LED Header (J40)

2.11 Onboard ATI RAGE XL Graphics

2.12 Onboard SCSI

2.13 Promise RAID IDE Controller

2.14 Chassis Intrusion Header (J22)

2.15 CPU Thermal Trip (J23)

2.16 Watchdog Timer Control (JP38)

2.17 Fan Connectors

2.18 Serial Header (COM2)

2.19USBHeader(J30)

2.20 Mounting the Motherboard

2.21 Installing the Memory

2.22 Installing the Processor&Heatsink

2.23 Attaching Drive Cables

2.24 Installing Add-In Cards

2.25 Connecting External Devices

2.26 Installing the Power Supply

2.27 Finishing Up

Chapter 3: BIOS

3.0 Main BIOS Setup

3.1 Advanced Settings

3.2 Chipset

3.3 PCI Pnp

3.4 Power

3.5 Boot

3.6 Security

3.7 Exit

Chapter 4: Diagnostics

4.0 Beep Codes

4.1 Flash Utility

Appendix: Glossary

Technical Support

……………………………………………..Page 3

……………………………………………..Page 4

……………………………………………..Page 6

……………………………………………..Page 7

……………………………………………..Page 8

……………………………………………..Page 9

……………………………………………Page 10

……………………………………………Page 11

……………………………………………Page 12

……………………………………………Page 13

……………………………………………Page 14

……………………………………………Page 15

……………………………………………Page 16

……………………………………………Page 17

……………………………………………Page 18

……………………………………………Page 20

……………………………………………Page 22

……………………………………………Page 24

……………………………………………Page 25

……………………………………………Page 26

……………………………………………Page 27

……………………………………………Page 28

……………………………………………Page 30

……………………………………………Page 31

……………………………………………Page 32

……………………………………………Page 33

……………………………………………Page 34

……………………………………………Page 39

http://www.TYAN.com

Before you begin…

Check the box contents!

The retail motherboard package should contain the following:

1x Trinity GC-SLmotherboard

1x CPU retention

1x 34-Pin floppy drive cable

1x LVD SCSI cable (if optional SCSI included)

1 x Ultra-DMA-133/100/66/33 IDE cable (2 cables,if optional RAID included)

1x Cable set: 9-pinSerial

1x Trinity GC-SL User’s Manual

1x Trinity GC-SL Quick Reference guide

1x TYAN driver CD

1x Adaptec SCSI driver diskette (if optional SCSI included)

1x Promise RAID driver diskette (if optional RAID included)

1x I/O shield

If any of these items are missing, please contact your vendor/dealer for replacement before

continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.0 –Congratulations!

You are now the owner of one of the most flexible mPGA478-based motherboards available.

Utilizing the latest chipset technology for Pentium 4 server and workstation-class computing, the

Trinity GC-SL is designed to handle even the most demanding software applications.

Networking? Transferring large volumes of data? Distributed computing? Load balancing? The

Trinity GC-SL has you covered. There are dual onboard LAN ports, including one Gigabit Ethernet

port and one Fast Ethernet port, allowing you a flexible working environment.

The Trinity GC-SL is designed to fit a variety of applications, including the space-restricted 1U/2U

chassis and pedestals.

Remember to visit Tyan’s web site at http://www.tyan.com. There you can find information on all of

Tyan’s products with FAQs, a complete distributors list, and BIOS setting explanations.

1.1 –Hardware Specifications

Processor

• ZIF mPGA478 socket

• Supports the Intel Pentium 4 processor

• Supports 400MHz/533 MHz

Front-Side Bus (FSB)

• Supports Celeron mPGA478

• Onboard VRM 9.0

Chipset

• ServerWorks GC-SLchipset

• CMIC-SL, CIOB-X 2.0, CSB5

• National PC87417 Super I/O

• Winbond W83782D Hardware Monitor

Memory

• Four DDR DIMM sockets (minimum one

DIMM)

• Supports up to 4GB

• Supports Registered ECC DDR (72-bit)

memory modules only

Integrated PCI IDE

• Dual-channel PCI bus-mastermode

• Supports up to four Enhanced IDE devices

• Supports for ATA-100/66/33 IDE and ATAPI

compliant devices

Integrated Video (Manufacturing option)

• ATI RAGE XL graphics controller

• 8MB frame buffer (SDRAM)

• Standard 15-pin analog VGA port

Integrated SCSI (Manufacturing option)

• Adaptec AIC-7892X/7901Ultra160/320Single

Channel SCSI Controller

• Operating at PCI 66MHz Bus

• Supports Intel’s RAIDIOS RAID solution

• Supports the Adaptec’s 2000S Zero-Channel

RAID though one of the PCI 66MHz slots

• 68-pin SCSI connector

Integrated LAN Controller(s)

• One 64-bit PCI-X Gigabit NIC

• Intel 82545EM 10/100/1000 Ethernet Chip

• Operating at 100/66MHz bus

• One 32-bit/33MHz PCI Ethernet NIC

• Intel 82551QM 10/100Mbit LAN controller

or Intel 82540EM(Manufacturing option)

Gigabit Ethernet NIC

Integrated IDE (ATA) RAID

(Manufacturing option)

• Promise PDC20276 IDE controller

• Dual-channel PCI bus-mastermode

• Supports up to four Enhanced IDE devices

• Supports four ATA-133/100/66/33 IDE drives

• Supports RAID levels 0 or 1

http://www.TYAN.com

Expansion Slots

• One PCI-X 133/100/66MHz slot (PCI bus #1)

• One PCI-X100/66MHz slot (PCI bus #2)

• Three 32-bit/33MHz PCI 2.2 slots (PCI bus

#0)

• Three independent PCI buses

• Total five usable slots

System Management

• Winbond W83782D or optional ADI ADM1027

• Total four 3-pin fan headers

• Three 3-pin fan headers with tachometer

monitoring and PWM control

• 2-pin chassis intrusion header

• Temperature and voltage monitoring

• Watchdog timer ready

Integrated I/O

• One floppy connector supports up to

two drives

• Two 9-pin 16550-based serial ports

(COM2 via a cable)

• One 25-pin SPP/ECP/EPP parallel

port connector

• Four USB ports (2 rear connectors and

2 front side USB headers for an optional cable)

• PS/2 keyboard and mouse ports

Regulatory

• FCC DoC (Declaration of Conformity)

• European CE (Declaration of Conformity)

BIOS

• AMI BIOS on 4Mbit Flash ROM

• Supports ACPI

• Auto detection of memory size

• Auto configuration of IDE hard drive types

• Multiple boot options

• User settings of hardware monitoring

• Power Management: ACPI S1, S4, and S5

Form Factor

• Standard ATX 2.03 (12” x 9.6”), 6-layerPCB

• One ATX12V power connector

• Stacked Mouse/Keyboard Ports

• One serial port

• One parallel port

• One VGA port

• Stacked USB ports (two)

• One or two RJ45 connectors (depending on

optional LAN)

OS (Operating System) Support

•MicrosoftWindowsNT4.0

•MicrosoftWindows2000

•MicrosoftWindowsXP

TYAN reserves the right to add support or

discontinue support for any OS with or

withoutnotice.

http://www.TYAN.com

Chapter 2: Board Installation

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Trinity GC-SL

matches the ATX specifications. Before continuing with installation, confirm that your chassis

supports a standard ATX motherboard.

How to install our products right…. the first time!

The first thing you should do is read this user’s manual. It contains important information that will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch a safely grounded

object to release static charge (i.e. power supply case). For the safest conditions, Tyan

recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board, or flex the

board in any way.

(3) Avoid touching the motherboard components, IC chips, connectors, memory modules,

and leads.

(4) Place the motherboard on a grounded antistatic surface or on the antistatic bag that the

board was shipped in.

(5) Inspect the board for damage.

The following pages include details on how to install your motherboard into your chassis, as well

as installing the processor, memory, disk drives and cables.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.tyan.com

2.0 –Board Image

The following is an image of the S2707 Trinity GC-SL.

The above photograph is purely representative. Due to engineering updates and new board

revisions, certain components may change and or be repositioned. The picture above may

or may not look exactly like the board you received.

The following page includes details on the vital components of this motherboard.

http://www.tyan.com

2.1 –Board Parts

This jumper diagram is representative of the latest board revision available at the time of

publishing. The board you receive may or may not look exactly like the above diagram.

Theboardparts are not to scale.

http://www.tyan.com

2.2 –Jumper Settings

Jumper Function Settings Ref. Page

JP1 CMOS Clear Open: Normal (Default)

Close: CMOS Clear Mode Page 11

JP9 PCI-(X)Bus1/Slot#1PCI-X/PCI

Mode Open:PCI-X Mode (Default)

Close:PCIMode Page 11

JP10 PCI-(X)Bus2/Slot#2PCI-X/PCI

Mode Open:PCI-X Mode (Default)

Close:PCIMode Page 12

JP11 PCI-(X)Bus1/Slot#1PCI-X 133

or 100 MHz Open: PCI-X 100 MHz

Close:PCI-X 133 MHz (Default) Page 11

JP20 Reserved

JP22Enable/Disable onboard Intel

82545EM GbE NIC Open:Enable(Default)

Close: Disable Page 12

JP23 Enable/Disable CPU Thermal

Trip power down feature Open:Enable(Default)

Close: Disable Page 15

JP24 Enable/Disable onboard Intel

82551QM/82540EM NIC Open:Enable(Default)

Close: Disable Page 13

JP25 Enable/DisableonboardSCSI

controller Open:Enable(Default)

Close: Disable Page 13

JP30 Enable/Disable onboard

Promise IDE RAID controller Open:Enable(Default)

Close: Disable Page 14

JP31 Enable/Disable onboard ATI

Rage XL PCI VGA controller Open:Enable(Default)

Close: Disable Page 14

JP38 Watchdog Timer Control Open: Disable

Close:Enable

Hardwire : Enable (Default)

Page 15

2.3 –Connectors

Connector Function

J1External LED header for Processor-hot warning; same as onboard LED D1

J2 ITP connector (It is for development purpose and may be present onboard.)

J21 PS/2 keyboard (lower) and PS/2 mouse (upper) connectors

J22 Front panel header

J26RJ45 LAN connector for onboard Intel 82551QM/82540EM NIC

J27 VGA connector for onboard ATI Rage XL PCI VGA

J30 Front USB headers

J32 Hardware monitor warning beep/LED output (optional)

J33 RJ45 LAN connector for onboard Intel 82545EMNIC

J36 Externalspeakerheader

J38 Auxiliary LAN LED headers for onboard Intel 82545EM NIC

J40 Auxiliary LAN LED headers for onboard Intel 82551QM/82540EM NIC

COM2 COM2 2x5 pin header

CPUFAN1 3-pin CPU fan connector with PWM fan control and fan speed reading

FAN2 3-pin fan connector with PWM fan control and fan speed reading

FAN3 3-pin fan connector with PWM fan control and fan speed reading

FAN4 3-pin CPU fan connector with fan speed reading

http://www.tyan.com

Jumper Legend

JumperOFF (without pin)

Jumper ON (with pin)

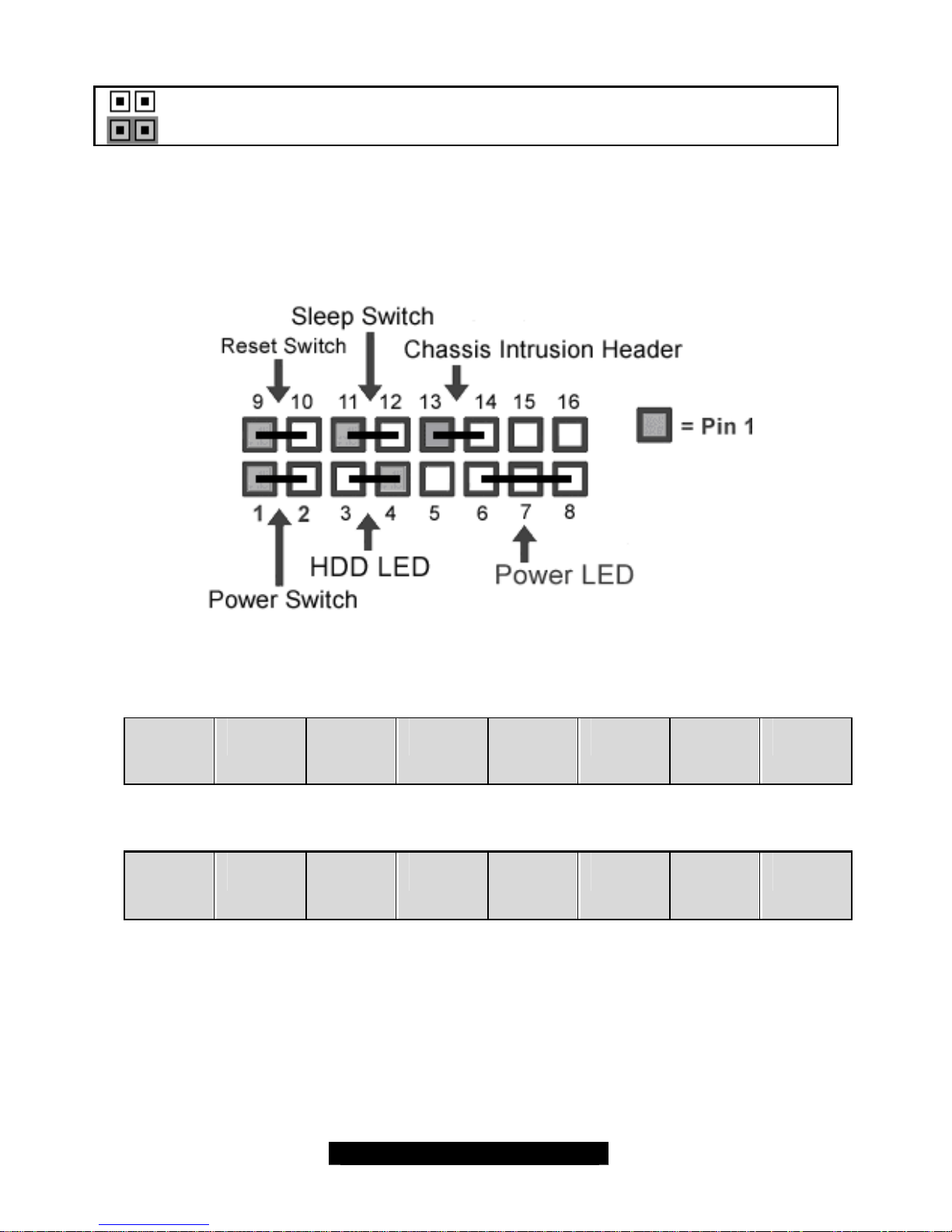

2.4 –Front Panel Connector (J22)

Your chassis will usually come with connectors to install onto the motherboard, such as HDD and

Power LEDs. The Front Panel Connector (J22) has been implemented for such purposes.

J22 Pinout

Pin 9

Pin 10

Pin 11

Pin 12

Pin 13

Pin 14

Pin 15

Pin 16

Reset

(signal) Reset

(GND) SLP_SW

(signal) SLP_SW

(GND) Intrusion GND NC NC

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

Pin 7

Pin 8

Power

SW GND HDD

LED-HDD

ED +

Key Power

LED

(green)

GND Power

LED

(yellow)

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de TYAN

TYAN

TYAN TIGER I7520SD Manual de usuario

TYAN

TYAN THUNDER K7X Manual de usuario

TYAN

TYAN S4992 Manual de usuario

TYAN

TYAN S5510 Manual de usuario

TYAN

TYAN TOMCAT IIIS D Manual de usuario

TYAN

TYAN TRINITY I845E Manual de usuario

TYAN

TYAN Triumph i7320 S6621 Manual de usuario

TYAN

TYAN S8812 Manual de usuario

TYAN

TYAN TAHOE PLUS ATX Manual de usuario

TYAN

TYAN Thunder i7500 Pro S2721 Manual de usuario

TYAN

TYAN TEMPEST I5000VF Manual de usuario

TYAN

TYAN S5565 Manual de usuario

TYAN

TYAN Tempest i5100X Manual de usuario

TYAN

TYAN THUNDER K8QS PRO Manual de usuario

TYAN

TYAN THUNDER K8HM Manual de usuario

TYAN

TYAN S2505T Instrucciones de instalación y funcionamiento

TYAN

TYAN TOLEDO I3000R Manual de usuario

TYAN

TYAN TOMCAT K8E-SLI Manual de usuario

TYAN

TYAN TYAN S1471 Manual de usuario

TYAN

TYAN TITAN-PRO AT Manual de usuario

TYAN

TYAN THUNDER N6650W Manual de usuario

TYAN

TYAN TRINITY 100AT Manual de usuario

TYAN

TYAN S5501 Manual de operación y mantenimiento

TYAN

TYAN TOMCAT I815T Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
