Table of Contents

Before you begin…

Chapter 1: Introduction

1.1 Congratulations

1.2 Hardware Specifications

1.3 Software Specifications

Chapter 2: Board Installation

2.0 Board

2.1 Board Jumpers

2.2 Front Panel Connectors (J12)

2.3 CMOS Reset (J21)

2.4 Front Side Bus 133MHz Select

2.5 Front Side Bus 100MHz Select

2.6 Onboard ATI Rage XL (J85)

2.7 Onboard LAN1 (J86) and LAN2 (J88)

2.8 Onboard SCSI (J80)

2.9 Primary PCI Speed (J92)

2.10 Chassis Intrusion Header (J15)

2.11 PCI I/O Voltage (J99)

2.12 LAN LED

2.13 FAN connectors

2.14 Mounting the Motherboard

2.15 Installing the Memory

2.16 Installing Processors and Heatsink

2.17 Attaching Drive Cables

2.18 Installing Add-in Cards

2.19 Connecting External Devices

2.20 Installing the Power Supply

2.21 Finishing Up

Chapter 3: BIOS Setup

3.0 Main BIOS Setup

3.1 Advanced Setup

3.2 Chipset Configuration

3.3 Keyboard Configuration screen

3.4 I/O Configuration

3.5 PCI Configuration

3.6 Security Setup

3.7 Power Setup

3.8 Boot Setup

3.9 Exit

Chapter 4: Diagnostics

4.0 Beep Codes

4.1 Flash Utility

Appendix: Glossary

Technical Support

.……………………………………………..Page 3

.……………………………………………..Page 4

.……………………………………………..Page 5

.……………………………………………..Page 6

.……………………………………………..Page 7

.……………………………………………..Page 8

.……………………………………………..Page 9

.……………………………………………Page 10

..…………………………………………..Page 10

..…………………………………………..Page 11

..…………………………………………..Page 12

..…………………………………………..Page 14

..…………………………………………..Page 16

..…………………………………………..Page 18

..…………………………………………..Page 19

..…………………………………………..Page 20

..…………………………………………..Page 21

..…………………………………………..Page 23

..…………………………………………..Page 24

..…………………………………………..Page 25

..…………………………………………..Page 26

..…………………………………………..Page 27

..…………………………………………..Page 28

..…………………………………………..Page 33

http://www.TYAN.com

Before you begin…

Check the box contents!

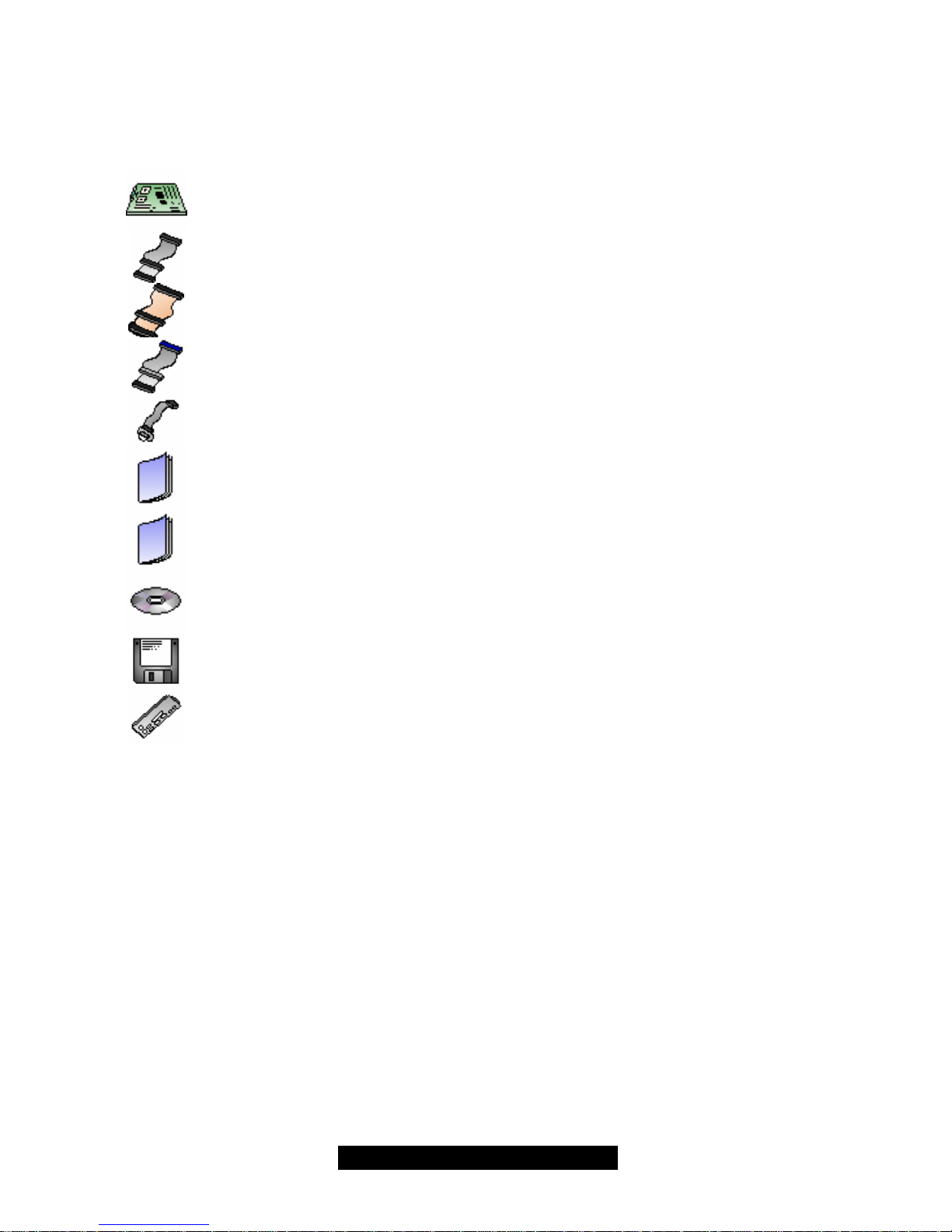

The retail motherboard package should contain the following:

1x Thunder K7X motherboard

1x 34-Pin floppy drive cable

1xLVD SCSI cable (if optional SCSI included)

1x Ultra-DMA-100/66 IDE cable

1x Cable set: 9-pin Serial

1x Thunder K7X user’s manual

1x Thunder K7X Quick Reference guide

1x TYAN driver CD

1x Adaptec SCSI driver diskette (if optional SCSI included)

1x I/O shield with 2 LAN ports

If any of these items are missing, please contact your vendor/dealer for replacement before

continuing with the installation process.

http://www.TYAN.com

Chapter 1: Introduction

1.1 –Congratulations!

You are now the owner of one of the most flexible TYAN dual AMD Athlon motherboards

available. Utilizing the latest chipset technology for dual AMD multi-processing, the Thunder K7X

is fully capable of handling all your heaviest software demands. But software isn’t the only thing

you’ll be ready for; optional is onboard dual-channel Ultra160 or Ultra320 SCSI, handling all your

storage needs. If networking is what you need, then the Thunder K7X has enough bandwidth for

all your needs through the use of dual integrated 10/100Mbit Ethernet ports.

All this is done efficiently and conveniently as the Thunder K7X is ready to fit in even the tightest

spots. Thoughtfully designed, all aspects of the Thunder K7X were designed from the ground up

to support even the thinnest 1U chassis.

Remember to visit TYAN’s Website at http://www.tyan.com. There you can find information on all

of TYAN’s products with FAQs, online manuals and BIOS upgrades.

1.2 –Hardware Specifications

Processor

• Dual PGA462 ZIF sockets

• Supports up to two AMD Athlon MP

• Two onboard VRMs

• Front-Side Bus support for 200MHz and

266MHz

Chipset

• AMD 760 MPX chipset

• AMD 762 system controller (north bridge)and

AMD 768peripheral bus controller (south

bridge)

• Winbond 83627HF Super I/O ASIC

Memory

• Four 184-pin 2.5v DDR DIMM sockets

• 25-degree angled sockets enable rackmount

installation

• Supports up to 4GB of Registered

PC2100/1600 DDRmemory

• Also supports ECC (72-bit) memory modules

*The AMD-760 MPX requires a portion of memory to

be reserved for PCI devices. Allocation for these

devices is dependent on the number of PCI devices

installed, and option ROM for each device. Common

configurations will see 3.5GB to 3.8GB of available

memory.

Integrated PCI IDE

• Dual-channel master mode

• Supports up to four IDE devices

• Support for ATA-100/66/33 IDE and ATAPI

Integrated SCSI (manufacturing option)

• Adaptec LVD SCSI Controller

• Dual-channel LVD SCSI support

• Supports up to 15 LVD SCSI devices per

channel

Integrated Video (Manufacturing option)

• ATI RAGE XL graphics controller

• 4MB frame buffer (SDRAM)

• Standard 15-pin analog VGA port

Server Management (Daughter card Option)

• Tyan-defined header connects to Server

Management Daughter Card (SMDC), which

supports the Intelligent Platform Management

Interface (IPMI)

• Q-Logic Zircon Baseboard Management

Controller (BMC)

• Support for IPMI, SDR, SEL, FRU

• I2C and IPMB

Integrated LAN

• Two 3COM 3C920 LAN controllers(with

3COM 3C980 server option ROM)

• 10/100Mbps data transfer rate per controller

http://www.TYAN.com

compliant devices

Expansion Slots

• One AGP Pro 110/50 slot; supports 2X/4X

AGP

• Two 64-bit 66MHz (one 5/3.3-volt; one 3.3-

volt) PCI 2.2 slots and three 32-bit 33MHz (5-

volt) PCI 2.2 slots

• Total of six usable slots

•Adaptec Zero-Channel RAID ready PCI slot

(green colored for your convenience)

Integrated I/O

• One floppy connector supports up to two

drives

• Two 9-pin 16550-based serial ports(Serial2

port provided by cable)

• One 25-pin SPP/ECP/EPP parallel port

• PS/2 keyboard and mouse ports

• Four USB ports (2 rear connectors and 2 front

side USB headers)

USB front Pin-outs:

*Front side USB header is designed for chassis

that supports front side USB. TYAN does not

provide these cables.

Hardware Monitoring

• Winbond W83782D hardware monitoring

ASIC

• CPU temperature/voltage monitoring

• 3-pin fan monitoring headers

BIOS

• PhoenixBIOS on 4MbitFlash ROM

• Supports ACPI v1.0

• Auto-configuration of IDE hard drive types

• Multiple boot options

• DMI 2.0 compliant

Regulatory

• FCC DoC (Declaration of Conformity)

• European CE (Declaration of Conformity)

Form Factor

• Extended ATX (13” x 12”; 330.2mm x

304.8mm)

• One 24-pin and one 8-pin ATXGES power

connector

• Stacked parallel (one), serial (one) and VGA

(one) ports

• Stacked USB (two) ports

• LAN (two) ports

• Stacked keyboard and mouse ports

1.3 Software Specifications

OS (Operating System) Support

•Microsoft Windows NT 4

•Microsoft Windows 2000

•Microsoft Windows XP

TYAN reserves the right to add support or

discontinue support for any OS with or

without notice.

http://www.TYAN.com

Chapter 2: Board Installation

WARNING: The Thunder K7X only

supports dual Athlon ATXGES power

supplies (24-pin/8-pin) and will not operate

with other types. Refer to section 2.10 for

instructions on installing dual Athlon

ATXGES power supplies.

DO NOT use ATX 2.x, ATX12V and EPS12V

type supplies as they will damage the board

and void your warranty.

Installation

You are now ready to install your motherboard. The mounting hole pattern of the Thunder K7X

matches the E-ATX (Extended ATX) system board specifications. Your chassis should support a

standard E-ATX motherboard form factor.

How to install our products right… the first time

The first thing you should do is read this user’s manual. It contains important information which will

make configuration and setup much easier. Here are some precautions you should take when

installing your motherboard:

(1) Ground yourself properly before removing your motherboard from the antistatic bag.

Unplug the power from your computer power supply and then touch the power supply.

For the safest conditions, TYAN recommends wearing a static safety wrist strap.

(2) Hold the motherboard by its edges and do not touch the bottom of the board.

(3) Avoid touching the motherboard components, IC chips, connectors, and leads.

(4) Avoid touching memory module contacts and IC chips

(5) Place the motherboard on a grounded antistatic surface or on the antistatic bag from

which it came in.

Having reviewed the precautions above, the next step is to take the motherboard out of the

cardboard box and static bag, hold it by its edges and place it on a grounded antistatic surface,

component side up. Inspect the board for damage.

The following pages will detail for you on how to install your motherboard into your chassis, install

processor(s), memory, hard drive and floppy cables/drives and heatsinks.

NOTE DO NOT APPLY POWER TO THE BOARD IF IT HAS BEEN DAMAGED

http://www.tyan.com

2.0–Board

The following is an image of the S2468 Thunder K7X.

The above photograph is only a representation of the actual board. Because boards may

be updated and go through different revisions, certain components may change and or be

repositioned. The picture above may or may not look exactly like the board you received.

The following page will detail vital components of this board.

http://www.tyan.com

2.1 –Board Jumpers

The above jumper schematic diagram is representative of the latest board revision

available at the time of this manual’s publishing. The board you have received may or may

not be like the above schematic.

Jumper Legend

Jumper OFF (disconnected)

Jumper ON (connected)

http://www.tyan.com

2.2 –Front Panel Connector (J12)

Your chassis will usually come with connectors to install onto the motherboard, such as HDD and

Power LEDs. The Front Panel Connector (J12) has been implemented for such purposes.

2.3 –CMOS Reset (J21)

Clear CMOS

Default

You can reset the CMOS settings in case an incorrect setting causes system

instability or you have forgotten your system/setup password orhave just flashed

your BIOS by using these jumpers.

-Power off system,disconnect power supply from motherboard

-Set jumper J21 to Clear CMOS

-Wait about 5 seconds Set jumper J21 to Normal

2.4 –Front-side Bus Select 133MHz (DEFAULT)

J49

J48

J53

J52

Depending on the processor you have, you may need to adjust the

processor front side bus speed in order have the processors operate

correctly.

The S2468 Thunder K7X supports processors that run at 100MHz

(200DDR) and 133MHz (266DDR) front side bus speeds.

2.5 –Front-side Bus Select 100MHz

J49

J48

J53

J52

Depending on the processor you have, you may need to adjust the

processor front side bus speed in order have the processors operate

correctly.

The S2468 Thunder K7X supports processors that run at 100MHz

(200DDR) and 133MHz (266DDR) front side bus speeds.

http://www.tyan.com

2.6 –Onboard ATI Rage XL (J85)

Enabled

Disabled

OPEN (default) the jumper to enable the onboard ATI Rage XL

graphics controller. You can also use the onboard video in conjunction

with another AGP or PCI graphics card for multiple monitor support.

CLOSE the jumper to disable the onboard ATI Rage XL.

2.7 –Onboard LAN 1 (J86) and LAN 2 (J88)

Enabled

Disabled

OPEN (default) the jumper(s) to enable the respective LAN port(s) you

want to use. Close the jumper(s) to disable the LAN port(s).

2.8 –Onboard SCSI (J80)

Enabled

Disabled

OPEN (default) the jumper to enable the onboard SCSI feature.

CLOSE the jumper to disable. This switch affects both channel A and

channel B on the SCSI controller.

2.9 –Primary PCI Speed (J92)

Enabled

Disabled

OPEN (default) the jumper to have the primary PCI bus operate at

66MHz (default). CLOSE the jumper to force the primary PCI bus to

operate at 33MHz.

2.10 –Chassis Intrusion Header (J15)

Certain chasses have a switch that detects whether or not they are being opened. This switch

connects to the Chassis Intrusion Header to sound an alarm when the chassis is being opened

without authorization. Simply connect the two-pin switch to the J15 header to enable.

2.11 –PCI I/O Voltage (J99)

3.3v -Default

5.v

Using this jumper you can set PCI slot 1 to operate either in 5 volt

mode or 3.3 volt mode.

2.12–LAN LED

LAN2 LAN1

This header is provided as a visual alert of when the on-board Ethernet ports

are active. Simply connect up to two 2-pin LEDs to the LAN LED header for

active monitoring of the on-board Ethernet ports.

2.13–FAN connectors

Use these headers to connect cooling fans, both chassis and processor

fans, to your motherboard. Cooling fans help keep the system more

stable and operating reliably for its product life.

+12v (1.2A) fans supported

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de TYAN

TYAN

TYAN Tiger MPX S2466 Instrucciones de instalación y funcionamiento

TYAN

TYAN Triumph i7230 Manual de usuario

TYAN

TYAN TOMCAT I810E Manual de usuario

TYAN

TYAN TITAN I Manual de usuario

TYAN

TYAN Tiger MP S2460 Manual de usuario

TYAN

TYAN Tempest i5000PX S5380 Manual de usuario

TYAN

TYAN Thunder n3600W S2935 Manual de usuario

TYAN

TYAN Thunder i7500 Pro S2721 Manual de usuario

TYAN

TYAN S5515 Manual de usuario

TYAN

TYAN S5545 Manual de usuario

TYAN

TYAN S8228 Manual de operación y mantenimiento

TYAN

TYAN S5372-LH Manual de usuario

TYAN

TYAN THUNDER K8SRE Manual de usuario

TYAN

TYAN Thunder i7501 Pro S2721-533 Manual de usuario

TYAN

TYAN Tempest i5100X Manual de usuario

TYAN

TYAN TOMCAT I7230B Manual de usuario

TYAN

TYAN S8238 Manual de usuario

TYAN

TYAN Tomcat K8S S2850 Manual de usuario

TYAN

TYAN Tempest i5000VS S5372 Manual de usuario

TYAN

TYAN THUNDER N3600B Manual de usuario

TYAN

TYAN S5552 Manual de usuario

TYAN

TYAN S8230 Manual de usuario

TYAN

TYAN TRINITY 371 Manual de usuario

TYAN

TYAN Tiger MPX S2466 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
