USER GUIDE

TB521-2180-02

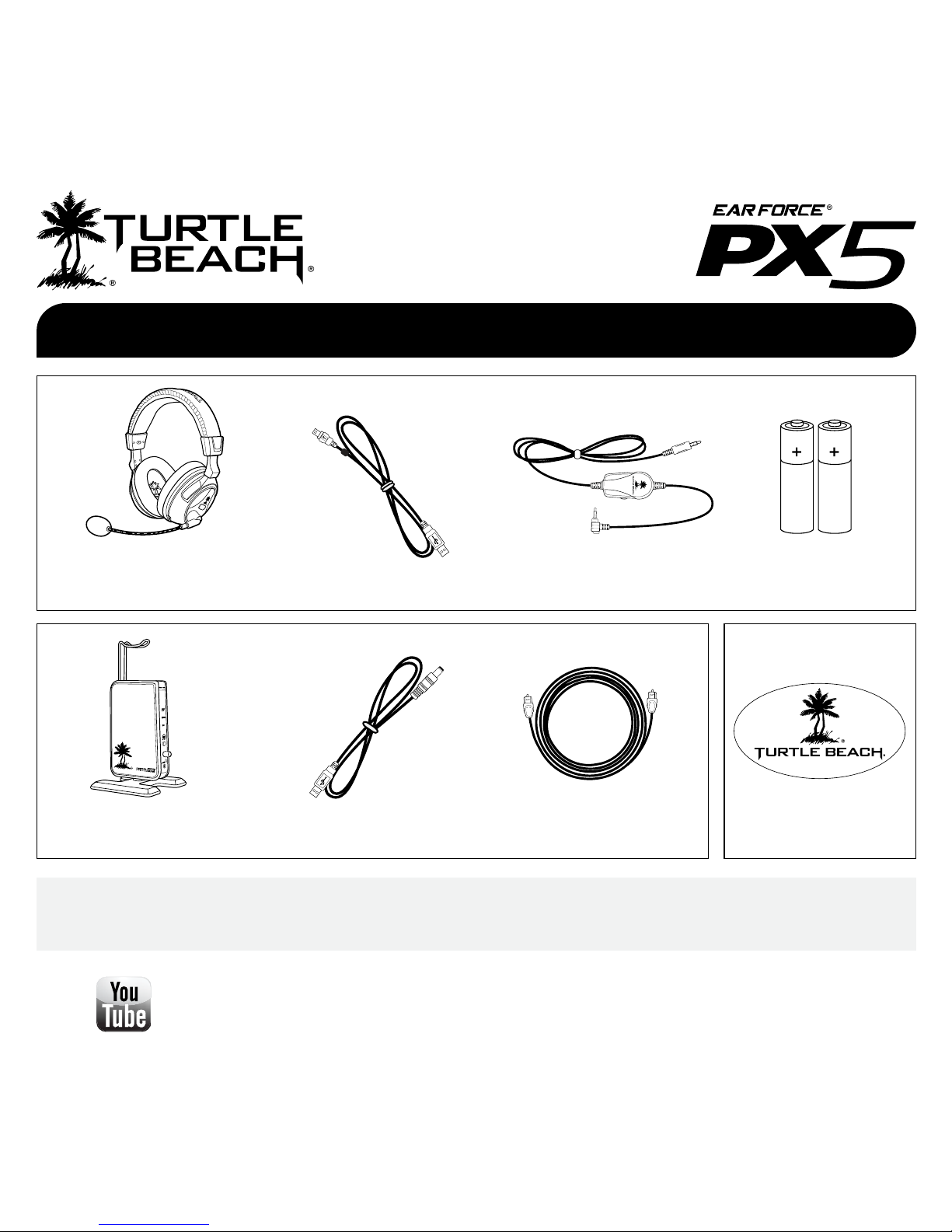

What’s in the Box

product support and warranty information:

www.TurtleBeach.com/support

PX5 Headset with

Removable Microphone

PX5 Digital Wireless

RF Transmitter

(2) AA Batteries

USB Power Cable Digital Optical Cable

USB Programming Cable

Turtle Beach Sticker

Download PX5 software and additional presets at:

www.TurtleBeach.com/customize

watch PX5 training videos at:

www.youtube.com/TurtleBeachVideos

Xbox LIVE®

Talkback Cable

About the Ear Force PX5 pg 1

PX5 Headset

Overview pg 3

PX5 Transmitter

Overview pg 7

Using the Transmitter pg 9

Pairing the Headset and Transmitter pg 10

Setup

Transmitter Setup — PS3

™ , Xbox 360® (slim) pg 11

Transmitter Setup — Xbox 360 (original) pg 11

PS3 Chat Setup & PS3 Settings pg 14

Xbox LIVE® Chat Setup & Xbox 360 Settings pg 15

PC/Mac® Setup pg 17

Home Theater Setup pg 19

Dolby® Processing pg 20

Digital Signal Processing pg 21

Presets pg 23

Bluetooth®

Pairing a Bluetooth-enabled Device pg 25

Dual Pairing pg 25

Making Phone Calls pg 26

Receiving Calls pg 26

PX5 Technical Speciﬁcations pg 27

Troubleshooting Tips pg 28

Important Safety Information pg 30

Table of Contents

The Ear Force PX5 is the most technologically-advanced headset ever designed for PS3™ and Xbox 360® gaming. To get the most from

your PX5, please take a few minutes to review this guide.

Wireless Digital RF Technology with Bluetooth®

The Ear Force PX5 headset provides wireless CD-quality game sound via digital RF (radio frequency) that communicates with the PX5

transmitter. In addition, the PX5 incorporates Bluetooth technology which is used for communicating on PlayStation® Network (PSN)

and on Xbox LIVE®. The Bluetooth can also be paired to your mobile phone and digital music player. This means you can use your PX5

to listen to your favorite music and accept phone calls – all while totally immersed in the action of the game.*

About the Ear Force® PX5

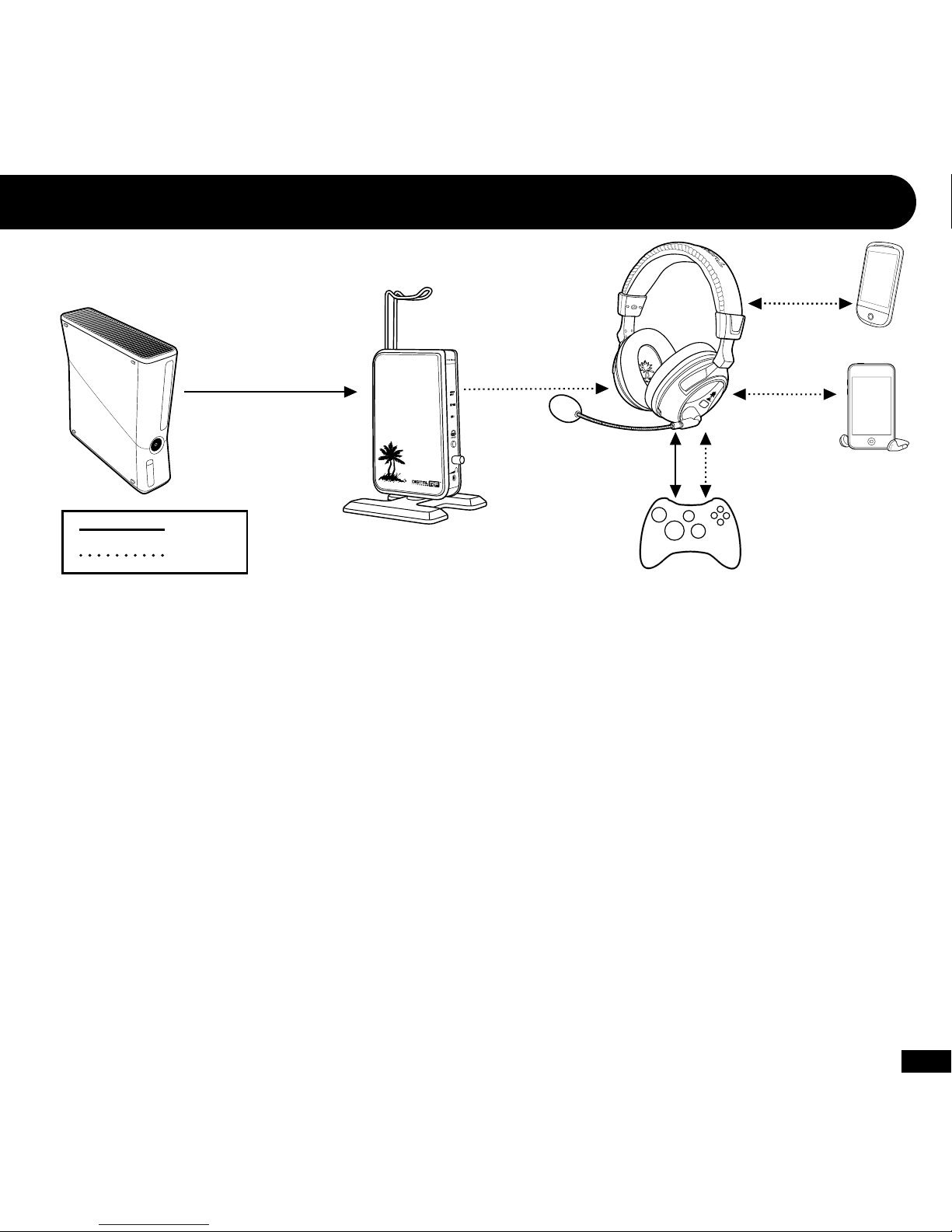

PS3

PSN Chat via Bluetooth RF*

Game sound via

digital optical cable

TRANSMITTER

Game sound in

Dolby Surround

via Digital RF

Stream Music

via Bluetooth*

Mobile Phone

via Bluetooth*

wired

wireless

* Only 2 Bluetooth devices total can be paired to the headset at a time.

** For a wireless Xbox 360 chat connection, the talkback cable can be replaced with an optional XBA

Bluetooth Chat Adapter (sold separately) that inserts in the Xbox 360 controller. For further details,

please visit TurtleBeach.com.

Dolby Surround Sound

The PX5 transmitter processes Dolby Digital surround sound from your PS3 or Xbox 360 and sends it to the headset via digital RF.

The result is an immersive sound environment that makes you feel as if you're right in the middle of the action. It also helps you react

quicker by hearing exactly where the sound cues in the game are coming from.

Digital Signal Processing (DSP)

The headset uses digital signal processing to customize the game, chat and microphone audio signals to improve performance in

speciﬁc gaming situations. These settings are stored as presets that can be easily called up to change the characteristics of the game

sound, voices from other players and even your own voice. For example, you can use the PX5 to accentuate sounds like footsteps or

enemies reloading that might otherwise be difﬁcult to hear with normal game audio.

Programmable Presets

The integrated USB port lets you connect your PX5 to a PC. Go to TurtleBeach.com and download new presets, program your own

custom presets and update your headset with new features and more. That means you can customize your PX5 and turn it into your

own “secret weapon” that’s unlike anyone else’s headset!

Intuitive Voice prompts

The PX5 incorporates intuitive voice prompts that announce critical headset status. Press the preset button and you'll hear the

number. When the batteries need to be replaced, it tells you in advance. When powering on or off, you’ll hear an announcement.

Designed for High-Quality Sound

The PX5 headset is designed to deliver high-quality audio that makes it ideal for gaming, movies and digital music playback.

The high-ﬁdelity, 50mm speakers are encased in acoustically-tuned ear cups with soft fabric cushions and deliver extended bass

with extraordinary dynamic range for optimum audio performance.

Xbox 360

Game sound via

digital optical cable

TRANSMITTER

Game sound in

Dolby Surround

via Digital RF

Stream Music

via Bluetooth*

Mobile Phone

via Bluetooth*

Xbox LIVE chat via

Talkback Cable or op-

tional XBA Bluetooth

Chat Adapter**

wired

wireless

PX5 Headset - Left Ear Cup Controls

1. Main Power Button with LED

Powering ON: Press and hold until the headset announces “Powering On”.

Powering OFF: Press and hold until the headset announces “Powering Off”.

Automatic Power OFF: If the headset doesn’t detect any audio for more than 5 minutes, it will automatically shut down to conserve

battery power.

PS3/Xbox 360 Modes: Press the Power Button twice quickly to switch between PS3 and Xbox 360 modes. The headset will announce

the selected mode. (See "Presets" on pg. 23 for further details)

Power Button LED Indicator: Flashes once per second when paired to the Transmitter and ﬂashes twice per second when not paired.

(See “Pairing the Headset and Transmitter” on pg. 11 for further details)

Pairing Mode: Initiates pairing mode between the headset and transmitter. From a powered down state, press and hold the power

button for 6 seconds. The LED will begin to ﬂash rapidly.

2. Removable Microphone with Adjustable Boom

The microphone can be removed from the headset when chat is not required by detaching it from the boom. (See "Setup" on pg. 13 for

further details)

3. Game Volume Control

Turn to adjust game volume level.

4. Presets Button

Press to select one of eight (8) alternate game audio presets. (See "Presets" on pg. 23 for further details)

5. Xbox 360 Controller Jack

Insert the straight connector on the Xbox Talkback Cable (included) into this jack when using the PX5 with an Xbox 360 for wired chat.

6. USB Input

Allows for headset programming by connecting to a USB port on a PC with the included USB cable.

(See the “Presets” on pg. 23 for further details)

PX5 Headset - Right Ear Cup Controls

12 13

Be sure to

insert batteries

as shown.

7. Main (Main Preset Button)

Press to toggle between the selected (alternate) preset and the main (default) preset. (See "Presets" on pg. 23 for further details)

8. Mic Mute Button

Press to toggle between muting and unmuting the microphone. A high tone will sound when the mic is unmuted and a low tone will

sound when the mic is muted. When using the Xbox 360 Talkback cable, the mic can be muted directly from the switch on the Talkback

cable or by pressing the mic mute button on the headset. When using the optional XBA wireless chat adapter for Xbox 360, the mic can

be muted by quickly double-pressing the silver button on the XBA.

9. Bluetooth® LED Indicator

Indicates when Bluetooth is active or in pairing mode. (see the “Bluetooth” section on pg. 25 for further details)

10. Bluetooth Multi-function Button

Powers on the Bluetooth and performs several other functions described in the “Bluetooth” section (pg. 25)

Note: The Bluetooth feature is normally powered off to conserve battery power and may need to be powered

on with the button when ﬁrst using the headset.

11. Bluetooth Volume Control

Press (+) or (–) to adjust Bluetooth volume level. A tone will sound each time the volume level changes.

12. Swivel Ear Cups

The ear cups may be turned 90 degrees to rest conveniently around your neck.

13. Battery Compartment Cover

Slide down to access the battery compartment. The headset is powered by (2) AA batteries (included) which should provide up to 15

hours of use depending on headset settings (Bluetooth, game audio, etc). Rechargeable NiMH batteries may also be used. The head-

set will announce when battery power is low.
