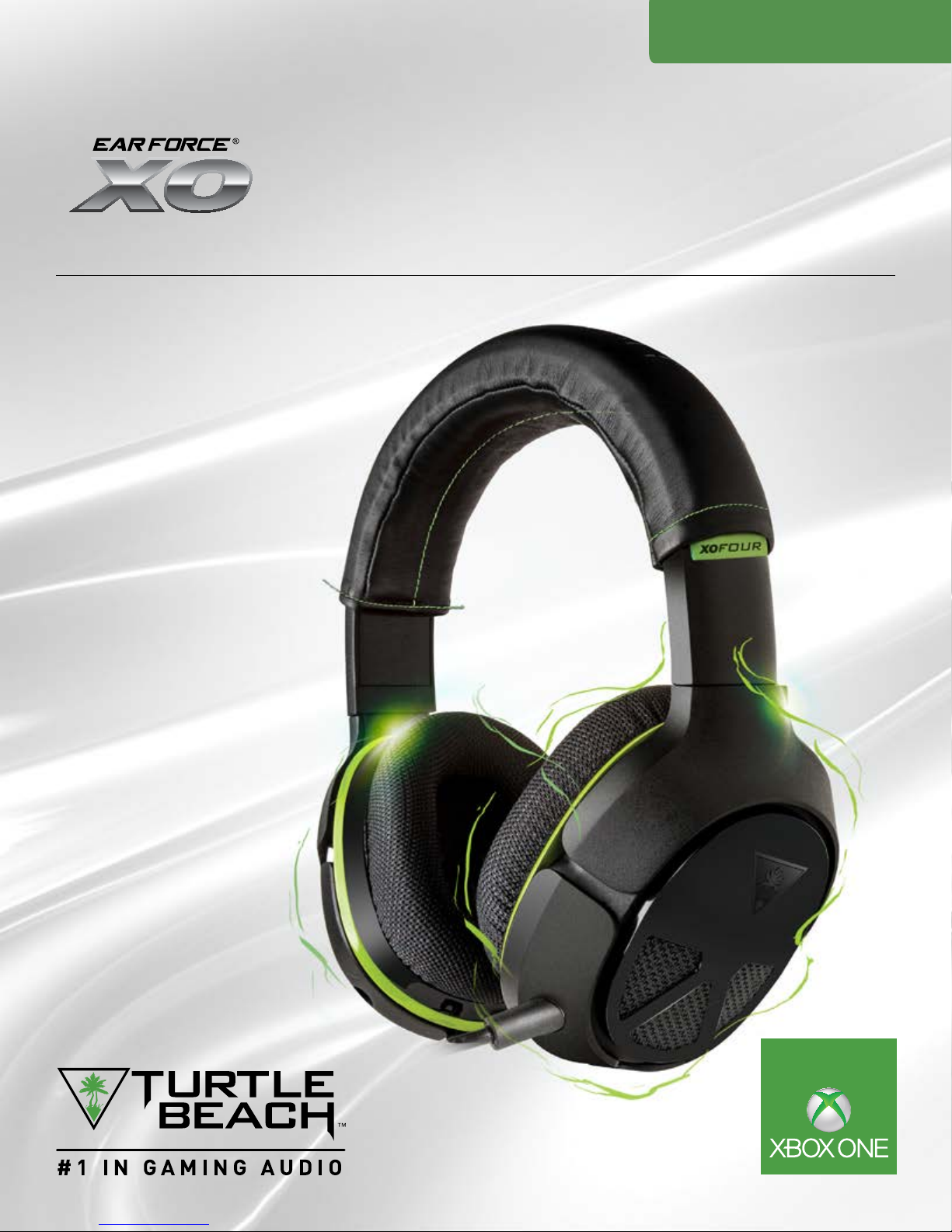

Turtle Beach XoFOUR Manual de usuario
User GUide
HiGH Performance XboX one™ GaminG Headset
For: Xbox One™ I Mobile
Designed for
FOUR
Congratulations on your purchase of the Turtle Beach Ear Force XO FOUR headset from Turtle Beach. You’ll enjoy
powerful gaming audio and chat on the Xbox One as well as for mobile gaming. Turtle Beach brings over 35 years of
expertise to transforming your listening experience. Welcome to Turtle Beach!
Package Contents P4
About the Ear Force XO FOUR Headset P5
Parts and Controls P6
Setup and Connections: Xbox One Consoles P7
Setup and Connections: Mobile Sources P9
Specications P10
TroubleshootingTips P11
ImportantSafetyInformation P12
Compliance/Conformity P13
Warranty P16
Table of Contents
4
Go to Table of Contents
Package Contents
D E
B CA
XO FOUR Headset Detachable Boom Mic
Turtle Beach Sticker USB Micro Cable
For our Knowledgebase and Technical Support please visit
turtlebeach.com/support
Xbox One Audio Adapter
5
Go to Table of Contents
The Ear Force® XO FOUR is the perfect audio upgrade for the Xbox One™ delivering high quality sound to get the
most from your games, music, TV and movies. Stay connected to friends through Xbox LIVE® and Skype™ with
clear, crisp chat audio and microphone clarity only Turtle Beach headsets deliver.
FEATURES
About the Ear Force XO FOUR Headset
Be immersed.
Headphones are tuned to provide the highest quality audio from the
Xbox One™ Audio Adapter.
Be social.
High-quality removable mic for chat on Xbox One™, Skype™
and Xbox LIVE®.
Be in control.
Adjust game and chat volume for the perfect audio mix.
Be mobile.
Use the XO FOUR anywhere with your tablet or portable game consoles.
Be comfortable and stylish
A soft, comfortable leather headband and mesh ear cushions provide
all-day comfort. New headset look and feel complements iconic design
of Xbox One™.
Be entertained.
Headsets aren’t just great for games. Enjoy your favorite movies and TV
shows with superior quality sound. Then crank up your tunes from music
services like Xbox Music™ or Skype™ with friends!
6
Go to Table of Contents
Parts and Controls
Chat/Game Balance Buttons
Adjust the relative volume level to emphasize
either Game (controller icon) or
Chat (person icon).
Headset Jack
Connect the headset plug here.
Alwaysinsertrmly.
Volume Down
Press to lower overall game and
chat volume.
Volume Up
Press to increase overall game
and chat volume.
Mic Mute
Press to turn off the microphone.
Press again to turn it back on.
(LED will glow when muted)
Xbox One Audio Adapter
7
Go to Table of Contents
Setup and Connections: Xbox One Consoles
The Ear Force XO FOUR headset is supplied with a convenient Xbox One Audio Adapter that plugs directly into the
Xbox One controller (not supplied with the headset). The adapter places game volume, chat volume and mic mute
controls right where your thumbs can operate them.
UpdatingtheXboxOnecontrollerrmware
TousetheadapterwithanXboxOnecontroller,yourstneedtoupdatethecontrollerrmware.Performthe
following steps.
1. Makesureyourconsoleisonandyou’resignedinandconnectedtoXboxLive.
Note: It’s important to connect to Xbox Live because your console will need the latest system update,
which contains the newest controller software. If you’ve connected recently, your Xbox One is probably
already up to date, but you should connect anyway just to be sure. If your console needs an update, you’ll
be prompted to install one.
2.Openthebatterycompartmentonthebackofthecontrollerandremovethebatteries.
3. Plug the Xbox One Audio Adapter into the bottom of your controller.
4. Plug in your XO FOUR (a headset is required to be plugged in so the adapter will turn on).
5. Plug the big end of the included USB cable into the port on the side of the console.
6. Plug the small end of the USB cable into the top of the controller.
7. Instructions to install the update should automatically be displayed. Follow the instructions, and don’t disconnect
the USB cable while the update is in progress.
8. When the update is complete, unplug the USB cable and put the batteries back into your controller.
9. Press the Xbox button on the Wireless Controller to turn it on. Your controller is now up-to-date, and you’re ready
to use your Xbox One Audio Adapter.
Note: You only need to update your controller one time, but if you plan to use the Xbox One Audio
Adapter with other Xbox One Controllers, you’ll need to do this process for each controller, always make
surethatallconnectionsarermlyinserted.
8
Go to Table of Contents
Setup and Connections: Xbox One Consoles
1.Insertthemicrophoneboomplugintothejackontheleft
earcup of the headset
2.InserttheXboxOneAudioAdapterintotheXboxOneController.
Controller not included
3. Insert the cable from your headset into the headset jack of the
Xbox One Audio Adapter.
NOTE:Forreliablesound,conrmthatallconnections
arermlyinserted.
Connecting to the Xbox One controller
A
C
B
9
Go to Table of Contents
Setup and Connections: Mobile Sources
1.Insertthemicrophoneboomintothejackontheleftearcup
of the headset.
2.Insertthecablefromyourheadsetintotheheadphonejack
of your mobile device.
C
A
10
Go to Table of Contents
Specications
-Speakerdiameter:50mm
-Speakerfrequencyresponse:20Hz—20kHz
-Condensermicrophonefrequencyresponse:100Hz—10kHz
- Earcup style: Around-ear
-Soundpressurelevel:120dB@1kHz
-Totalharmonicdistortion:<1%
-Headphonecable:3feet(0.91m)withstereo3.5mmplug
-Weight:10.6oz.(301g)
- Xbox One audio/mic connection: Xbox One Audio Adapter
