turck Ri360P1-DSU35TC-ELi-Exi Manual de usuario
Inductive angle sensor
with analog output
Ri360P1-DSU35TC-ELi-Exi
Edition • 2016-06-25T06:44:38+02:00
1 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com
Type code Ri360P1-DSU35TC-ELi-Exi
Ident no. 1593015
Measuring principle inductive
Resolution 12 bit
Measuring range 0…360°
Nominal distance 1 mm
Repeatability ð 0.025 % of full scale
Linearity deviation ð 0.3 % f.s.
Temperature drift ð ± 0.02 % / K
Ambient temperature -25…+70 °C
in the explosion hazardous area see instruction
leaflet
Operating voltage 14… 30VDC
at the connection point of the sensor
Residual ripple ð 10 % Uss
Rated insulation voltage ð 0.5 kV
Short-circuit protection yes
Wire breakage / Reverse polarity protection yes/ complete
Output function 2-wire, Analog output
Current output 4…20mA
22 mA loop current during teach
Load resistance current output ð [(UB -14 V) / 20 mA] kò
Sample rate 500 Hz
Valve control Exi (max. 30 V)
Approval acc. to KEMA 03 ATEX 1122 X Issue no. 2
Internal capacitance (Ci) / inductance (Li) 0 nF / 0 µH
Device designation É II 2 G Ex ia IIC T6 Gb / II 2 D Ex ia IIIC T85 °C
Db
(max. Ui = 30 V, Ii = 120 mA, Pi = 600 mW)
Dimensions 71 x 60 x 35.4 mm
Housing material Plastic, PP-GF30
Housing material, positioning element plastic, PA66 + PA6I/6T-GF40
Connection terminal chamber
Vibration resistance 55 Hz (1 mm)
Shock resistance (EN 60068-2-27) 30 g
Protection class IP67
MTTF 138 years acc. to SN 29500 (Ed. 99) 40 °C
Included in delivery Positioning element P1-Ri-DSU35, countersunk
screw M6 x 25, 2 cylinder screw M5 x 12, 2 lock
washers A5
■ATEX category II 2 G, Ex Zone 1
■ATEX category II 2 D, Ex Zone 21
■Rectangular, housing DSU35
■Plastic, PP-GF30-VO
■Detection of angular range 0° to 360°
■P1-Ri-QR14 positioning element includ-
ed in delivery
■Measuring range programmable via
switch in the Terminal chamber
■Immune to electromagnetic interference
■Resolution, 12-bit
■2-wire, 14…30 VDC
■Analog output
■4 … 20 mA
■Terminal chamber

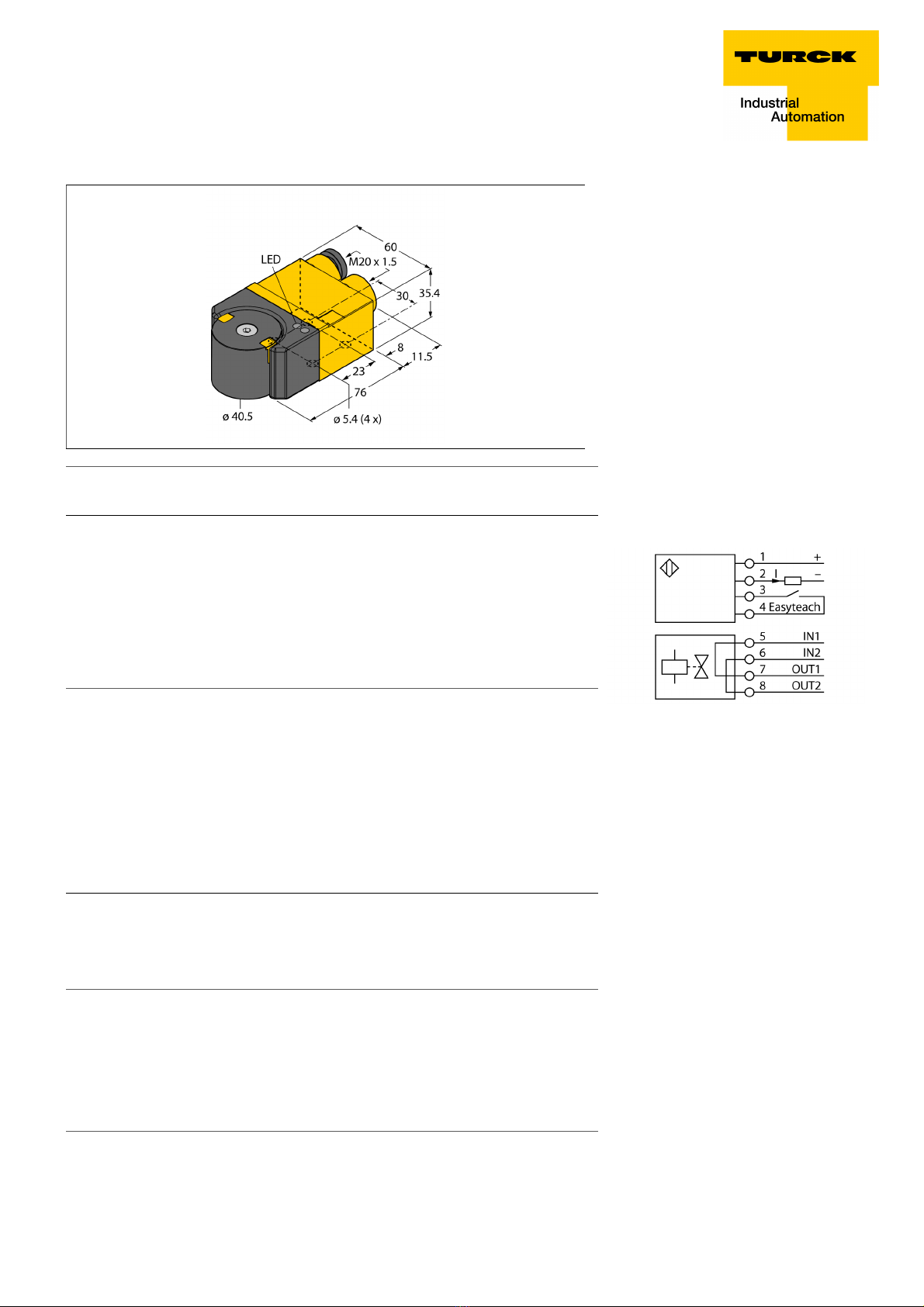

Wiring Diagram
Functional principle
Inductive measuring principle provides
more safety
Based on the functional principle of RLC cou-
pling, the sensor operates absolutely wear-
free and is immune to magnetized metal splin-
ters and other interference fields.
Owing to the differential analysis, the output
signal remains almost unchanged, even if the
position of the positioning element deviates
from the ideal axis of rotation.
Inductive angle sensor
with analog output
Ri360P1-DSU35TC-ELi-Exi
Edition • 2016-06-25T06:44:38+02:00
2 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com

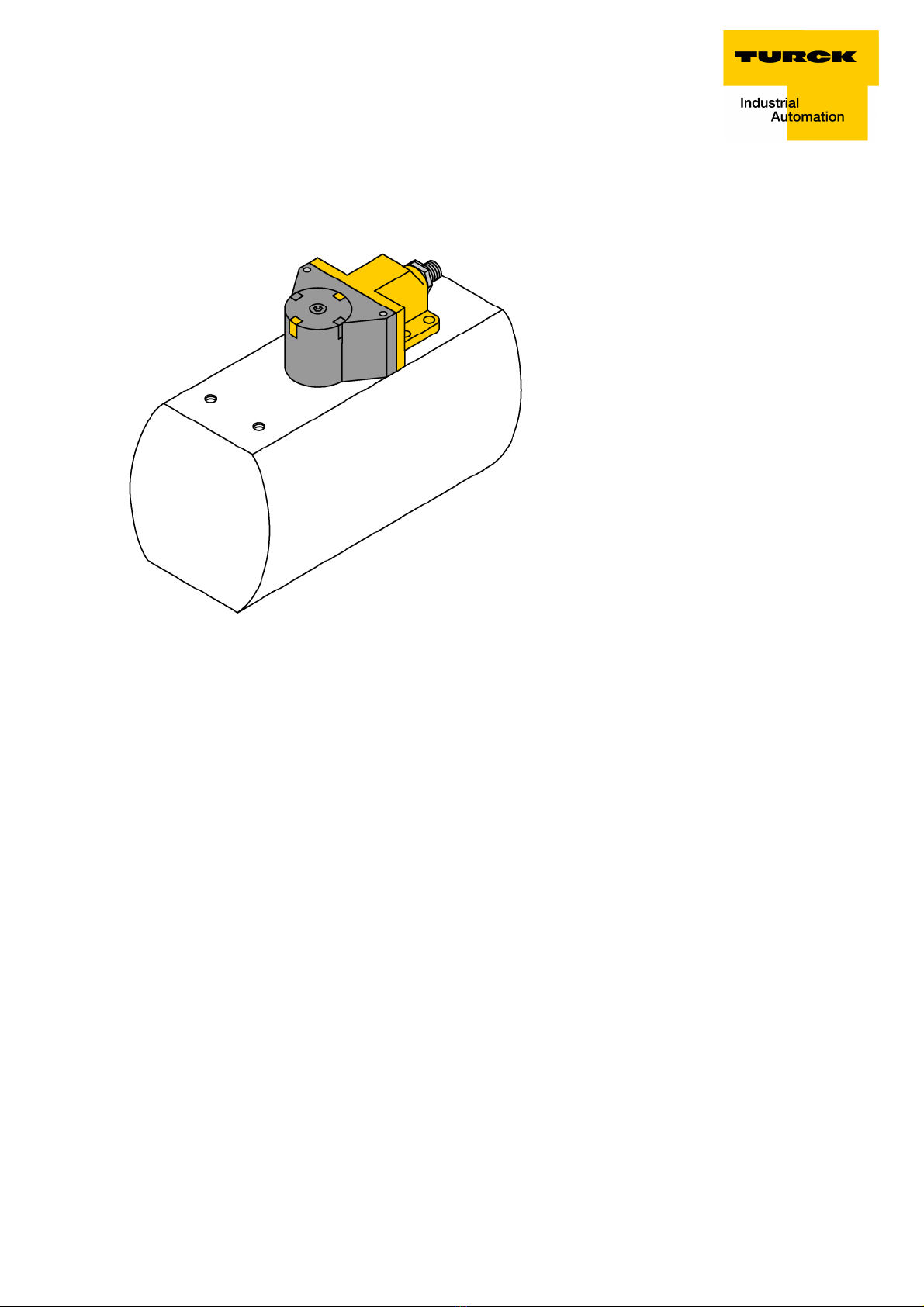

Ri-DSU35 for mounting on rotary actuators
The Ri-DSU35 angle sensor and the well-established
Ni4-DSU35 inductive dual sensor are identical in con-
struction. The user also profits from the enormous
mounting flexibility of the device. The sensor can be
mounted on all standard rotary actuators with a shaft di-
ameter of max.14 mm thanks to an extensive range of
available accessories. For larger shaft diameters use
the BTS-DSU35-Z02 accessories.
Inductive angle sensor
with analog output
Ri360P1-DSU35TC-ELi-Exi
Edition • 2016-06-25T06:44:38+02:00
3 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com
Teaching instructions
Teaching with positioning element
Teach pulse LED 1 LED 2
approx. 3 s – start value flashes 1 x, then stop teach pulse => start
value set
approx. 5 s – end value flashes 2 x, then stop teach pulse => end
value set
approx. 8 s - change of direction flashes 3 x, then stop teach pulse => change
of direction CW/CCW
approx. 12 s – factory setting
lights up green, easy teach starts, after com-
pletion fast flash
flashes 4 x, then stop teach pulse => factory
setting reset (360° measuring range, CW di-
rection
Inductive angle sensor
with analog output
Ri360P1-DSU35TC-ELi-Exi
Edition • 2016-06-25T06:44:38+02:00
4 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com

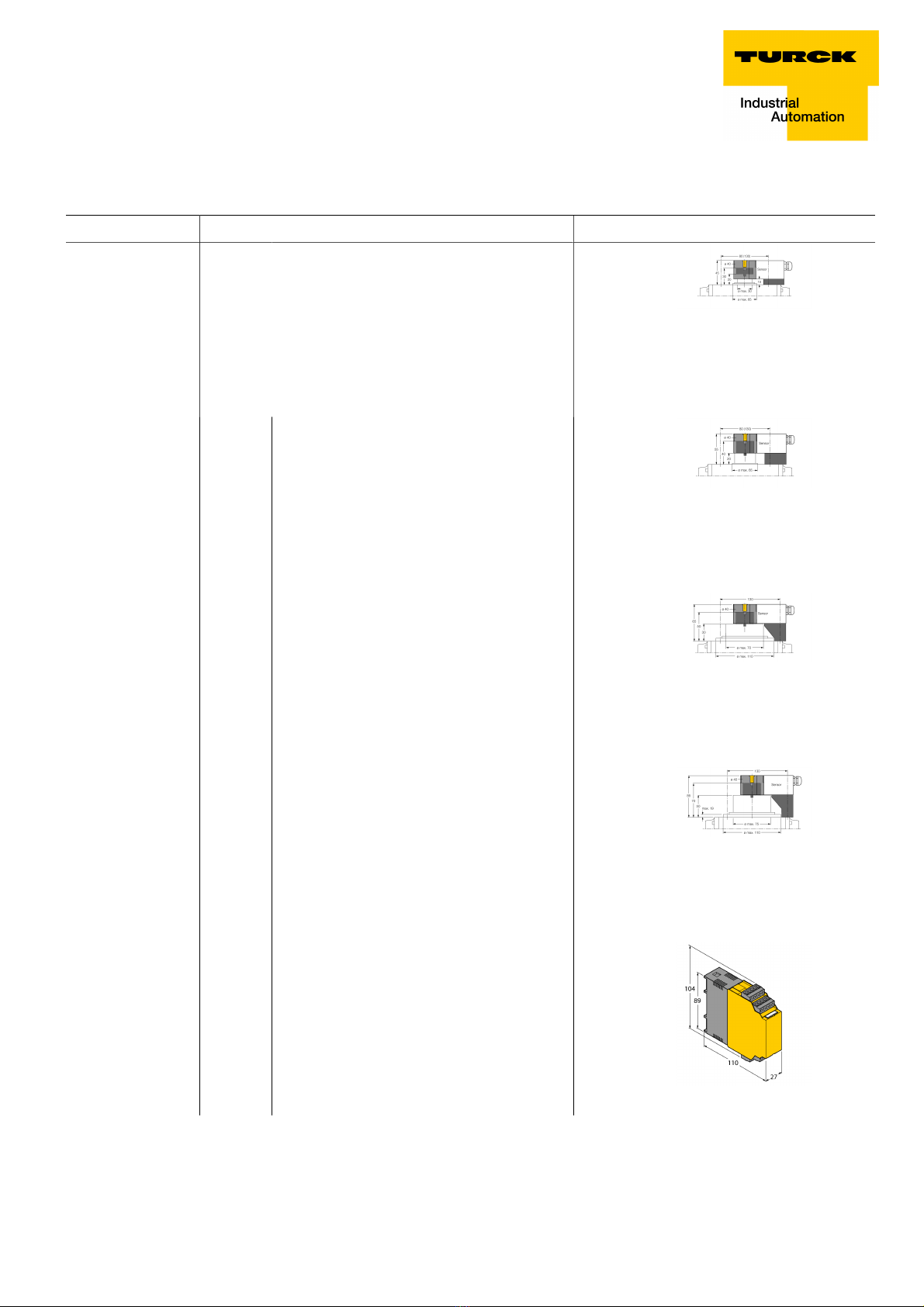

Accessories
Type code Ident no. Description
BTS-DSU35-Z01 6900229 Mounting kit dual sensors, for larger rotary actuators: Spac-
er plate and snap ring max. Ø 65 mm; hole pattern on flange
surface 30 x 80 mm (30 x 130 mm); connection shaft (shaft
extension) height 30 mm / Ø max. 30 mm
BTS-DSU35-Z02 6900230 Mounting kit dual sensors, for larger rotary actuators: Ø disc
and snap ring max. 65 mm; hole pattern on flange surface 30
x 80 mm (30 x 130 mm); connection shaft (shaft extension)
height 20 (30) mm / Ø max. 40 mm
BTS-DSU35-Z03 6900231 Mounting kit dual sensors, for larger rotary actuators: Ø disc
and snap ring max.110 mm; hole pattern on flange surface 30
x 130 mm; connection shaft (shaft extension) height 30 mm /
Ø max. 70 mm
BTS-DSU35-Z07 6900403 Mounting kit dual sensors, for larger rotary actuators: Ø disc
and snap ring max.110 mm; hole pattern on flange surface 30
x 130 mm; connection shaft (shaft extension) height 50 mm /
Ø max. 75 mm
IM33-14EX-CDRI 7560015 Isolating transducers; 1-port; power supply of 2-wire measur-
ing transducers with HART® communication as well as con-
nection of active 2-wire and passive 3-wire transmitters, SIL2
according to IEC61508
Inductive angle sensor
with analog output
Ri360P1-DSU35TC-ELi-Exi
Edition • 2016-06-25T06:44:38+02:00
5 / 5 Hans Turck GmbH & Co.KG ñ D-45472 Mülheim an der Ruhr ñ Witzlebenstraße 7 ñ Tel. 0208 4952-0 ñ Fax 0208 4952-264 ñ [email protected] ñ www.turck.com
Operating manual
Intended use
This device fulfills the directive 94/9/EC and is suited for use in explosion hazardous areas according to EN60079-0:2012 + A11 -11:2012.
In order to ensure correct operation to the intended purpose it is required to observe the national regulations and directives.
For use in explosion hazardous areas conform to classification
II 2 G and II 2 D (Group II, Category 2 G, electrical equipment for gaseous atmospheres and category 2 D, electrical equipment for dust atmo-
spheres)
Marking (see device or technical data sheet)
É II 2 G Ex ia IIC T6 Gb and É II 2 D Ex ia IIIC T85 °C Db acc. to EN 60079-0, -11
Local admissible ambient temperature
-25…+66 °C
Installation / Commissioning
These devices may only be installed, connected and operated by trained and qualified staff. Qualified staff must have knowledge of protection
classes, directives and regulations concerning electrical equipment designed for use in explosion hazardous areas.
Please verify that the classification and the marking on the device comply with the actual application conditions.
This device is only suited for connection to approved Exi circuits compliant to EN60079-0 and -11. Please observe the maximum admissible
electrical values.
After connection to other circuits the sensor may no longer be used in Exi installations. When interconnected to (associated) electrical equip-
ment, it is required to perform the "Proof of intrinsic safety" (EN60079-14).
Installation and mounting instructions
Avoid static charging of cables and plastic devices. Please only clean the device with a damp cloth. Do not install the device in a dust flow and
avoid build-up of dust deposits on the device.
If the devices and the cable could be subject to mechanical damage, they must be protected accordingly. They must also be shielded against
strong electro-magnetic fields.
The pin configuration and the electrical specifications can be taken from the device marking or the technical data sheet.
In order to avoid contamination of the device, please remove possible blanking plugs of the cable glands or connectors only shortly before in-
serting the cable or opening the cable socket.
Special conditions for safe operation
The device must be protected against any kind of mechanical damage, avoid static charging.
service / maintenance
Repairs are not possible. The approval expires if the device is repaired or modified by a person other than the manufacturer. The most important
data from the approval are listed.
