TTI PROFESSIONALS TTICM1000V Manual de usuario
600A AC CLAMP METER
AUTO RANGING
PART NO:
TTICM1000V
(..151477)
OPERATING
INSTRUCTIONS
21000V CLAMP METER
CONTENTS
INTRODUCTION .........................................................................................................1
• Intended Use......................................................................................................................3
• Product Contents .............................................................................................................3
GENERAL SAFETY ......................................................................................................3
SAFETY INSTRUCTIONS............................................................................................3
• Safe Operation And Standards.......................................................................................4
• Electrical Symbols.............................................................................................................5
GENERAL SPECIFICATIONS......................................................................................6
EXTERNAL OVERVIEW ..............................................................................................6
• Function Dial Overview ...................................................................................................7
• Buttons Overview .............................................................................................................7
• LCD Screen Overview .......................................................................................................8
• Other Functions.................................................................................................................8
OPERATING INSTRUCTIONS....................................................................................9
• AC Current Measurement................................................................................................9
• AC Voltage Measurement................................................................................................10
• DC Voltage Measurement................................................................................................11
• Resistance Measurement ................................................................................................12
• Continuity Testing ............................................................................................................13
• Diode Testing ....................................................................................................................14
• Capacitance Measurement ............................................................................................15
• Non-Contact AC Voltage Detecting (NCV) ..................................................................16
TECHNICAL INDEX.....................................................................................................17
• Environmental Constraint ...............................................................................................17
• Electrical Specication AC...............................................................................................17
• AC Voltage Measurement................................................................................................17
• DC Voltage Measurement................................................................................................17
• Resistance Measurement ................................................................................................18
• Capacitance Measurement .............................................................................................18
• NCV Measurement............................................................................................................18
• Continuity Measurement ................................................................................................18
• Diode Measurement.........................................................................................................19
POWERING OFF..........................................................................................................19
MAINTENANCE...........................................................................................................19
• Installation or Replacement of Battery.........................................................................19
WARRANTY INFORMATION .....................................................................................20
3OPERATING MANUAL
INTRODUCTION
TTTICM1000V is a true RMS (6000 count) auto ranging digital clamp meter with simulation bar.
This meter measures AC Current, AC/DC Voltage, Resistance, Capacitance, Diode Test,
Continuity and Non Contact Voltage detection.
The instruction manual includes relevant safety information and warning indication, please
read them carefully and strictly observes all warnings and notes.
INTENDED USE
The clamp meter is to be used only for electrical inspection within the specications the device is
rated for. Failure to use the device within the specications may result in serious injury or death
.
PRODUCT CONTENTS
CAUTION
!The supplied test leads are used for MAINS measurements CATll 1000V,
CATlll 600V according to IEC 61010-031
Unpack ensure the following attachments are complete or intact.
1. Operating instruction manual
2. Test Leads
3. TTTICM1000V Clamp Meter
41000V CLAMP METER
GENERAL SAFETY
Prior to using the clamp meter, please read the product manual and ensure you have a solid
understanding of the devices functions and features.
WARNING
!
The warnings, cautions, and instructions discussed in this instruction
manual cannot cover all possible conditions or situations that could
occur. It must be understood by the operator that common sense and
caution are factors that cannot be built into this product, this must be
supplied by the operator.
SAFETY INSTRUCTIONS
SAFE OPERATION AND STANDARDS
This Meter complies with IEC 61010-1, Pollution Degree 2, Over voltage Category (CATll 1000V,
CATlll 600V) and Double Insulation standards.
Anyone using this instrument should be knowledgeable and trained about the risks involved
with measuring voltage, especially in an industrial setting, and the importance of taking safety
precautions and of testing the instrument before and after using it to ensure that it is in good
working condition.
This product has been tested to the requirements of IEC 61010
CAT II: Applicable to test and measuring circuits connected directly to utilization points
(socket outlets and similar points) of the low-voltage MAINS installation.
CAT Ill: Applicable to test and measuring circuits connected to the distribution part of the
building’s low-voltage MAINS installation.
•Check the clamp meter and test leads before using, guard against any damage.
If any abnormalities or damage are found, do not use the clamp meter. Carefully examine
the insulation around the jaws.
•Inspect the test leads for damaged insulation or exposed wires. Check test leads
continuity. Replace damaged test leads with leads that are suitable to the meter that meet
or exceed the safety requirements.
•Comply with local and national safety codes. Use personal protective equipment
(approved rubber gloves, face protection, and ame-resistant clothes) to prevent shock
and arc blast injury where hazardous live conductors are exposed.
•Do not use in CAT III environments without the protective cap of test probe, The protective
cap decreases the exposed probe metal < 4mm. This decreases the possibility of arc ash
from short circuits.
•Measure a known voltage rst to make sure that the meter operates correctly.
•When using the test leads, ensure leads are fully seated and keep your ngers behind the
nger guards. Do not contact the bare wire and connector, unused input terminal or the
circuit being measured when clamp meter is in operation.
•Do not use the clamp meter without having rear cap and battery cover in place, otherwise
electric shock may occur.
•To avoid false readings that can lead to electrical shock and injury, replace the batteries as
5OPERATING MANUAL
soon as the low battery indicator appears. Remove all probes, test leads, and accessories
before replacing batteries.
•Hold the meter behind the clamp body as specied in “external overview”.
•Connect the common test lead before the live test lead and remove the live test lead
before the common test lead.
•Function selector shall be set at the correct position prior to measurement.
Do not change selector settings while measuring to guard against damage to the meter.
•Refrain from applying voltage over DC1000V/AC750V between the clamp meter terminals
and ground to guard against electric shock and clamp meter damage.
•Do not touch voltages >30 V ac rms, 42 V ac peak, or 60 V dc.
•When the meter is working at an eective voltage over 60V in DC or 30V rms in AC, special
care should be taken as there is danger of electric shock.
•Do not apply more than the rated voltage, between the terminals or between each
terminal and earth ground.
•Do not measure current in circuits carrying more than 600A with the meter jaw.
•Do not measure voltage or current higher than the allowable input value.
•Disconnect circuit power and discharge all high-voltage capacitors before you measure
resistance, continuity, or capacitance.
•Do not modify the internal wiring in the meter to guard against damage to the meter
and danger.
•Do not use the HOLD function to measure unknown potentials. When HOLD is turned on,
the display does not change when a dierent potential is measured.
•Do not store or use clamp meter in an explosive or ammable environment, high
temperature, high humidity or strong electromagnetic eld.
•Clean the clamp meter case with soft cloth and neutral detergent. To prevent causing
corrosion to the case, or damage to the instrument do not use abrasives or solvents.
Make sure all water is removed before use.

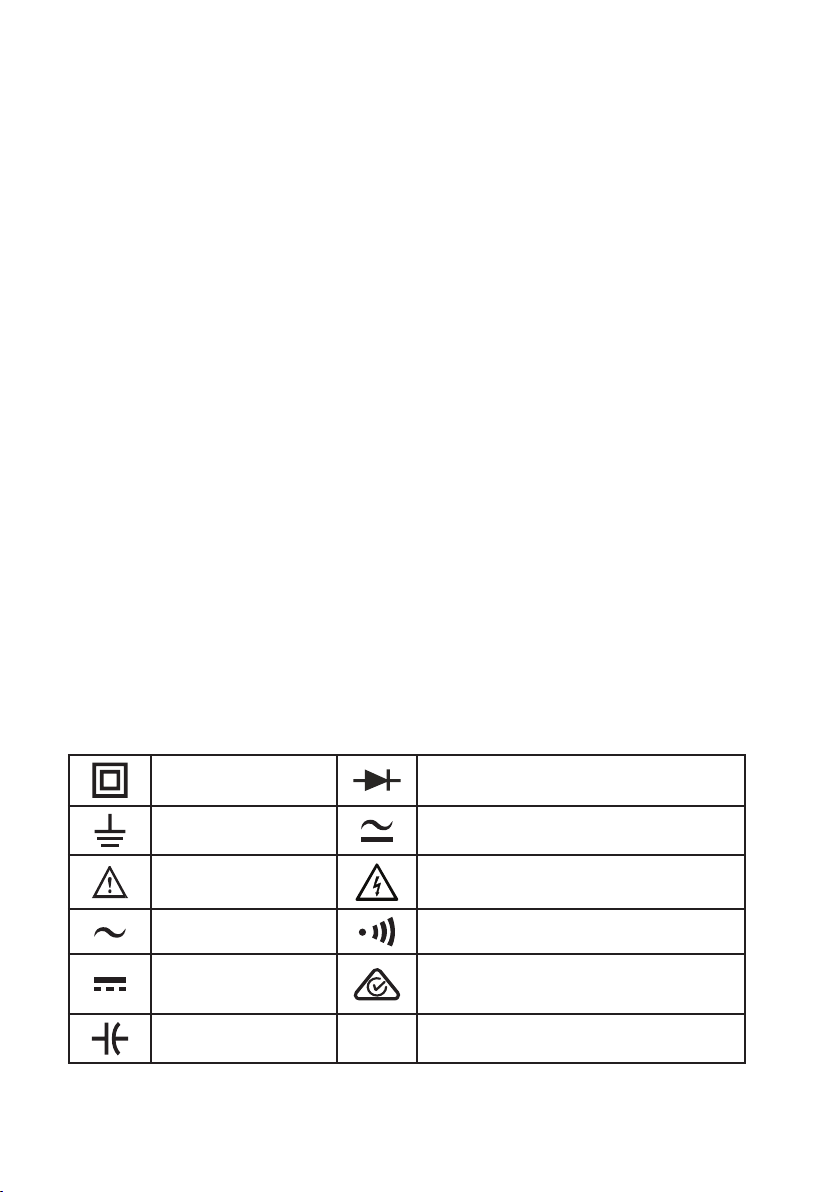

ELECTRICAL SYMBOLS
Double insulation Diode measurement
Grounding AC or DC (alternating current or direct current)
Warning High voltage hazard
AC (alternating current) Continuity measurement
DC (direct current) This symbol signies product complies with
Australian requirements
Capacitance
61000V CLAMP METER
GENERAL SPECIFICATIONS
•Display count: approx. 6000
•Sampling rate: 3/s approx.
•Sensor type: coil induction
•Maximum jaw opening: 30mm
•Power supply: 3xAAA 1.5V batteries
•Dimension: 228mm x77mm x41mm

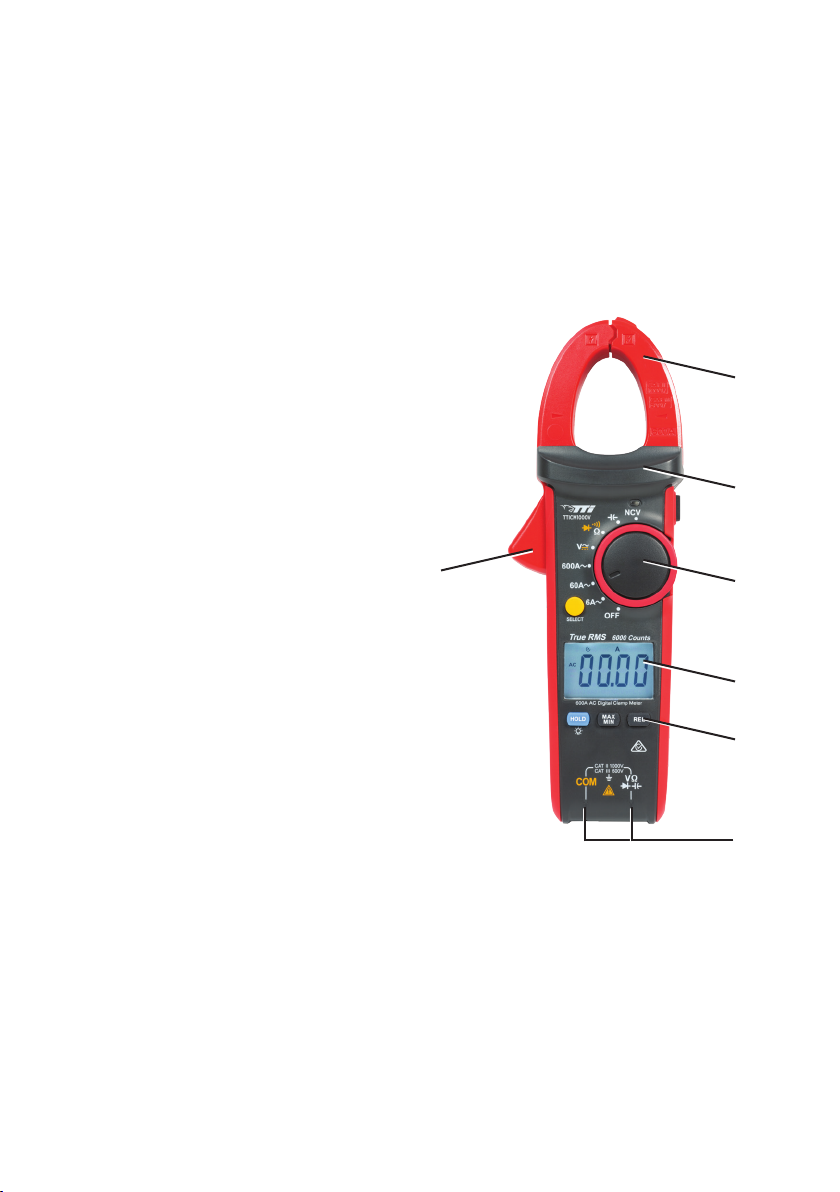

EXTERNAL OVERVIEW
1.
2.
4.
5.
6.
7.
3.
1. Clamp
2. Clamp body: Designed to protect
operator from touching the
dangerous area.
3. Clamp Trigger: Press to open clamp
4. Function Selector
5. LCD display.
6. Function key: Select basic functions.
7. Terminal inputs: Input test leads to
measure via test lead
7OPERATING MANUAL

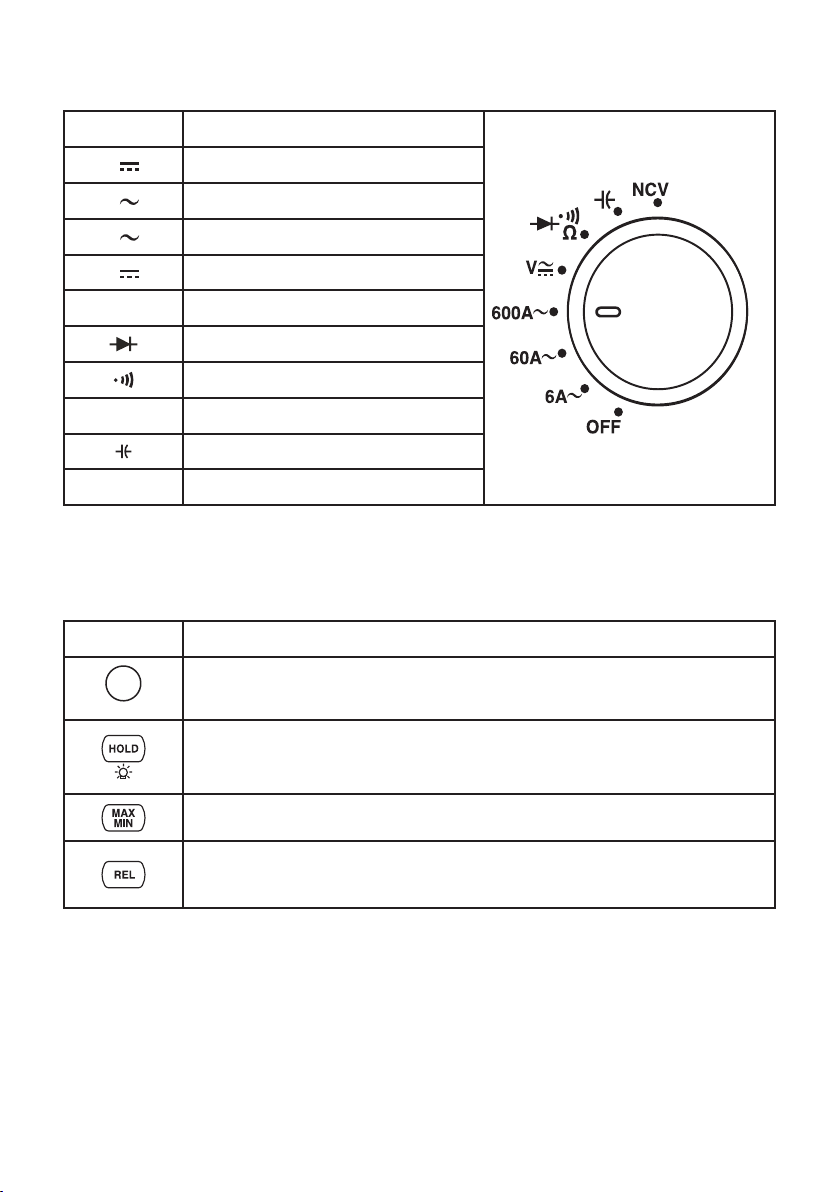

FUNCTION DIAL OVERVIEW
POSITION DESCRIPTION
VDC voltage measurement
VAC voltage measurement
AAC current measurement
ADC current measurement
NCV Non-contact voltage measurement
Diode measurement
Continuity measurement
ΩResistance measurement
Capacitance measurement
OFF Shut-down
BUTTONS OVERVIEW
BUTTON DESCRIPTION
SELECT
Pressing select allows you to cycle through the options of each function of the
multimeter.
A short press of the HOLD button once will enter data measurement hold mode, press
again to exit the data measurement hold mode. A long press of this button will turn
the backlight on, if pressed long again it will turn o backlight.
Short press of this button will enter the maximum/minimum measurement mode and
long press will exit the function.
Press once, LCD will display“MAX” to enter maximum measurement mode, press again,
LCD will display“MIN” to enter minimum measurement mode. A long press of this
button will exit MAX/MIN. It is only valid for AC voltage, AC current, resistance.
81000V CLAMP METER

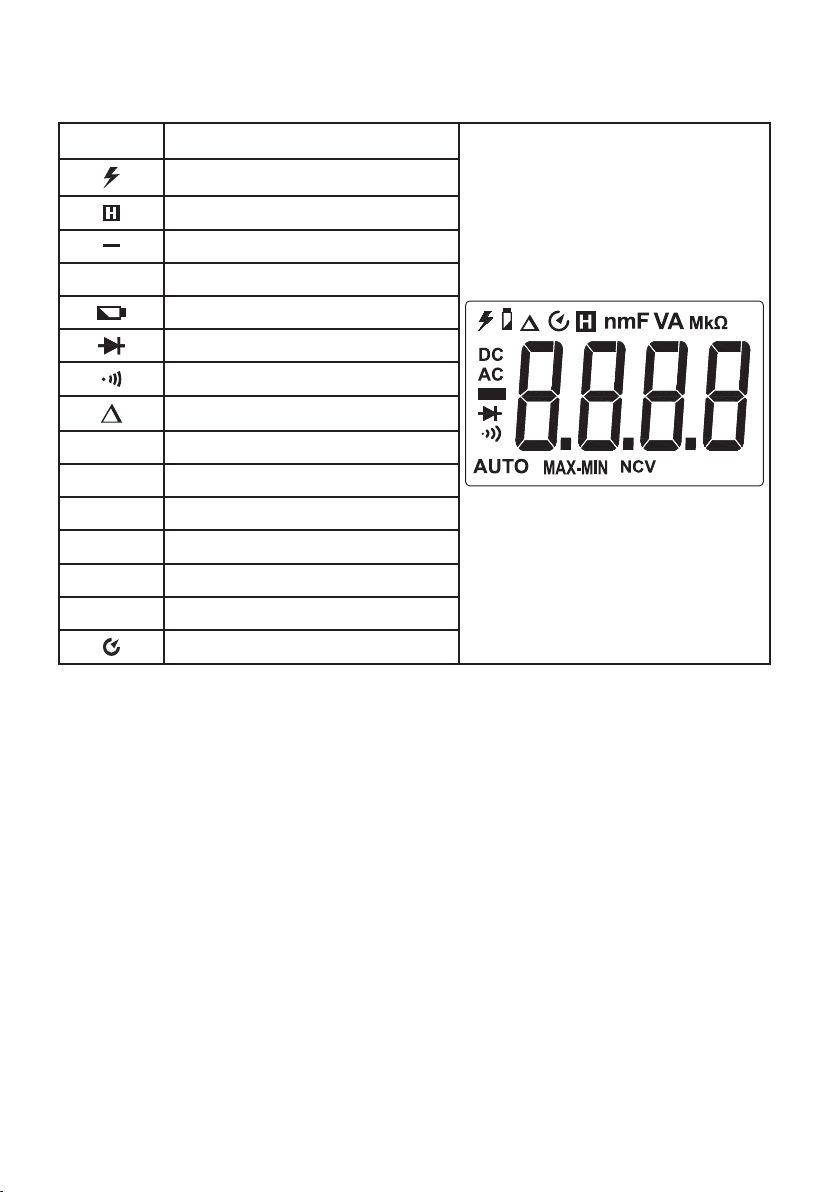

LCD SCREEN OVERVIEW
SYMBOL DESCRIPTION
Caution AC/DC voltage is higher than 30V
Data hold
Negative reading
AC/DC AC/DC measurement
Low battery indicator
Diode measurement
Continuity measurement
Relative value measurement
Ω, k Ω, M Ω Resistance unit
mV, V Voltage unit
μA, mA, A Current unit
nF, μF, mF Capacitance unit
NCV Non-contact voltage measurement
AUTO Auto ranging
Auto power o
OTHER FUNCTIONS
Flash Light A press of this button will turn the ashlight on, helping illuminate the desired
workplace. Pressing the light button will turn o the ashlight.
9OPERATING MANUAL
OPERATING INSTRUCTIONS

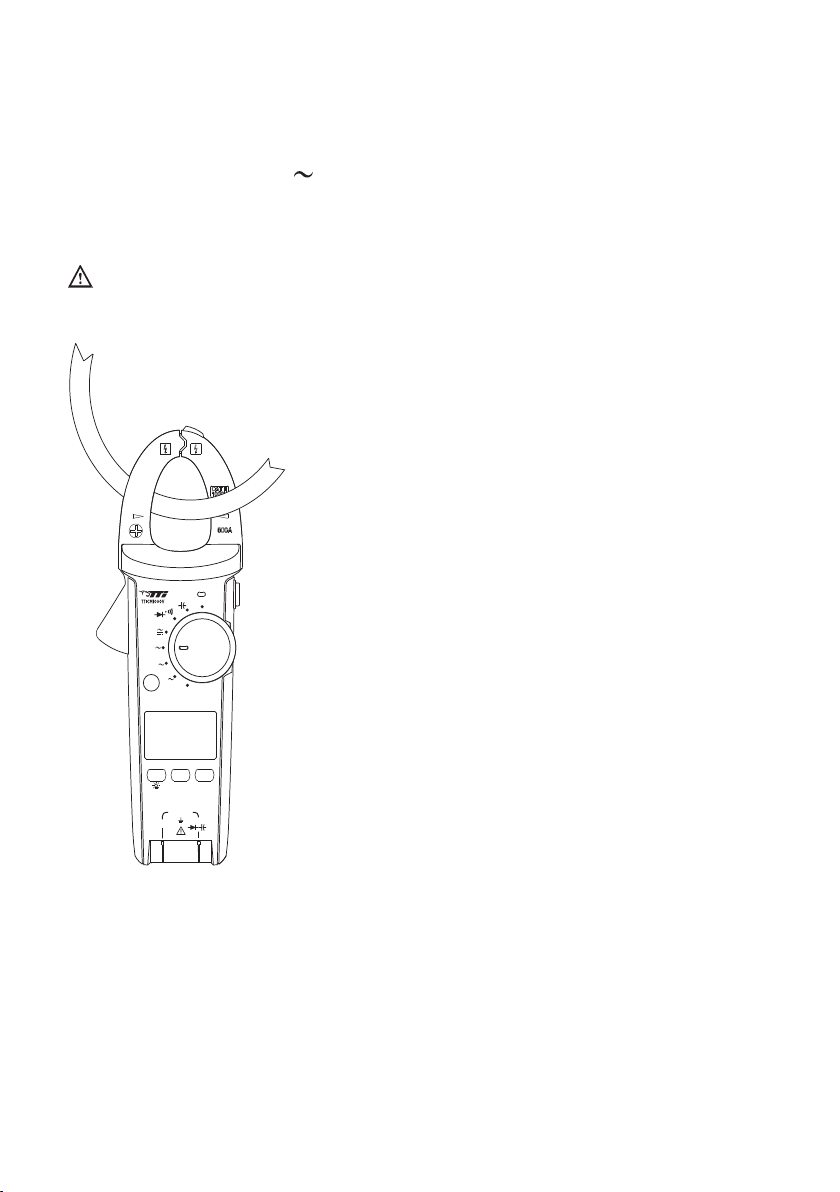

AC CURRENT MEASUREMENT
1. Set function selector to A, open the meter jaw and clamp the conductor to be
measured. Be sure the conductor to be measured is clamped at the centre of the clamp.
2. Care should be taken to ensure that the clamp is completely closed.
3. The current measurement will be shown in the display.
NOTE:
•Disconnect test leads when measuring with the clamp.
HOLD REL
MAX
MIN
V
COM
CAT II 1000V
CAT III 600V
Ω
600A AC Digital Clamp Meter
True RMS
6000 Counts
SELECT
NCV
V
600A
60A
6A
OFF
Ω
10 1000V CLAMP METER

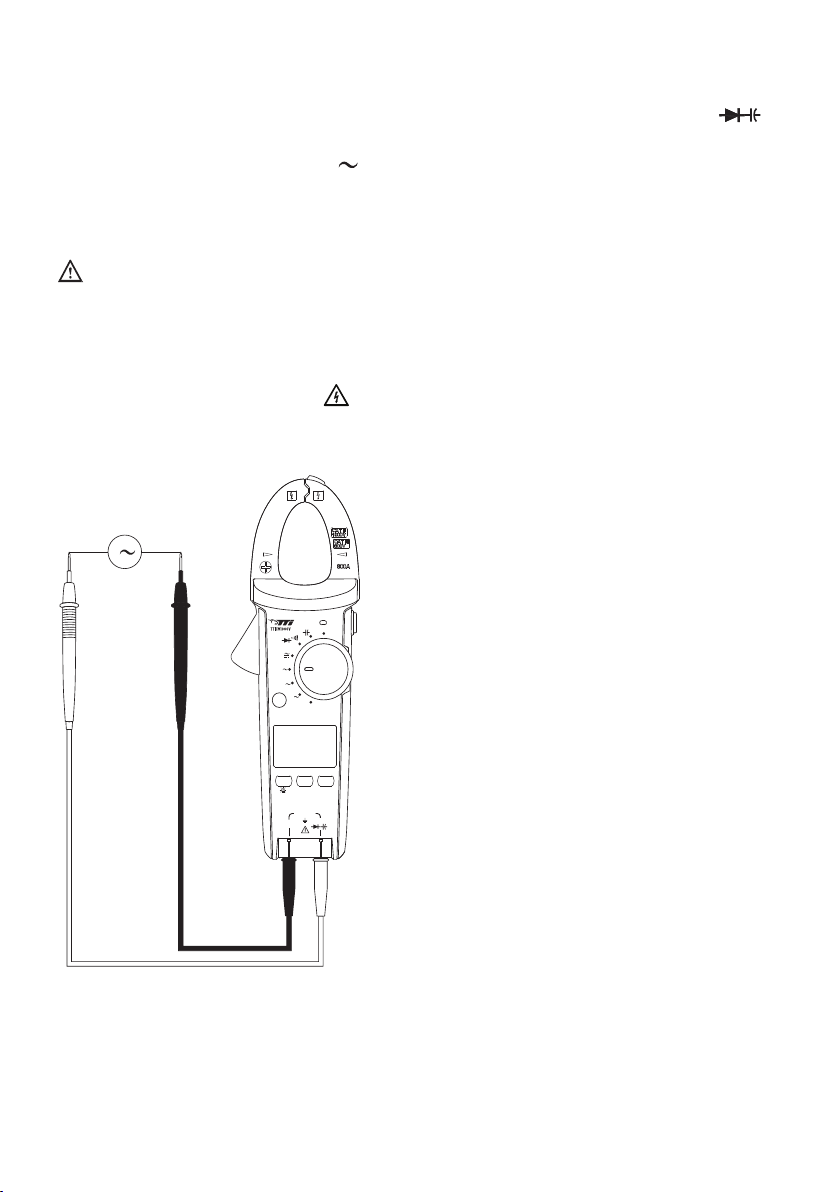

AC VOLTAGE MEASUREMENT
1. Connect common test lead to the COM terminal, then insert the red test lead to V Ω
terminal.
2. Set the function selector to the V setting and connect the test lead in parallel with the
power or load to be measured.
3. The meter will auto-range to display the most appropriate measurement.
NOTE:
•Do not input voltage higher than AC 750V as damage to the meter may result.
•After completing all measurement operations, disconnect the test lead from the measured
circuit.
•When measured voltage is higher than the safety voltage 30V AC, the meter displays the
high voltage warning prompt ” “
•When measured voltage is higher than 750V AC, the meter beeps and displays the high
voltage warning prompt.
HOLD REL
MAX
MIN
V
COM
CAT II 1000V
CAT III 600V
Ω
600A AC Digital Clamp Meter
True RMS
6000 Counts
SELECT
NCV
V
600A
60A
6A
OFF
Ω
V
Tabla de contenidos
Otros manuales de Instrumento de medición de TTI
TTI
TTI FTE6100 Manual de usuario
TTI
TTI PROFESSIONALS TTICM600V Manual de usuario
TTI
TTI PSA2702 Manual de usuario
TTI
TTI PSA2701T Manual de usuario
TTI
TTI PFM3000 Manual de usuario
TTI
TTI 1604 Manual de usuario
TTI
TTI TTIDM1000VAR Manual de usuario
TTI
TTI FTE-7000A Manual de usuario
TTI
TTI LD300 Manual de usuario
Manuales populares de Instrumento de medición de otras marcas
Endress+Hauser
Endress+Hauser Proline Promag 50 Especificaciones técnicas
Siemens
Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas
KLINGER
KLINGER CMF V Series Manual de usuario
EXFO
EXFO FTB-2 Manual de operación y mantenimiento
Keysight
Keysight M8290A Manual de usuario
ADTEK
ADTEK MW-5 Manual de usuario
