TScale IHB++ -300 Manual de usuario

IHB++ Series

Precision Balance

REV:M1, JUne 2014

IHB++ Series Technical Manual

- 1 -

CONTENTS

1. PRECAUTIONS……………………………………………………………..2

2. INTRODUCTION……………………………………………………………3

3. SPECIFICATIONS……………………………………………………….....4

3.1 Dimension………………………………………………………………4

3.2 Specifications…………………………………………………………..4

4. INSTALLATION……….…………………………………………………….6

5. DESCRIPTION……….....................................................................8

6. OPERATION………………………………………………………………..10

6.1 Power ON/OFF………………………………………………………10

6.2 Zero…………………………………………………………………...10

6.3 Tare…………………………………………………………………...10

6.4 Weighing Unit ………………………………………………………….10

6.5 Percent Weighing…………………………………………………….11

6.6 Parts Counting………………………………………………………....11

6.7 Accumulation………………………………………………………….12

7. PARAMETER……………………………………………………………….13

8. CALIBRATION……………………………………………………………..15

8.1 Linear Calibration………………………………………………………15

8.2 Normal Calibration……………………………………………………16

8.3 Manual Calibration by built-in weight………………………………16

8.4 Check internal Counts…………………………………………………16

9. RS232 OUTPUT……………………………………………………………17

9.1 Specifications…………………………………………………………17

9.2 Continuously output protocol…………………………………………17

9.3 Print Format……………………………………………………………17

IHB++ Series Technical Manual

- 2 -

1. PRECAUTIONS

WARNING

DISCONNECT ALL POWER TO THIS UNIT

BEFORE INSTALLING, CLEANING, OR

SERVICING. FAILURE TO DO SO COULD

RESULT IN BODILY HARM OR DAMAGE THE

UNIT.

CAUTION

Permit only qualified persons to service the instrument

Before connecting or disconnecting any components, remove the

power.

Failure to observe these precautions bodily harm or damage to or

destruction of the equipment.

The weighing scale is a precision electronic instrument, handle it

carefully.

Do not install the scale in direct sunlight.

Verify the local voltage and receptacle type are correct for

the scale.

Only use original adaptor, other could cause damage to the

scale.

Pluggable equipment must be installed near an easily accessible

socket outlet.

Avoid unstable power sources. Do not use near large users of

electricity such as welding equipment or large motors.

Avoid sudden temperature changes, vibration, wind and water.

Avoid heavy RF noise.

Keep the scale clean

IHB++ Series Technical Manual

- 3 -

2. INTRODUCTION

The IHB++ series balance, that amplifies signals from a load cell, converts it to

digital data and displays it as a mass value.

It is accurate, fast and versatile series of general purpose balances with

counting, % weighing functions and accumulation

16.5 mm LCD with white LED back light display

Battery provide up to 40 hours of continues use (with out backlight)

Capacity 300g and 3000g.

All units include automatic zero tracking, tare, and an accumulation facility that

allows the count to be stored and recalled as an accumulated total

IHB++ Series Technical Manual

- 4 -

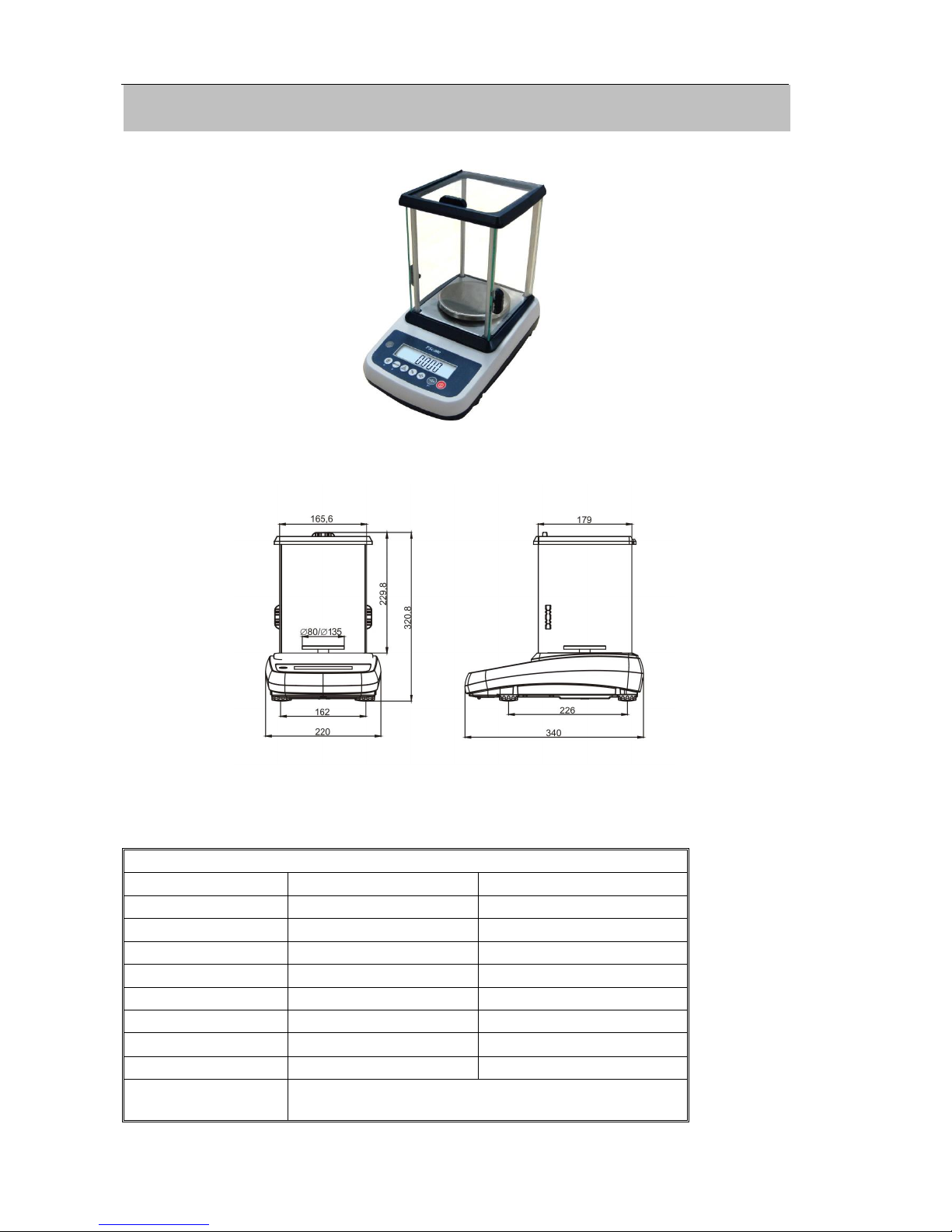

3. SPECIFICATION

3.1 Dimension

3.2 Specifications

IHB++ SERIES

Model #

IHB++ -300

IHB++ -3000

Maximum Capacity

300g

3000g

Readability

0.001g

0.01g

Resolution

1/300,000

Tare range

-299.999g

-2999.99g

Minimum Capacity

0.02g

0.2g

Linearity ±

0.003g

0.01g

Platter

Φ80mm

Φ120mm

Wind shield

Yes

Units of Measure

g. /ct / lb / oz / d / gn / ozt / dwt / mom / tlT / tlh /

tlj / t / bt / n

IHB++ Series Technical Manual

- 5 -

Common Specifications

Interface

RS-232 Output Optional

Stabilisation Time

2 Seconds typical

Operating Temperature

5°C - 40°C / 41°F - 104°F

Power supply (external)

12V/500mA or built-in rechargeable battery

6V/1.2Ah

Calibration

Automatic External

ADC

Σ-Δ

Display

16.5 mm high 6 digits LCD

with auto backlight and loading bar graph

Balance Housing

ABS Plastic, Stainless Steel platform

Pan Size

Φ80mm / Φ120mm

Overall Dimensions (wxdxh)

220mm x 340mm x 321mm

Other Features and Specs

accuracy enhancement for parts counting and

percentage weight function

IHB++ Series Technical Manual

- 6 -

4. INSTALLATION

Unpacking

Carefully take the balance out of its package, make it sure its not damaged and all

accessories are included.

Remove the weighing scale from the carton.

Remove the protective covering. Store the packaging and to use if you need to

transport the scale later.

Inspect the scale and terminal for damage.

Make sure all components are included

Accessories,

1. Balance

2. Adaptor

3. Pan

4. Product manual

Level Adjusting

Place the scale on a table.

Check the water mark. If, bubble is not centre

adjust the leveling feet until reach centre. Check

the level when you change the location.

Charging Battery

To charge the battery insert the adaptor pin to jack, jack is locating rear side of

the scale. Adaptor simply plug into the mains power. The scale no needs to be

turned on.

The battery should be charged for 12 hours for full capacity.

Left side of the display there is an LED to indicate the status of battery charging.

When the scale is plugged into the mains power the internal battery will be

recharged. If the LED is green, the battery has a full charge. If it is red, the

battery is nearly discharged and if yellow, the battery is being charged.

Do not use any other type of power adaptor than the one supplied with the scale.

Verify that the AC power socket outlet is properly protected.

Note: Please charge the battery before using the scale for the first time

IHB++ Series Technical Manual

- 7 -

Installation

Place the scale on a table..

Connect the adaptor pin in to the scale adaptor jack. Adaptor jack is locating,

rear side of the scale.

Adaptor connects into your AC power socket. Pluggable equipment must

be installed near an easily accessible socket outlet with a protective

ground/ earth contact.

Turn on the On/Off key. If you want to turn off, press the key again.

Display will be show the version number and will be starting self checking.

After self checking, display will be come to normal weighing mode.

Warm-up time of 15 minutes stabilizes the measured values after

switching on.

Calibrate with exact calibration weights, minimum 1/3 of the scale capacity

want to use for calibration. For calibration, see details in parameter.

Then you can start your operation

Pan

Adjustable foot

RS-232

USB

Adaptor Jack

IHB++ Series Technical Manual

- 8 -

5. DESCRIPTION

Key Board

Turns the scale power On / Off

Sets display to Zero

Subtracts weight of container

Set percentage weighing function

Set to counting mode

Set to weighing units

Set to print the results
