Trust DC-4700 POWERCAM OPTICAL ZOOM Manual de usuario

DC-4700 POWERCAM OPTICAL ZOOM

Digital Camera User’s Manual

All specifications and information are subject to changes without further notice

DC-4700 POWERCAM OPTICAL ZOOM

Warning

TO PREVENT THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THE UNIT

TO RAIN OR MOISTURE

FOR AMERICAN USERS AND CANADA

 This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

 Chargers or modifications not expressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

DC-4700 POWERCAM OPTICAL ZOOM

Contents

1. Quick Start for using camera 4

Identifying the parts 4

Charging battery pack 6

Battery pack installation and uninstallation 6

SD Memory Card installation and uninstallation 7

Formatting an SD card 7

Camera power on/off 8

Date and Time configuration 8

Language selection 8

2. Basic Still Image Capturing 9

Zoom to desired image sizes 9

Digital Zoom for further enlargement 9

Hot-keys for more selections 9

Shooting without the use of LCD monitor 10

Advanced still image shooting 10

3. Video capturing 13

Basic video capturing 13

Advanced video capturing 13

4. Replay recorded image/video 14

Delete Picture 14

Scale up picture 14

Configuration Menu 14

5. Choose Images to Print 16

6. Installing USB Driver Software (For Windows 98SE only) 17

7. View or download Image file to PC 17

8. More Camera Settings 18

9. Specifications 20

DC-4700 POWERCAM OPTICAL ZOOM

1. Quick Start for using camera

Identifying the parts

- Knowing your camera and its features

 Zoom Lens

 Microphone

 Mode Dial

 Shutter

 Strap holder ringlet

 Mode Dial

 Flash

 AF assisted LED

 Optical ViewFinder

 Self-Timer LED

 Zoom Lens

 Mode Dial

 Optical Viewfinder

 Zoom Key

 Strap Holder ringlet

 AF & Flash LEDs

 Menu Key

 Rubber grip

 Control Pad

 Display Key

 LCD panel

Rear Elevation

Top Elevation

Front Elevation

DC-4700 POWERCAM OPTICAL ZOOM

Mode Dial

- Power Off

- Still Image Mode

- Video Mode

- Playback Mode

- Setup Mode

LCD Panel icons representation

 Strap holder ringlet

 USB rubber cover

Mini USB interface

 SD MemoryCard and

Battery compartment

door

End Elevation

DC-4700 POWERCAM OPTICAL ZOOM

LCD Status icons

Charging battery pack

1. Connect the AC plug cord to the battery charger and insert the power plug into the power source outlet.

2. Insert the battery pack (NB-1L model) into the charger as illustrated below with the arrow symbol

pointing towards the charging point.

3. The Charging will begin once power is turned on and the LED will turn red in colour.

4. Once completed, remove the battery pack from the battery charger.

Battery pack installation and uninstallation

- Be sure to turn off your camera when open the battery/SD card cover

1. Open the Battery compartment / SD Card cover by sliding the cover in the direction of the printed arrow.

2. Slide in (Arrow side facing the front of the camera) or Pull out the battery pack from the battery

compartment.

3. Close the Battery compartment / SD Card cover by closing the cover and slide back towards the body to

lock.

Charging Points

rrow pointing towards Charging Points

Red LED will light up during charging

2304 x 1712

2720 x 2016

DC-4700 POWERCAM OPTICAL ZOOM

Open battery compartment cover

on the digital camera side.

Insert the Battery pack

Close the battery compartment cover.

SD Memory Card installation and uninstallation

- Be sure to turn off your camera when opening the Battery compartment / SD card cover

1. Open the Battery compartment / SD Card cover by sliding the cover in the direction of the arrow

2. Install the SD Memory card by inserting it into the SD slot in the same position as the printed image in the

compartment.

3. Close the Battery / SD Card cover

Note: There are 16MB of built-in memory in the camera, it is only used when are no SD card inserted.

Open battery compartment cover

on the digital camera side.

Insert the card all the way

Close battery compartment

cover.

Formatting an SD card

1. Insert the SD Card and close the Battery / SD card cover

2. Turn the Mode Dial to the (playback mode)

3. Press the Menu Key and the Delete menu will appear first which is the default.

4. Select DELETE, and then press f: OK

5. Choose Format from the list, press f: OK and then Ye s to confirm formatting the card.

6. Note: Use with care. If there are no SD Card in the camera, it will proceed to erase the images in the

camera’s own memory.

Camera power on/off

1. Turn the Mode Dial to any of the function modes and Digital Camera will be powered on.

2. Turn the Mode Dial to power off camera

Mode Dial

Push In

Mark

1 2 3

Push In

1 2 3

DC-4700 POWERCAM OPTICAL ZOOM

Power Saving

Camera has power saving. To wake up, press Shutter.

Date and Time configuration

1. Turn the Mode Dial to Setup mode

2. Press dto DATE FORMAT, and then press OK or f

3. Press cd and then OK to set Date/Time format. Press OK

4. Press dto DATE/TIME, and then press OK or f

5. Press cd to change and press efto select.

6. Press OK to store.

7. To exit, turn the Mode Dial to another mode or to shutdown the camera.

Language selection

1. Turn the Mode Dial on the top to Setup mode

2. Press dto “abc – LANGUAGE”, and then press OK or f

3. Press cd and then OK to set the language

4. To exit, turn the Mode Dial to another mode or to shutdown the camera

DC-4700 POWERCAM OPTICAL ZOOM

2. Basic Still Image Capturing

- Capturing your favorite or important moments or subjects of concern

1. Turn the Mode Dial to (Still Image Capturing mode), and LCD will be automatically turned on

with a red focus cursor in the center.

2. Frame your subject in your preferred pose and hold the camera steadily with both hands

3. Ensure the lens and flash are not blocked by your finger or strap.

4. Press and hold the shutter button halfway down to lock the focusing on the subject.

When the focus cursor turned to green, the focus has been adjusted and is ready for

image capturing., or check AF LED.

5. Press the shutter button fully to capture the image.

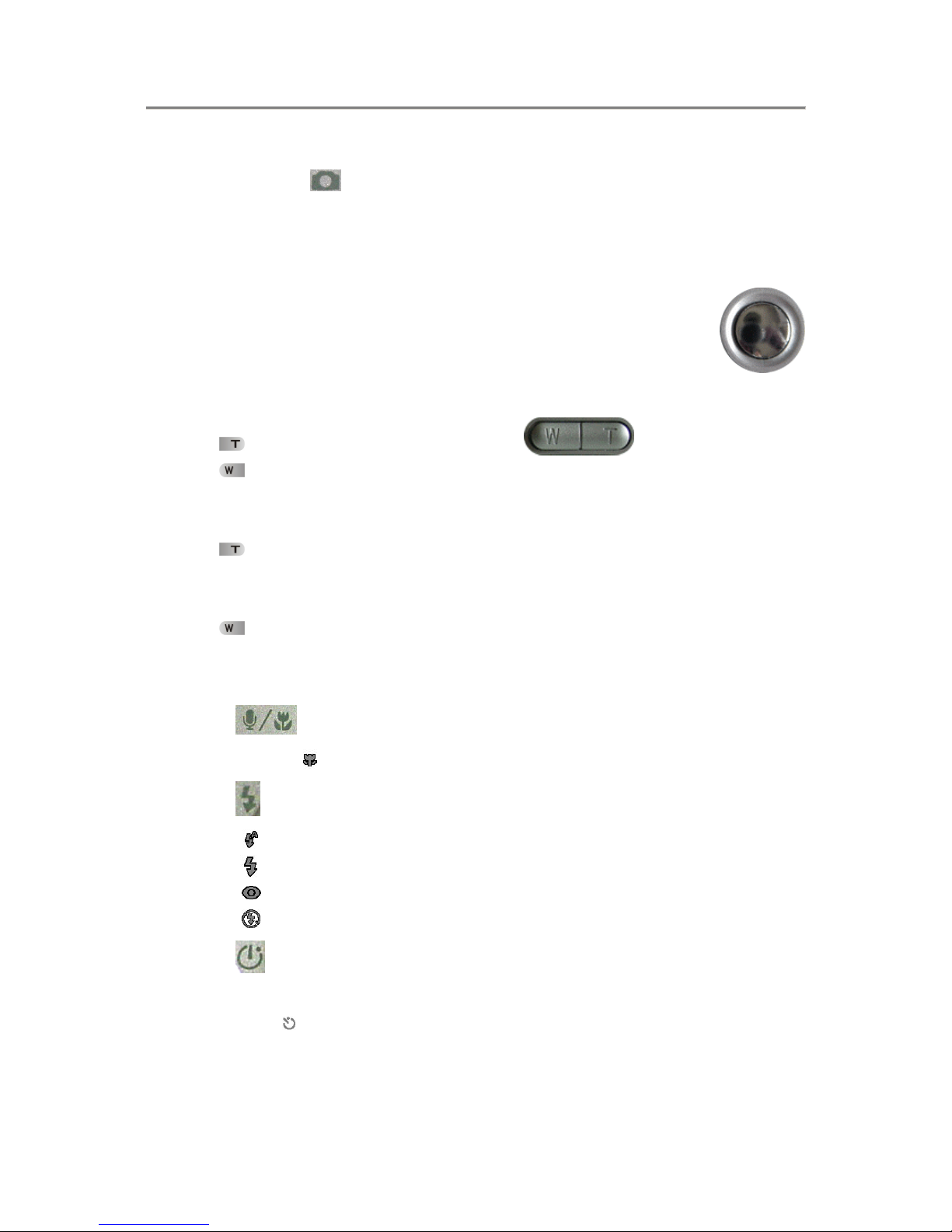

Zoom to the desired image sizes

 Press for telephoto; zoom in your subject, or

 Press for wide angle; capturing an entire scenery or coverage.

Digital Zoom for further enlargement

 Press continuously until the end of the scale and press further to enter into the Digital Zoom mode.

(5 step digital zoom: 1.6x, 2.2x, 2.8x, 3.4x and 4.0x). The subject image will be digitally enlarge and

enhance with the Digital zoom feature.

 Press to reduce the scale of the Digital zoom, and exit the Digital Zoom mode.

Hot-keys for more selections

 Press cto enable Macro mode

 Macro Mode – For close-up photography (10-50 cm)

 Press efor using flash mode

Auto

Fill-in

Auto with the redeye reduction

Off

 Press fto enable Self-timer or press twice to enable Continue shots, or press three times to

enable voice memo

 Self-timer

1. The enabled Self-timer icon will be displayed at top left corner of the LCD

2. Press the shutter button to begin the countdown.

Shutter button

DC-4700 POWERCAM OPTICAL ZOOM

 Continue shots – Camera takes 3 continuous shots after the shutter button is depressed.

 Voice mode – For recording voice memo after picture capturing (within 15 sec). Press

Shutter to stop recording.

 Press dto enable Manual focus mode

 Press to focus the subject manually, and then depress the shutter when ready to capture

the image.

 Under this function, auto-focus function is disabled.

Shooting without the use of LCD monitor

- Capturing images without the use of the LCD panel

1. Press the DISP key twice to turn off LCD.

2. Use the Viewfinder to frame and position the subject.

3. When ready, press the Shutter button to take the picture.

Advanced Still Image Shooting

- Press Menu Key to turn on/off Menu and use Control Button to configure settings:

Remark: LCD monitor must turn on.

 Image Size

Select the different sizes for your images; the larger the resolution, the better the quality but the file size

is also increased. If the resolution is increased, the image quality will improve, but the number of images

can be taken will decrease due to the large image file size. Select the resolution according to the desired

image quality and purpose.

 Image Quality

3 different quality selections for your different imaging requirements. Even if the same resolution is

used, you can change the image quality to increase or decrease the image file size so that you can

capture less or more images. Select the image quality according to the desired image quality and

purpose.

2720 x 2016

2304 x 1712

1600 x 1200

640 x 480
