Owner’s Manual

SMART700DV

Intelligent, Line-Interactive UPS System

(Series Number: AGSM5436)

• 120V/230V Auto-Sensing Input, 120V Output

Not suitable for mobile applications.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR

surge protector in our monthly drawing!

tripplite.com/warranty

Important Safety Instructions 2

Quick Installation 4

Optional Installation 5

Basic Operation 6

Battery Replacement 10

Storage and Service 10

Specifications 11

Product Registration 12

Regulatory Compliance 12

Español 13 • Français 25

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the

installation, operation and storage of all Tripp Lite UPS Systems. Failure to heed

these warnings will void your warranty.

UPS Location Warnings

• The UPS is heavy. Use caution when lifting it.

• Your UPS is intended to be used in a temperature/humidity controlled environment,

indoor area that is relatively free of conductive contaminants. Install your UPS

indoors, away from excess moisture, heat, conductive contaminants, dust and direct

sunlight.

• For best performance, the ambient temperature near your UPS should be between

0° C and 40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not

obstruct its vents or fan openings.

UPS Connection Warnings

•CAUTION: Install in accordance with National Electrical Code standards ANSI/NFPA

70 and Canadian Electrical Code, Part I, C22.1.

• Short-circuit backup protection and overcurrent protection is provided by the building

installation.

• To reduce the risk of fire, connect only to a circuit-provided branch circuit overcurrent

protection in accordance with the National Electrical Code, ANSI/NFPA 70 and the

Canadian Electrical Code, Part I, C22.1. Be sure to use maximum 20A overcurrent

protection, in accordance with the plug/equipment rating, for the installation.

• The plug on the power supply cord is intended to serve as the disconnect device.

Be sure that the socket-outlet is installed near the equipment and is made easily

accessible.

• The UPS contains its own energy source (battery). The output terminals may be live

even when the UPS is not connected to an AC supply.

• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS’s

plug in a way that would eliminate the UPS’s connection to ground. Do not use

adapters that eliminate the UPS’s connection to ground.

• Do not plug your UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the generator must

provide filtered, frequency-regulated computer-grade output. Connecting your UPS to

a generator will void its Ultimate Lifetime Insurance.

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment

can reasonably be expected to cause the failure of the life support equipment or to

significantly affect its safety or effectiveness is not recommended.

• Do not connect surge protectors or extension cords to the output of your UPS. This

might overload the UPS and will void the surge protector and UPS warranties.

Important Safety Instructions

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit

current. Observe proper precautions. Do not dispose of the batteries in a fire. Do

not open the UPS or batteries. Do not short or bridge the battery terminals with any

object. Unplug and turn off the UPS before performing battery replacement. Use tools

with insulated handles. There are no user-serviceable parts inside the UPS. Battery

replacement should be performed only by authorized service personnel using the

same number and type of batteries (Sealed Lead-Acid). The batteries are recyclable.

Refer to your local codes for disposal requirements or visit tripplite.com/support/

recycling-program for recycling information. Tripp Lite offers a complete line of UPS

system Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite at tripplite.com to

locate the specific replacement battery for your UPS.

• During hot-swap battery replacement, the UPS will not provide backup power in the

event of a blackout or other power interruptions.

• Do not operate UPS without batteries.

• Do not attempt to add external batteries to the UPS.

UPS and Battery Recycling

Please recycle Tripp Lite Products. The batteries used in Tripp Lite products

are sealed Lead-Acid batteries. These batteries are highly recyclable. Please

refer to your local codes for disposal requirements.

You can call Tripp Lite for recycling info at 773.869.1234.

You can go the Tripp Lite Website for up-to-date information on recycling the

batteries or any Tripp Lite product. For more information, visit.tripplite.com/

en/support/recycling-program.cfm

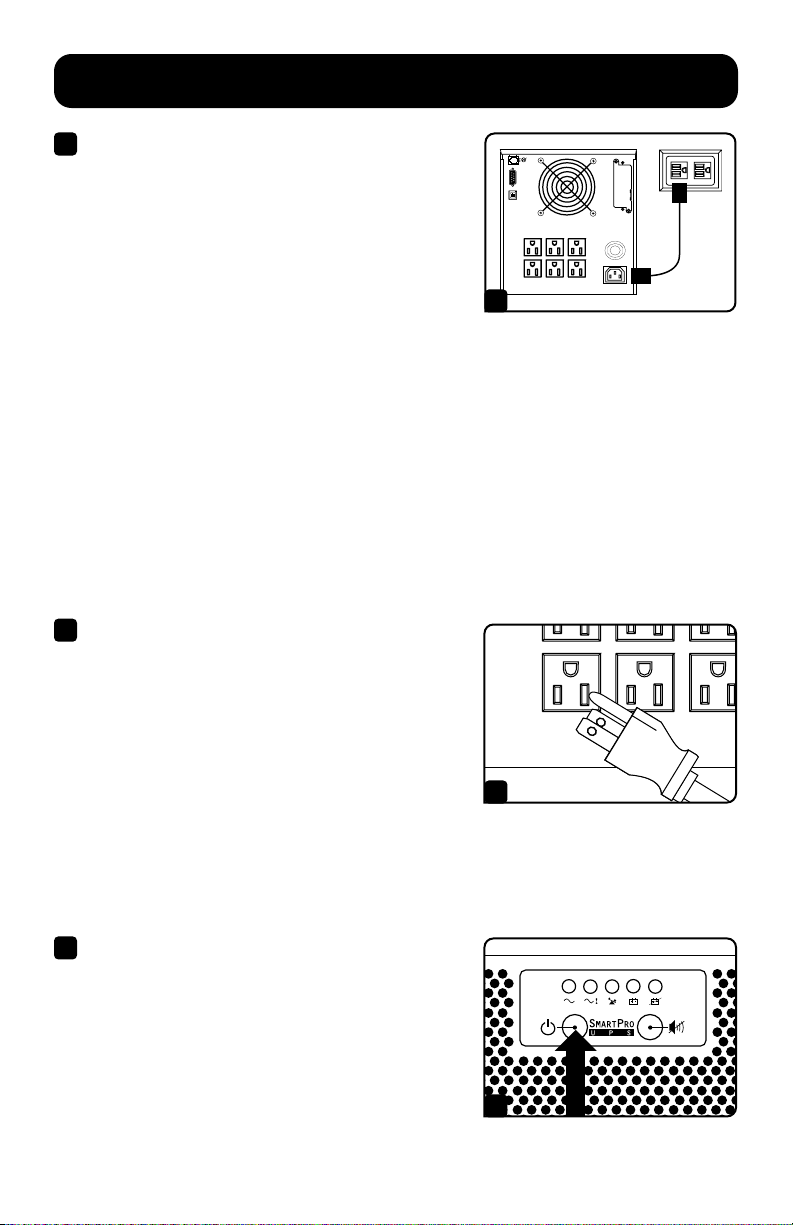

Quick Installation

1Plug the UPS into a wall outlet

supplying 120V or 230V (nominal)

AC power.

Use the included detachable power cord.

The IEC-320 end connects to the AC input

receptacle on the rear of the UPS. The NEMA

5-15 end connects to the wall outlet.

To plug the UPS into a wall outlet that does

not accept a NEMA 5-15 plug, simply replace

the included power cord with a detachable cord

from another piece of equipment, such as a

computer. Then, use the included power cord to

connect the equipment to the UPS.

NOTE: After you plug the UPS into a live

AC outlet, the UPS (in “Standby”

mode) will automatically charge its

batteries,* but will not supply power

to its outlets until it is turned ON

(see Step 3 below).

* The BATTERY CHARGE LED will be the only LED

illuminated.

2Plug your equipment into the UPS.

NOTE: Your UPS is designed to support

only electronic equipment. You will

overload the UPS if the total VA

ratings for all the equipment you

connect exceeds the UPS Output

Capacity (700VA). To find your

equipment’s VA ratings, look on their

nameplates. If the equipment is

listed in amps, multiply the number

of amps by 120 to determine VA.

(Example: 1 amp × 120 = 120 VA). If you are

unsure if you have overloaded the UPS outlets, see

“OUTPUT LOAD LEVEL” LED description.

3Turn the UPS ON.

Press and hold the “ON/OFF/STANDBY” button

for one second. The alarm will beep once briefly

after one second has passed. Release the

button.

Optional Installation

These connections are optional. Your UPS will

function properly without these connections.

1USB and RS-232 Serial

Communications

Use the included USB cable 1a and/or DB9

serial cable 1b to connect the communication

port on your equipment to the communication

port of your UPS. Install on your equipment the

Tripp Lite PowerAlert®Software appropriate to

your equipment’s operating system. Consult

your PowerAlert documentation for more

information.

2EPO Port Connection

This optional feature is only for those

applications that require connection to a

facility’s Emergency Power Off (EPO) circuit.

When the UPS is connected to this circuit,

it enables emergency shutdown of the UPS

inverter.

Using the cable provided, connect the EPO port

of your UPS 2a to a user-supplied normally

closed or normally open switch according to the

circuit diagram 2b . The EPO port is not a phone

line surge protector. Do not connect a phone

line to this port.

4-5

Basic Operation

Buttons (Front Panel)

“ON/OFF/STANDBY” Button

•To turn the UPS ON: With the UPS plugged into a live AC wall

outlet*, press and hold the “ON/OFF/STANDBY” button for one

second.** Release the button. If utility power is absent, you can

“cold-start” the UPS (i.e.: turn it ON and supply power for a limited

time from its batteries***) by pressing and holding the “ON/OFF/

STANDBY” button for one second.**

• To turn the UPS OFF: With the UPS ON and receiving utility power,

press and hold the “ON/OFF/STANDBY” button for one second.**

Then unplug the UPS from the wall outlet. The UPS will be

completely OFF.

* After you plug the UPS into a live AC outlet, the UPS (in ”Standby” mode) will

automatically charge its batteries, but will not supply power to its outlets until it

is turned ON. ** The alarm will beep once briefly after the indicated interval has

passed. *** If fully charged.

“MUTE/TEST” Button

To Silence (or “Mute”) UPS Alarms: Briefly press and release the

MUTE/TEST button.*

To Run a Self-Test: With your UPS plugged in and turned ON, press

and hold the MUTE/TEST button for two seconds.* Continue holding

the button until the alarm beeps several times and the UPS performs a

self-test. See “Results of a Self-Test” below. You can leave connected

equipment on during a self-test. Your UPS, however, will not perform

a self-test if the UPS is not turned on (see “ON/OFF/STANDBY” Button

description).

CAUTION! Do not unplug your UPS to test its batteries. This will

remove safe electrical grounding and may introduce a damaging

surge into your network connections.

Results of a Self-Test: The test will last approximately 10 seconds as

the UPS switches to battery to test its load capacity and battery charge.

• If the “OUTPUT LOAD LEVEL” LED remains illuminated red and

the alarm continues to sound after the test, the UPS outlets are

overloaded. To clear the overload, unplug some of your equipment

and run the self-test repeatedly until the “OUTPUT LOAD LEVEL” LED

no longer illuminates red and the alarm no longer sounds.

CAUTION! Any overload that is not corrected by the user

immediately following a self-test may cause the UPS to shut down

and cease supplying output power in the event of a blackout or

brownout.

Basic Operation

• If the “BATTERY WARNING” LED illuminates and the alarm continues

to sound after the test, the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours and

repeat the self-test. If the LED remains illuminated, contact Tripp Lite

for service. If your UPS requires battery replacement, visit tripplite.

com to locate the specific Tripp Lite replacement battery for your UPS.

* The alarm will beep once briefly after the indicated interval has passed.

Indicator Lights (Front Panel)

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet and

turned ON.

“POWER” LED: This green LED illuminates continuously when the

UPS is ON and supplying connected equipment with AC power from

a utility source. The LED flashes and an alarm sounds (4 short beeps

followed by a pause) to indicate the UPS is operating from its internal

batteries during a blackout or severe brownout. If the blackout or

severe brownout is prolonged, you should save files and shut down your

equipment since internal battery power will eventually be depleted. See

“BATTERY CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: This green LED illuminates continuously

whenever the UPS is automatically correcting high or low AC voltage on

the utility line without the assistance of battery power. The UPS will also

emit a slight clicking noise. These are normal, automatic operations of

the UPS. No action is required on your part.

“OUTPUT LOAD LEVEL” LED: This multicolored LED indicates the

approximate electrical load of equipment connected to the UPS AC

outlets. It will turn from green (light load) to yellow (medium load) to red

(overload). If the LED is red (either illuminated continuously or flashing),

clear the overload immediately by unplugging some of your equipment

from the outlets until the LED changes from red to yellow (or green).

CAUTION! Any overload that is not corrected by the user immediately

may cause the UPS to shut down and cease supplying output power in

the event of a blackout or brownout.

“BATTERY CHARGE” LED: When the UPS is operating from utility

power, this LED indicates the approximate charge state of the UPS

internal batteries: red indicates the batteries are beginning to charge;

yellow indicates the batteries are roughly midway through charging;

and green indicates the batteries are fully charged. When the UPS is

operating from battery power during a blackout or severe brownout, this

LED indicates the approximate amount of energy (ultimately affecting

runtime) which the UPS batteries will provide: red indicates a low

level of energy; yellow indicates a medium level of energy; and green

indicates a high level of energy. Since the runtime performance of all

UPS batteries will gradually deplete over time, it is recommended that

you periodically perform a self-test (see MUTE/TEST Button description)

to determine the energy level of your UPS batteries BEFORE a blackout

or severe brownout occurs. During a prolonged blackout or severe

brownout, you should save files and shut down your equipment since

battery power will eventually be depleted. When the LED turns red and

an alarm sounds continuously, it indicates the UPS batteries are nearly

out of power and UPS shutdown is imminent.

“BATTERY WARNING” LED: This LED illuminates red and an alarm

sounds intermittently after you initiate a self test (see “MUTE/TEST”

Button description) to indicate the UPS batteries need to be recharged

or replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED continues to illuminate, contact Tripp Lite

for service. If your UPS requires battery replacement, visit tripplite.com

to locate the specific Tripp Lite replacement battery for your UPS.

Basic Operation

15 amp/120V

NEMA 5-15R

Other UPS Features (Rear Panel)

AC Receptacles: Your UPS features 15-amp AC outlets. These output

receptacles provide your connected equipment with AC line power

during normal operation and battery power during blackouts and

brownouts. The UPS protects equipment connected to these receptacles

against damaging surges and line noise. If you have a serial or USB

connection to your UPS, you can remotely reboot connected equipment

by turning the receptacles OFF and ON using Tripp Lite’s PowerAlert

Software.

Communications Ports (USB or RS-232): These ports connect your

UPS to any workstation or server. Use with Tripp Lite’s PowerAlert

Software and included cables to enable your computer to automatically

save open files and shut down equipment during a blackout. Also use

PowerAlert Software to monitor a wide variety of AC line power and UPS

operating conditions. Consult your PowerAlert Software documentation

or contact Tripp Lite Customer Support for more information. See “USB

and RS-232 Serial Communications” in the “Optional Installation”

section for installation instructions.

Basic Operation

EPO (Emergency Power Off) Port: Your UPS features a EPO port that

may be used to connect the UPS to a contact closure switch to enable

emergency inverter shutdown. See the “Optional Installation” section for

more information.

Accessory Slot: Remove the small cover panel from this slot to install

optional accessories to remotely monitor and control your UPS. Refer to

your accessory’s manual for installation instructions. Contact Tripp Lite

Customer Support at 773.869.1234 for more information, including a

list of available SNMP, network management and connectivity products.

Input Breaker: Protect your electrical circuit from overcurrent draw

from the UPS load. If this breaker trips, remove some of the load, then

reset it by pressing the breaker in.

Under normal conditions, the original batteries in your UPS will last many years. See

the “Safety” section before replacing batteries. The batteries are designed for hot-

swap replacement (i.e. leaving the UPS in ON mode), but some qualified service

personnel may wish to put the UPS in the OFF mode and disconnect equipment before

proceeding.

Procedure

1Remove Front Panel

2Disconnect Batteries

3Remove/Dispose of Batteries

4Add New Batteries

5Connect Batteries

Attach connectors: black-to-black and

red-to-red.

6Replace Front Panel

Battery Replacement

Storage and Service

Storage

Before storing your UPS, turn it completely OFF: with the UPS ON and receiving utility

power, press and hold the “ON/OFF/STANDBY” button for one second (an alarm will

beep once briefly after the interval has passed); then, unplug the UPS from the wall

outlet. If you store your UPS for an extended period of time, recharge the UPS batteries

once every three months: plug the UPS into a wall outlet; allow it to charge for 12

hours; then unplug it and place it back in storage.

Note: After you plug the UPS in, it will automatically begin charging its batteries. However, it will

not supply power to its outlets (see Quick Installation section). If you leave your UPS batteries

discharged for an extended period of time, they will suffer a permanent loss of capacity.

Otros manuales para SMART700DV

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite HT850UPS Manual de usuario

Tripp Lite

Tripp Lite TE1200 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline S3MX Manual de usuario

Tripp Lite

Tripp Lite RBC2A Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU1000XL Manual de usuario

Tripp Lite

Tripp Lite SMART1200LCD Manual de usuario

Tripp Lite

Tripp Lite SmartPro 2200XLT Manual de usuario

Tripp Lite

Tripp Lite OfficePro 280 Manual de usuario

Tripp Lite

Tripp Lite SUTX20K Manual de usuario

Tripp Lite

Tripp Lite OMNI1000LCD Manual de usuario

Tripp Lite

Tripp Lite SmartPro Rackmount Manual de usuario

Tripp Lite

Tripp Lite OmniSmart OMNISMART1050 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU8000RT3UG Manual de usuario

Tripp Lite

Tripp Lite AVRX750UTAA Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU8000RT4U Manual de usuario

Tripp Lite

Tripp Lite Internet Office & BC Personal UPS System Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU80K Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SUINT3000RTXL2U Manual de usuario

Tripp Lite

Tripp Lite SmartPro Series Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART2200RMXL2U Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART1400RM2U Manual de usuario

Tripp Lite

Tripp Lite SmartPro 700 HG Instrucciones de instalación y funcionamiento

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1500XLRT2U Guía de configuración

Tripp Lite

Tripp Lite SmartOnline SVX Series Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
