Tripp Lite SMART2200SLT Manual de usuario

Owner’s Manual

1111 W. 35th Street Chicago, IL 60609 USA

Customer Support: (773) 869-1234 • www.tripplite.com

Important Safety Instructions 2

Quick Installation 3

Basic Operation 5

Storage and Service 9

Español

SmartPro®SLT

Intelligent, Line-Interactive UPS Systems

100/110/120V Sine Wave Input/Output

Models: SMART2200SLT & SMART3000SLT

Français 21

Optional Installation 4

WARRANTY

REGISTRATION

to win a FREE Tripp Lite product!

www.tripplite.com/warranty

Battery Replacement 10

Not suitable for mobile applications.

Warranty Registration 9

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 1

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation, operation

and storage of all Tripp Lite UPS Systems. Failure to heed these warnings will void your warranty.

UPS Location Warnings

• Use caution when lifting UPS. Because of the considerable weight of all UPS systems, at least

two people should assist in lifting and installing them.

• Install your UPS indoors, away from excess moisture or heat, dust or direct sunlight.

• For best performance, the ambient temperature near your UPS should be between 0° C and

40° C (between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its

vents or fan openings.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even

when the UPS is not connected to an AC supply.

• Connect your UPS to a properly grounded AC power outlet. Do not modify the UPS’s plug

in a way that would eliminate the UPS's connection to ground. Do not use adapters that

eliminate the UPS’s connection to ground.

• Do not plug your UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting your UPS to a motor-powered AC generator, the generator must provide

filtered, frequency-regulated computer-grade output. Connecting your UPS to a generator will

void its Ultimate Lifetime Insurance.

Equipment Connection Warnings

• Do not use Tripp Lite UPS Systems for life support applications in which a malfunction or

failure of a Tripp Lite UPS System could cause failure or significantly alter the performance

of a life-support device.

• Do not connect surge suppressors or extension cords to the output of your UPS. This might

overload the UPS and will void the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current.

Observe proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS or

batteries. Do not short or bridge the battery terminals with any object. Unplug and turn off the

UPS before performing battery replacement. Use tools with insulated handles. There are no

user-serviceable parts inside the UPS. Battery replacement should be performed only by

authorized service personnel using the same number and type of batteries (sealed Lead-Acid).

The batteries are recyclable. Refer to your local codes for disposal requirements or in the

USA only call 1-800-SAV-LEAD or 1-800-8-BATTERY (1-800-822-8837) or visit

www.rbrc.com for recycling information. Tripp Lite offers a complete line of UPS System

Replacement Battery Cartridges (R.B.C.). Visit Tripp Lite on the Web at www.tripplite.com to

locate the specific replacement battery for your UPS.

• During hot-swap battery replacement, the UPS will not provide backup power in the event of

a blackout or other power interruptions.

• Do not operate UPS without batteries.

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 2

Quick Installation

Plug the UPS into an outlet on a

dedicated circuit.*

NOTE! after you plug the UPS into a live AC outlet,

the UPS (in “Standby” mode) will automatically

charge its batteries,** but will not supply power to

its outlets until it is turned ON (see Step 3 below).

* Includes an additional plug which can be switched by a qualified

electrician. ** The BATTERY CHARGE LED will be the only LED

illuminated.

Plug your equipment into the UPS.*

* Your UPS is designed to support only electronic equipment. You will

overload the UPS if the total VA ratings for all the equipment you con-

nect exceeds the UPS's Output Capacity. To find your equipment's VA

ratings, look on their nameplates. If the equipment is listed in amps,

multiply the number of amps by 120 to determine VA. (Example: 1 amp

× 120 = 120 VA). If you are unsure if you have overloaded the UPS's out-

lets, see “OUTPUT LOAD LEVEL” LED description.

Turn the UPS ON.

Press and hold the “ON/OFF/STANDBY” button for

one second. The alarm will beep once briefly after one

second has passed. Release the button.

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 3

Optional Installation

These connections are optional. Your UPS will function

properly without these connections.

USB and RS-232 Serial

Communications

Use the included USB cable (see ) and DB9 serial

cable (see ) to connect the communication port on

your computer to the communication port of your

UPS. Install on your computer the Tripp Lite

PowerAlert Software appropriate to your computer’s

operating system.

EPO Port Connection

This optional feature is only for those applications

which require connection to a facility’s Emergency

Power Off (EPO) circuit. When the UPS is connected

to this circuit, it enables emergency shutdown of the

UPS’s inverter.

Using the cable provided, connect the EPO port of

your UPS (see ) to a user-supplied normally closed or

normally open switch according to the circuit diagram

(see ). The EPO port is not a phone line surge sup-

pressor; do not connect a phone line to this port.

4-5

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 4

“ON/OFF/STANDBY” Button

• To turn the UPS ON: with the UPS plugged into a live AC wall outlet*, press

and hold the “ON/OFF/STANDBY” button for one second.** Release the but-

ton. If utility power is absent, you can “cold-start” the UPS (i.e.: turn it ON and

supply power for a limited time from its batteries***) by pressing and holding

the “ON/OFF/STANDBY” button for one second.**

• To turn the UPS OFF: with the UPS ON and receiving utility power, press and

hold the “ON/OFF/STANDBY” button for one second.** Then unplug the UPS

from the wall outlet. The UPS will be completely OFF.

* After you plug the UPS into a live AC outlet, the UPS (in ”Standby” mode) will automatically charge

its batteries, but will not supply power to its outlets until it is turned ON. ** The alarm will beep once

briefly after the indicated interval has passed. *** If fully charged.

“MUTE/TEST” Button

To Silence (or “Mute”) UPS Alarms: briefly press and release the MUTE/TEST

button.

To Run a Self-Test: with your UPS plugged in and turned ON, press and hold

the MUTE/TEST button. Continue holding the button until the alarm beeps sev-

eral times and the UPS performs a self test. See “Results of a Self-Test” below.

Note: you can leave connected equipment on during a self-test. Your UPS, how-

ever, will not perform a self-test if the UPS is not turned on (see

“ON/OFF/STANDBY” Button description).

CAUTION! Do not unplug your UPS to test its batteries. This will remove

safe electrical grounding and may introduce a damaging surge into your

network connections.

Results of a Self-Test: The test will last approximately 10 seconds as the

UPS switches to battery to test its load capacity and battery charge.

• If the red “OUTPUT LOAD LEVEL” LED remains lit and the alarm contin-

ues to sound after the test, the UPS’s outlets are overloaded. To clear the over-

load, unplug some of your equipment and run the self-test repeatedly

until the red “OUTPUT LOAD LEVEL” LED is no longer lit and the

alarm is no longer sounding.

CAUTION! Any overload that is not corrected by the user immediately

following a self-test may cause the UPS to shut down and cease supplying

output power in the event of a blackout or brownout.

• If the “BATTERY WARNING” LED remains lit and the alarm continues

to sound after the test, the UPS batteries need to be recharged or

replaced. Allow the UPS to recharge continuously for 12 hours, and

repeat the self-test. If the LED remains lit, contact Tripp Lite for service.

If your UPS requires battery replacement, visit www.tripplite.com to

locate the specific Tripp Lite replacement battery for your UPS.

Basic Operation

Buttons (Front Panel)

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 5

Basic Operation

continued

Indicator Lights (Front Panel)

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet

and turned ON.

“POWER” LED: this green LED lights continuously when the UPS is ON and

supplying connected equipment with AC power from a utility source. The LED

flashes and an alarm sounds (4 short beeps followed by a pause) to indicate the

UPS is operating from its internal batteries during a blackout or severe

brownout. If the blackout or severe brownout is prolonged, you should save

files and shut down your equipment since internal battery power will eventual-

ly be depleted. See “BATTERY CHARGE” LED description below.

“VOLTAGE CORRECTION” LED: this green LED lights continuously

whenever the UPS is automatically correcting high or low AC voltage on the

utility line without the assistance of battery power. The UPS will also emit a

slight clicking noise. These are normal, automatic operations of the UPS, no

action is required on your part.

“OUTPUT LOAD LEVEL” LED: this stack of 3 LEDs (green, yellow, red)

indicates the approximate electrical load of equipment connected to the UPS's

AC outlets. It will turn from green (light load) to yellow (medium load) to red

(overload). If the LED is red (either illuminated continuously or flashing), clear

the overload immediately by unplugging some of your equipment from the out-

lets until the LED changes from red to yellow (or green). CAUTION! Any over-

load that is not corrected by the user immediately may cause the UPS to shut

down and cease supplying output power in the event of a blackout or brownout.

“BATTERY CHARGE” LED: when the UPS is operating from utility power,

this stack of 3 LEDs (green, yellow, red) indicates the approximate charge state

of the UPS's internal batteries: red indicates the batteries are beginning to

charge; yellow indicates the batteries are roughly midway through charging; and

green indicates the batteries are fully charged. When the UPS is operating from

battery power during a blackout or severe brownout, these LEDs indicate the

approximate amount of energy (ultimately affecting runtime) which the UPS’s

batteries will provide: red indicates a low level of energy; yellow indicates a

medium level of energy; and green indicates a high level of energy. Since the

runtime performance of all UPS batteries will gradually deplete over time, it is

recommended that you periodically perform a self-test (see MUTE/TEST Button

description) to determine the energy level of your UPS batteries BEFORE a

blackout or severe brownout occurs. During a prolonged blackout or severe

brownout, you should save files and shut down your equipment since battery

power will eventually be depleted. When the red LED is lit and an alarm sounds

continuously, it indicates the UPS's batteries are nearly out of power and UPS

shut down is imminent.

“BATTERY WARNING” LED: this LED lights yellow and an alarm sounds

intermittently after you initiate a self test (See “MUTE/TEST” Button description)

to indicate the UPS batteries need to be recharged or replaced. Allow the UPS

to recharge continuously for 12 hours, and repeat the self-test. If the LED con-

tinues to light, contact Tripp Lite for service. If your UPS requires battery

replacement, visit www.tripplite.com to locate the specific Tripp Lite replace-

ment battery for your UPS.

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 6

Basic Operation

continued

Other UPS Features (Rear Panel)

AC Receptacles: Your UPS features 15/20- and 20- or 30-amp AC outlets.

These output receptacles provide your connected equipment with AC line

power during normal operation and battery power during blackouts and

brownouts. The UPS protects equipment connected to these receptacles against

damaging surges and line noise.

Communications Ports (USB or RS-232): These ports connect your UPS to a

workstation or server. Use with Tripp Lite’s PowerAlert Software and included

cables to enable your computer to automatically save open files and shut down

equipment during a blackout. Also use PowerAlert Software to monitor a wide

variety of AC line power and UPS operating conditions. Consult your

PowerAlert Software manual or contact Tripp Lite Customer Support for more

information. See “USB and RS-232 Serial Communications” in the “Optional

Installation” section for installation instructions.

EPO (Emergency Power Off) Port: Your UPS features a EPO port that may

be used to connect the UPS to a contact closure switch to enable emergency

inverter shutdown. See Optional Installation.

Accessory Slot: Remove the small cover panel from this slot to install optional

accessories to remotely monitor and control your UPS. Refer to your accessory’s

manual for installation instructions. Contact Tripp Lite Customer Support at

(773) 869-1234 for more information, including a list of available SNMP, network

management and connectivity products.

20 amp/120V

NEMA L5-20R

15/20 amp/120V

NEMA 5-20R

30 amp/120V

NEMA L5-30R

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 7

Basic Operation

continued

Power Sensitivity Adjustment: This dial is normally set fully counter-clockwise,

which enables the UPS to provide maximum protection against waveform distortions

in its AC input. When such distortion occurs, the UPS will normally switch to

providing sine wave power from its battery reserves for as long as the

distortion is present. In areas with poor utility power or where the UPS’s input

power comes from a backup generator, chronic waveform distortion could

cause the UPS to switch to battery too frequently, draining its battery reserves.

You may be able to reduce how often your UPS switches to battery due to mod-

erate waveform distortion by experimenting with different settings for this dial.

As the dial is turned clockwise, the UPS becomes more tolerant of variations in

its input power’s AC waveform. NOTE: The further the dial is adjusted clockwise,

the greater the degree of waveform distortion the UPS will allow to pass to con-

nected equipment. When experimenting with different settings for this dial,

operate connected equipment in a safe test mode so that the effect on the equip-

ment of any waveform distortions in the UPS’s output can be evaluated without

disrupting critical operations.

Input Breaker: Protect your electrical circuit from overcurrent draw from the

UPS load. If these breakers trip, remove some of the load, then reset them by

pressing the breaker(s) in.

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 8

Storage and Service

Storage

Before storing your UPS, turn it completely OFF: with the UPS ON and receiving utility power, press

and hold the “ON/OFF/STANDBY” button for one second (an alarm will beep once briefly after the

interval has passed); then, unplug the UPS from the wall outlet. If you store your UPS for an extend-

ed period of time, recharge the UPS batteries once every three months: plug the UPS into a wall out-

let; allow it to charge for 12 hours; and then unplug it and place it back in storage. Note: after you plug

the UPS in, it will automatically begin charging its batteries; however, it will not supply power to its

outlets (see Quick Installation section). If you leave your UPS batteries discharged for an extended

period of time, they will suffer a permanent loss of capacity.

Service

Before returning your UPS for service, follow these steps:

1. Review the installation and operation instructions in this manual to ensure that the service

problem does not originate from a misreading of the instructions. Also, check that the UPS

System's circuit breaker(s) are not tripped. This is the most common cause of service inquiries

which can be easily remedied by following the resetting instructions in this manual.

2. If the problem continues, do not contact or return the UPS to the dealer. Instead, call Tripp Lite

at (773) 869-1233. A service technician will ask for the UPS's model number, serial number

and purchase date and will attempt to correct the problem over the phone.

3. If the problem requires service, the technician will issue you a Returned Material Authorization

(RMA) number, which is required for service. If you require packaging, the technician can

arrange to send you proper packaging. Securely pack the UPS to avoid damage during shipping.

Do not use Styrofoam beads for packaging. Any damages (direct, indirect, special, incidental

or consequential) to the UPS incurred during shipment to Tripp Lite or an authorized Tripp Lite

service center is not covered under warranty. UPS Systems shipped to Tripp Lite or an authorized

Tripp Lite service center must have transportation charges prepaid. Mark the RMA number on

the outside of the package. If the UPS System is within the 2-year warranty period, enclose a

copy of your sales receipt. Return the UPS for service using an insured carrier to the address

given to you by the Tripp Lite service technician.

Warranty Registration

Visit www.tripplite.com/warranty today to register the warranty for your new Tripp Lite product.

You'll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!*

* No purchase necessary. Void where prohibited. Some restrictions apply. See website for details.

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 9

FCC RADIO/TV INTERFERENCE NOTICE: (FOR CLASS A MODELS)

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference when operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with

the instruction manual, may cause interference to radio communications. Operation of this equipment is likely to cause harmful interference in which case the user will be required to correct the interference

at his own expense. The user must use shielded cables and connectors with this product. Any changes or modifications to this product not expressly approved by the party responsible for compliance

could void the user's authority to operate the equipment.

Regulatory Compliance Identification Numbers

For the purpose of regulatory compliance certifications and identification, your Tripp Lite product has been assigned a unique series number. The series number can be found on the product name-

plate label, along with all required approval markings and information. When requesting compliance information for this product, always refer to the series number. The series number should not be

confused with the marking name or model number of the product.

Tripp Lite has a policy of continuous improvement. Product specifications are subject to change without notice.

Note on Labeling

Two symbols are used on the label.

V~ : AC Voltage

V : DC Voltage

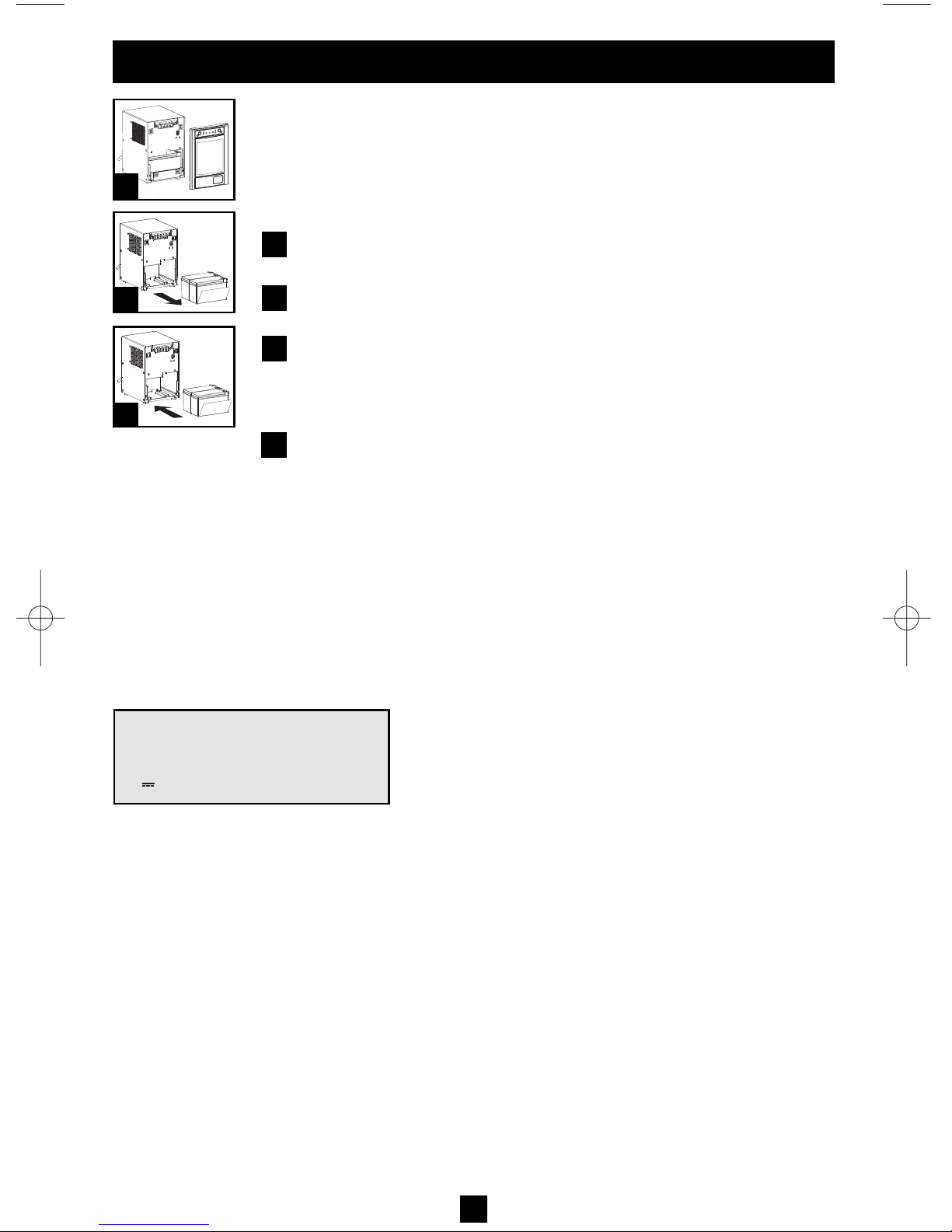

Battery Replacement

Battery Replacement Door: Under normal conditions, the original battery in

your UPS will last several years. Battery replacement should be performed only

by qualified service personnel. Refer to “Battery Warnings” in the Safety sec-

tion. Should your UPS require battery replacement, visit Tripp Lite on the Web

at www.tripplite.com/support/ battery/index.cfm to locate the specific replace-

ment battery for your UPS.

Carefully pull the front panel away from the UPS.

Place front panel on top of the unit. Remove the battery support bar.

Remove old batteries.

Carefully pull the batteries from the UPS and disconnect them.

Connect new batteries.

Connect the new batteries in exactly the same manner as the old ones:

positive (red) connectors together and negative (black)

connectors together. Carefully push batteries back into the UPS.

Reassemble UPS.

Reinstall the battery support bar and replace the front panel.

200607046 93-2571 SMARTSLT OM.qxd 9/27/2006 2:05 PM Page 10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite SmartPro AG-03AD Series Manual de usuario

Tripp Lite

Tripp Lite SUINT1000LCD2U Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART5000RT3U Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART2600RM2U Instrucciones de instalación y funcionamiento

Tripp Lite

Tripp Lite SmartPro SMART1000RM1U Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU5000RT3UHV Manual de usuario

Tripp Lite

Tripp Lite SmartOnline AGPS8294 Series Manual de usuario

Tripp Lite

Tripp Lite ECO UPS System Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU6K Manual de usuario

Tripp Lite

Tripp Lite ECO UPS System Manual de usuario

Tripp Lite

Tripp Lite SmartOnline Manual de usuario

Tripp Lite

Tripp Lite SmartPro SmartPro Rackmount Manual de usuario

Tripp Lite

Tripp Lite Full Isolation UPS Systems none Manual de usuario

Tripp Lite

Tripp Lite G1010USB Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART1000RM2U Manual

Tripp Lite

Tripp Lite OMNIX350HG Manual de usuario

Tripp Lite

Tripp Lite TE600 Manual de usuario

Tripp Lite

Tripp Lite INTERNETX525 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U Manual de usuario

Tripp Lite

Tripp Lite SU10000RT3UPM Manual de usuario

Tripp Lite

Tripp Lite SM2200RMNAFTA Manual de usuario

Tripp Lite

Tripp Lite OMNISMT700M Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU80K Manual de usuario

Tripp Lite

Tripp Lite SMART1000LCDTAA Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
