Owner's Manual

SmartPro®NET

SmartPro®XL

1250–3000 VA

Intelligent Network UPS Systems (120V)

ESPAÑOL: p. 8

FRANÇAIS: p. 15

Installation: p. 3 - 4

Basic Operation: p. 4 - 6

Storage & Service: p. 7

Specifications: p. 7

Safety: p. 2

Warranty & Insurance: p. 6

9811198 SmartPro NET & SmartPro XC Owners Manual.p65 5/17/00, 10:56 AM1

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions and warnings that should

be followed during the installation, operation and storage of all Tripp Lite UPS

systems. Failure to follow these warnings will void your warranty.

UPS Location Warnings

• Install your UPS indoors, away from excess moisture or heat, conductive

contaminants, dust or direct sunlight.

• For best performance, keep the indoor temperature between 32° F and

104° F (between 0° C and 40° C).

• Leave adequate space around all sides of the UPS for proper ventilation.

UPS Connection Warnings

• Connect your UPS directly to a properly grounded AC power outlet.

Do not plug the UPS into itself; this will damage the UPS.

• Do not modify the UPS’s plug, and do not use an adapter that would

eliminate the UPS’s ground connection.

• Do not use extension cords between the UPS and outlet. Your warranty will

be voided if anything other than Tripp Lite surge suppressors are used to

connect your UPS to an outlet.

• If the UPS receives power from a motor-powered AC generator, the generator

must provide clean, filtered, computer-grade output.

Equipment Connection Warning

• Do not use Tripp Lite UPS Systems for life support appliances in which a

malfunction or failure of a Tripp Lite UPS System could cause failure or

significantly alter the performance of a life-support device.

• Do not connect surge suppressors or extension cords to the output of your

UPS. This might damage your UPS and will void both the surge suppressor

and UPS warranties.

Battery Warnings

• Your UPS does not require routine maintenance. Do not open your UPS

except to replace batteries. There are no user-serviceable parts inside.

• Battery replacement should be performed by qualified service personnel.

Because the batteries present a risk of electrical shock and burn from high

short-circuit current, service personnel should observe proper precautions.

Use tools with insulated handles, remove all metal hand jewelry and when

possible work with only one hand to reduce the danger of shock. Replace the

existing batteries with an equal number of new batteries of the same type.

Do not open the sealed lead-acid batteries. Do not short or bridge the battery

terminals with any object.

• The UPS batteries are recyclable. Refer to local codes for disposal require-

ments or in the USA only call 1-800-SAV-LEAD (1-800-728-5323) for

complete recycling information. Do not dispose of the batteries in a fire.

• The UPS contains its own energy source (battery). The output terminals may

be live even when the UPS is not connected to an AC supply.

• Only connect Tripp Lite battery packs of the correct voltage to your UPS’s

external battery connectors.

• Do not connect or disconnect external battery packs while the UPS is

operating from battery.

• Do not operate your UPS without batteries.

Installation

Plug your UPS into

an electrical outlet.

See “Suggested Circuit” in Specifications section

to determine if your model should occupy a 20-

or 30-amp dedicated circuit.

Plug your equipment

into your UPS.

Turn your UPS ON.

Set the System Enable Switch (DIP

Switch #4, UPS back panel) to the

“ENABLE” (UP) position.

(See Figure 1)

This switch activates the battery charger and

microprocessor.

The “XXX” light will flash until you engage the

ON/Standby Switch to activate the “ON” mode.

Engage the momentary ON/Standby

Switch (UPS front panel) and release it

to activate the “ON” mode and supply

power to the UPS receptacles.

(See Figure 2)

DB9 Port Connection (Optional) On Next Page . . .

Figure 2 - ON/Standby Switch

Figure 1 DIP Switch #4

(System Enable Switch)

ENABLE

DISABLE

Your UPS is designed to support

only computer equipment.

Connecting household appliances,

laser printers or surge suppressors

is not recommended.

9811198 SmartPro NET & SmartPro XC Owners Manual.p65 5/17/00, 10:56 AM3

Switches

System Enable Switch (DIP Switch #4)

This switch is located in the set of 4 switches next to the UPS’s DB9

ports. It activates the battery charger and intelligent microproces-

sor. Always leave it in the “ENABLE” (UP) position when your UPS

is plugged in. Set the switch to “DISABLE” (DOWN) only if you store

or ship your UPS (to reduce battery drain).

Note: the “XXX” light will flash until you engage the ON/Standby Switch to activate the “ON”

mode (power ON at the UPS receptacles).

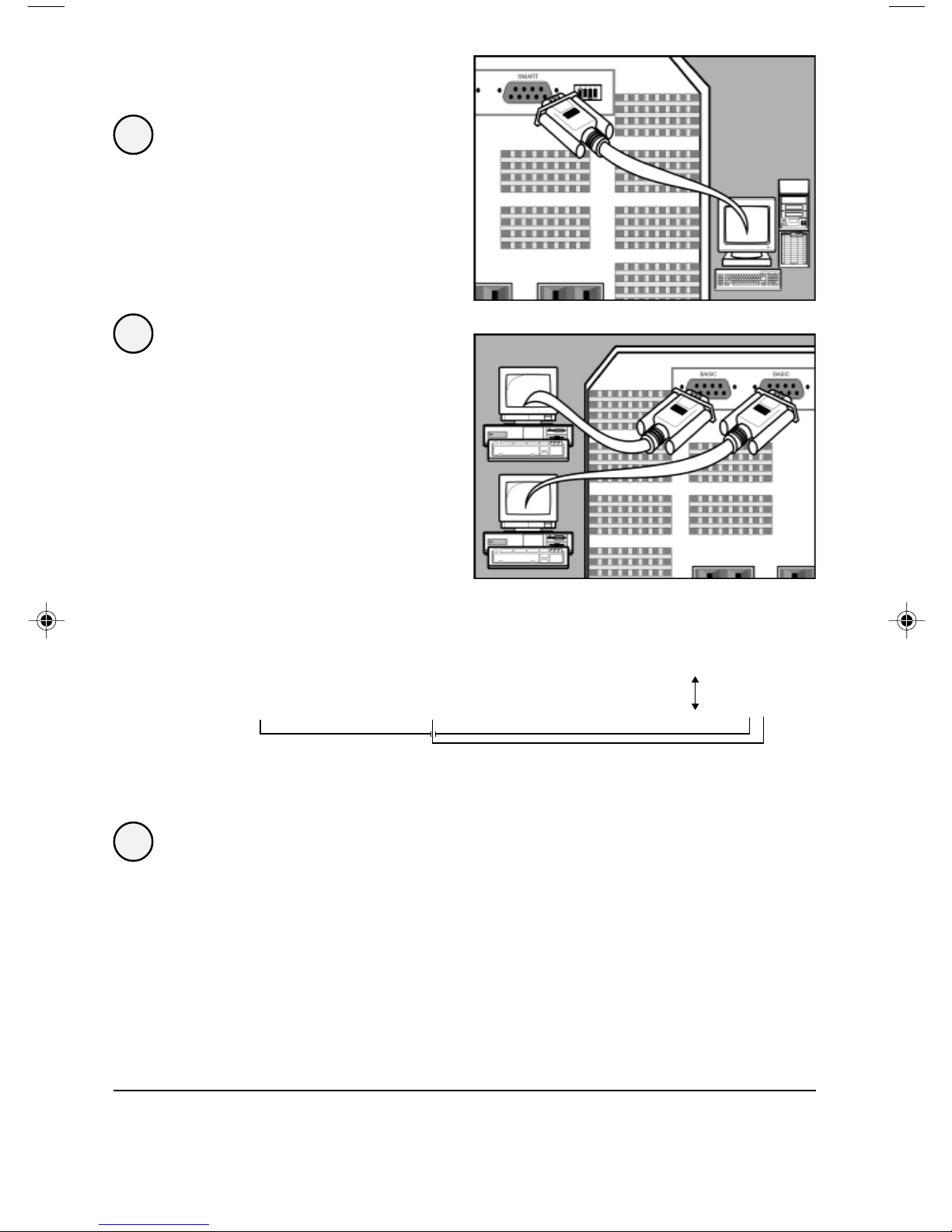

DB9 Port Connection

–Optional–*

Using Tripp Lite cable, connect your

primary server’s DB9 port to the single

DB9 port labeled “SMART” (which

provides complete intelligent RS-232

communications).**

If you have additional

computers:

Connect them to the DB9 ports

labeled “BASIC” (which provide basic,

contact-closure shutdown capabili-

ties).

Set their corresponding LAN Interface

DIP Switches to the ACTIVATE

(DOWN) position. See diagram for

which switch controls which port.***

* Serial port connections are optional. Your UPS will function properly without these connections.

** The “SMART” DB9 port is always enabled and is not controlled by the LAN Interface DIP Switches.

*** If you do not connect a computer to either of the “BASIC” DB9 ports, set their corresponding LAN Interface DIP

Switches to the DEACTIVATE (UP) position. Note: DIP Switch #3 has no function.

2a. Back Panel

Basic Operation

Load software and run the installation program

appropriate for your operating system.

2b. Back Panel

DIP Switches #2 & #1

(Lan Interface Switches)

DEACTIVATE

ACTIVATE

9811198 SmartPro NET & SmartPro XC Owners Manual.p65 5/17/00, 10:57 AM4

ON/Standby Switch

This momentary switch controls power to the UPS receptacles.

Engage it momentarily and release it to toggle between the “ON”

mode (power ON at the UPS receptacles) and “Standby” mode

(power OFF at the UPS receptacles).

Mute/Test Switch

Use this momentary switch to do two things:

Silence the blackout alarm

Engage this switch and release it. Note: when the battery is nearly

depleted, the alarm resumes (and cannot be silenced) to alert you

to immediately shut down connected equipment.

Test your UPS’s battery charge

Leave your connected equipment ON. With your UPS plugged in

and completely turned ON, engage this switch; hold it there for 5

seconds and release it. The UPS will momentarily switch to battery

to test its charge. The “XXX” light will turn ON and the alarm may

sound if your UPS fails a self-test and/or the UPS battery is less

than fully charged. Let the UPS charge for 12 hours and perform

a second self-test. If the light continues to stay on, contact Tripp

Lite for service. CAUTION: Do not unplug your UPS to test its

batteries. This will remove safe electrical grounding and may

introduce a damaging surge into your network connections.

Indicator Lights

All Indicator Light descriptions apply when the UPS is plugged into a wall outlet

and turned ON.

This green light will shine constantly to indicate AC power is

available at the receptacles. It will flash to indicate AC power is not

available. (See “System Enable Switch” and “ON/Standby Switch”

descriptions above.)

This multi-colored light displays 7 separate UPS battery charge

conditions. It will turn from red (low) to yellow (medium) to green

(full) to show you the level of battery charge. If the light is constant,

then your UPS is operating from line power and the battery is

charging. If the light is flashing, then your UPS is operating from

battery power and the battery is discharging. When the light

flashes red, close any files you are working on and shut down your

computer.

Whenever your UPS is automatically correcting high or low AC line

voltage, this green light will turn ON and the UPS will gently click.

The more the UPS has to correct voltage, the more the green light

will turn ON and the more the UPS will click. These are both

normal, automatic operations of your UPS, and no action is

required on your part.

This red light will turn ON if your UPS fails a self-test and/or the

UPS battery is less than fully charged. Let the UPS charge for 12

hours and perform a second self-test. If the light continues to stay

on, contact Tripp Lite for service.

9811198 SmartPro NET & SmartPro XC Owners Manual.p65 5/17/00, 10:57 AM5

This multi-colored light displays 4 separate UPS load conditions.

It will turn from green (low) to yellow (medium) to red (high) as you

connect equipment to show you the load level your UPS is support-

ing. When the light is red your UPS is supporting a load above 85%

of its capacity. If the red light begins flashing, your UPS is severely

overloaded. Remove overload immediately until light stops flashing.

Other UPS Features

AC Receptacles

The receptacles provide your connected equipment with AC line

power during normal operation and battery power during black-

outs and brownouts. They also protect your equipment against

damaging surges and line noise. You can remotely reboot con-

nected equipment by turning all of the receptacles OFF and ON at

once using Tripp Lite UPS software. Select models, however,

feature unique “Remote Reboot Outlets” (identified on the back

panel of your UPS) which allow you to use Tripp Lite UPS software

to remotely reboot equipment connected to these outlets without

interrupting power to equipment connected to the other outlets.* See

software instructions for details.

* Note: constant power is available at the Remote Reboot Outlets (and all other outlets)

unless controlled through Tripp Lite UPS software.

“SMART” RS-232 Port

The RS-232 port connects your UPS to any workstation or server.

Use with Tripp Lite software and #73-0743 cable to monitor and

manage network power and automatically save open files and shut

down equipment during a blackout. This port uses RS-232 com-

munications to transmit UPS and power conditions (Pin 7 =

Transmit; Pin 8 = Common; Pin 9 = Receive). Contact Tripp Lite

Customer Support for more information and a list of available

SNMP, network management and connectivity products.

“BASIC” Contact-Closure Ports

The contact-closure ports connect your UPS to any workstation or

server. Use with Tripp Lite software and #73-0724 cabling to

automatically save open files and shut down equipment during a

blackout. This port sends contact-closure signals to indicate line-

fail and low-battery status. Contact Tripp Lite Customer Support

for more information.

External Battery Connector (available on select models)

Use this to connect additional Tripp Lite battery packs for addi-

tional runtime. Refer to the label next to the connector for

appropriate Tripp Lite battery pack to connect. Refer to instruc-

tions available with the battery pack for complete connection

information and safety warnings.

LAN Interface DIP Switches

DIP Switches #1 and #2 activate or deactivate remote shutdown

through the “BASIC” Contact-Closure Ports. See “DB9 Port Con-

nection” on page 4 for which switch controls which port. Note: DIP

Switch #3 has no function. DIP Switch #4 serves as

the UPS’s “System Enable Switch.”

9811198 SmartPro NET & SmartPro XC Owners Manual.p65 5/17/00, 10:57 AM6

Specifications

Storage & Service

Storage

Turn your UPS OFF: first, engage the ON/Standby Switch and release it to place

your UPS in the “Standby” mode; then set the System Enable Switch (Jumper #4,

UPS rear panel) to “DISABLE” (Down); finally, disconnect the UPS power cord

from the wall outlet. If you plan on storing your UPS for an extended period of

time, recharge the UPS batteries once every three months. Follow steps #1 and

#3 in the Installation section and allow the UPS to charge from 4 to 6 hours. If

you leave your UPS batteries discharged for an extended period of time, they will

suffer permanent loss of capacity.

Service

If returning your UPS to Tripp Lite, please carefully pack the UPS using the

ORIGINAL PACKING MATERIAL that came with the unit. Enclose a letter

describing the symptoms of the problem. If the UPS is within the 2 year warranty

period, enclose a copy of your sales receipt.

SMART 2200 NET SMART 3000 NET

Output Capacity (VA/Watts): 2200/1700 3000/2400

Battery Runtime (Half Load/Full Load) Minutes: 27+/11+ 23+/7+

Battery Recharge Rate: 2 - 4 hrs. 2 - 4 hrs.

Suggested Circuit: 15-amp or 20-amp dedicated 30-amp dedicated

Approvals: UL, cUL UL, cUL

SMART 1250XL NET SMART 2200XL NET

Output Capacity (VA/Watts): 1250/900 2200/1750

Battery Runtime (Half Load/Full Load) Minutes: 85+/24+ 28+/11+

Battery Recharge Rate: 2 - 4 hrs. 2 - 4 hrs.

Suggested Circuit: 15-amp 20-amp dedicated

Approvals: UL, cUL UL, cUL

ALL MODELS:

Input Voltage/Frequency (120V/60 Hz); On Line Input Voltage Range (87 - 140 volts); Voltage-Regulated Output Voltage Range

(120V +/- 9%); On Battery Output Voltage Range (120V +/- 5%); Output Waveform Line Mode (filtered sinewave); Output Waveform

Battery Mode (PWM sine wave); AC Surge Suppression (exceeds IEEE 587 Cat. A & B standards); AC Noise Attenuation (>40 dB);

AC Protection Modes (H to N, H to G, N to G).

9811198 SmartPro NET & SmartPro XC Owners Manual.p65 5/17/00, 10:57 AM7

Advertencias sobre la ubicación del UPS

• Instale el sistema UPS bajo techo, alejado del calor o de la humedad excesiva, de los

contaminantes conductivos, del polvo o de la luz solar directa.

• Para un mejor desempeño, mantenga la temperatura interior entre 32º F y 104º F

(0º C y 40º C).

• Mantenga espacio suficiente alrededor del sistema UPS para permitir una ventilación

adecuada.

Advertencias sobre la conexión del UPS

• Conecte directamente su sistema UPS a una toma de energía de CA con conexión

adecuada a tierra. No enchufe el sistema UPS a sí mismo, ya que esto lo dañará.

• No modifique la clavija de conexión y no utilice adaptadores que eliminen la conexión a

tierra del sistema UPS.

• No use cables de extensión para conectar el sistema UPS a una toma de CA. Se invalidará

su garantía si se utilizan supresores de picos distintos de los de Tripp Lite para conectar

su sistema UPS a la toma de corriente.

• Si el sistema UPS recibe energía de un generador de corriente alterna accionado por un

motor, éste deberá proporcionar una salida de corriente limpia y filtrada del tipo utilizado

para las computadoras.

Advertencias sobre la conexión de equipos

• No utilice no-breaks/ sistemas UPS Tripp Lite en aplicaciones para el soporte de la vida

humana donde una falla pueda causar anomalías o alterar significativamente el

rendimiento del dispositivo de soporte de vida.

• No conecte supresores de picos o cables de extensión a la salida del sistema UPS. Esto

podría dañarlo, así como invalidar las garantías del supresor de picos y del sistema UPS.

Advertencias sobre las baterías

• Su sistema UPS no requiere mantenimiento rutinario alguno. No abra el sistema UPS por

ningún motivo, excepto para el reemplazo de las baterías. No hay partes internas a las que

el usuario pueda dar servicio.

• Sólo personal técnico debidamente capacitado puede realizar el cambio de las baterías.

Debido a que las baterías pueden provocar un choque eléctrico o quemaduras como

consecuencia de una corriente elevada en corto circuito, deben adoptarse las precauciones

apropiadas. Apague y desenchufe el sistema UPS antes de realizar el cambio de las

baterías. Utilice herramientas con manijas aisladas y cambie las baterías existentes por

baterías nuevas del mismo número y tipo (selladas y de ácido-plomo). No abra las

baterías. No permita que ningún objeto entre en contacto o puentee las terminales de las

baterías.

• Las baterías son reciclables. Véase el código local para obtener los requerimientos de

desecho locales, o, en los EE.UU. solamente, llame al 1-800-SAV-LEAD para obtener

información de reciclado. No elimine las baterías arrojándolas al fuego.

• Conecte solamente bancos de baterías de Tripp Lite del tipo apropiado y del voltaje

correcto al conector de baterías externas.

• No conecte ni desconecte los bancos de baterías cuando el sistema UPS está operando

mediante sus baterías.

Importantes instrucciones de seguridad

GUARDE ESTAS INSTRUCCIONES

Este manual contiene advertencias e instrucciones importantes que deben seguirse

durante la instalación, operación y almacenaje de todos los no-breaks / sistemas UPS de

Tripp Lite. El no prestar atención a estas advertencias invalidará su garantía.

Conexión #4

(Interruptor "System Enable"

o Habilitador Del Sistema)

HABILITAR

INHABILITAR

Instalación

Enchufe el sistema UPS a

una toma de energía

eléctrica

Refiérase a la sección “Especificaciones: Circuito

Sugerido” para determinar si este modelo

requiere un circuito dedicado o toma directa de

15, 20 ó 30 amperios.

Conecte sus equipos

al sistema UPS.

Encienda el sistema UPS

Coloque el Interruptor “System

Enable” (Habilitador del Sistema,

conexión No. 4 en el panel posterior

del sistema UPS) en la posición

“ENABLE” (Habilitar, hacia arriba).

(Vea el Diagrama 1)

Este interruptor activa el microprocesador y el

cargador de baterías.

La luz “XXX” parpadeará hasta que usted

coloque el interruptor “ON/Standby”

(Encendido/Reserva) en la posición correcta

para activar el modo “ON” (Encendido).

Engrane el interruptor momentáneo

“ON/Standby” (Encendido/Reserva) en

el panel frontal del sistema UPS, y

suéltelo para activar el modo “ON”

(Encendido) y suministrar energía a

los receptáculos del sistema UPS.

(Vea el Diagrama 2)

Instrucciones Para la Conexión Opcional del Puerto DB9 en la Próxima Página...

Diagrama 1

Diagrama 2

Este sistema UPS ha sido diseñado para

respaldar equipos de computación solamente.

No se recomienda la conexión a este sistema

UPS de dispositivos electrodomésticos,

impresoras láser o supresores de picos.

9811198 SmartPro NET & SmartPro XC Owners Manual.p65 5/17/00, 10:57 AM9

Conexión del Puerto DB9

—Opcional—*

Usando el cable suministrado por

Tripp Lite, conecte el puerto DB9 de

su servidor principal de archivos al

puerto DB9 rotulado “SMART”

(Inteligente), el cual provee

comunicaciones completas e

inteligentes tipo RS-232.**

Si usted desea conectar

computadoras

adicionales:

Conéctelas a los puertos DB9 rotulados

“BASIC” (Básicos o secundarios) los

cuales incluyen capacidad básica de

cierre.

Coloque los interruptores “LAN Interface

Jumper” (Conexiones de Interfases para

Redes) correspondientes a los puertos

básicos o secundarios en la posición

“ACTIVAR” (Habilitar, hacia abajo).

Refiérase al diagrama para determinar

los puertos que controla cada

interruptor***

2a. Panel Posterior

* La conexión a los puertos seriales es opcional. Este sistema UPS funcionará adecuadamente aún sin estas conexiones.

** El puerto DB9 “SMART” (Inteligente) está siempre activado y no es controlado por los interruptores “LAN Interface

Jumper” (Conexiones de Interfases para Redes).

*** Si usted no desea conectar computadoras a todos los puertos DB9 “BASIC” (Básicos o secundarios), coloque los

interruptores “LAN Interface Jumper” (Conexiones de Interfases para Redes) correspondientes a los puertos secundarios

en la posición “DESACTIVAR” (Inhabilitar, hacia arriba). Nota: “Jumper #3” (Conexión No. 3) no cumple función alguna.

Instale el software ejecutando el programa de instalación

apropiado para su sistema operativo.

2b. Panel Posterior

Conmutador #2 Y # 1

(Interuptores de Interfase Para Redes)

DESACTIVAR

ACTIVAR

9811198 SmartPro NET & SmartPro XC Owners Manual.p65 5/17/00, 10:57 AM10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite Omni VS Manual de usuario

Tripp Lite

Tripp Lite Digital UPS Systems Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU3000RTXR3U Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU8000RT3U1TF Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU80K Manual de usuario

Tripp Lite

Tripp Lite SmartPro Net Manual de usuario

Tripp Lite

Tripp Lite SM3000RMNAFTA Manual de usuario

Tripp Lite

Tripp Lite AGSM8268 Manual de usuario

Tripp Lite

Tripp Lite SmartPro UPS System SMART550USB Manual de usuario

Tripp Lite

Tripp Lite VoIP and Internet Telephony Applications Manual de instrucciones

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1000RT2U Manual de usuario

Tripp Lite

Tripp Lite SmartOnline 3-Phase 30kVA Manual de usuario

Tripp Lite

Tripp Lite ECO1000LCD Manual de usuario

Tripp Lite

Tripp Lite BC Personal Datashield BCPERS300 Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART1500 Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART2200CRMXL Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART2200RM2U Manual de usuario

Tripp Lite

Tripp Lite OMNIVS1000 Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU1500XL Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU3000RTXR3UHW Guía de instalación

Tripp Lite

Tripp Lite Smart On line SUINT1000XL Manual de usuario

Tripp Lite

Tripp Lite SmartOnLine SU2200RT2U-L520 Instrucciones de instalación y funcionamiento

Tripp Lite

Tripp Lite SMX1000LCD Manual de usuario

Tripp Lite

Tripp Lite INTERNET OFFICE 350 Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
