Tripp Lite SmartPro AGSM8207 Series Manual de usuario

Owner’s Manual

Español 23

Français 45

SmartPro®2U Rack-Mount

Intelligent, Line-Interactive UPS Systems

120V Sine Wave Output • 2200VA—3000VA Capacities

SMART2200RM2U,

SMART2200RM2UN

(Series Number: AGSM8207)

SMART2000RMXL2U,

SMART2200RMXL2U,

SMART2200RMXLN

(Series Number: AGSM8208)

SM2200RMXL2UP

(Series Number: AGSM7012)

SMART3000RM2U,

SMART3000RM2UN

(Series Number: AGSM8209)

SMART3000RMXL2U,

SMART3000RMXLN

(Series Number: AGSM7010)

SMART2600RM2U

(Series Number: AGSM7012)

Not suitable for mobile applications.

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

automatically entered to win an ISOBAR®

surge protector in our monthly drawing!

tripplite.com/warranty

21-07-111-933088-Book.indb 121-07-111-933088-Book.indb 1 7/28/2021 4:49:35 PM7/28/2021 4:49:35 PM

Important Safety Instructions

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during the installation,

operation and storage of this product. Failure to heed these warnings may affect the warranty.

UPS Location Warnings

• Use caution when lifting the UPS. Because of the considerable weight of all rack-mount UPS

systems, at least two people should assist in lifting and installing them.

• Install the UPS indoors, away from excess moisture or heat, dust or direct sunlight.

• For best performance, the ambient temperature near the UPS should be between 0° C and 40° C

(between 32° F and 104° F).

• Leave adequate space around all sides of the UPS for proper ventilation. Do not obstruct its vents

or fan openings.

• When mounting the UPS system in a tower orientation, make sure the LCD panel is at the top of

the UPS, not at the bottom.

• Do not mount unit with its front or rear panel facing down (at any angle). Mounting in this manner

will seriously inhibit the unit’s internal cooling, eventually causing product damage not covered

under warranty.

UPS Connection Warnings

• The UPS contains its own energy source (battery). The output terminals may be live even when

the UPS is not connected to an AC supply.

• Connect the UPS to a properly grounded AC power outlet. Do not modify the UPS’s plug in a way

that would eliminate the UPS’s connection to ground. Do not use adapters that eliminate the

UPS’s connection to ground.

• Do not plug the UPS into itself; this will damage the UPS and void your warranty.

• If you are connecting the UPS to a motor-powered AC generator, the generator must provide

filtered, frequency-regulated computer-grade output. Connecting the UPS to a generator will void

its Ultimate Lifetime Insurance.

• Install in accordance with National Electrical Code standards ANSI/NFPA 70 and Canadian

Electrical Code, Part I, C22.1.

• Short Circuit backup protection and overcurrent protection is provided by the building installation

• To reduce the risk of fire, connect only to a circuit provided branch circuit overcurrent protection

in accordance with the National Electrical Code, ANSI/NFPA 70 and the Canadian Electrical Code,

Part I, C22.1. Be sure to use maximum 20A overcurrent protection for model AGSM7012,

and maximum 30A overcurrent protection for model AGSM7010, in accordance with the plug/

equipment rating, for the installation.

• The plug on the power supply cord is intended to serve as the disconnect device. Be sure that the

socket-outlet is installed near the equipment and is made easily accessible.

Caution! This UPS receives power from more than one source. Disconnection of the

AC and DC sources is required to de-energize the unit before servicing.

21-07-111-933088-Book.indb 221-07-111-933088-Book.indb 2 7/28/2021 4:49:35 PM7/28/2021 4:49:35 PM

Equipment Connection Warnings

• Use of this equipment in life support applications where failure of this equipment can reasonably

be expected to cause the failure of the life support equipment or to significantly affect its safety

or effectiveness is not recommended.

• Do not connect surge protectors or extension cords to the output of the UPS. This might damage

the UPS and may affect the surge suppressor and UPS warranties.

Battery Warnings

• Batteries can present a risk of electrical shock and burn from high short-circuit current. Observe

proper precautions. Do not dispose of the batteries in a fire. Do not open the UPS or batteries.

Do not short or bridge the battery terminals with any object. Unplug and turn off the UPS before

performing battery replacement. Use tools with insulated handles. There are no user-serviceable

parts inside the UPS. Battery replacement should be performed only by authorized service

personnel using the same number and type of batteries (Sealed Lead-Acid). The batteries are

recyclable. Refer to your local codes for disposal requirements or visit http://www.tripplite.com/

support/recycling-program for recycling information. Tripp Lite offers a complete line of UPS

System Replacement Battery Cartridges (R.B.C.).Visit Tripp Lite on the Web at http://www.tripplite.

com/products/battery-finder/ to locate the specific replacement battery for your UPS.

• During hot-swap battery replacement, the UPS will not provide backup power in the event of a

blackout or other power interruptions.

• Do not operate the UPS without batteries.

Important Safety Instructions

EMI Filter

Surge Protecon

Inverter

Charger

Control

Transformer

Line Cutoﬀ Relay

Boost 1 Relay

Cut Relay

AC In

AC Out

USB Com Port

Serial Com Port

+Internal

Baery

External Baery

Connector*

LCD Display, Switches

Circuit Breaker

Teleprotect Circuit

*If applicable

21-07-111-933088-Book.indb 321-07-111-933088-Book.indb 3 7/28/2021 4:49:35 PM7/28/2021 4:49:35 PM

Important Safety Instructions

External Battery Connection Warnings

• When adding external battery packs to select models with external battery pack connectors,

connect only Tripp Lite-recommended battery packs of the correct voltage and type. Do not

connect or disconnect battery packs when the UPS is operating on battery power. Visit

tripplite.com/support/battery/index.cfm to locate the supported battery type(s) for your UPS.

UPS and Battery Recycling

Please recycle Tripp Lite Products. The batteries used in Tripp Lite products are

sealed Lead-Acid batteries. These batteries are highly recyclable. Please refer to

your local codes for disposal requirements.

You can call Tripp Lite for recycling info at 773.869.1234.

You can go the Tripp Lite Website for up-to-date information on recycling the batteries or any

Tripp Lite product. Please follow this link: tripplite.com/support/recycling-program/

21-07-111-933088-Book.indb 421-07-111-933088-Book.indb 4 7/28/2021 4:49:35 PM7/28/2021 4:49:35 PM

Quick Installation

1Plug the UPS into an outlet on

a dedicated circuit.

Note! after you plug the UPS into a live AC outlet,

the UPS (in “Standby” mode) will automatically

charge its batteries, but will not supply power to

its outlets until it is turned ON.

2Plug your equipment into

the UPS.*

* Your UPS is designed to support only electronic

equipment. You will overload the UPS if the total

VA ratings for all the equipment you connect

exceeds the UPS’s Output Capacity. To find your

equipment’s VA ratings, look on their

nameplates. If the equipment is listed in amps,

multiply the number of amps by 120 to

determine VA. (Example: 1 amp × 120 = 120

VA). If you are unsure if you have overloaded

the UPS’s outlets, see LOAD icon description in

LCD Interface section under Basic Operation.

3Turn the UPS ON.

Press and hold the button Afor one

second. The alarm will beep once briefly.

Note: UPS system will function properly upon

initial startup, however, maximum runtime and a

successful self-test will only be accessible after it

has been charged for 24 hours.

21-07-111-933088-Book.indb 521-07-111-933088-Book.indb 5 7/28/2021 4:49:36 PM7/28/2021 4:49:36 PM

Mounting (Rack)

Mount your equipment in either a 2-post or 4-post rack or rack enclosure. The user must

determine the fitness of hardware and procedures before mounting. If hardware and procedures

are not suitable for your application, contact the manufacturer of your rack or rack enclosure. The

procedures described in this manual are for common rack and rack enclosure types and may not

be appropriate for all applications.

Note: The illustrations may differ from your model.

4-Post Mounting

1The included plastic pegs Awill temporarily

support the empty rackmount shelves B

while you install the permanent mounting

hardware. Insert a peg near the center of

the front and rear bracket of each shelf as

shown. (Each front bracket has 6 holes and

each rear bracket has 3 holes.) The pegs

will snap into place.

After installing the pegs, expand each shelf

to match the depth of your rack rails. The

pegs will fit through the square holes in the

rack rails to support the shelves. Refer to

the rack unit labels to confirm that the

shelves are level in all directions.

Note: The support ledge of each shelf must face

inward.

2Secure the shelves Bto the mounting rails

permanently using the included screws and

cup washers Cas shown. Place the cup

washer between the screw and the rack so

that the screw enters the wider opening of

the cup washer first.

Place 4 screws total at the front and 4

screws total at the back.

Tighten all screws before proceeding.

Warning: Do not attempt to install your

equipment until you have inserted and

tightened the required screws. The

plastic pegs will not support the weight

of your equipment.

3Attach your equipment’s mounting brackets

to the forward mounting holes of the

cabinet using the hardware included with

your equipment. The mounting bracket

“ears” should face forward. (Some

equipment may have pre-installed or

integral mounting brackets.)

4With the aid of an assistant (if necessary),

lift your equipment and slide it into the

shelves. Attach the equipment mounting

brackets to the forward mounting rails with

user-supplied screws and washers D.

Tighten all screws securely.

21-07-111-933088-Book.indb 621-07-111-933088-Book.indb 6 7/28/2021 4:49:37 PM7/28/2021 4:49:37 PM

Mounting (Rack)

2-Post Mounting

2-post mounting requires a Tripp Lite 2-Post Rack-Mount Installation Kit (model: 2POSTRMKITWM,

sold separately).

Mounting (Tower)

Warning: When mounting the UPS system in a tower orientation, make sure the LCD panel

is at the top of the UPS, not at the bottom.

Note: To mount the UPS in an upright (tower) position, 2-9USTAND is required (sold separately).

Rotate the LCD Screen panel for easy viewing

while the UPS is tower mounted. Insert a small

screwdriver, or other tool, in the slots on either

side of the panel. Pop the panel out, rotate it

and pop the panel back in place.

21-07-111-933088-Book.indb 721-07-111-933088-Book.indb 7 7/28/2021 4:49:37 PM7/28/2021 4:49:37 PM

4-5

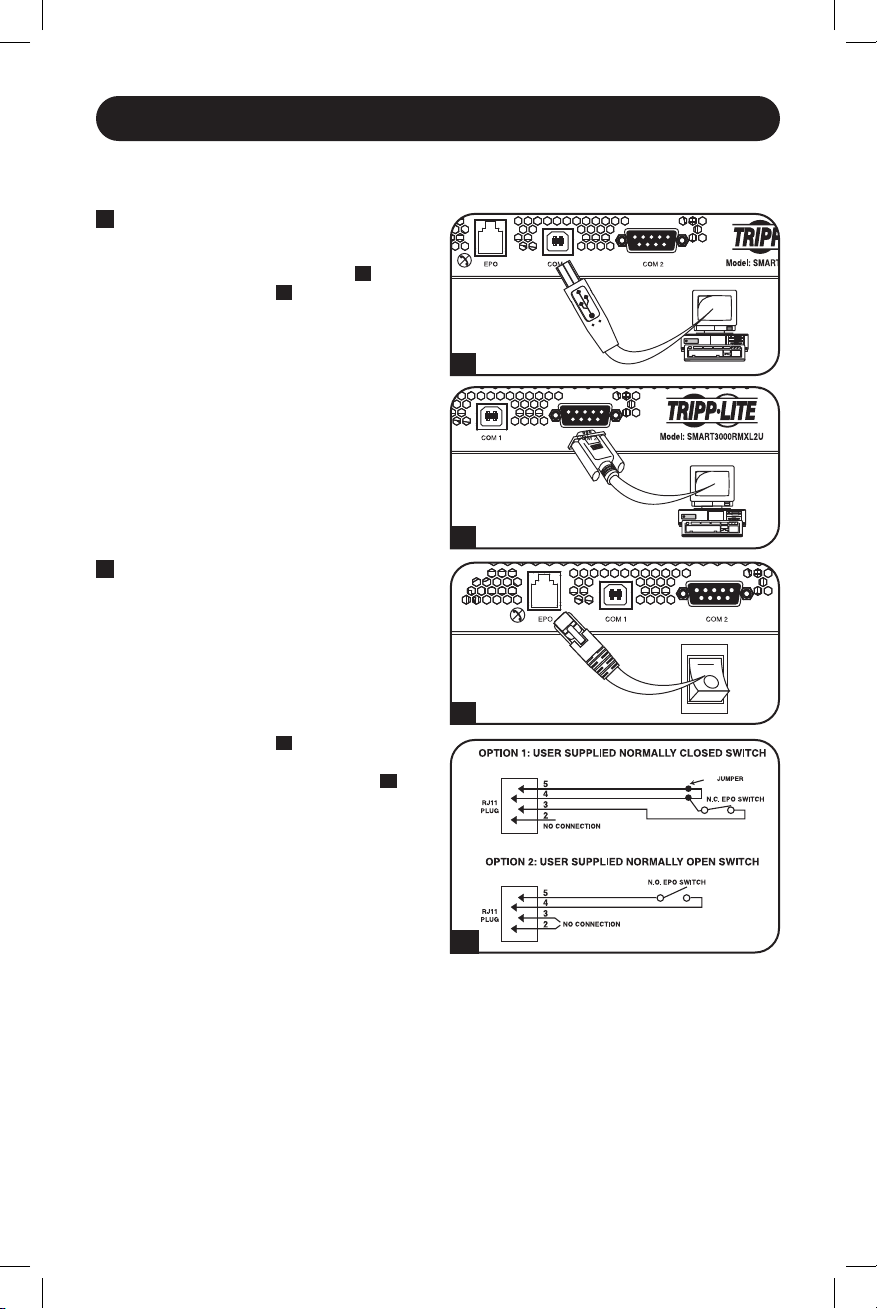

Optional Installation

These connections are optional. Your UPS will function properly without these connections.

1USB and RS-232 Serial

Communications

Use the included USB cable (see 1A) or

DB9 serial cable (see 1B) to connect the

communication port on your computer to

the communication port of your UPS. Install

on your computer the Tripp Lite PowerAlert®

Software appropriate to your computer’s

operating system.

2EPO Port Connection

This optional feature is only for applications

requiring connection to a facility’s

Emergency Power Off (EPO) circuit. When

the UPS is connected to this circuit, it

enables emergency shutdown of the UPS’s

inverter.

Using the cable provided, connect the EPO

port of your UPS (see 2A) to a user-supplied

normally closed or normally open switch

according to the circuit diagram (see 2B).

The EPO port is not a phone line surge

suppressor; do not connect a phone line to

this port.

21-07-111-933088-Book.indb 821-07-111-933088-Book.indb 8 7/28/2021 4:49:38 PM7/28/2021 4:49:38 PM

Optional Installation

3External Battery Connection

(Select Models)

Your UPS contains a robust internal battery

system. External batteries are needed only

to extend runtime. Use only Tripp Lite

external battery packs with overcurrent

protection. Adding external batteries will

increase recharge time, as well as runtime.

Installation is by qualified Service personnel

only. See the battery pack owner’s manual

for complete installation instructions. Make sure cables are fully inserted into their connectors.

Small sparks may result during battery connection; this is normal. Do not connect or

disconnect battery packs when the UPS is running on battery power. Your UPS supports the

following battery packs available from Tripp Lite. Contact Tripp Lite Customer Support at

773.869.1234 for the appropriate Tripp Lite battery pack to connect.

48V Battery Packs

• BP48V24-2U, 18Ah, (limit 1)

• BP48V27-2US, 27Ah (unlimited)

• BP48V60RT-3U, 42Ah (unlimited)

When installing your UPS with external batteries, be sure to connect the ground strap between

the external battery packs to the metal enclosure of the UPS before connecting to the two-

conductor external battery pack cables. Follow installation directions in accordance with the

external battery pack owner’s manual using the ground strap included with the external battery

packs.

The illustration (see 3) shows the location of your UPS External Battery Connector Awhere

you will insert the battery pack cable. Complete installation instructions for your battery pack

appear in the battery pack owner’s manual. Make sure that cables are fully inserted into their

connectors. Small sparks may result during battery connection; this is normal.

Do not connect or disconnect battery packs when the UPS is running on battery power.

Caution! When an external battery pack is connected, make sure the AC load

does not exceed the nameplate rating. Select models are derated when an

external battery pack is connected. See UPS nameplate label for derating

details.

When connecting external batteries to the UPS, go to the Tripp Lite website at

tripplite.com/en/support/bpconfig/index.cfm to download the External Battery Pack Utility

software to configure your UPS for external battery support.

Notes:

1. The runtime and charger rate will automatically recalculate once the External Battery Pack Tool process is

complete.

2. If the setup will no longer include external batteries, the UPS can be configured to work without external

batteries via the LCD panel. See External Battery Settings Control section under Basic Operation for

details.

3. If external battery packs are removed, the UPS must be reset to “NO EXTERNAL BATTERY” via the LCD

interface or the External Battery Configuration Program available on the Tripp Lite website. Failure to do

so may result in damage to the internal batteries due to over-charging.

21-07-111-933088-Book.indb 921-07-111-933088-Book.indb 9 7/28/2021 4:49:38 PM7/28/2021 4:49:38 PM

Note: This LCD image is shown

with all icons illuminated. Under

normal conditions, only select

icons will display.

Basic Operation

LCD Interface

3-Digit Display: This display is generally used to show values for a given

“Display” or “Control” screen.

“ON/OFF” Button

• To turn the UPS ON: After you plug the UPS into a live AC outlet, the UPS (in

”Standby” mode) will automatically charge its batteries, but will not supply

power to its outlets until it is turned ON. With the UPS plugged into a live AC

wall outlet, press and hold the “ON/OFF” button for one second.* The UPS

will beep once to indicate ON status. Release the button.

• To cold-start the UPS: If utility power is absent, you can “cold-start” the UPS

(i.e. turn it ON and supply power for a limited time from its batteries) by

pressing and holding the “ON/OFF” button for one second.* The UPS will beep

once to indicate ON status. Release the button.

• To turn the UPS OFF: With the UPS ON and receiving utility power, press and

hold the “ON/OFF” button for 2.5 seconds.* The UPS will beep once to

indicate OFF status. Then unplug the UPS from the wall outlet. The UPS will

be completely OFF.

* If the user unintentionally presses the ON/OFF button, the OFF function can be

temporarily canceled by continuing to hold the ON/OFF button until the UPS beeps and

then momentarily pressing either the MODE button or the ENTER/MUTE button. Once

both buttons are released, the UPS will remain ON.

“MODE” Button

To enable viewing of power displays and control menu options, tap this button.

See “Display Power Conditions” & “Control Menu Options” for details.

• Can be used in conjunction with the ON/OFF button to cancel the “OFF”

function. See “ON/OFF Button” instructions above.

• Can be used in conjunction with the ENTER/MUTE button to restore the LCD

to Factory Mode. See “Control Menu Options”.

21-07-111-933088-Book.indb 1021-07-111-933088-Book.indb 10 7/28/2021 4:49:38 PM7/28/2021 4:49:38 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unión Postal Universal de Tripp Lite

Tripp Lite

Tripp Lite SmartPro SMART500RT1U Manual de usuario

Tripp Lite

Tripp Lite AVR Series Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART1500RM2UL Manual de usuario

Tripp Lite

Tripp Lite Internet Office INTERNET350SER Manual de usuario

Tripp Lite

Tripp Lite SmartPro AG-0019 Manual de usuario

Tripp Lite

Tripp Lite SmartPro AGSM152DRTi2U Manual de usuario

Tripp Lite

Tripp Lite SmartOnline SU750RTXL2U Manual de usuario

Tripp Lite

Tripp Lite RBC36-SLT Manual de usuario

Tripp Lite

Tripp Lite SMART3000NET Manual de usuario

Tripp Lite

Tripp Lite SmartPro SMART700USB Guía de configuración

Tripp Lite

Tripp Lite ECO350UPS Manual de usuario

Tripp Lite

Tripp Lite SmartPro Rackmount SMX1500XLRT2U Manual de usuario

Tripp Lite

Tripp Lite ECO1000LCD Manual de usuario

Tripp Lite

Tripp Lite SMART1500CRMXL Manual de usuario

Tripp Lite

Tripp Lite SmartOnline 5KVA Manual de usuario

Tripp Lite

Tripp Lite SMART700HG Manual de usuario

Tripp Lite

Tripp Lite SmartOnline 3-Phase UPS Systems SU20KX Manual de usuario

Tripp Lite

Tripp Lite SM750XLNAFTA Manual de usuario

Tripp Lite

Tripp Lite SmartOnline Manual de usuario

Tripp Lite

Tripp Lite SmartPro Rackmount SMX3000XLRT2U Guía de configuración

Tripp Lite

Tripp Lite SMART2200SLT Manual de usuario

Tripp Lite

Tripp Lite Smart Pro SM3000NAFTA Manual de usuario

Tripp Lite

Tripp Lite ECO-UPS ECO850LCD Manual de usuario

Tripp Lite

Tripp Lite AVR700U Guía de configuración

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
