Owner’s Manual

4K/60 DisplayPort over Cat6

Extenders and Splitters

Extender Kit Model: B127-1A1-DH

Splitter Kit Models: B127-002-D2H, B127-004-D4H

Local Transmitter Model: B127-008-D

1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support

WARRANTY REGISTRATION

surge protector in our monthly drawing!

tripplite.com/warranty

Este manual esta disponible en español en la página de

Tripp Lite : tripplite.com/support

Ce manuel est disponible en français sur le site Web de

Tripp Lite : tripplite.com/support

Русскоязычная версия настоящего руководства представлена на

веб-сайте компании Tripp Lite по адресу: tripplite.com/support

20-02-116-93391C-EN.indd 120-02-116-93391C-EN.indd 1 2/19/2020 4:11:38 PM2/19/2020 4:11:38 PM

Package Contents

B127-1A1-DH

B127-002-D2H

B127-004-D4H

B127-008-D

Local Unit (L), Remote Unit (R) or Both (B) B B B L

External Power Supply (Input: 100V-240V) 1 1 1 1

International Plug Adapters

(North America, U.K., Europe, Australia) Y Y Y Y

Mounting Hardware Y Y Y Y

20-02-116-93391C-EN.indd 220-02-116-93391C-EN.indd 2 2/19/2020 4:11:38 PM2/19/2020 4:11:38 PM

Product Features

All

• Support 4K video resolution (3840 x 2160 @ 60 Hz) and 4:4:4

chroma subsampling

• Support up to 7.1-channel surround sound audio

• DisplayPort 1.2a compatible

• Supports up to 8-channel LPCM, AC-3, DTS digital audio

• Plug and play—no software or drivers required

B127-1A1-DH

• DisplayPort over Cat6 Power-over-Cable (PoC) Extender Kit

• Extends a 4K (3840 x 2160 @ 60 Hz) signal up to 125 ft. (38 m)

from the source

• Additional HDMI port on the local transmitter unit allows connection of

a local monitor

• Remote receiver unit features built-in equalization (EQ) control and

auto EDID image adjustment

•

Includes mounting hardware that allows both the local transmitter and

remote receiver units to be wall-mounted, rack-mounted or pole-mounted

B127-002-D2H

• DisplayPort over Cat6 Power Over Cable (PoC) 2 Port Splitter/Extender

Kit

• Extends a 4K (3840 x 2160 @ 60 Hz) signal up to 125 ft. (38 m)

from the source

• Remote HDMI receiver units feature built-in equalization (EQ) control

and auto EDID image adjustment

• Kit includes a 2-port splitter extender and two remote receivers

• Includes mounting hardware that allows unit to be wall-mounted, rack-

mounted or pole-mounted

20-02-116-93391C-EN.indd 320-02-116-93391C-EN.indd 3 2/19/2020 4:11:38 PM2/19/2020 4:11:38 PM

Product Features

B127-004-D4H

• DisplayPort over Cat6 Power over Cable (PoC) 4-Port Splitter/Extender

Kit

• Extends a 4K (3840 x 2160 @ 60 Hz) signal up to 125 ft. (38 m)

from the source

• Remote HDMI receiver units feature built-in equalization (EQ) control

and auto EDID image adjustment

• Kit includes a 4-port splitter extender and four remote receivers

• Includes mounting hardware that allows unit to be wall-mounted, rack-

mounted or pole-mounted

• Additional HDMI port on the local transmitter unit allows connection of

a local monitor

B127-008-D

• DisplayPort over Cat6 Power over Cable (PoC) 8-Port Local Transmitter

Unit

• Extends a 4K (3840 x 2160 @ 60 Hz) signal up to 125 feet (38 m)

from the source to up to eight receivers

• Includes mounting hardware that allows unit to be wall-mounted, rack-

mounted or pole-mounted

• Additional HDMI port on the local transmitter unit allows connection of

a local monitor

Optional Accessories:

• N202-Series Cat6 24 AWG Solid-Wire Patch Cables

• P569-XXX-CERT or P568-XXX-2A-Series High-Speed HDMI 2.0 Cables

• P580-XXX DisplayPort Cables

20-02-116-93391C-EN.indd 420-02-116-93391C-EN.indd 4 2/19/2020 4:11:38 PM2/19/2020 4:11:38 PM

Disclaimer

Before installation, please check the following settings of your source(s)

and TV/monitor(s):

1. Set monitor to display at 60 Hz. Double-check factory settings, as

default may be set to a lower frequency (Hz).

2. Ensure your monitor’s input setting is set to HDMI 2.0. Some displays

may have a default setting of HDMI 1.4

3. Verify your monitor has the HDR feature enabled. Some displays may

have this feature disabled as a default setting.

4. Check if the Ultra HD (UHD) Deep Color setting is enabled on your TV/

monitor. Conﬁrm with your TV/monitor manufacturer which HDMI ports

support UHD Deep Color.

Note: If you wish to connect a local monitor to your installation, depending on

the make/model of your TV or monitor, the UHD Deep Color setting may need to

be disabled on your local TV/monitor to achieve 4K 60 Hz resolution.

20-02-116-93391C-EN.indd 520-02-116-93391C-EN.indd 5 2/19/2020 4:11:38 PM2/19/2020 4:11:38 PM

Mounting Instructions (select models)

The B127-1A1-DH, B127-002-D2H, B127-004-D4H and B127-008-D

include mounting hardware, allowing for a variety of mounting methods.

The following images illustrate how the included mounting brackets can

be attached for different installations.

Note: The model shown in the below images is for illustrative purposes only. Your

product may vary by model number, size or port orientation. The mounting options

for all over IP units are the same.

Wall-mount

19” Rack-mount Pole-mount

20-02-116-93391C-EN.indd 620-02-116-93391C-EN.indd 6 2/19/2020 4:11:39 PM2/19/2020 4:11:39 PM

Standard Extender Kit Installation

Notes:

• Test to ensure the entire installation works properly before pulling cables through

ceilings/walls.

• To achieve maximum distance and performance, use 24 AWG solid-wire Cat6

cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher

than 24 AWG will result in shorter extension distance. Higher gauge cabling, such

as 26 AWG, has a more limited transmission capability than lower gauge cabling.

All Tripp Lite N202-Series Cat6 cables use 24 AWG solid-wire cabling.

• The installation diagram shows a B127-1A1-DH unit.

• External power is not required for the remote receiver due to Power over Cable

(PoC) technology incorporated in the transmitter unit.

B127-1A1-DH

Extender Kit

MONITOR PC

LOCAL

TRANSMITTER

REMOTE

RECEIVER

Up to 125 ft. (38 m) at 4K/60 Hz

Up to 125 ft. (38 m) Cat6 cable at 4K/60 Hz

Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz

Up to 15 ft. (4.5 m) DisplayPort cable at 4K/60 Hz

20-02-116-93391C-EN.indd 720-02-116-93391C-EN.indd 7 2/19/2020 4:11:39 PM2/19/2020 4:11:39 PM

Standard Extender Kit Installation

1. Make sure all equipment in the installation—such as TVs, Blu-ray

players and the transmitter—is powered OFF.

2. Using DisplayPort cables (such as Tripp Lite P580-XXX-Series),

connect the DisplayPort source to the INPUT port on the

B127-1A1-DH local transmitter unit.

3. Optional for B127-1A1-DH: Using an HDMI 2.0 cable (such as

Tripp Lite P569-XXX-CERT or P568-XXX-2A-Series cable), connect

a local monitor to the LOCAL port on the B127-1A1-DH local

transmitter unit.

4. Using Cat6 cable, connect the RJ45 port on the local transmitter unit

to the RJ45 port on the remote receiver unit.

5. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or

P568-XXX-2A-Series cable), connect the remote receiver unit’s HDMI

port to a monitor.

6. Power on all connected displays. The LOCAL (orange) LED will

illuminate to indicate the local port is connected to a display.

Connect the external power supply to the local transmitter unit and plug

it into an available wall outlet or (optional) a Tripp Lite Surge Protector,

Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS).

The POWER (green) LED will illuminate to indicate the unit is receiving

power from the external power supply. The POWER (green) LED on the

remote receiver unit will illuminate to indicate the unit is receiving power

from the local transmitter unit by way of PoC technology.

8. Turn on the power to the DisplayPort source. The OUTPUT (orange)

LED on the local transmitter unit will illuminate to indicate a signal is

received from the source.

9. The RJ45 (orange) LED will illuminate on both local transmitter and

remote receiver units to indicate a signal is being received from

source to display. The screen should now display on the connected

monitor.

20-02-116-93391C-EN.indd 820-02-116-93391C-EN.indd 8 2/19/2020 4:11:39 PM2/19/2020 4:11:39 PM

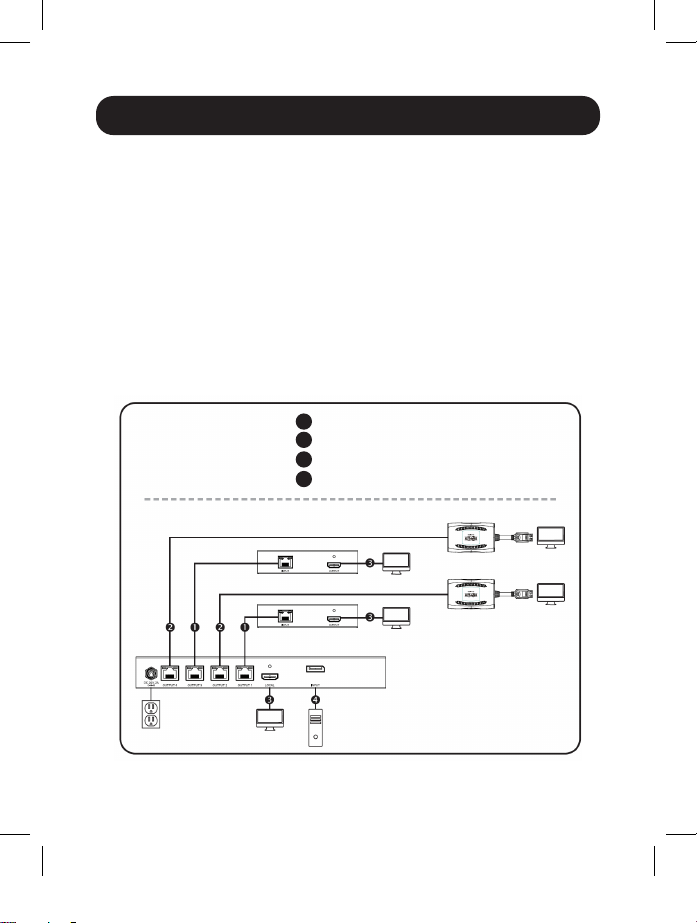

Standard Extender Installation

Notes:

• Test to ensure the entire installation works properly before pulling cables through

ceilings/walls.

• To achieve maximum distance and performance, use 24 AWG solid-wire Cat6

cable. Using stranded-wire Cat6 cable, or cable with a gauge (AWG) size higher

than 24 AWG will result in shorter extension distance. Higher gauge cabling, such

as 26 AWG, has a more limited transmission capability than lower gauge cabling.

All Tripp Lite N202-Series Cat6 cables use 24 AWG solid-wire cabling.

• The installation diagram shows the B127-004-D4H local transmitter unit. The

B127-002-D2H installation is the same, except there are only two remote ports

and no local monitor port. The B127-008-D Transmitter Unit features eight

remote ports and one local monitor port.

• External power is not required for the B127-100-H or B127-100-H-SR.

B127-004-D4H

Extender Kit

OPTIONAL

LOCAL MONITOR

B127-004-D4H

B127-100-H

B127-100-H-SR

B127-100-H

B127-100-H-SR

Up to 125 ft. (38 m) Cat6 cable at 4K/60 Hz

Up to 50 ft. (15 m) Cat6 cable at 4K/60 Hz

Up to 15 ft. (4.5 m) HDMI 2.0 cable at 4K/60 Hz

Up to 15 ft. (4.5 m) DisplayPort cable at 4K/60 Hz

20-02-116-93391C-EN.indd 920-02-116-93391C-EN.indd 9 2/19/2020 4:11:39 PM2/19/2020 4:11:39 PM

Standard Extender Installation

1. Make sure all equipment in the installation—such as TVs, Blu-ray

players and the transmitter—is powered OFF.

2. Using DisplayPort cables (such as Tripp Lite P580-XXX-Series),

connect the DisplayPort source to the INPUT port on the

B127-002-D2H, B127-004-D4H or B127-008-D local transmitter

unit.

3. Optional for B127-004-D4H and B127-008-D: Using an HDMI

2.0 cable (such as Tripp Lite P569-XXX-CERT or P568-XXX-2A-Series

cable), connect a local monitor to the LOCAL port on the

B127-004-D4H or B127-008-D local transmitter unit.

4. Using Cat6 cable, connect the RJ45 output port on the local

transmitter unit to the RJ45 port on the B127-100-H remote receiver

unit.

5. Repeat step 4 for each additional remote receiver unit being

connected.

6. Using an HDMI 2.0 cable (such as Tripp Lite P569-XXX-CERT or

P568-XXX-2A-Series cable), connect the B127-100-H’s HDMI port to

a monitor.

7. Repeat Step 6 for each additional remote B127-100-H receiver unit

in the installation.

8. Power on all connected displays. The LOCAL (orange) LED will

illuminate to indicate the local port is connected to a display.

9. Connect the external power supply to the B127-002-D2H,

B127-004-D4H or B127-008-D local transmitter unit and plug it

into an available wall outlet or (optional) a Tripp Lite Surge Protector,

Power Distribution Unit (PDU) or Uninterruptible Power Supply (UPS).

The POWER (green) LED will illuminate to indicate the unit is receiving

power from the external power supply. On the B127-100-H, the

POWER (green) LED on the remote receiver unit will illuminate to

indicate the unit is receiving power from the extender/splitter.

20-02-116-93391C-EN.indd 1020-02-116-93391C-EN.indd 10 2/19/2020 4:11:39 PM2/19/2020 4:11:39 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Extensor de Tripp Lite

Tripp Lite

Tripp Lite B127E-1A1-HH Manual de usuario

Tripp Lite

Tripp Lite Wireless Console Extender B014-000 Manual de usuario

Tripp Lite

Tripp Lite B013-000 Manual de usuario

Tripp Lite

Tripp Lite U224-1R4-R Manual de usuario

Tripp Lite

Tripp Lite B203-101 Manual de usuario

Tripp Lite

Tripp Lite B125-150 Manual de usuario

Tripp Lite

Tripp Lite B202-150 Manual de usuario

Tripp Lite

Tripp Lite NPOE-EXT-1G30WP Manual de usuario

Tripp Lite

Tripp Lite B120-000-SL Manual de usuario

Tripp Lite

Tripp Lite B126-1A1 Manual de usuario

Tripp Lite

Tripp Lite B130-101S-WP Manual de usuario

Tripp Lite

Tripp Lite B136-101 Manual de usuario

Tripp Lite

Tripp Lite B136-101 Manual de usuario

Tripp Lite

Tripp Lite B127F-1A1-MM-HH Manual de usuario

Tripp Lite

Tripp Lite B121-000 Manual de usuario

Tripp Lite

Tripp Lite B126-1A1SR Manual de usuario

Tripp Lite

Tripp Lite B140-002-DD Manual de usuario

Tripp Lite

Tripp Lite B203-101-IND-ER Manual de usuario

Tripp Lite

Tripp Lite B130-101 Manual de usuario

Tripp Lite

Tripp Lite B126-1D10-WHD1 Manual de usuario

Tripp Lite

Tripp Lite B162-001-POE Manual de usuario

Tripp Lite

Tripp Lite P130-000-AUDIO2 Manual de usuario

Tripp Lite

Tripp Lite B013-330 Manual de usuario

Tripp Lite

Tripp Lite B130-202 Manual de usuario

Manuales populares de Extensor de otras marcas

SY HDBT-60T Manual de usuario

Appsys ProAudio

Appsys ProAudio ADX-16 Manual de usuario

Atlona

Atlona RS232 Manual de usuario

IDK

IDK OPF-TH1000-A Manual de usuario

Enable-IT

Enable-IT 824WP Manual de usuario

Worx

Worx Landroid RadioLink WA0864 Hoja de especificaciones

TP-Link

TP-Link TL-WA730RE Manual de usuario

Camplex

Camplex CMX-HDMI-SFPL Manual de usuario

SC&T

SC&T HE03-4K Manual de usuario

Marmitek

Marmitek MegaView70 Manual de usuario

Samsung

Samsung SCS-26UC4 Manual de usuario

Foxun

Foxun SX-GES24 Manual de usuario

MuxLab

MuxLab 500771 Manual de usuario

foxunhd

foxunhd SX-AEX01 Manual de usuario

TERK Technologies

TERK Technologies LFIRX2 Manual de usuario

Devolo

Devolo Audio Extender Manual

Edimax

Edimax EW-7438RPn V2 Manual de usuario

Shinybow USA

Shinybow USA SB-6335T5 Manual de usuario
