User Manual

MS300

Pinless Moisture Meter

Introduction

Thank you for selecting the Triplett MS300 Pinless Moisture Meter. The

MS300 sensor performs non-invasive, relative moisture measurements on

wood and building materials such as wallboard, sheet rock, cardboard,

plaster, concrete, and mortar. The MS300 also offers auto power off

(APO), display lock (hold), and self-calibration features.

The MS300 is ideal for building restoration projects and applications

where moisture detection on floors and under carpets is critical. The

MS300 is also a handy tool for analyzing the effects of water leakage

behind walls and in ceilings.

Measurement Considerations

To measure moisture, the MS300 sensor emits and senses low-power

electro-magnetic signals. The displayed reading in percent is an average

of the moisture content measured over the entire non-destructive spherical

sensor. The maximum depth of penetration is 4.0” (102mm) Moisture that

is closer to the surface has a greater effect on the displayed average than

the moisture nearer to the maximum depth of penetration.

Placing the sensor on asurface whose thickness is less than the maximum

depth of penetration may result in unreliable moisture readings; in these

cases, you can stack material on top of the measured surface to increase

the thickness.

The MS300 also produces audible tones and ‘moisture droplet’ display

icons to indicate moisture level. The audible tone rate and number of

droplets increase as the moisture level increases. The MS300 also

produces audible tones and ‘moisture droplet’ display icons to indicate

moisture level. The audible tone rate and number of droplets increase as

the moisture level increases.

Meter Description

1. LCD Display

2. Power button

3. Display Lock/Beeper button

4. Material Select button

5. Sensor (Ball Probe)

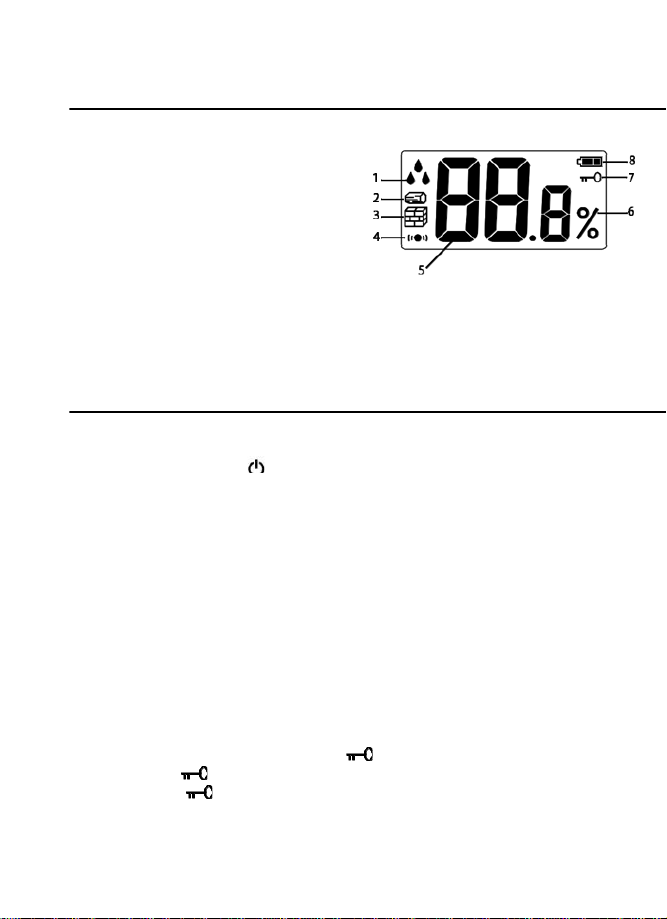

Display Description

1. Moisture Drop icons (one for low moisture, two for medium, and three

for high)

2. Wood mode

3. Building Material mode

4. Beeper active icon

5. Moisture reading

6. Digital reading in % (relative)

7. Display Lock Mode

8. Battery Status

Operation

Powering the Meter and Self-Calibration

Long press the power button to switch the meter on/off. The meter

beeps and displays ON as it powers up. If the meter does not switch on,

please check the battery. The meter emits audible tones and performs a

self-calibration upon start-up. Keep the measurement sensor at least 8 to

10 cm (3 to 4”) from hands and objects during calibration. The calibration

reading must not exceed 0.5. If so, re-calibrate ensuring that hands or

other objects are clear of the sensor. Note: Calibrate the meter whenever

moving from one measurement area to another.

Auto Power OFF

The meter will automatically power OFF if the reading stays 0% for 3

minutes. If the meter detects readings, other than 0%, it will not

automatically power OFF.

Display Hold Lock

Short press the Display Lock button to freeze the displayed

reading. The icon is visible on the display when Display Lock is

active. Press again to return to the normal operating mode.

Beeper ON/OFF

The beeper defaults to ON. To switch the beeper OFF, long press the

Display Lock/Audible Beeper

button . When the beeper is active, the audio display icon will be

visible.

Pinless Moisture Measurements

1. Short press the Material Select button ( ) to toggle the Wood

and Building Material modes. The displayed icons indicate the

selected mode.

2. Position the sensor firmly on a flat surface so that it directly touches

the measurement area. The measurement surface area should be

larger than the sensor surface area.

3. Observe the displayed relative readings, view the displayed moisture

droplet icon(s) (more drops indicate higher moisture levels), and

listen for the audible beeping (faster beeping indicates higher

moisture; there are eight intensity levels). As discussed in the

Measurement Considerations section, the displayed reading is an

average of the moisture measured over the entire sensor surface

area to the maximum penetration depth. The section Relative

Moisture Reading Ranges, below, provides measurement and

droplet icon ranges.

Relative Moisture Reading Ranges

Maintenance

Battery Replacement

When the battery status icon appears empty or flashing, replace the

battery.

1. Remove the rear battery cover by pushing the compartment latch

(bottom, back of meter).

2. Replace the 9V battery observing correct polarity.

3. Replace the battery cover securely.

4. Dispose of battery responsibly and within applicable legal

regulations.

Never dispose of used batteries or rechargeable

batteries in household waste. As consumers, users

are legally required to take used batteries to

appropriate collection sites, the retail store where

the batteries were purchased, or wherever batteries

are sold.

Disposal: Do not dispose of this instrument in household waste. The

user is obligated to take end-of-life devices to a designated collection

point for the disposal of electrical and electronic equipment.

Care and Cleaning

Store the meter in an environmentally stable, dust-free

environment, out of direct sunlight. Remove the battery from the

instrument if the meter is to be stored for long periods or if

the battery power symbol appears empty (or flashing) on the

display.

To clean the meter case, wipe with a damp cloth, do not use solvents or

abrasives.

Specifications

Display LCD with multi-function indicators

Measurement Type Pinless, non-destructive

Measurement Indication Digital relative reading in %, moisture drop

icons (1, 2, or 3 droplets),

audible tone (8 intensity levels) indicating low to high moisture readings

Measurement Ranges:

Wood: Low: 0.1% to 16.9%; Medium: 17.0% to 39.9%; High: 40.0 to

99.9%

Building Materials: Low: 0.1% to 16.9%; Medium: 17.0% to 39.9%;

High: 40.0 to 99.9%

Measurement depth Sensor detects to a depth of 102mm (4.0”)

Resolution 0.1%

Accuracy Relative readings only

Auto Power OFF After approx. three (3) minutes with a 0%

display reading

Power Supply One (1) 9V battery, battery consumption: <

40mA

Low Battery indication < 7.5VDC, approximately

Low Battery APO < 5.5VDC; APO will occur in 20 seconds,

approximately

Operating Conditions 5 ~ 45oC (41 ~ 113oF); 80%RH max.

Storage Conditions 0 ~ 50oC (32 ~ 122oF); 85%RH max.

Dimensions 210 x 65 x 30mm (8.3 x 2.6 x 1.2")

Weight 160g (5.6 oz.) without battery

Warranty

Triplett / Jewell Instruments extends the following warranty to the original purchaser of

these goods for use. Triplett warrants to the original purchaser for use that the products

sold by it will be free from defects in workmanship and material for a period of (1) one

year from the date of purchase. This warranty does not apply to any of our products

which have been repaired or altered by unauthorized persons in any way or purchased

from unauthorized distributors so as, in our sole judgment, to injure their stability or

reliability, or which have been subject to misuse, abuse, misapplication, negligence,

accident or which have had the serial numbers altered, defaced, or removed.

Accessories, including batteries are not covered by this warranty

www.triplett.com
