Triplett BR260 Manual de usuario
User Manual
BR260
High Definition Borescope Inspection Camera
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
Introduction
Congratulations on your purchase of the Triplett BR260 Borescope. The
BR260 is a high performance industrial inspection camera with a 3-inch high
definition color LCD. It is ergonomically designed so that the main functional
buttons can be controlled with one hand. The snapshot and recording
functions are supported, photos and videos can be saved on TF memory
card (Micro-SD card).Features include an auxiliary light source and
adjustable LED lights making it easy and handy to use in a dark
environment.
Meter Description
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
Safety
This product is designed for industrial inspection camera.
•Avoid severe hits to the camera probe, and do not aggressively
pull the cable.
•Please do not use it under high temperature, high magnetic
environments or under strong light.
•Do not expose this product to extremely low or high temperatures
•If used for extended periods of time, please take out of the Alkaline
battery from the device .
•Do not wipe the unit with corrosive chemical wash.
NOTICE:
WARNING ! This product is an industrial inspection camera and is
not intended for medical use or human examination.
ACCESSORIES INSTALLATION

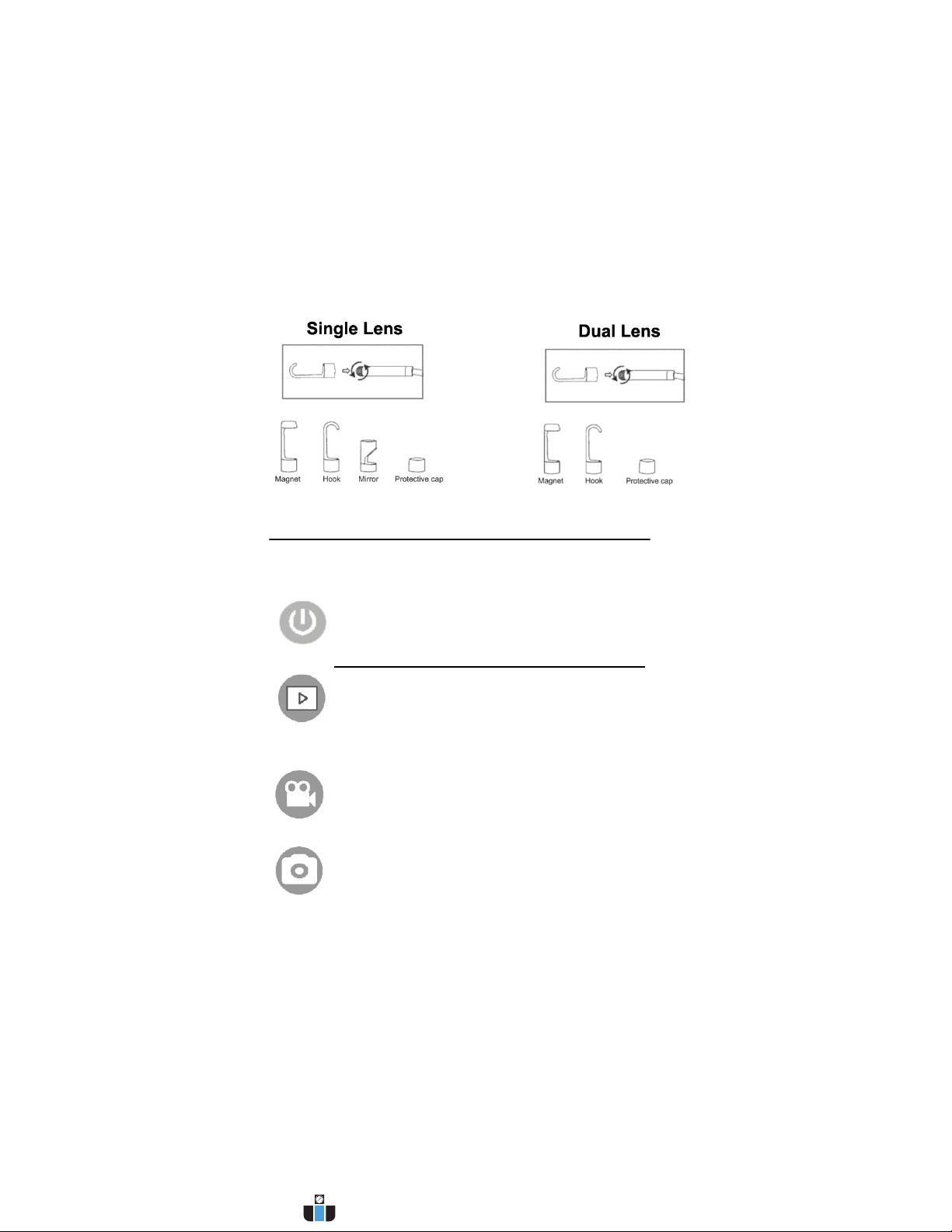

The installation of accessories is shown in the following figures
NOTE: Dual Lens Option Not Available for BR260 model at this
time.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
Operation
BUTTON OPERATION
Power Button :
Press for 3 seconds to turn ON / OFF the screen.
Playback Button:
Playback : hold it to enter Photo or
Video Playback, press again to exit.
Video Button :
Press it for Video recording .
Photo Button :
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
Press it to capture Photo images
OK /Screen rotation:
In setup menu, press the OK button to confirm.
In live view, press it to screen rotate 180°, press again to
resume screen rotation 180°.
Camera LED Button :
Press it to adjust 3 levels brightness of the camera.
ENTER MENU SETTINGS
Date / time settings
Setting path:
Short press the button to enter setting page
Select first item(Date / time)on settings page
Press button to select the Date / Time you need
Press up and down keys to change the Date /Time you need
Press to save your choice
Language settings
The default language is English, and the system supports English,
Chinese, GermanFrench, Spanish, waian, Russian and
Japanese.
Setting path:
Short press the button to enter setting page
Select second item (Language) on settings page
Press up and down keys to select the language you need
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
Press to save your choice
TF card format settings
Setting path:
Short press the button to enter setting page
Select the 3rd. item (format) on settings page
Press keys to get into select format
Press up and down keys to select the Cancel ro ok you need
Press to save your choice
Photo taking / Video recording / Playback
Press to switch to playback mode ,
Press up and down key to select photo or video to view,
and short press the button to enter deleting photo or
video, press to delete photo or video.
Press to exit playback mode
TECHNICAL PARAMENTERS:
Model
BR260
Screen
3.0inch color LCD display
Resolution
1280*720 ; 1920*1080
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
Horizontal viewing
angle
60°
Language
Simplified Chinese, Traditional
Chinese, English, French, German,
Italy, Russian, Japanese, etc
Line length
2M 5M 7M
Focal length
3cm-10cm
Waterproof level
IP67(only for lens)
Lens diameter
5.5mm/8mm
Battery
Support 4pcs Alkaline battery
Battery life
About 3-4 hours
TROUBLESHOOTING:
Problem
Solution
The device can not be
turned on
1. Use atfer fully charging the battery.
2. Confirm whether the power supply
has been successfully
connected
TF card reading failed
1. Confirm whether the TF card meets
the requirements(the
Highest supported format is 64GB
Micro TF card in FAT 32,and the
transmission speed must be Class 10 or
higher)
2. Remove the TF card and reinsert it.
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
After the device is
connected to
The PC, can’t read TF
card
1. Reconnected the device and the PC
2. Confirm whether to enter mass
storage mode
Smudges or smudges
on the
screen
1. Clean the screen carefully with a soft
cloth
Warranty
Triplett / Jewell Instruments extends the following warranty to the original
purchaser of these goods for use. Triplett warrants to the original purchaser
for use that the products sold by it will be free from defects in workmanship
and material for a period of (1) one year from the date of purchase. This
warranty does not apply to any of our products which have been repaired or
altered by unauthorized persons in any way or purchased from unauthorized
distributors so as, in our sole judgment, to injure their stability or reliability, or
which have been subject to misuse, abuse, misapplication, negligence,
accident or which have had the serial numbers altered, defaced, or removed.
Accessories, including batteries are not covered by this warranty
Copyright ©2022 Triplett
www.calcert.com [email protected]1.800.544.2843 0
5
10
15
20
25
30
