Model 9325
True RMS AC/DC Clamp-On Meter
Instruction Manual
TRIPLETT
84-898
7/11
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Safety
International Safety Symbols
This symbol, adjacent to another symbol or terminal,
indicates the user must refer to the manual for further
information.
This symbol, adjacent to a terminal, indicates that, under
normal use, hazardous voltages may be present
Double insulation
SAFETY NOTES
•Do not exceed the maximum allowable input range of any
function
•Do not apply voltage to meter when resistance function is
selected.
•Set the function switch OFF when the meter is not in use.
WARNINGS
•Set function switch to the appropriate position before
measuring.
•When measuring volts do not switch to current/resistance
modes.
•When changing ranges using the selector switch always
disconnect the test leads from the circuit under test.
•Do not exceed the maximum rated input limits.
CAUTIONS
Improper use of this meter can cause damage, shock, injury
or death. Read and understand this user manual before
operating the meter.
Always remove the test leads before replacing the battery.
Inspect the condition of the test leads and the meter itself for
any damage before operating the meter. Repair or replace any
damage before use.
Use great care when making measurements if the voltages
are greater than 25VAC rms or 35VDC. These voltages are
considered a shock hazard.
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Remove the battery if the meter is to be stored for long periods.
Always discharge capacitors and remove power from the
device under test before performing Diode, Resistance or
Continuity tests.
•Voltage checks on electrical outlets can be difficult and
misleading because of the uncertainty of connection to the
recessed electrical contacts. Other means should be used to
ensure that the terminals are not "live".
•If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may
be impaired.

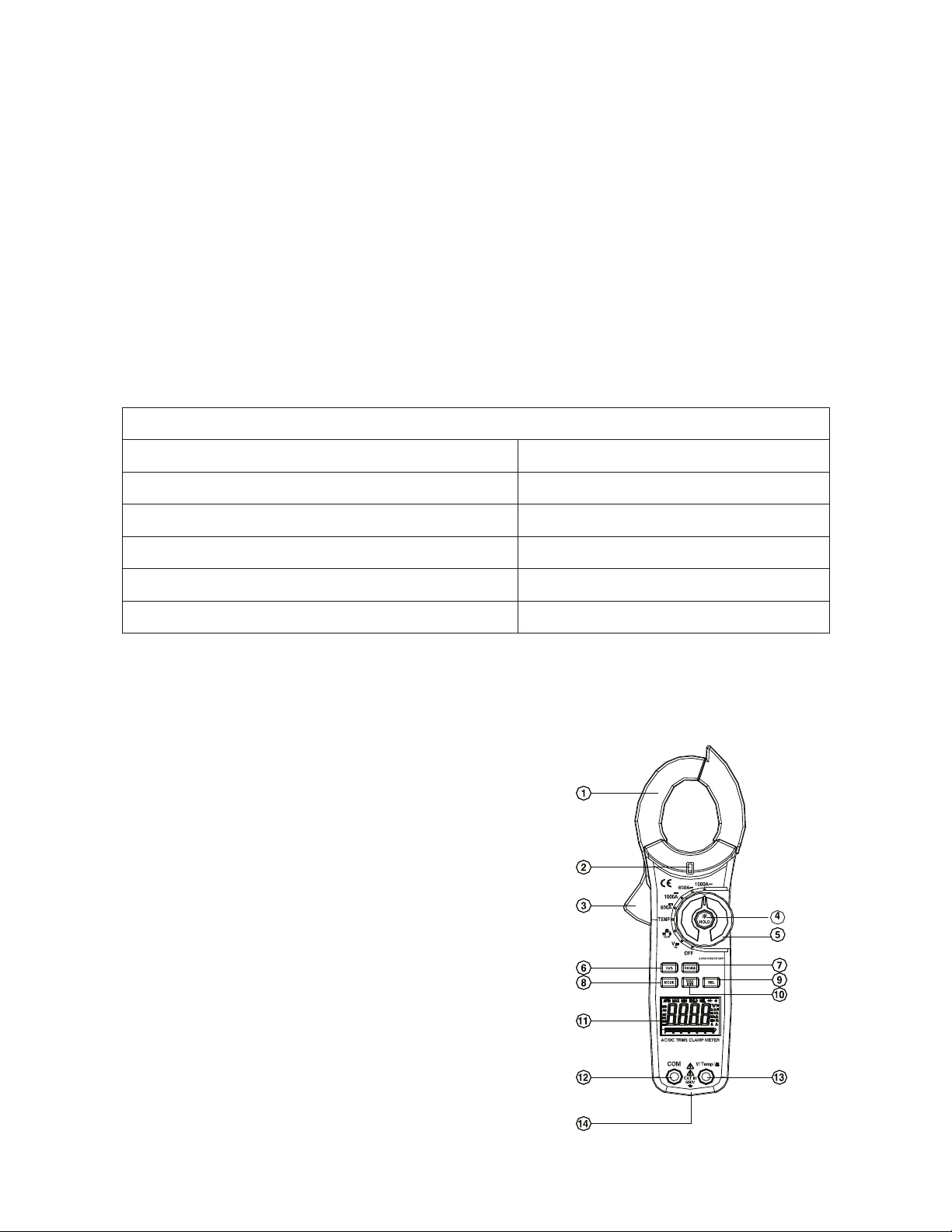

Meter Description
1.Current clamp
2.Non-contact AC voltage indicator light
3.Clamp trigger
4.Data Hold and Backlight button
5.Rotary Function swith
6.Hz% Hlod button
7.RANGE select button
8.Relative button
9.MIN/MAX Hlod button
10.MODE select button
11.LCD display
12.COM input jack
13.V ΩCAP TEMPHz jack
14.Battery Cover
Function
A AC/DC
V DC, V AC
Frequency, Resistance, Diode,
Continuity , Capacitance Test
Temperature (°C/°F)
Maximum Input
1000A
1000V DC/AC
1000V DC/AC
1000V DC/ AC
Input Limits
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
1
2
3
45
678
9
10
11

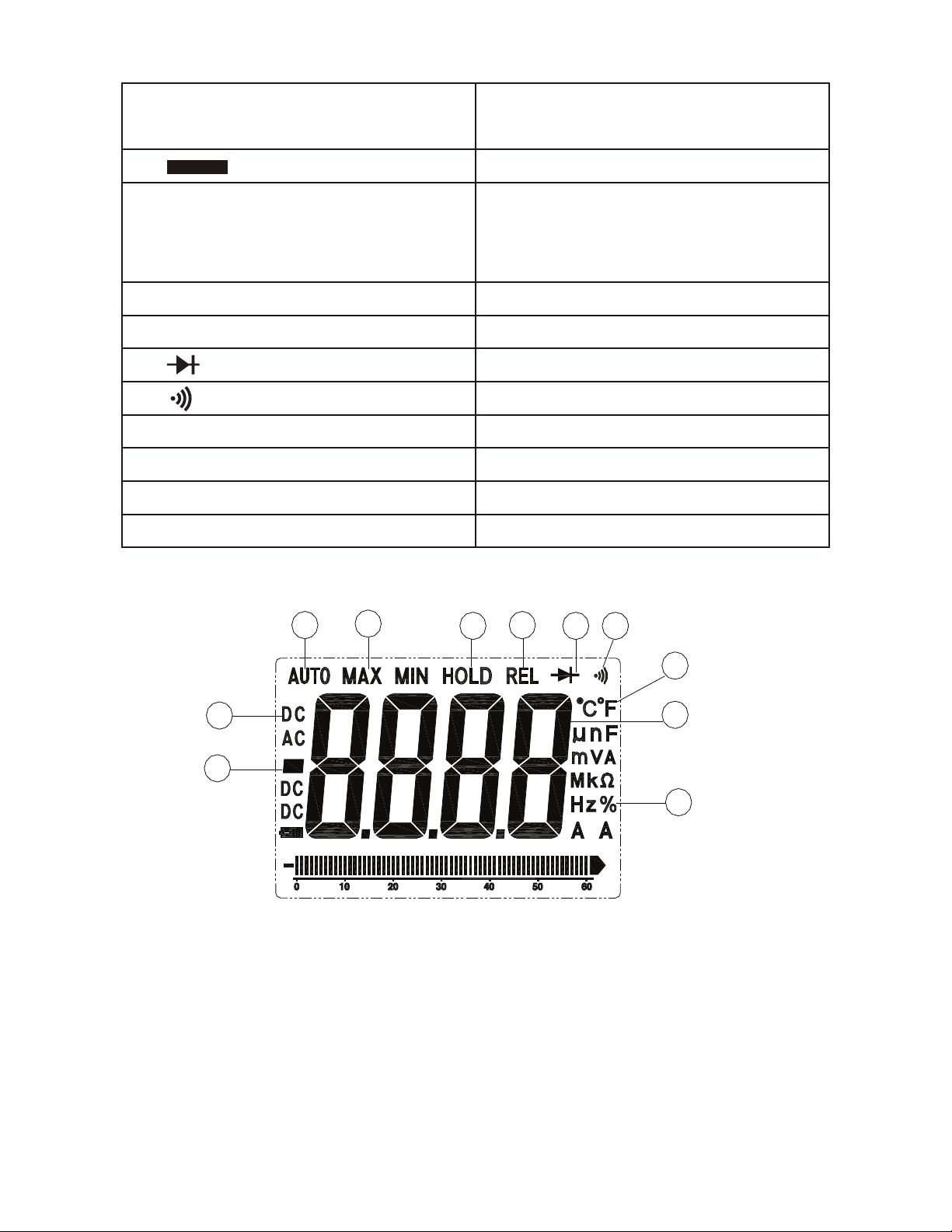

1.AC DC
2.
3.8.8.8.8
4.AUTO
5.REL
6.
7.
8.HOLD
9.°C,°F, μ,m,V,A,K,M,Ω,
10.MAX MIN
11.Hz %y
AC (alternating current)
and DC (direct currrent)
Minus sign
6000 count (0 to 5999)
measurement reading with
61segments Analog Bargraph
AutoRange mode
Relative mode
Diode test mode
Audible Continuity
Data Hold mode
Units of measure list
MAX/MIN mode
Frequency/duty cycle mode
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Specifications
Function
AC Current
(50/60Hz)
AC Current
(400Hz)
DC Current
DC Voltage
AC Voltage
(50-400Hz)
Resistance
Capacitance
Frequency
Sensitivity:
15Vrms
Temp (type-K)
(probe accuracy
not included)
Range & Resolution
600.0 AAC
1000 AAC
600.0 AAC
1000 AAC
600.0 ADC
1000 ADC
600.0 mVDC
6.000 VDC
60.00 VDC
600.0 VDC
6.000 VAC
60.00 VAC
600.0 VAC
600.0 Ω
6.000KΩ
60.00KΩ
600.0KΩ
6.000MΩ
60.00MΩ
40.00nF
400.0nF
4.000μF
40.00μF
400.0μF
4000μF
10-10kHz
-20.0°C to 760.0°C
-4.0°F to1400.0°F
Accuracy (% of reading)
± (2.8 % + 8 digits)
± (3.0 % + 8 digits)
± (5.0 % + 10 digits)
± (5.0 % + 10 digits)
± (2.8 % + 5 digits)
± (3.0 % + 5 digits)
± (0.8% + 2 digits)
± (1.5% + 2 digits)
± (1.8% + 8 digits)
± (1.0% + 4 digits)
± (1.5% + 2 digits)
± (2.5% + 3 digits)
± (3.5% + 5 digits)
Unspecified
(3% reading + 5 digits)
(4.0% reading + 10 digits)
(5.0% reading + 10 digits)
(1.5% reading + 2 digits)
(3%rdg+5°C)
(3%rdg+9°F)
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Clamp size
Diode Test
Continuity Check
Low Battery Indication
Overrange Indication
Measurements Rate
Input Impedance
Display
AC Current
AC Voltage bandwidth
Operating Temperature
Storage Temperature
Operating Humidity
Storage Humidity
Operating Altitude
Over voltage
Battery
Auto OFF
Dimensions/Weight
Safety
Opening 1.5" (40mm) approx
Test current of 0.3mA typical;
Open circuit voltage 1.5V DC
typical.
Threshold <40Ω;
Test current < 0.5mA
“ ” is displayed
“OL” is displayed
2 per second, nominal
10MΩ(VDC and VAC)
6000 counts LCD
50-400Hz (AAC)
50-400Hz (VAC)
41°F to 104°F (5°C to 40°C)
-4°F to 140°F (-20°C to 60°C)
Max 80% up to 87°F(31°C)
decreasing linearly to 50%
at 104°F(40°C)
<80%
7000ft. (2000meters) maximum.
Category III 600V
One 9V Battery
approx. 15 minutes
232x77x39mm/271g
For indoor use and in accordance
with Overvoltage Category II,
Pollution Degree 2. Category II
includes local level, appliance,
portable equipment, etc., with
transient overvoltages less than
Overvoltage Cat. III
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Operation
NOTICES: Read and understand all warning and precaution
statements listed in the safety section of this operation manual
prior to using this meter. Set the function select switch to the
OFF position when the meter is not in use.
AC/DC Current Measurements
WARNING: Ensure that the test leads are disconnected from
the meter before making current clamp measurements.
1.Set the Function switch
to the 1000ADC,600ADC,
1000AAC or600AAC range.
2.If the range of the
measured is not known,
select the higher range first
then move to the lower
range if necessary.

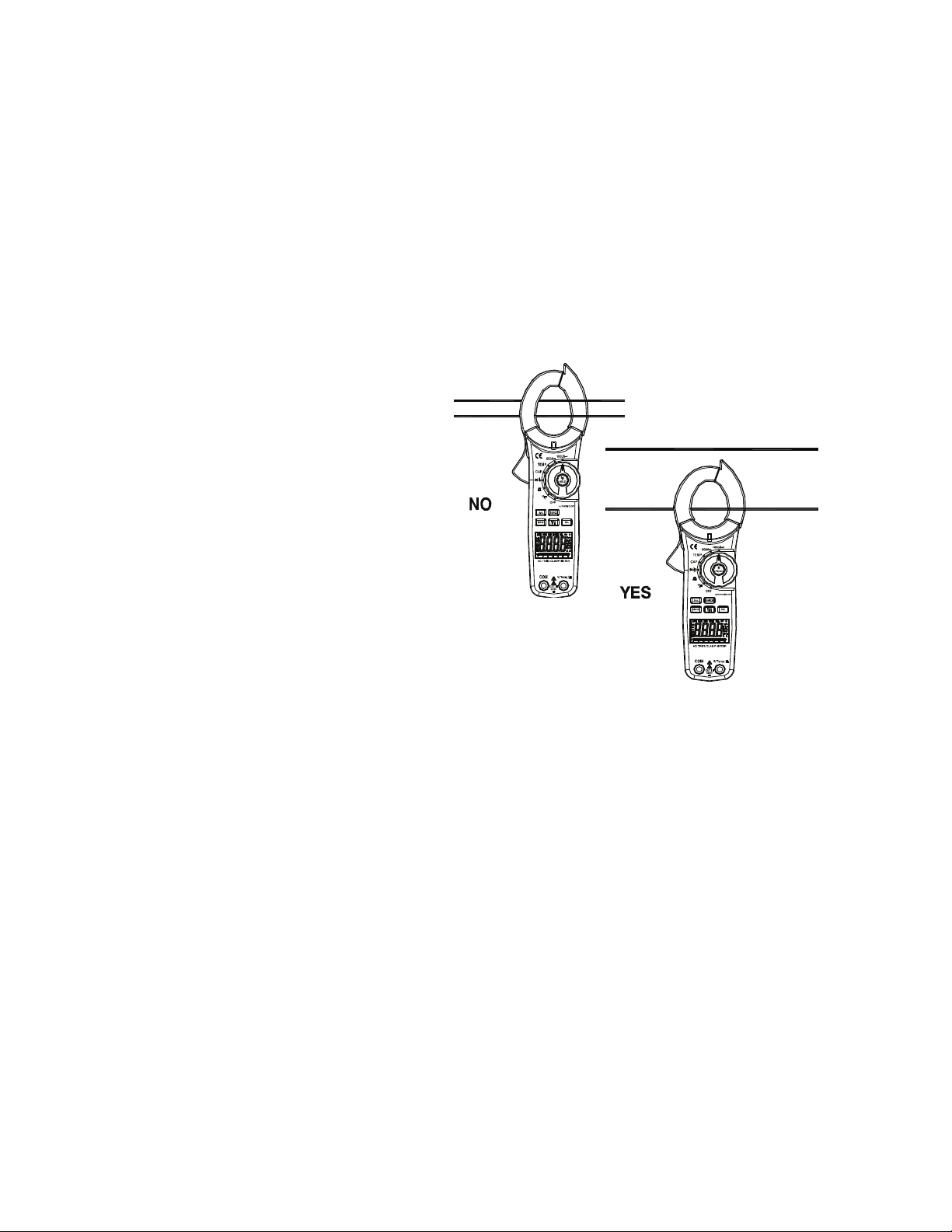

3.Press the trigger to open
jaw. Fully enclose one
conductorto be measured.
The clamp meter LCD will display the reading.
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
DC/AC Voltage Measurements
1.Insert the black test lead into the negative COM terminal
and the
red test lead into the positive V terminal.
2.Set the function switch to the V position.
3.Select AC or DC with the MODE button.
4.Connect the test leads in parallel to the circuit under test.
5.Read the voltage measurement on the LCD display.
Resistance Measurements
1.Insert the black test lead into the negative COM terminal
and the red test lead into the positive terminal.
2.Set the function switch to the CAP position.
3.Touch the test probe tips across the circuit or component
under test. It is best to disconnect one side of the device
under test so the rest of the circuit will not interfere with the
resistance reading.
4.For Resistance tests, read the resistance on the LCD display.
Diode and Continuity Measurements
1.Insert the black test lead banana plug into the negative
COM jack and the red test lead banana plug into the positive
diode jack.
2.Turn the rotary switch to the CAP position.
3.Press the MODE button until “ “ appears in the display.
4.Touch the test probes to the diode under test. Forward
voltage will indicate 0.4V to 0.7V. Reverse voltage will indicate
“OL”. Shorted devices will indicate near 0mV and an open
device will indicate “OL” in both polarities.
Red Black Black
Forward test Reverse test
For Continuity tests, if the resistance is < 40Ω, a tone will sound.
Ω
Ω
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Capacitance Measurements
WARNING: To avoid electric shock, disconnect power to the
unit under test and discharge all capacitors before taking any
capacitance measurements. Remove the batteries and unplug
the line cords.
1.et the rotary function switch to the CAP position.
2.Insert the black test lead banana plug into the negative
(COM) jack.
Insert the red test lead banana plug into the positive (V) jack.
3.Touch the test leads to the capacitor to be tested.
4.Read the capacitance value in the display
Frequency/duty cycle Measurements (electronic)
1.Set the rotary function switch to “V” position.
2.Select ACV with the MODE button
3.Press the Hz/% button to indicate “Hz” in the display.
4.Insert the black lead banana plug into the negative COM
jack and the red test lead banana plug into the positive Hz jack.
5.Touch the test probe tips to the circuit under test.
6.Read the frequency on the display.
7.Press the Hz/% button again to indicate “%” on the display.
Read the % of duty cycle on the display.
Temperature Measurements
WARNING: To avoid electric shock, disconnect both test
probes from any source of voltage before making a
temperature measurement.
1.Set the function switch to TEMP.
2.Insert the Temperature Probe into the negative (COM) and
the V jacks, making sure to observe the correct polarity.
3.Select °C o°F with the MODE button.
4.Touch the Temperature Probe head to the part whose
temperature you wish to measure. Keep the probe touching
the part under test until the reading stabilizes (about 30
seconds).
Ω
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
5.Read the temperature in the display. The digital reading
will indicate the proper decimal point and value.
WARNING: To avoid electric shock, be sure the thermocouple
has been removed before changing to another measurement
function
Non-Contact AC Voltage Measurements
WARNING:Risk of Electrocution. Before use, always test the
Voltage Detector on a known live circuit to verify proper
operation
1.Touch the probe tip to the hot conductor or insert into the
hot side of the electrical outlet.
2.If AC voltage is present, the detector light will illuminate.
NOTE: The conductors in electrical cord sets are often twisted.
For best results, rub the probe tip along a length of the cord
to assure placing the tip in close proximity to the live conductor.
NOTE: The detector is designed with high sensitivity. Static
electricity or other sources of energy may randomly trip the
sensor.
MODE BUTTON
To select DC/ACV,OHM/ Diode/Continuity/CAP , °C/°F
MIN & MAX Recording Button
Press MIN/MAX to enter MIN, MAX Recording mode (manual
range only ). Select the proper range before selecting MIN
MAX to ensure that the MIN/MAX reading will not exceed the
testing range. Press once to select MIN. Press again to select
MAX. and press again release MIN/MAX recording function.
REL BUTTON
For DCA Zero & Offset adjustment.
Data Hold Button
To freeze the LCD meter reading, press the data hold button.
The data hold button is located on the left side of the meter
(top button). While data hold is active, the HOLD display icon
appears on the LCD. Press the data hold button again to return
www.GlobalTestSupply.com
Find Quality Products Online at: sales@GlobalTestSupply.com
Otros manuales para 9325
2
Otros manuales de Instrumento de medición de Triplett
Triplett
Triplett RHT37 Manual de usuario
Triplett
Triplett BR260 Manual de usuario
Triplett
Triplett AM320-NIST Manual de usuario
Triplett
Triplett CamView W35 Manual de usuario
Triplett
Triplett LVPRO10 Manual de usuario
Triplett
Triplett FOX Manual de usuario
Triplett
Triplett VBDL100 Manual de usuario
Triplett
Triplett RHT01 Manual de usuario
Triplett
Triplett PR600 Manual de usuario
Triplett
Triplett CableRater Manual de usuario
Triplett
Triplett CM450-NIST Manual de usuario
Triplett
Triplett 9200B Manual de usuario
Triplett
Triplett 630-NS Manual de usuario
Triplett
Triplett CamView IP Pro Manual de usuario
Triplett
Triplett CM1070 Manual de usuario
Triplett
Triplett RHT22 Manual de usuario
Triplett
Triplett SLM400 Manual de usuario
Triplett
Triplett CFM400 Manual de usuario
Triplett
Triplett RHT05 Manual de usuario
Triplett
Triplett CD100 Manual de usuario
Manuales populares de Instrumento de medición de otras marcas
Endress+Hauser
Endress+Hauser Proline Promag 50 Especificaciones técnicas
Siemens
Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas
KLINGER
KLINGER CMF V Series Manual de usuario
EXFO
EXFO FTB-2 Manual de operación y mantenimiento
Keysight
Keysight M8290A Manual de usuario
ADTEK
ADTEK MW-5 Manual de usuario
