Trinnov Audio AMPLITUDE 8M Manual de usuario
AMPLITUDE8M
www.trinnov.com
8-ch Power
Amplier
USER MANUAL
3
4
Amplitude8m
The Amplitude8m amplier is among the most advanced available.
By combining high-power linear power supplies and the Class D,
N-Core® NC-500 OEM amplier modules, Trinnov Audio has delivered
an amplier that closely approaches the theoretical ideal:
a straight wire with gain.
Amplitude8m owner’s manual
June, 2019
3
CONTENT
3
PREFACE
9
9
9
9
10
11
12
5
CONTENT
1
ABOUT THE AMPLITUDE8m
1.1 GETTING TO KNOW YOUR AMPLITUDE8M
1.2 BURN-IN TIME
1.3 IMPORTANT RECOMMENDATION
1.4 SPECIFICATIONS
1.5 THE FRONT PANEL
1.6 THE REAR PANEL
13
13
2
OPERATION
2.1 ENVIRONMENTAL NOTICE
2.2 REMOTE TRIGGERS
15
15
15
APPENDIX
A.1 TROUBLESHOOTING SOLUTIONS
A.2 DB25 TASCAM PINOUT
7
IMPORTANT SAFETY INSTRUCTIONS
4
5
6
8
8
8
9
10
11
12
12
13
13
13
6
Amplitude8m
4
IMPORTANT SAFETY
INSTRUCTIONS
CAUTION:
TO REDUCE THE RISK OF ELECTRICAL
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with
arrowhead symbol, within an
equilateral triangle, is intended
to alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
significant magnitude to
constitute a risk of electric
shock to persons.
The exclamation point within
an equilateral triangle is
intended to alert the user to
the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
product.
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT
TO RAIN OR MOISTURE.
CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THE AC (POLARIZED) PLUG
WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
EXTENSION CORDS ARE NOT RECOMMENDED FOR USE WITH THIS PRODUCT.
THIS UNIT CONTAINS VOLTAGES WHICH CAN CAUSE SERIOUS INJURY OR DEATH.
DO NOT OPERATE WITH COVERS REMOVED. REFER ALL SERVICING TO YOUR
AUTHORIZED TRINNOV AUDIO DEALER.
FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE FUSES ONLY WITH
THE SAME TYPE AND RATING OF FUSES AS SPECIFIED.
USER MANUAL
7
5
CAUTION: TO REDUCE THE RISK OF ELECTRICAL SHOCK, DO
NOT REMOVE ANY OF THE COVER PANELS.
NO USER-SERVICEABLE PARTS INSIDE. REFER ALL SERVICING
TO QUALIFIED SERVICE PERSONNEL ONLY.
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT ALLOW
LIQUIDS TO SPILL OR OBJECTS TO FALL INTO ANY OPENINGS
OF THE PRODUCT.
THIS UNIT IS SUPPLIED WITH ONE 3 PIN GROUNDED AC PLUG.
THE FUSE USED IS 20 AMP IEC C20 INLET. ALWAYS INSERT THE
AC PLUG INTO A GROUNDED OUTLET. DO NOT REMOVE THE
GROUND PIN OR DISABLE THE GROUND FOR ANY PURPOSE.
BEFORE MAKING ANY CONNECTIONS TO THE AMPLITUDE 8m,
FIRST TURN OFF THE POWER AND THEN DISCONNECT THE AC
POWER CORD.
WHEN INSTALLING THE AMPLITUDE8m IN YOUR SYSTEM, MAKE
CERTAIN TO ALLOW A MINIMUM OF ½ INCH OF VENTILATION
ON EACH SIDE OF THE UNIT. ALSO ALLOW AT LEAST 3 INCHES
OF VENTILATION SPACE ABOVE THE UNIT. IMPROPER
VENTILATION OF THE UNIT MAY CAUSE OVERHEATING, WHICH
MAY DAMAGE THE UNIT AND CAUSE A FIRE. PLACE THE UNIT
ON A SOLID SURFACE ONLY. I.E. NOT ON CARPET, ETC.
DO NOT PLACE THE AMPLITUDE8m NEAR HEAT SOURCES SUCH
AS DIRECT SUNLIGHT, STOVES, HEAT REGISTERS, RADIATORS
OR OTHER HEAT PRODUCING EQUIPMENT.
TO PREVENT DAMAGE TO THE ANALOG OUTPUT CIRCUITRY, BE
CERTAIN NOT TO SHORT THE OUTPUT SIGNAL TO GROUND.
ENSURE THAT YOUR AUDIO OUTPUT CABLES DO NOT HAVE
ANY INTERNAL SHORTS BEFORE CONNECTING THEM TO THE
AMPLITUDE8m.
IF REPLACEMENT OF THE AC LINE FUSE AND/OR ANY
INTERNAL FUSE BECOMES NECESSARY, REPLACE ONLY WITH
SAME VALUE AND TYPE OF FUSE. NEVER BYPASS THE FUSE.
IF THE AC CORD BECOMES DAMAGED, DO NOT USE IT.
IMMEDIATELY REPLACE IT WITH A NEW ONE OF THE SAME OR
BETTER RATING.
IT IS IMPERATIVE THAT THE AMPLITUDE8m BE OPERATED IN A
WELL VENTILATED ENVIRONMENT AND THE IMMEDIATE
EXTERNAL TEMPERATURE BE MAINTAINED AS SPECIFIED.
EXTERNAL COOLING FANS MAY BE REQUIRED IN SOME CASES.
DO NOT STACK ANY EQUIPMENT DIRECTLY ABOVE OR BELOW
THE AMPLITUDE 8m AS TO PROTECT IT FROM OVERHEATING,
AS WELL AS THE CONTINUED FUNCTIONALITY OF ANY
EQUIPMENT NEAR AND AROUND IT.
AFTERMARKET and THIRD PARTY MODIFICATIONS
Please note that any aftermarket and/or third party
modifications will void the warranty. In the case of changing the
feet on a unit, in order to prevent any damage (which will also
not be covered under warranty), please verify that the screws
being used to secure non-Trinnov Audio feet do not screw any
deeper into the chassis than the original ones.
PLEASE CAREFULLY READ EACH ITEM OF THE OPERATING INSTRUCTIONS AND SAFETY PRECAUTIONS
BEFORE INSTALLING AND USING THIS PRODUCT. USE EXTRA CARE TO FOLLOW THE WARNINGS
WRITTEN ON THE PRODUCT ITSELF AND/OR IN THE OPERATING INSTRUCTIONS. KEEP THE OPERATING
INSTRUCTIONS AND SAFETY PRECAUTIONS FOR FUTURE REFERENCE.
8
Amplitude8m
6
1.1 GETTING TO KNOW YOUR AMPLITUDE8M
This Amplitude8m has been put through a rigorous and unique testing procedure that ensures that it will last for many
years with minimal service requirements. This procedure includes the following:
• All assembled circuit boards are given a thorough visual inspection and are then tested in a bench reference
Amplitude8m.
• The tested, assembled circuit boards are then installed in a new Amplitude8m and the whole unit is tested for
every function and parameter.
• The unit is put on a burn-in torture rack to test for any possible component failures.
• It is then tested on an audio analyzer for all pertinent parameters.
• The unit has all remaining chassis components installed and then undergoes a complete visual inspection,
which assures that all Amplitude8m’s meet visual specifications.
• The Amplitude8m then undergoes a critical listening and functional test.
1.2 BURN-IN TIME
While the Amplitude8m amplifier will sound wonderful without any burn-in time, users may experience sonic
improvements during the first week or so of operation.
1. ABOUT THE AMPLITUDE8m
1.3 IMPORTANT RECOMMENDATION
Before turning on your Amplitude8m, make sure you are using the right fuse in function of your local current :
• 20 Amp fuse for 120V (The 20 Amp fuse is installed by default).
• 12,5 Amp fuse for 230V.
USER MANUAL
9
7
GAIN
POLARITY
INPUT IMPEDANCE
ANALOG AUDIO OUTPUTS
FREQUENCY RESPONSE
DAMPING FACTOR
SIGNAL TO NOISE RATIO
CROSSTALK
POWER OUTPUT
19 dB
Pin-2 = Positive, Pin-3 = Negative for Non-Inverting Output
47 kOhms for each phase
8 pairs of outputs with 5-way binding posts
+ 0, - 0.5 dB 5 Hz to 20 kHz, load independent
>800 at any frequency up to and including 20 kHz
123 dB referenced to rated output (A-Weighted)
>90 dB
8x8 ohms: 200W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz
4x4 ohms: 300W RMS per channel with less than 0.05% THD from 20 Hz to 20 kHz
Conventions: For clarity, references to buttons and LED’s will be shown in BOLD, CAPITAL LETTERS.
1.4 SPECIFICATIONS
POWER REQUIREMENTS
POWER CONSUMPTION
TRIGGER INPUT
MODES /PROCESS
Less than 0,5W at Standby (for 230V, 1W for 120V); <80W at idle; 40W at Sleep; 1800W fully
loaded
3U
above 61.6 lbs; 27.7 kG
• Temperature: 0°C – 40°C (32°F – 104°F)
• Humidity: 20% – 80% relative humidity
(without condensation)
127 mm
(feet included)
431.8 mm
482.6 mm
120VAC (90V-132V) / 230VAC (200V-250V) 50/60Hz – 20 Amp fuse for 120V, 12.5 Amp fuse for
230V
Standby: Amplifier is ready to be turned on via front panel switch or remote trigger.
Overcurrent, D.C., and/or thermal protection: Amplifier will cycle.
Catastrophic D.C. or output stage failure: Amplifier will shut down.
5-12 VDC; Steady State
10
Amplitude8m
8

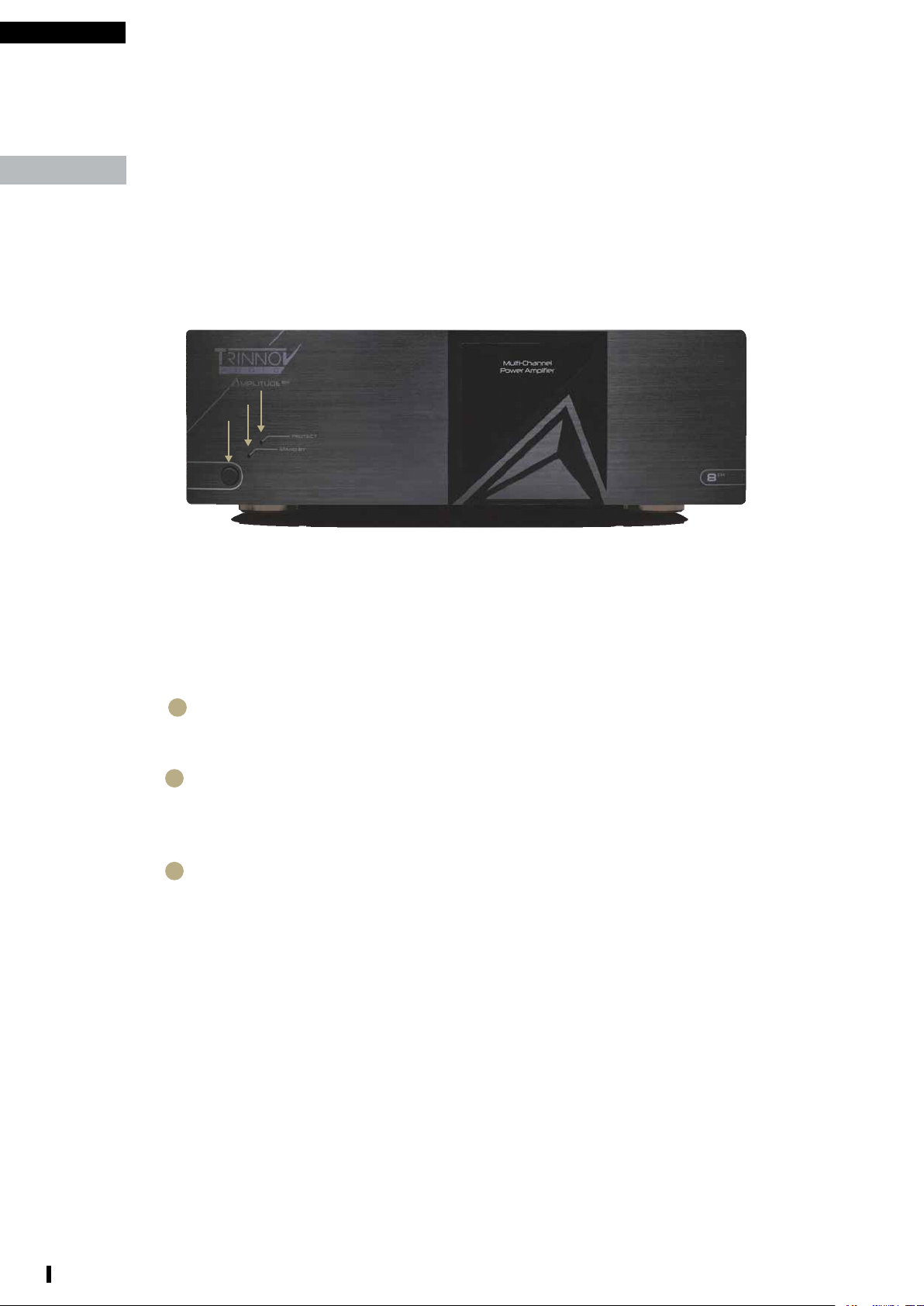

1.5 THE FRONT PANEL
STANDBY BUTTON
1
2
3
Press the front panel STANDBY button to enter or exit the Standby mode.
STANDBY LED
Illuminates RED when the amplifier enters the Standby mode. Illuminates white when the amplifer goes into sleep
state (sleep happens after 10 minutes of no audio input). Illuminates GREEN when the amplifier is in the turn-on
sequence. Illuminates BLUE when the amplifier is ready for normal operation.
PROTECT LED
Illuminates if the unit enters the protection mode. This can be caused by a short circuit in any of the channels or
by an over-temperature operating condition.
1
2
3
