1 Description
The “Ethernet” module E485 is compatible with the Cellular communicators G16 and G16T (firmware from
1.32) and is designed to transmit data and control commands via the wired Internet network. By using the
E485 in conjunction with the G16 or G16T, messages are sent to the CMS (central monitoring station) via
the wired internet network and in this case the mobile Internet is not used. When communication is
interrupted on the wired internet network, messages are sent to the monitoring station via the mobile
internet network. Insert SIM card into the communicator G16 (G16T) for E485 to work.
E485 transmits complete information about events to the monitoring station receiver.
Features
Connection
Connection type: wired internet.
Settings and installation
Quick and easy installation.
Communication

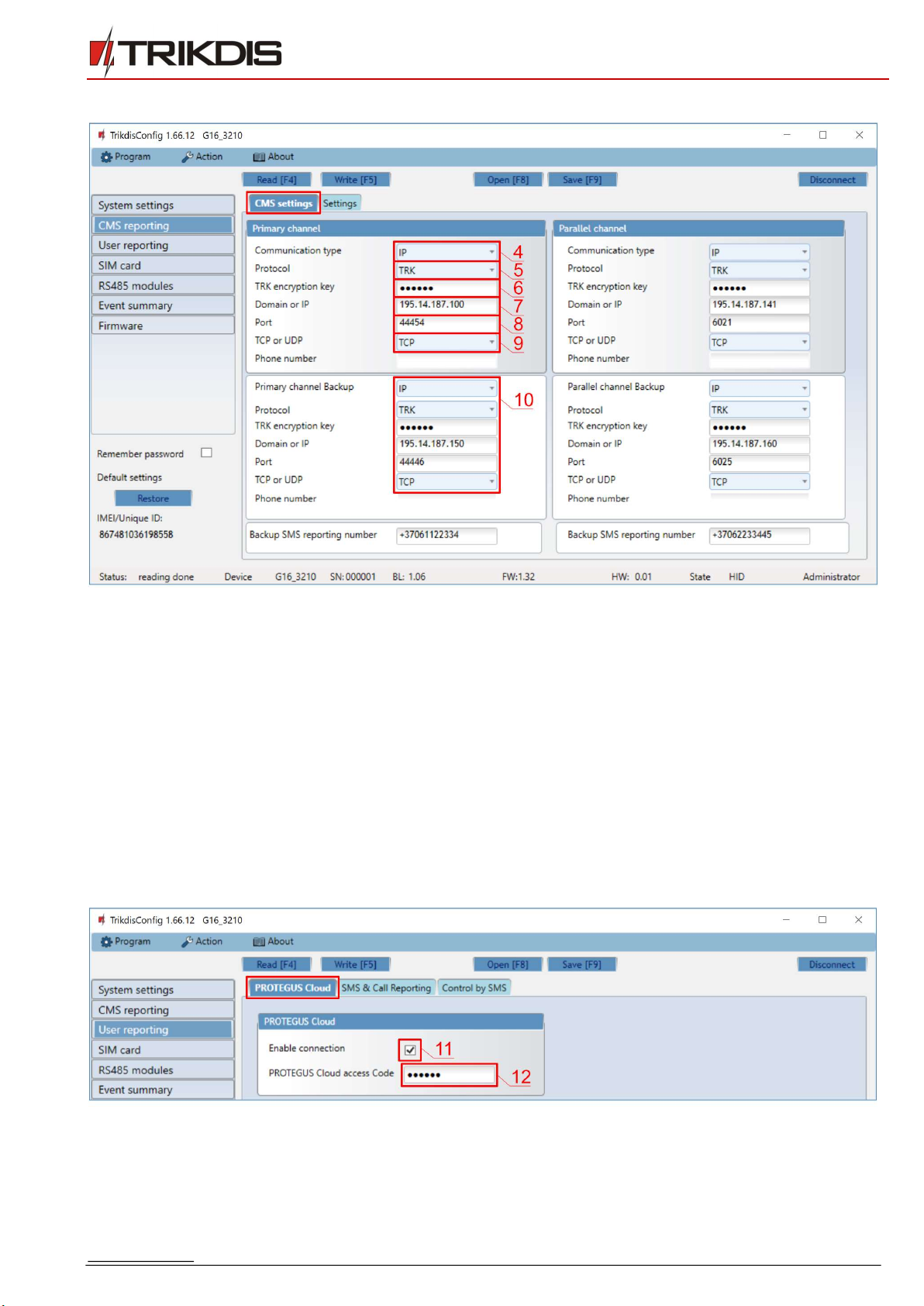

Two primary connection channel and two secondary
connection channel.
Alternative sending of event logs to Protegus app, which
allows the user to monitor the security system remotely.
The module uses Contact ID codes to transmit event
messages.
1.1 Specifications
Parameter Description
Power supply voltage 9-28 V DC
Current consumption 50 mA (stand-by)
Up to 150 mA (transmitting)
Compatible equipment Cellular communicator G16 and G16T (firmware 1.32); cellular gate
controller GV17 (firmware 1.06)
Connection to CMS TCP/IP or UDP/IP via LAN
Event transmission protocol TRK_TCP or TRK_UDP
Event sending In Contact ID codes
Encryption key 6 simbol encryption key
Ethernet PHY IEEE802.3, 10-100BaseTX, Full-duplex, RJ45 port
Network configuration type DHCP or manual network configuration (from the main managed
device G16 or G16T)
