Triax TR 110 Manual de usuario

TRIAX TR 110

Digital Terrestrial Receiver

Part Number: 305106

Safety Advice…………………..…………………………………………………….. 3

Features…………………………………………………………………………………..4

1 Quick Installation…………………………………………………………...…………4

1.1 Connect………………………………………………………………………..4

1.2 Scan……………………………………………………………………………4

2 Main menu……………………………………………………………………………..5

2.1 Edit Channel…………………………………………………………………..5

2.1.1 TV Channel List………………………………………………………...5

2.1.1.1 Favourite……………………………………………………….5

2.1.1.2 Lock……………………………………………………………..5

2.1.1.3 Skip……………………………………………………………...5

2.1.1.4 Move…………………………………………………………….5

2.1.1.5 Edit………………………………………………………………6

2.1.2 Radio Channel List……………………………………………………...6

2.1.3 Delete All…………………………………………………………………7

2.2 Installation……………………………………………………………………...7

2.2.1 Auto Scan………………………………………………………………..7

2.2.2 Channel Scan…………………………………………………………...8

2.2.3 Aerial Adjustment……………………………………………………….8

2.2.4 LCN……………………………………………………………………….8

2.3 System Setup………………………………………………………………….9

2.3.1 Language………………………………………………………………..9

2.3.2 TV System……………………………………………………………….9

2.3.2.1 Video Resolution………………………………………………9

2.3.2.2 Aspect Mode…………………………………………… ……10

2.3.2.3 Video Output………………..………………………….……..10

2.3.2.4 R.F. System………………………….……………….……….10

2.3.2.5 R.F. Channel………………….……………………….……...10

2.3.2.6 Digital Audio Output………………………………………….10

2.3.3 Local Time Setting……………………………………………………..10

2.3.3.1 Region…………………………………………………………10

2.3.3.2 GMT Usage……………………………………………………10

2.3.4 Timer Settings………………………………………………………….10

2.3.5 Parental Look……………………………………………………….…..11

2.3.5.1 Menu Lock……………………………………………………..11

2.3.5.2 Channel Lock………………………………………………….11

2.3.5.3 New Password………………………………………………...11

2.3.5.4 Confirm Password………………………………….…………11

2.3.6 OSD Setting………………………………………………….………...11

2.3.6.1 OSD Timeout………………..…………………….………….11

2.3.6.2 OSD Transparency……………………………….………….12

2.3.6.3 Load Default OSD Setting………………………….……….12

2.3.7 Favourite Groups……………………………………………...………12

2.3.8 Other…………………………………………………………………....12

2.4Tools…………………………………………………………………………...13

2.4.1 Information……………………………………………………………..13

2.4.2 Load Factory Setting…………………………………………………..13

2.4.3 Upgrade By USB………………………………………………………13

2.4.3.1 Upgrade Mode………………………………………………..14

2.4.3.2 Upgrade File………………………………………………….14

2.4.3.3 Start……………………………………………………………14

2.4.4 USB Device…………………………………………………………….14

2.4.5 Remove USB device safely…………………………………………..14

2.5 Game………………………………………………………………………….15

2.5.1 Tetris…………………………………………………………………….15

2.5.2 Othello…………………………………………………………………..15

2.5.3 Sudoku………………………………………………………………….15

Appendix 1 –Front Panel………………………………………….………….16

Appendix 2 –Rear Panel...……………………………….………….………..17

Appendix 3 –Remote Control Unit…………………………….…….….. 18/19

Appendix 4 –Product Specification……………………………..……..…20/21

Appendix 5 –Declaration of Conformity…………………………..…………22

Safety Advice:

The Receiver you have just purchased has been manufactured to meet international safety

standards. We recommend that you carefully read the safety instructions below.

POWERING:

100 -240VAC ~ 50Hz/60Hz

LIQUIDS:

Take care not to spill any liquids over the Receiver, or splash it.

Avoid placing recipients or objects with liquids on or next to the

Receiver.

SMALL OBJECTS:

Avoid placing small metallic objects close to the unit. These could

accidentally enter through the ventilation slots and cause serious

damage.

CLEANLINESS:

Unplug the Receiver from the mains before cleaning it.

Use a slightly damp, soft cloth (no detergent) to clean the outside of the

Receiver.

VENTILATION:

Place the Receiver in a well-ventilated area so that

the slots are not blocked in any way. Avoid exposure

to the sun or to other sources of heat.

Do not place on top of other equipment.

CONNECTIONS:

Carry out the recommended connections only to avoid any possible

damage.

Correct Handling of Batteries:

Batteries can contain toxins. Take care that the batteries do not get into children‟s

hands. Children might put batteries in their mouths and swallow them.

Leaking batteries can cause damage to the remote control. If the receiver is not used

for a long time, take the batteries out of the remote control.

Batteries may contain toxins that damage the environment. For this reason, it is

absolutely essential that you dispose of the batteries in accordance with the legal

provisions that are in force in your country at the time. Never throw batteries away in

your normal household refuse. This is a requirement of the WEEE directive.

The battery shall not be exposed to excessive heat such as sunshine, fire etc

Features

Auto Sleep Feature

Automatic channel scan

User friendly on screen Menu

Supports multiple languages

Antenna Signal Loop through with fully agile R.F. Modulated Output

MPEG-2 & MPEG-4 AVC/H.264 HP

EPG ( Electronic Program guide) for on screen channel information

(Support 7 days)

Welcome page (installation wizard)

Software upgrade by USB

Supports multimedia

1 Quick Installation

1.1 Connections

Connect the TV and all the other equipment that needs to be connected

to the receiver. Your receiver is equipped with a signal strength indicator

to assist with the optimum adjustment of the antenna.

The „Welcome‟ page allows the user to set the preferred User Interface

display. It includes region, language, display mode and aspect mode

settings.

1.2 Scan

The entire input frequency range will be scanned for programs. After all

the detected programs are saved, the receiver will stay in the tuning menu.

Press “OK” to return to main menu.

2 Main menu

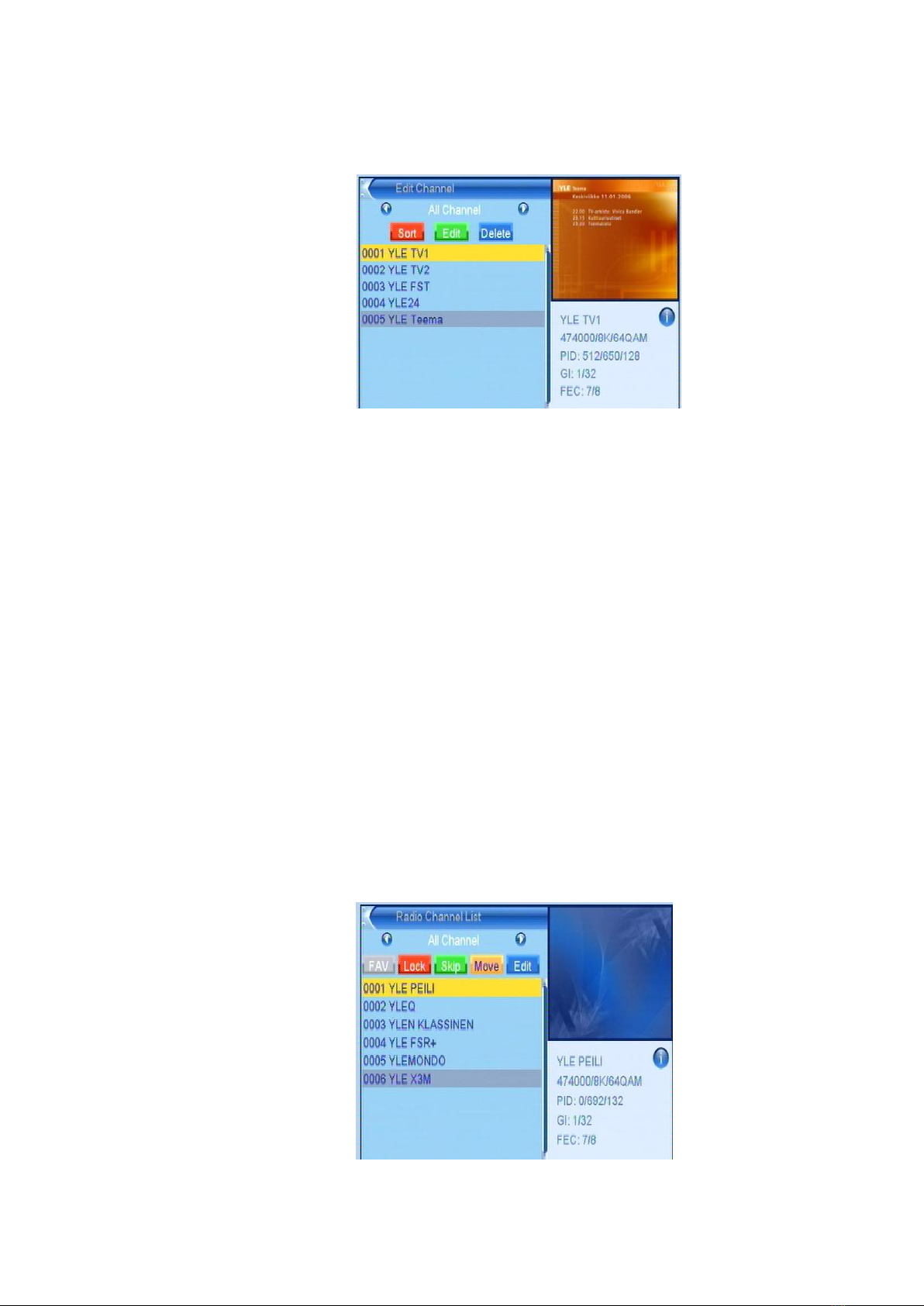

2.1 Edit Channel

2.1.1 TV Channel List

These functions allow the user to customise the TV Channel List.

2.1.1.1 Favourite

Allows the user to put TV channels into favourite groups.

2.1.1.2 Lock

Allows the user to lock a channel. A password must then

be entered before access is allowed to the locked channel.

2.1.1.3 Skip

Allows the user to select channels which they do not want in

the channel list. Once set, when the „Channel Up / Down‟ is

pressed, it will skip the selected channel.

2.1.1.4 Move

This function allows the user to change the channel sequence.

2.1.1.5 Edit:

2.1.1.5.1 Sort

Sort allows the user to change the order of the channel list

according to program Name, (Alphabetically (A~Z) or (Z~A)),

Free/Scramble, lock or default.

2.1.1.5.2 Edit

This function is used to rename channels.

2.1.1.5.3 Delete

This function can be used to delete channels from the

database.

2.1.2 Radio Channel List

The Radio Channel List can be customised in the same way as the TV

Channel List described above.

2.1.3 Delete All

This function will delete all channels stored in the channel list.

2.2 Installation

This menu allows the user to access the installation options.

2.2.1 Auto Scan

Auto Scan will erase the existing database and scan the default

frequency and bandwidth relevant to the selected country.

2.2.2 Channel Scan

The user can select the scan mode by channel or frequency. This

function does not erase the database but adds the scan results into it.

2.2.3 Aerial Adjustment

Activates the aerial adjustment tool.

2.2.4 LCN, (Logical Channel Numbering)

The user can activate or deactivate the LCN function, (default ON).

2.3 System Setup

This menu provides the basic control and setup of the receiver.

2.3.1 Language

This allows the user to set the preferred language for the OSD display.

2.3.2 TV System

This menu is used to set the TV display modes and RF Output.

2.3.2.1 Video Resolution

The resolution setting can be set to 480i,480p,576i, 576p.
