Triax HTX 1V Manual de usuario

HTX 1V

HDMI Transmitter HDBaseT 5-Play 100m

Part No. 310001

HRX 1V

HDMI Receiver HDBaseT 5-Play

Part No. 310002

Operating Manual

TRIAX - your ultimate connection

•The illustrations in this operation manual are for explanation and guidance purposes only.

•The examples used throughout this manual are based on the HTX and HRX models.

Dear Triax customer

Thank you for purchasing the TRIAX HTX HDMI Transmitter/ HRX HDMI Receiver.

To ensure safety and many years of trouble-free operation, please read the Important Safety

Precautions carefully before using this product.

Safety Precautions 3

Introduction 4

Applications 4

Package Contents 4

System Requirements 4

Features 4

Front Panel View 5

Rear Panel View 5

Specications  6

D-Sub9PinDenitions,PinLayout 6

Connections and Installations 7

Acronyms 7

Operating Manual

Contents

Important Safety Precautions

•Cleaning - Unplug the AC power from the mains supply before cleaning the product.

Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

•Use a soft damp cloth to gently wipe the product when it is dirty. To protect the product,

do not use a chemical cloth to clean it. Chemicals may cause damage or cracks in the casing

of the product.

•Water and moisture - Do not expose the unit to wet or damp conditions.

• Donotplacevasesoranyotherwater-lledcontainersonthisproduct.

 Thewatermayspillontotheproductcausingreorelectricshock.

•Ventilation - The vents and other openings in the casing are designed for ventilation.

 Donotcoverorblocktheseventsandopeningssinceinsucientventilationcancauseoverheating

and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar

surface, since they can block ventilation openings. This product is not designed for built-in

installation; do not place the product in an enclosed place such as a bookcase or rack, unless

proper ventilation is provided or the manufacturer’s instructions are followed.

•Heat sources - Keep the product away from heat sources such as direct sunlight, radiators, heaters,

 stovesandotherheat-generatingproducts(includingampliers).

• Topreventre,neverplaceanytypeofcandleornakedamesonthetoporneartheproduct.

•Servicing - Do not attempt to service the product yourself. Removing covers can expose you to

electric shock and other dangerous conditions. Maintenance should be performed by the

 manufacturerorbyasuitablyqualiedperson.

The HTX 1V, HRX 1V allows uncompressed HDMI signals and IP data to be transmitted over

a Single CAT5e/6 cable. This solution has the added features of RS-232, 2-way IR control

functionality and bi-directional internet over the same CAT5e/6 cable.

These combined HDMI and control signals can be transmitted up to lengths of 100m on

Cat6 cable.

•Household entertainment sharing and control

•Lecture room display and control

•Showroom display and control

•Meeting room presentation and control

•Classroom display and control

•Used in conjunction with HDA 1x2S + HDA 1x8S

HTX 1V Transmitter

•Transmitter

•Power Supply 24V/1.25A

•IR Emitter

•Operating Manual

•Input HDMI source equipment such as DVD/Blu-Ray player and output display with

HDMI input socket.

•HDMI 1.4 with 3D, 4k x 2k support, HDCP & DVI Compliant

•Supports HDCP repeater and CEC function

•Simultaneously uncompressed data sending over a single 100m/328ft withCAT6 cable

or 80m/262ft with CAT5e cable Uncompressed video 1080p, 60Hz, 48bits

•Audio support up to LCPM 7.1CH & Dolby TrueHD, DTS-HD 5PlayTM convergence:

 HDMI,LAN,POE&Control(IR&RS232)Bi-directionalInternet

•Installation Friendly

Introduction

Applications

PackageContents,IndividuallySold

Features

System Requirements

HTX 1V Receiver

•Receiver

•IR Digital Link Receiver

•Operating Manual

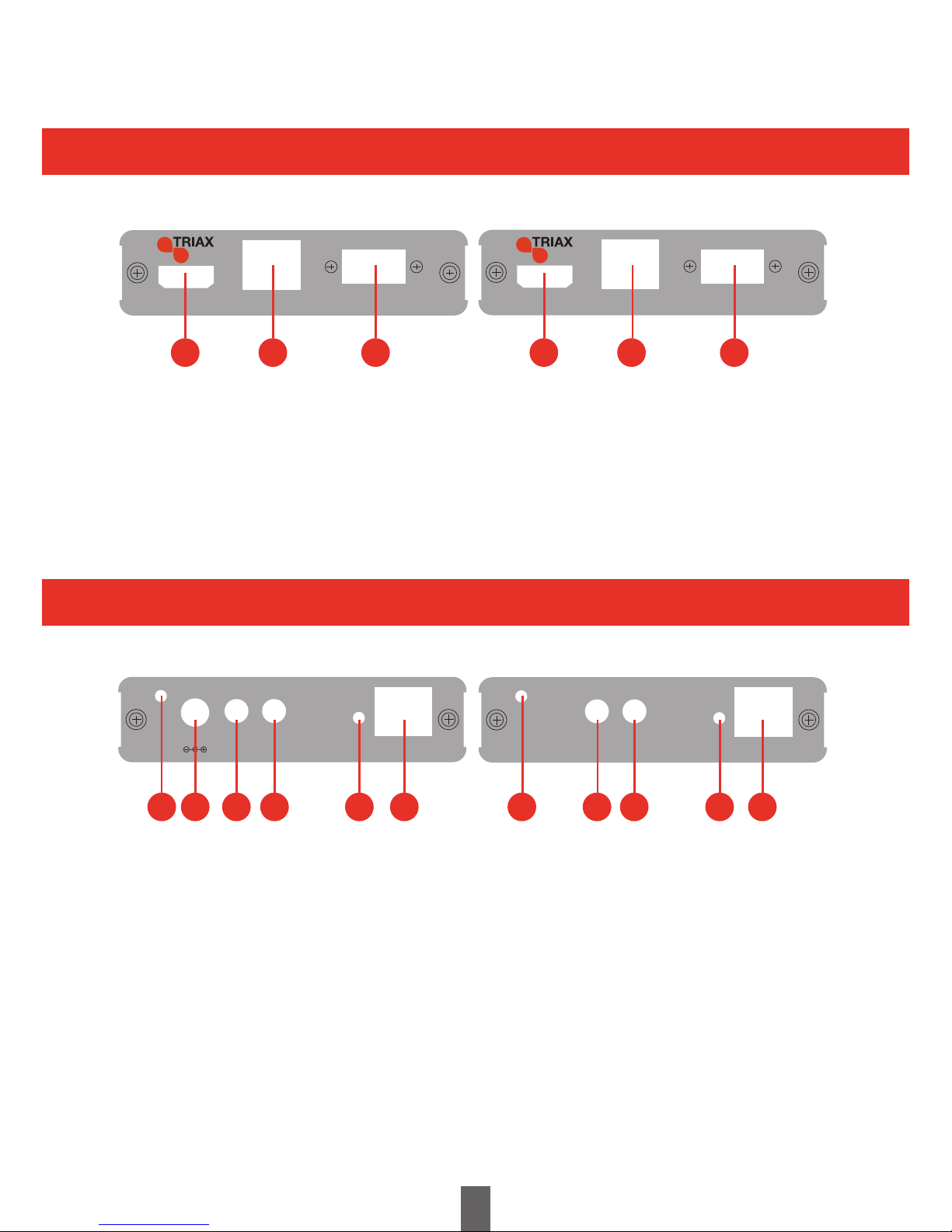

Front View

Transmitter Receiver

Rear View

1. HDMI In: Connect your HDMI Source, such as a Blu-ray player to the “HDMI In”

socket on the Transmitter.

2. HDMI Out: Connect “HDMI out” on the Receiver to the sink device i.e. TV

3.LAN: Connect RJ-45 cable from router to access the internet at the Receiver

location. To enable STB’s, Blu-ray players to access Internet content, such

as iplayer.

4. RS-232 In/Out: These sockets are to connect with D-Sub 9pin Null-Modem cable from

PC/NB for RS-232 control and signal sending to the control device.

1.PowerLED: This blue LED will illuminate when the device is attached with power supply.

2. DC 24V: This slot is where you plug the 24V DC power into the unit and connect

the adaptor to an AC outlet.

3. IR Blaster: This Jack Socket connects the IR Emitter to the Transmitter and Receiver.

4.IR1/2Extender: These 3.5mm Jack Sockets are to connect with the IR receiver cable included

in the package to receive the IR signals.

5.LinkLED: The yellow LED will illuminate when the transmitter and receiver have detected

and communicated between Source and Sink devices.

6. CAT5e/6 Out/In: The RJ45 sockets are to be connected with a single CAT5e/6 cable for

data transmission.

Transmitter Receiver

RS-232 In

LAN

HDMI In HDMI to CAT5e/6 with LAN/IR/RS232

Transmitter RS-232 Out

LAN

HDMI Out CAT5e/6 to HDMI with LAN/IR/RS232

Receiver

1 2

3 3

4 4

CAT5e/6 Out

Link

IR2

Extender

IR1

Blaster

DC 24V

Power

CAT5e/6 In

Link

IR1

Extender

IR2

Blaster

Power

1 1

23 4 5 6 5 63 4

Transmitter

Inputs 1 x HDMI, 1 x IR Extender, 1 x IR Blaster, 1 x RS-232, 1 x LAN

Output 1 x CAT5e/6

Receiver

Inputs 1 x CAT5e/6, 1 x IR Extender, 1 x IR Blaster, 1 x LAN

Outputs 1 x HDMI, 1 x RS-232

General

ESD Protection Human Body Model: ± 8kV (air-gap discharge),

± 4kV (contact discharge)

IR Frequency 20~60 Hz

Dimensions (mm) 102(W) x 115(D) x 25(H)

Weight (g) 252 (TX), 256 (RX)

Chassis Aluminium, Silver RAL 9007

Silkscreen Printing Black

Power Consumption (W) TX: 6, RX 8

Operating Temperature 0°C ~ 40°C/ 32° ~104°

Storage Temperature -20°C ~ 60°C/ -4° ~140°

Relative Humidity 20~90% RH (non-condensing)

Pin Dene TX / RX

1 N/C

2 TXD / RXD

3RXD / TXD

4 N/C

5 GND

6 N/C

7 N/C

8 N/C

9 N/C

Specications

D-Sub9PinDenitions,Null-ModemPinLayout

Connections and Installation

Acronyms

Acronym Complete Term

CAT5e Category 5 Cable

CAT6 Category 6 Cable

CEC Consumer Electronics Control

DVI Digital Visual Interface

HDCP High-Bandwidth Digital Content Protection

HDMI High Denition Multimedia Interface

IR Infrared

Issue 2

*Triax reserves the right to change the specications without prior notication
