TRENDnet TEW-652BRP Manual de usuario

Quick Installation Guide

TEW-652BRP

2.01

Table of Contents

Version 06.16.2009

English ......................................................................................................

Troubleshooting ........................................................................................

1. Before You Start

2. Hardware Installation .........................................................................

.................................................................................

Configure the Wireless Router ...........................................................

Installation Requirements

Application

Package Contents

1. Before You Start

English

TEW-652BRP

Multi-Language Quick Installation

Guide

CD-ROM (User's Guide )

PowerAdapter (7.5V DC, 1A)

Cat. 5 Ethernet Cable

(1.5m/5ft)

Acomputer with a wired or wireless network adapter properly installed

Web Browser: Internet Explorer (5.0 or higher)

Broadband Internet

Installed Cable or DSLModem

300Mbps, share multimedia throughout the house

Wireless N Home Router

(TEW-652BRP)

Notebook with

Wireless N PC Card

(TEW-641PC)

Workstation with

Wireless N PCI Adapter

(TEW-643PI)

Workstation with

Wireless N USB Adapter

(TEW-644UB)

Cable/DSL

Modem

Internet

English

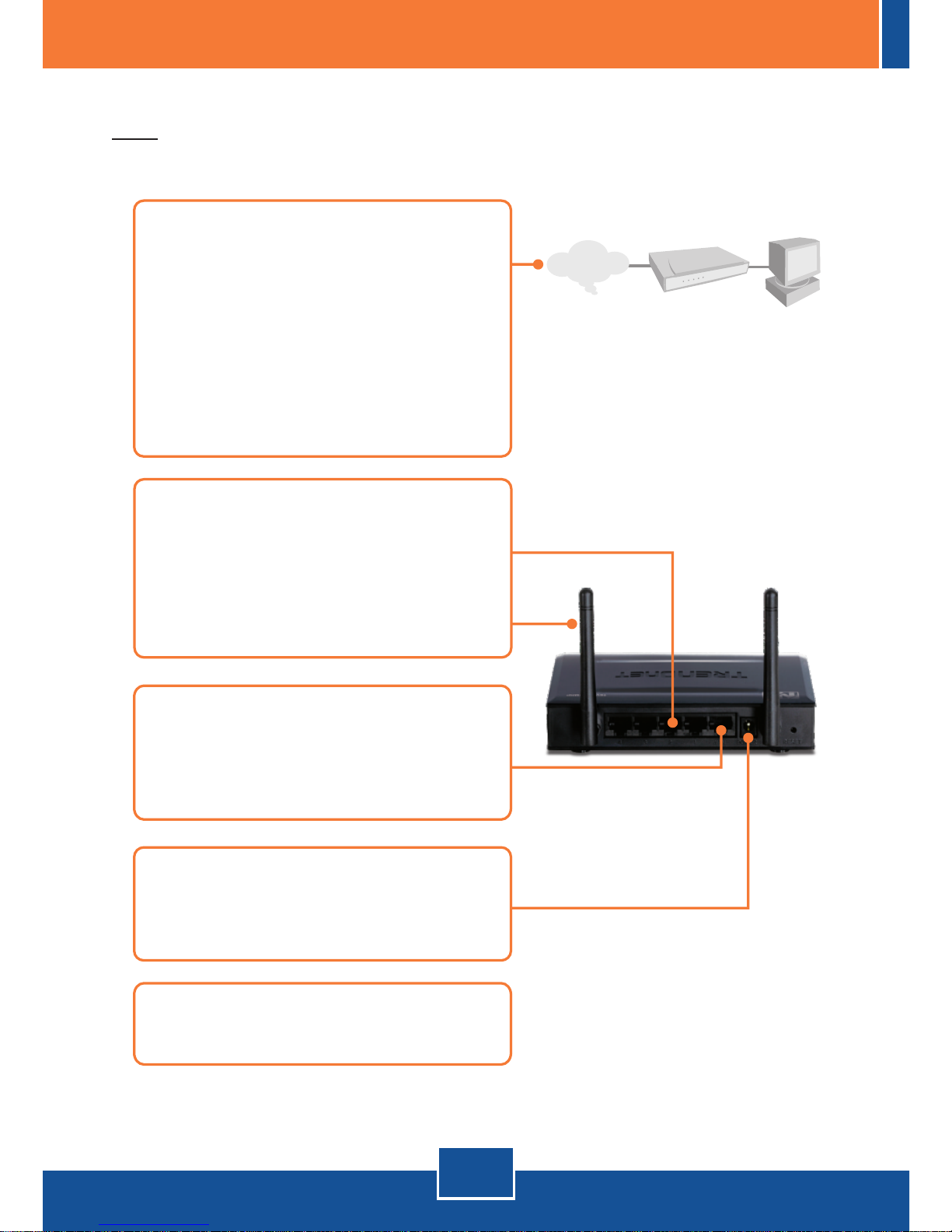

2. Hardware Installation

4. Connect theAC PowerAdapter to

the wireless router and then to a

power outlet.

5. Verify that the following panel lights

are on: Power, LAN and WAN.

3. Connect one end of a RJ-45 cable

to the TEW-652BRP’s WAN port.

Connect the other end of the cable

to your modem.

Note: Gather all information related to your Internet Connection before you

start. If necessary, contact your Internet Service Provider (ISP).

1. Verify that you have an Internet

connection when connecting your

computer directly to the Cable or

DSLmodem. Open your browser

(e.g. Internet Explorer) and type in

a URL(e.g.

http://www.trendnet.com) in the

address bar.

2. Connect one end of a RJ-45 cable

to one of the TEW-652BRP’s LAN

ports. Connect the other end of

the cable to the computer's

Ethernet port.

Cable/DSL Modem

Internet

English

3. Configure the Wireless Router

Note: It is recommended that you configure the Wireless Router from a wired

computer.

2. Enter the User Name and

Password, and then click Log In.

User Name: admin

Password: admin

1. Open your web browser, type

http://192.168.10.1 in the

Address bar, and then press Enter.

3. The Wizard will automatically

appear. Click Wizard if the Wizard

does not automatically appear.

4. Click Next.

English

5. Enter a Password, verify the

Password and then click Next. By

default, the Password is admin.

6. Select your Time Zone and then

click Next.

7. Click Next. Note: Do not change

default settings unless it is

conflicting with your existing

hardware.

8. Configure the settings based on

information provided by your ISP.

Follow the wizard instructions to

complete the configuration.

Note: Each Internet Connection

type may have different options.

9. Click Next.

English

Note: It is recommended that you enable encryption on the wireless router.

Please refer to the User Guide on the User's Guide CD-ROM for information on

setting up encryption on the wireless router.

10. Click Restart.

Your configuration is now complete.

For detailed information regarding the TEW-652BRP's configuration and

advanced settings, please refer to the Troubleshooting section, User's Guide

CD-ROM, or TRENDnet's website at http://www.trendnet.com.

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

11. Wait 10 seconds while the router

reboots.

12. Open up your browser and enter

in a URL(e.g. www.trendnet.com)

to verify that you have Internet

connection.

Troubleshooting

Q1:

A1:

I typed http://192.168.10.1 in my Internet Browser'sAddress Bar, but an error

message says “The page cannot be displayed.” How can I get into the

TEW-652BRP’s web configuration page?

First, check your hardware settings again by following the instructions in

Section 2. Second, make sure the LAN and WLAN lights are lit. Third, make sure

your TCP/IPsettings are set to Obtain an IP address automatically (see the

steps below). Fourth, press on the factory reset button for 15 seconds.

1. Go into the Control Panel, click

Network and Internet, click Network

and Sharing Center, click Manage

Network Connections and then right-

click the Local Area Connection icon

and then click Properties.

2. Click Internet Protocol Version

4(TCP/IPv4) and then click Properties.

Then click on Obtain an IP address

automatically.

1. Go into the Control Panel, double-click

the Network Connections icon and

then right-click the Local Area

Connection icon and then click

Properties.

Windows XP/2000

2. Click Internet Protocol (TCP/IP) and

then click Properties. Then click on

Obtain an IP address automatically.

Q2:

A2:

Q3: A3:

Q4:

A4:

Q5: A5:

I am not sure what type of InternetAccount Type I have for my Cable/DSL

connection. How do I find out?

Contact your Internet Service Provider's (ISP) support service for the correct

information.

The Wizard does not appear. What should I do?

First, click on Wizard on the left hand side. Second, near the top of the

browser, “Pop-up blocked” message may appear. Right click on the message and

selectAlwaysAllow Pop-ups from This Site. Third, disable your browser's pop up

blocker.

I went through the Wizard, but I can not get onto the Internet. What should I

do? First, verify that you can get onto the Internet with a direct connection into your

modem. Second, contact your ISPand verify all the information that you have in

regards to your Internet connection settings is correct. Third, power cycle your

modem and router. Unplug the power to the modem and router. Wait 30 seconds,

and then reconnect the power to the modem. Wait for the modem to fully boot up,

and then reconnect the power to the router.

I can not make a wireless connection to the Router. What should I do?

First, make sure that the antennas are connected to the TEW-652BRP.

Second, double check that the WLAN light on the Router is lit. Third, power cycle

the TEW-652BRP. Unplug the power to the TEW-652BRP. Wait 15 seconds, then

plug the power back in to the TEW-652BRP. Fourth, contact the manufacturer of

your wireless network adapter and make sure the wireless network adapter is

configured with the proper SSID. The preset SSID is TRENDnet652.

If you still encounter problems or have any questions regarding the TEW-652BRP,

please contact TRENDnet'sTechnical Support Department.
