1. Before You Start
2. Hardware .......................................................................
3. .......................................................................
4. Setting up Encryption
.................................................................................
Installation ...
Configure The Modem
......................................................................... 7
Installation Requirements
Application
Package Content
1. Before You Start
English
1
?A working ADSL Internet Connection
?A computer with a wired or wireless network adapter properly installed
?Web Browser: Internet Explorer (5.5 or above)
?
?User's Guide CD-ROM
?Multi-Language Quick Installation
Guide
?1 x RJ-45 Ethernet Cable
?1 x RJ-11 Telephone Cable
?Power Adapter (12V DC, 1A)
TEW-635BRM
300Mbps
Phone Jack
Notebook with 300Mbps
Wireless N PC Card
(TEW-621PC)
300Mbps Wireless N
ADSL2/2+ Modem Router
(TEW-635BRM)
Workstation with 300Mbps
Wireless N PCI Adapter
(TEW-623PI)
ADSL Ready Line
Workstation with 300Mbps
Wireless N USB Adapter
(TEW-624UB)
English
2
Collect Internet Service Provider (ISP) Information
During the installation of your Wireless ADSL Modem Router, the Setup Wizard
will automatically detect your ISP connection type. If the router cannot detect
your ISP connection type, you can manually specify the connection type.
Please verify your DSL Internet broadband connection type with your ISP and
ensure you have all the information for one of the following connection types:
A. Dynamic IP connection
ADSL Modem parameters (VPI or VCI), if it cannot be detected automatically.
ISP may require you to use a particular Hostname or Domain name.
B. Static or Fixed IP connection
Internet IP Address:_____. _____._____._____ (eg. 215.24.24.129)
Subnet Mask: _____. _____._____._____
Gateway IP Address: ____. _____._____._____
Primary DNS:_____. _____._____._____
Secondary:_____. _____._____._____
ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.
C. PPPoE or PPPoA Dynamic IP connection
Login User Name: _________
Password: ________________
ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.
D. IPoA Static or Fixed (IP over ATM) connection
Internet IP Address:_____. _____._____._____ (eg. 215.24.24.129)
Subnet Mask: _____. _____._____._____
Gateway IP Address: ____. _____._____._____
Primary DNS:_____. _____._____._____
Secondary:_____. _____._____._____.
ADSL Modem Parameters (VPI or VCI), if it cannot be detected automatically.
English
3
2. Hardware Installation
4. Verify that the following panel lights
are on: Power, LAN, and WLAN.
If the lights are not on, press the
Power ON/OFF on the back of the
TEW-635BRM.
1. Connect one end of the RJ-45
cable to one of the TEW-635BRM's
LAN ports. Connect the other end
of cable to the computer's Ethernet
port.
2. Connect one end of the RJ-11
cable to the TEW-635BRM's ADSL
port. Connect the other end of the
cable to the phone jack.
3. Connect the AC Power Adapter to
the TEW-635BRM and then to a
power outlet.
English
4
3. Configure the Modem
Note: It is recommended that you configure the Modem from a wired computer.
2. Enter the user name and
password and then click OK.
By default:
User name: admin
Password: password
Note: User name and password is
case sensitive.
3. Click Setup Wizard.

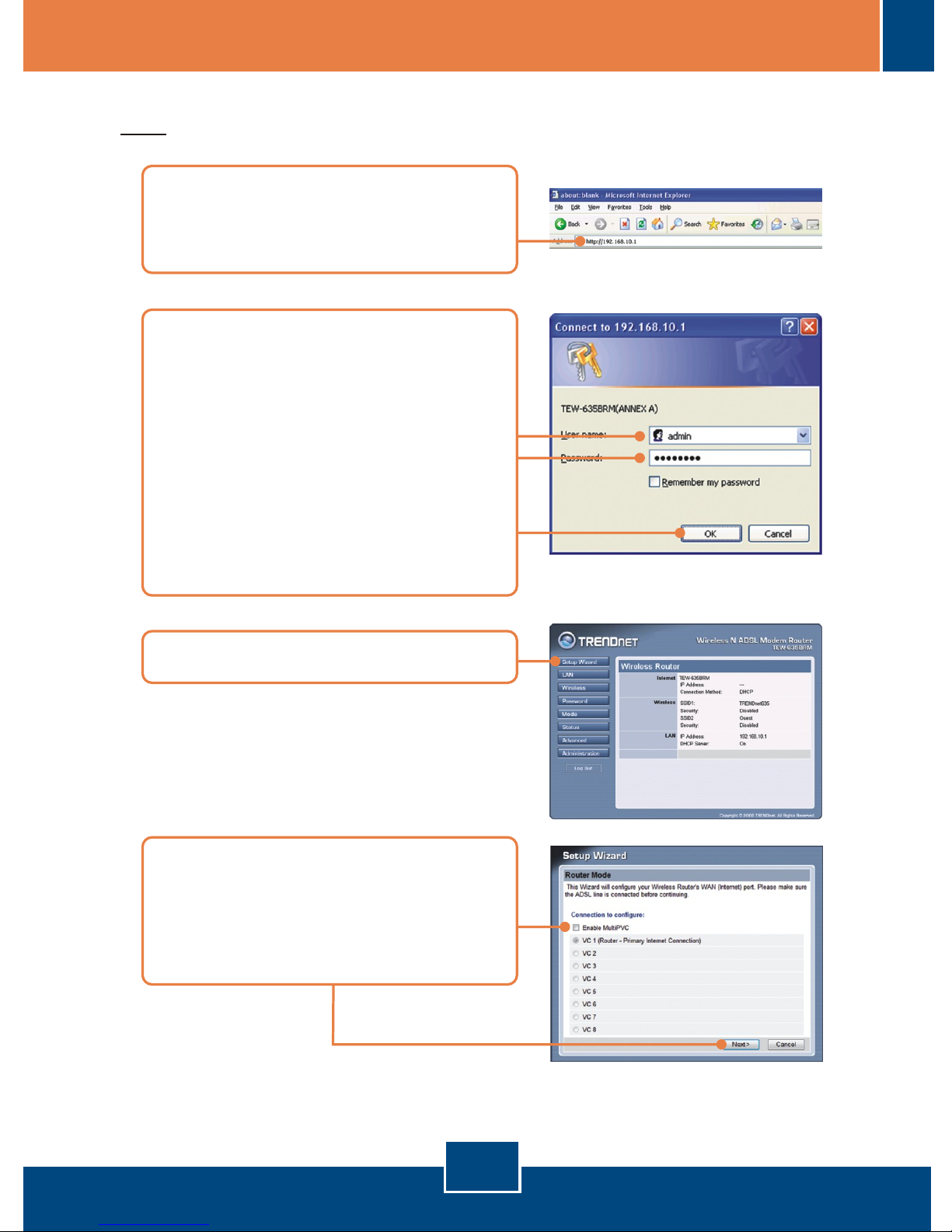

1. Open your web browser, type
http://192.168.10.1 in the
Address bar, and press Enter.
4. Click Next. If you would like the
TEW-635BRM to auto detect your
internet connection, do not select
Enable MultiPVC.
English
5

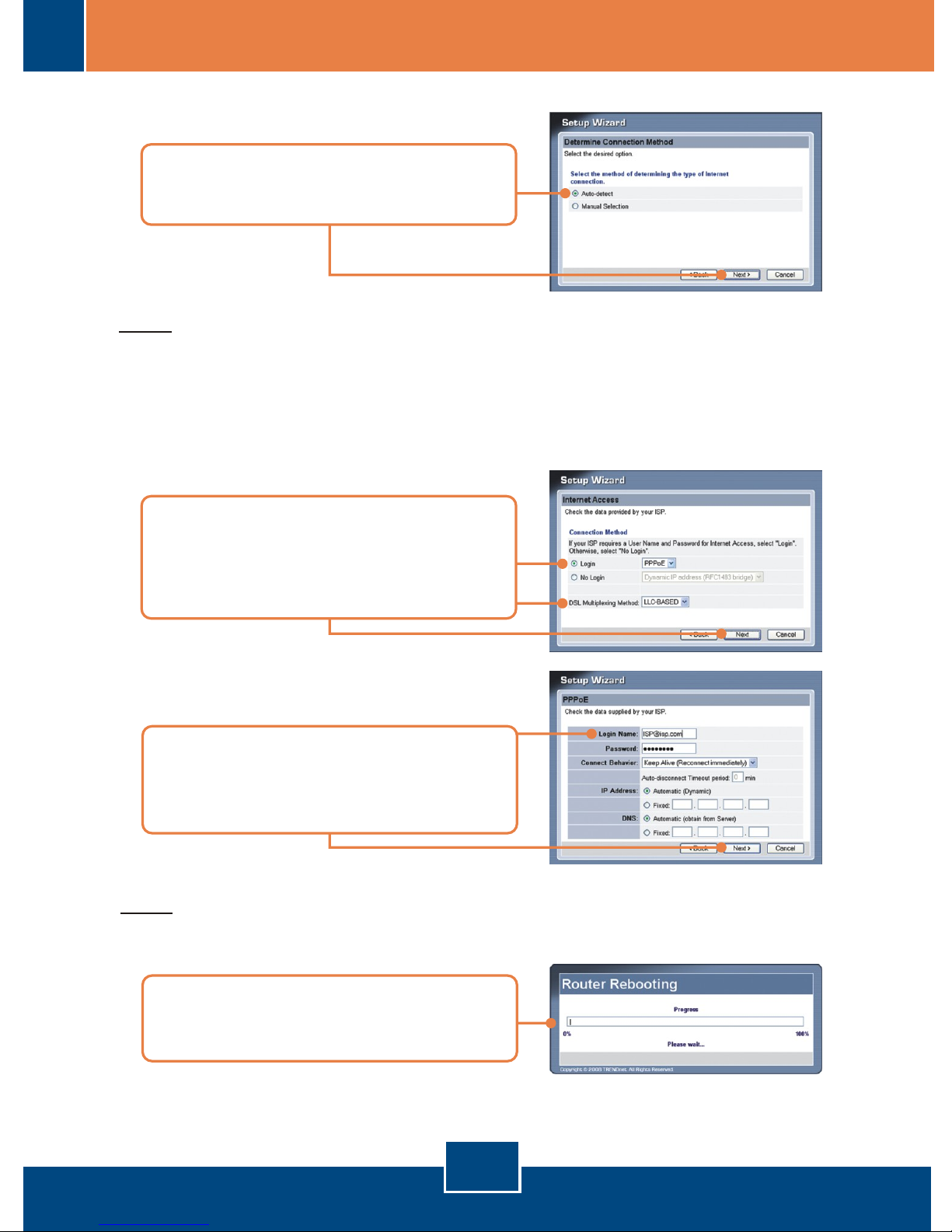

5. Select Auto-detect, and then click
Next.
6. Configure the settings based on
information provided by your ISP.
Then click Next.
7. Configure the settings based on
information provided by your ISP.
Then click Next.
Note: For other connection methods, follow the on screen instructions after the
Auto Detection.
8. Please wait while the TEW-
635BRM reboots.
Note:
1: The example below is for Auto-detect. If the Setup Wizard could not
automatically detect your Internet connection, select Manual Selection and
input the information using the information provided by your ISP.
2. In the example below, the ADSL connection is PPPoE.
English
6

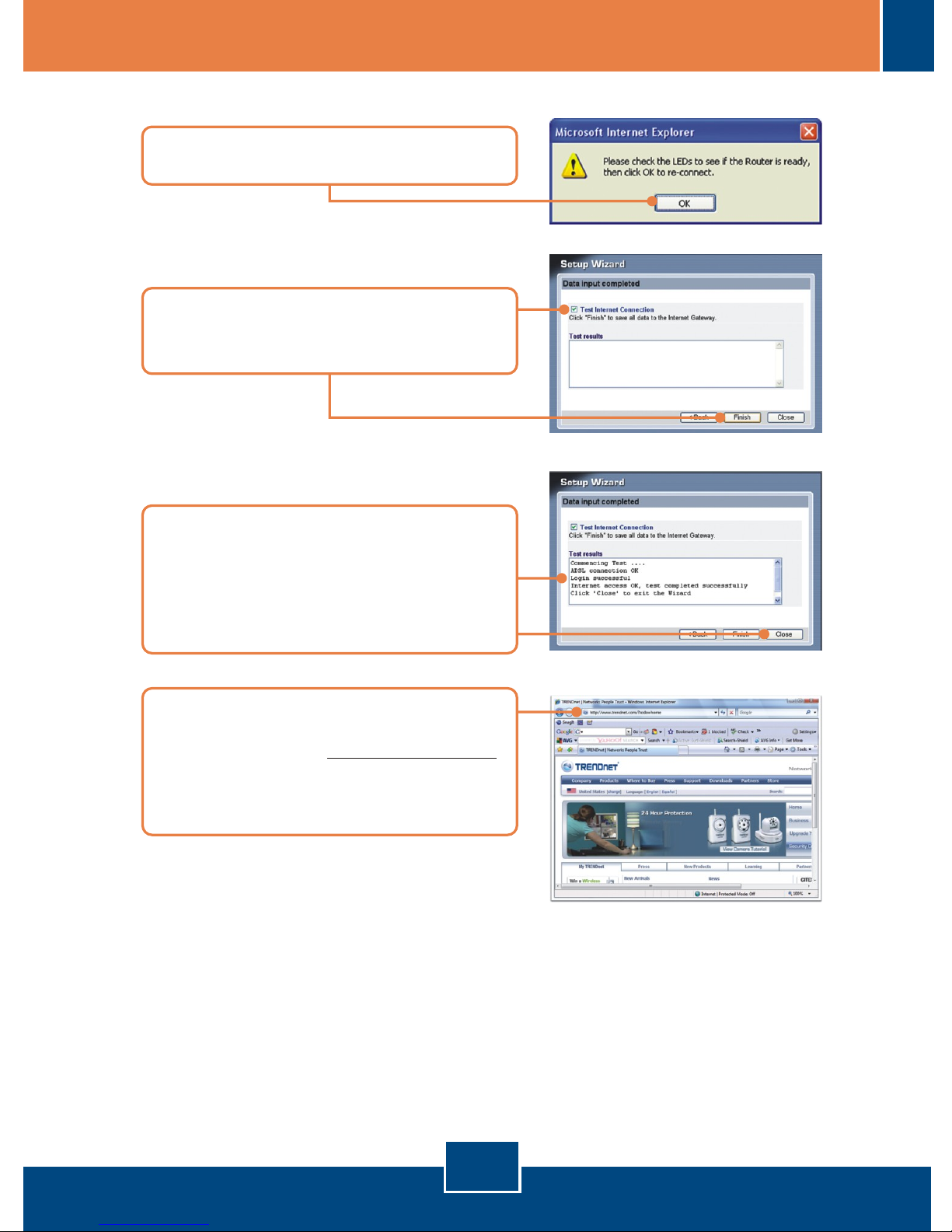

12. Open up your browser and enter
in a URL (e.g. www.trendnet.com)
to verify that you have Internet
connection.
9. Check the LEDs and then click OK.
10. Check Test Internet Connection,
and then click Finish.
11. Verify that the test has completed
successfully. Check that the
ADSL and Internet LEDs are lit.
Then click Close.
English
7
4. Setting up Encryption

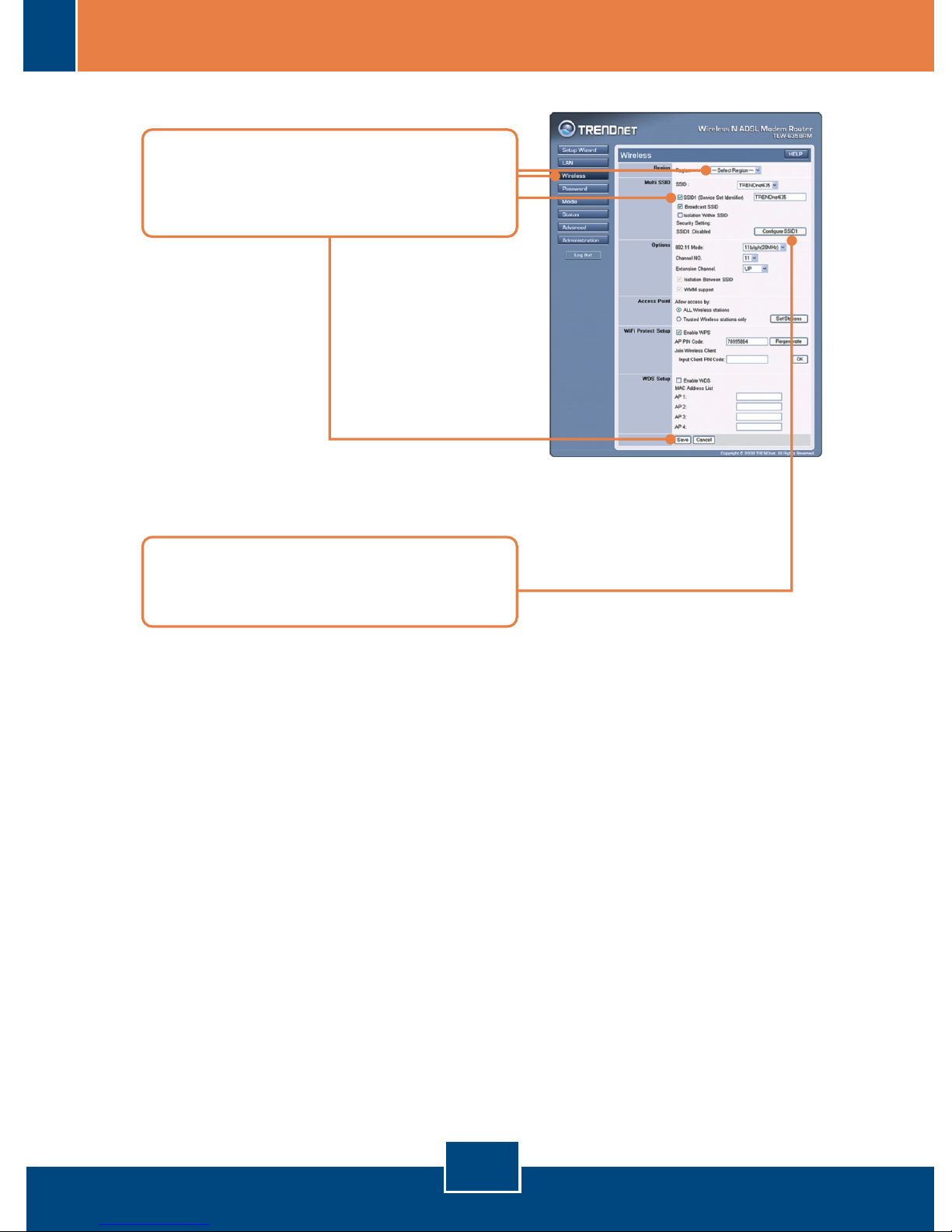

1. Click Wireless. Select the Region,
enter the desired SSID and then
click Save.
2. Click Configure SSID1 to set up
Wireless Security.
English
8

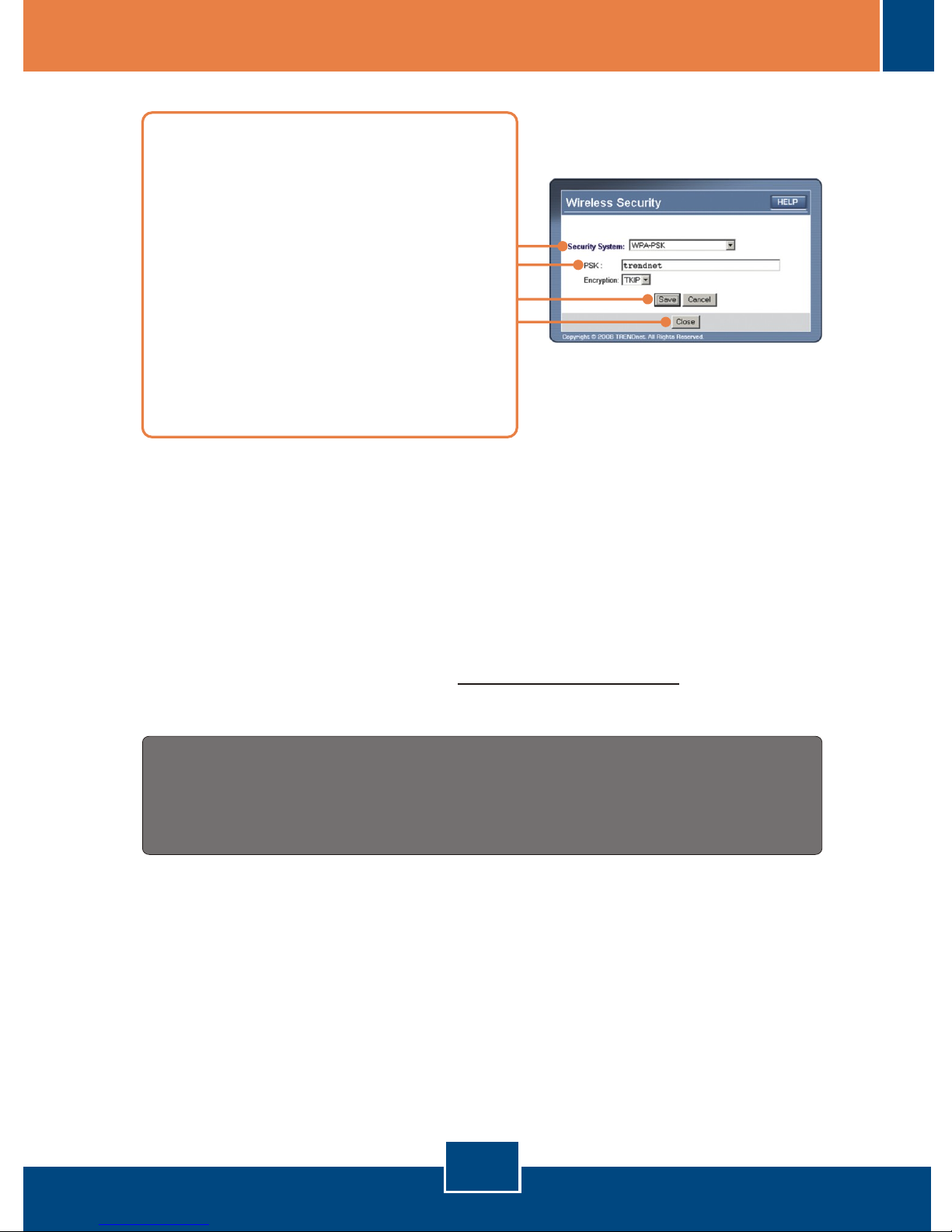

3. This example below is WPA-PSK.
Select a Security System and
enter an encryption key in the PSK
field. Keep the Encryption value
as TKIP, click Save and then click
Close. For WPA-PSK or WPA2-
PSK, the Pre-Shared Key must be
between 8 and 63 ASCII or 64 HEX
characters. Make sure to copy
down the encryption key.
Your configuration is now complete.
For detailed information regarding the TEW-635BRM's configuration and
advanced settings, please refer to the Troubleshooting section, User's Guide
CD-ROM, or TRENDnet's website at http://www.trendnet.com.
Register Your Product
To ensure the highest level of customer service and support, please take a moment to
register your product Online at: www.trendnet.com/register
Thank you for choosing TRENDnet
