TRENDnet TEW-634GRU Manual de usuario

TEW-634GRU

rev:07.23.2009

• Wi-Fi compliant with IEEE 802.11n and IEEE 802.11b/g standards

• 4 x 10/100/1000Mbps Auto-MDIX LAN port and 1 x 10/100Mbps WAN port (Internet)

• Supports Cable/DSL modems with Dynamic IP, Static IP, PPPoE, PPTP, L2TP & BigPond connection types

• High-speed up to 300Mbps data rate using IEEE 802.11n connection

• H2 x 2dBi external antennas support high speed performance and great coverage with MIMO technology

• Support Wi-Fi Protected Setup (WPS) for easy connection

• Universal Plug and Play (UPnP)

• Provides additional security of enable/disable wireless SSID, Internet Access Control (MAC Address, Domain & IP Filtering)

• Easy management via web browser and remote management

• Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK

• Works with Windows 95/98/NT/2000/XP/2003 Server/Vista, Linux and Mac OS

• *Coverage up to 100 meters (330ft.) indoor and 300meters (980ft) outdoor (depends on the environment)

• 3- year limited warranty

FEATURES

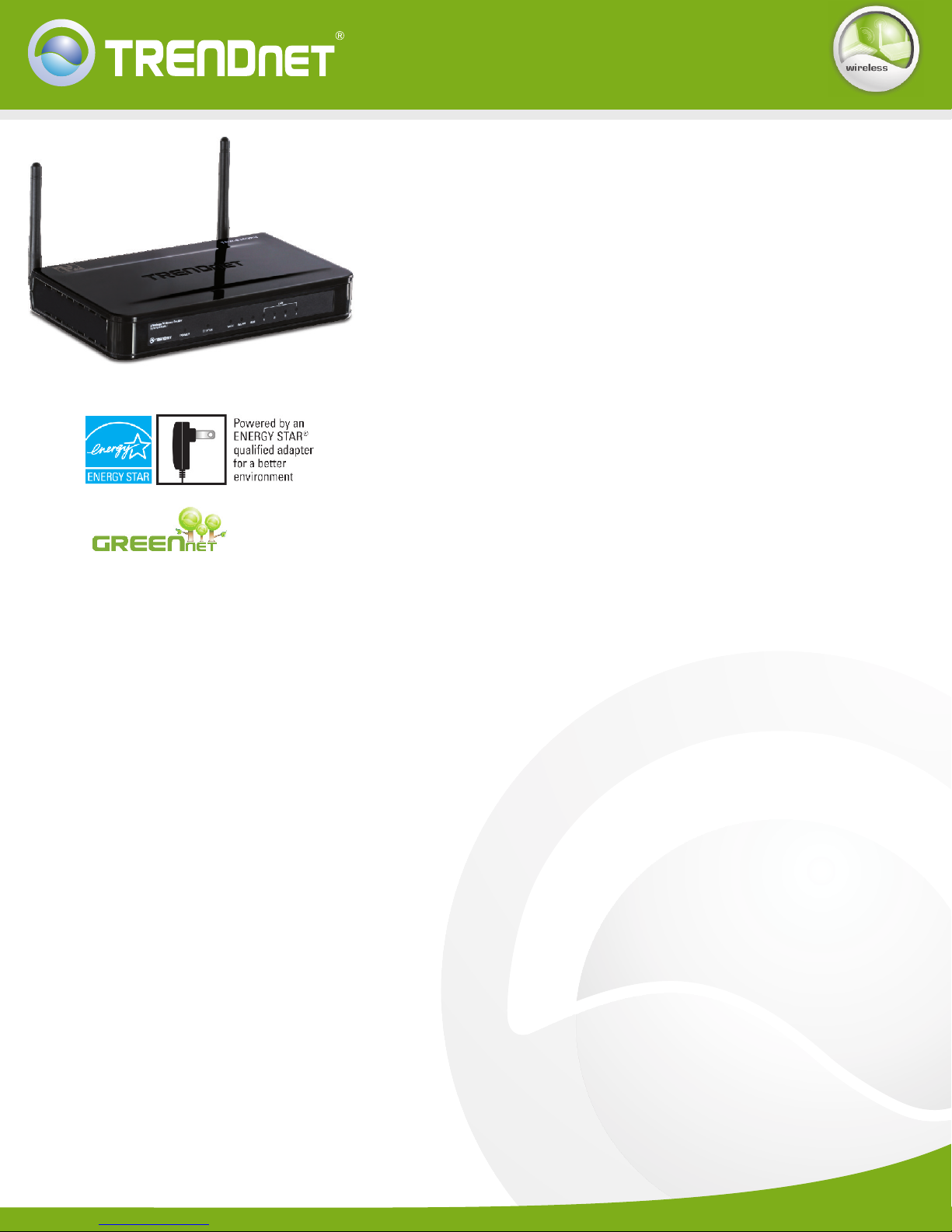

The 300Mbps Wireless N Gigabit Router with USB Port (model TEW-

634GRU) incorporates the latest wireless n technology, Gigabit Ethernet

ports and a convenient USB port to create a secure high performance

wireless local area network.

Connect USB flash drives, hard drives or printers directly to the router,

to share data across your wirelessly local area network.

A robust firewall and advanced wireless encryption protects your

network. Wi-Fi Protected Setup (WPS) integrates other WPS devices

into your network quickly. Advanced MIMO antenna technology

optimizes wireless coverage. Quality of Service (QoS) technology

prioritizes gaming, Internet calls and video streaming. An intuitive

installation process and remote management capabilities make this

product well suited for your most demanding networking needs.

TEW-634GRU(V1.0R)

300Mbps Wireless N Gigabit Router with USB Port

*Maximum wireless signal rates are referenced from IEEE 802.11 theoretical specifications. Actual data throughput and coverage

will vary depending on interference, network traffic, building materials and other conditions.

** Internet Explorer 6.0 and above is recommended

Internet Access Control

LAN

WAN

WPS Button

Power Consumption

• Wired: IEEE 802.3/u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet

• MAC Address Filter, Domain/URL Filter, Protocol/IP Filter

• 1 x 10/100Mbps Auto-MDIX port (Internet)

• 4 x 10/100/1000Mbps Auto-MDIX port

• Enable Wi-Fi Protected Setup function

• Dynamic IP, Static (Fixed) IP, PPPoE, PPTP, L2TP, BigPond

• 1 x USB 2.0, 1.1 Compliant USB Type A Port

USB

Connection Type

Standards

Hardware

SPECIFICATIONS

Frequency

Media Access Protocol

• 2412~2484MHz ISM band

• 2 x 2dBi detachable dipole antennas

• DBPSK/DQPSK/CCK/OFDM (BPSK/QPSK/16-QAM/64-QAM)

Wireless

• 1~ 11 (FCC), 1~13 (ETSI)

• WPA(AES/TKIP): WPA/WPA2, WPA-PSK/WPA2-PSK

• WMM enable/disable feature

Modulation Technique

Data Rate

Security

• Protocol filtering

QoS

Output Power

• Wireless: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n (draft 2.0), IEEE 802.11e QoS

Power Adapter

LED Indicator

Dimension (L x W x H)

Humidity

Weight

Temperature

Certifications

• 12V DC, 2A external power adapter

• 7watts (max.)

• Power, LAN1~LAN4, WAN, and WLAN

• 245g (8.6 oz)

• Operation: 0°C~ 40°C (32°F~ 104°F); Storage: -10°C~ 70°C (-4°F~158° F)

• 10%~95% RH, no condensation

• CE, FCC

Antenna

• CSMA/CA with ACK

• 802.11b: 11Mbps, 5.5Mbps, 2Mbps, and 1Mbps

• WEP(HEX/ASCII): 64/128-bit

• 802.11b: 15dBm (typical)

• Enable/Disable broadcast SSID

• 150 x 110 x 30 mm (5.9 x 4.3 x 1.1 inches)

TEW-634GRU

rev:07.23.2009

TEW-634GRU(V1.0R)

300Mbps Wireless N Gigabit Router with USB Port

• USB: v1.0, 1.1, 2.0

• 802.11g: 54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 9Mbps and 6Mbps

• 802.11n: up to 300Mbps

• Domain filtering

Receiving Sensitivity

Channels

• 802.11g: 15dBm (typical) • 802.11n: 14dBm (typical)

• 802.11b: 11Mbps -85dBm (typical) @ 10% per

• 802.11g: 54Mbps -68dBm (typical) @ 10% per

• 802.11n: 300Mbps -59dBm (typical) @ 10% per

NETWORKING SOLUTIONS

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet

products and is subject to change at any time, without notice. For the most recent product information please visit

http://www.trendnet.com.

RELATED PRODUCTS

PACKAGE CONTENTS

TEW-642EC

TEW-641PC Wireless N PC Card

• CD-ROM (User’s Guide)

300Mbps Wireless N Express card

• TEW-634GRU

• Multi-Language Quick Installation Guide

ORDERING INFORMATION

To Order Please Call:

1-888-326-6061

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web:

Email: [email protected]

www.trendnet.com

TEW-623PI Wireless N PCI Adapter

• Power adapter (12V DC, 2A)

• Cat. 5 Ethernet cable (1.5m / 5ft.)

TEW-634GRU(V1.0R)

300Mbps Wireless N Gigabit Router with USB Port

300Mbps wireless multimedia sharing

300Mbps Wireless N

Gigabit Router with USB Port

(TEW-634GRU)

Notebook with 300Mbps

Wireless N USB Adapter

(TEW-624UB)

Cable/DSL

Modem

Workstation with Gigabit PCI Adapter

(TEG-PCITXR)

USB Hard Drive

Internet

USB Printer

Workstation with 300Mbps

Wireless N PCI Adapter

(TEW-623PI)

Gigabit

TEW-644UB Wireless N USB Adapter
