TRENDnet TEW-655BR3G Manual de usuario
Quick Installation Guide
TEW-655BR3G
1.01
Table of Contents
English 1
1. Before You Start
2. Hardware Installation 4
3. Configure the TEW-655BR3G 6
4. LEDs 10
1
Troubleshooting 11
Wireless Tips 13
Version 03.17.2010
1. Before You Start
?
?Web Browser: Internet Explorer (6.0 or above)
?Broadband Internet or 3G Internet Service
?Cable/DSL Modem or 3G USB Adapter*
?TA-CC Car Charger (optional)
A computer with a wireless network adapter properly installed.
Package Contents
?
?CD-ROM (User’s Guide)
?Multi-Language Quick Installation Guide
?Cat.5 Ethernet Cable (1.5m/ 6ft)
?Power Adapter (5V DC, 2.5A)
?Lithium Ion Battery (3.7V, 1700mAh)
TEW-655BR3G
System Requirements
1
* For a list of compatible 3G USB Adapters, please go to
http://www.trendnet.com/products/TEW-655BR3G.
2
Collect Internet Service Provider (ISP) Information
During the installation of your 150Mbps Mobile Wireless N Router, the Setup Wizard will
automatically detect your ISP connection type. If the router cannot detect your ISP
connection type, you can manually specify the connection type. Please verify your
Internet connection type with your ISP and ensure you have all the information for one
of the following connection types:
1. 3G (Auto Detection) connection
Pin Code (Optional): ________________
2. 3G (Manual) connection
Country: ________________
Telecom: ________________
3G Network: ________________
APN (Optional): ________________
Pin Code (Optional): ________________
Dialed Number: ________________
Account (Optional): ________________
Password (Optional): ________________
3. iBurst connection
Account: _________
Password: ________________
Primary DNS:_____. _____._____._____
Secondary DNS:_____. _____._____._____
Service Name (Optional): ________________
Assigned IP Address (Optional): ________________
4. Dynamic IP connection
HostName: ________________
ISP registered Mac Address: ________________
5. Static or Fixed IP connection
Static IP Address:_____. _____._____._____ (e.g. 215.24.24.129)
Static Subnet Mask: _____. _____._____._____
Static Gateway: ____. _____._____._____
Static Primary DNS:_____. _____._____._____
Static Secondary DNS:_____. _____._____._____
3
6. PPPoE connection
Account : _________
Password: ________________
Primary DNS:_____. _____._____._____
Secondary DNS:_____. _____._____._____
Service Name (Optional): ________________
Assigned IP Address (Optional): ________________
7. PPTP connection
IP Mode: Dynamic IP Address or Static IP Address
My IP Address:_____. _____._____._____ (e.g. 215.24.24.129)
My Subnet Mask: _____. _____._____._____
Gateway IP: ____. _____._____._____
Service IP Adress / Name: ________________
PPTP Account:_____. _____._____._____
PPTP Password:_____. _____._____._____.
8. L2TP connection
IP Mode: Dynamic IP Address or Static IP Address
IP Address:_____. _____._____._____ (e.g. 215.24.24.129)
Subnet Mask: _____. _____._____._____
WAN Gateway IP: ____. _____._____._____
Service IP Adress / Name: ________________
L2TP Account:_____. _____._____._____
L2TP Password:_____. _____._____._____.
4
2. Hardware Installation
Cable/DSL Modem
Internet
1. Verify that you have an Internet connection
when connecting the 3G USB adapter to your
computer. Open your browser (e.g. Internet
Explorer) and type in a URL (e.g.
http://www.trendnet.com) in the address bar.
Note: You may need to activate your Internet
connection. Please contact your ISP for more
information.

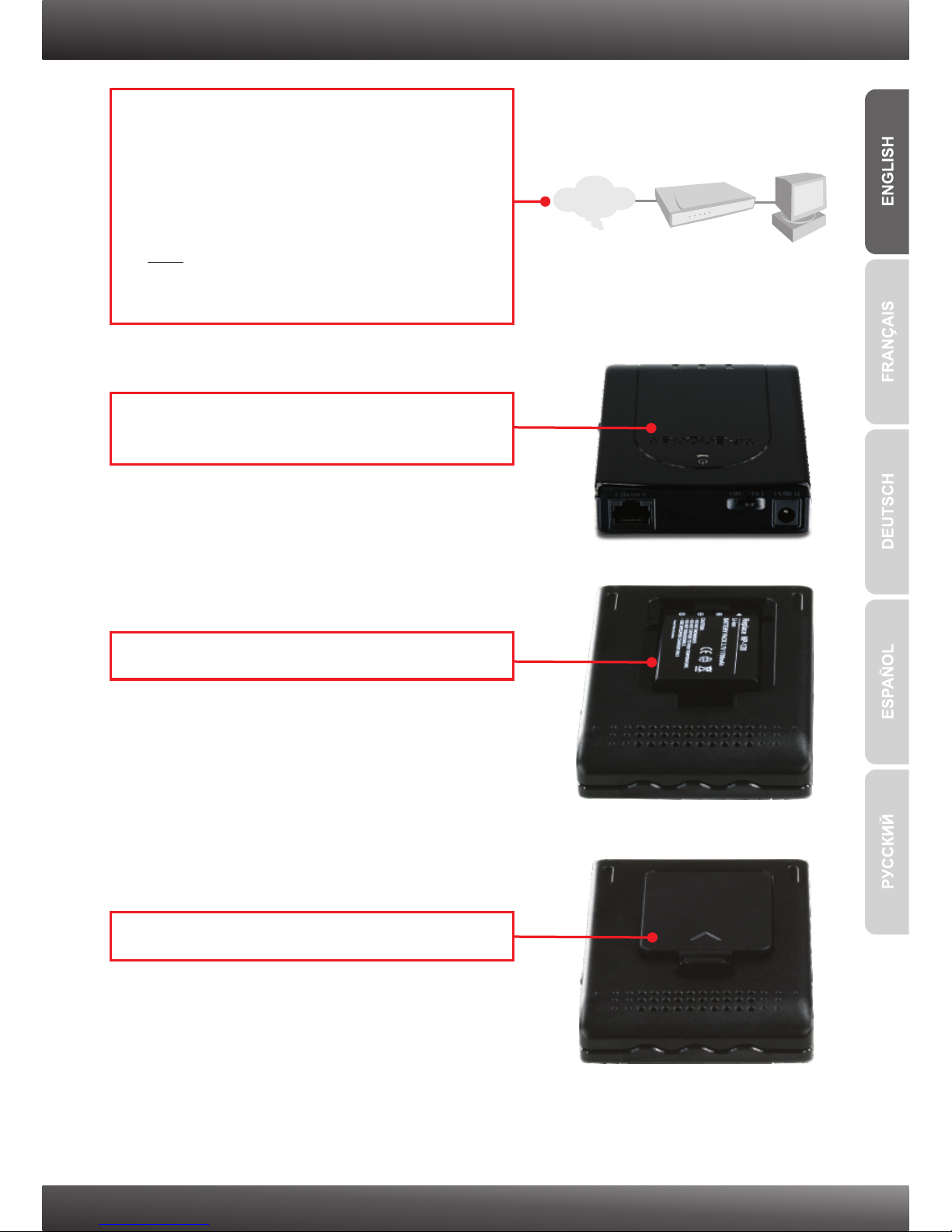

2. Remove the battery lid. The battery lid is
located on the bottom of the router.
4. Secure the battery lid back into the router.
3. Insert the battery into the router.
5

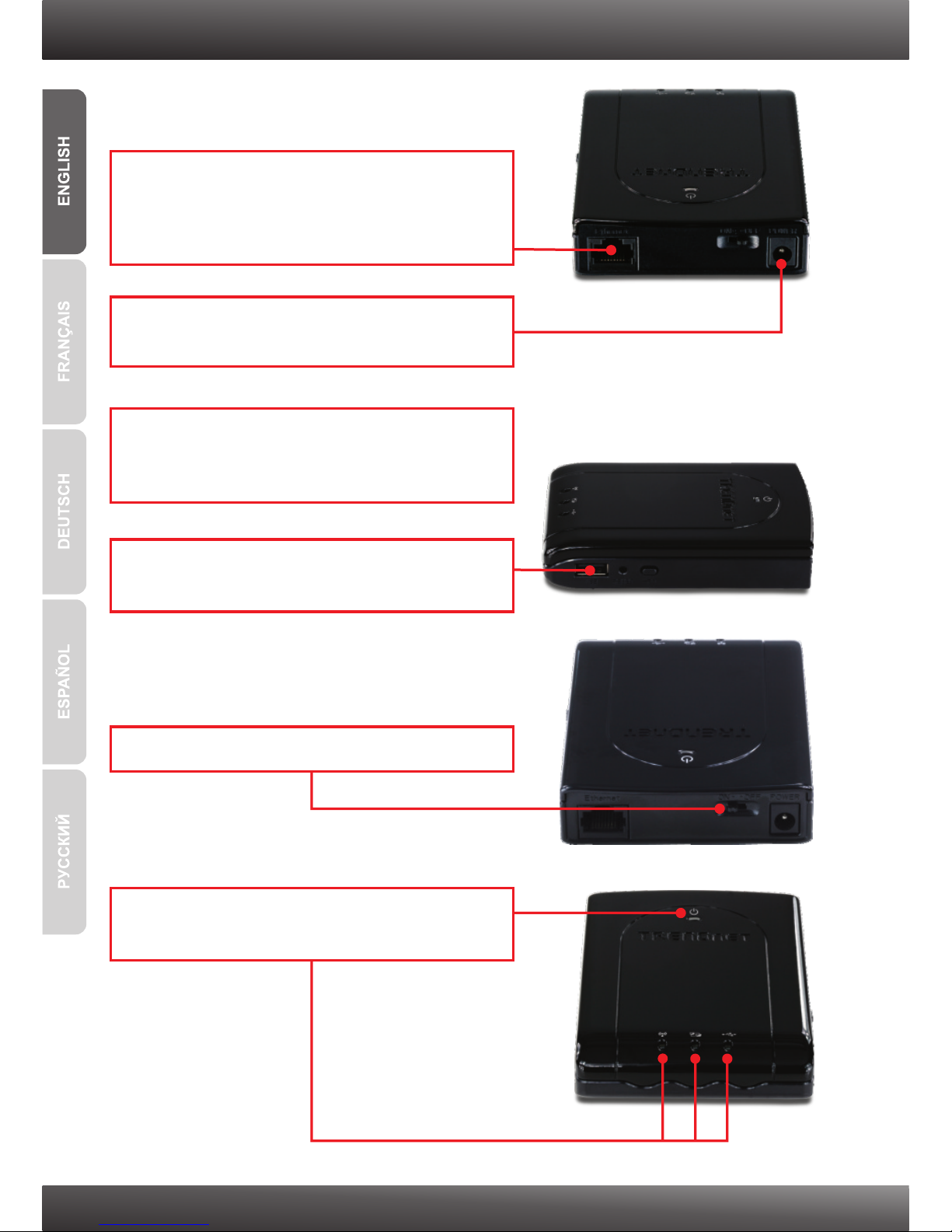

7. If you are using the TEW-655BR3G for the first
time, you will need to charge your battery for 8
hours.
10. Verify that the following panel lights are on:
Power, Wireless, Ethernet and 3G (USB).
5. Connect one end of the provided RJ-45 cable
to the TEW-655BR3G's Ethernet port. Connect
the other end of the cable to the computer's
Ethernet port.
6. Connect the AC Power Adapter to the wireless
router and then to a power outlet.
8. Connect your 3G USB adapter to the USB port
on the TEW-655BR3G.
9. Move the Power switch to the on position.
6
3. Configure the TWE-655BR3G
Note:
1. Gather all information related to your Internet Connection before you start.
If necessary, contact your Internet Service Provider (ISP).
2. Below are steps for connecting to a 3G Internet connection. For instructions
connecting to a Broadband Internet connection, please see question 5 in the
Troubleshooting section.
1. Open your web browser, type
http://192.168.10.1 in the Address bar, and
then press Enter.
3. Select Wizard and then click Enter.
4. Click Next.
2. Enter the System Password, and then click
Login. By default:
System Password: admin
7
Note:
1. To protect your network from any unauthorized access it is recommended to enable
wireless encryption.
2. The example below is for WPA2-PSK security. If you select WPA-PSK or WPA2-PSK,
make sure your wireless adapters support WPA or WPA2. If your wireless adapters
do not support WPA or WPA2, then select WEP.
5. Enter the Old password (By default, the
Password is admin), enter a New Password,
reconfirm the New Password and then click
Next.
6. Select your Time Zone and then click Next.
7. Select Wireless WAN for WAN Interface.
Select 3G or iBurst (the example shown is for
3G). Then click Next. Configure the settings
based on information provided by your ISP.
Follow the wizard instructions to complete the
configuration.
Note: Each WAN type may have different
options.
8. Enter the desired Network ID (SSID) and then
click Next.
8

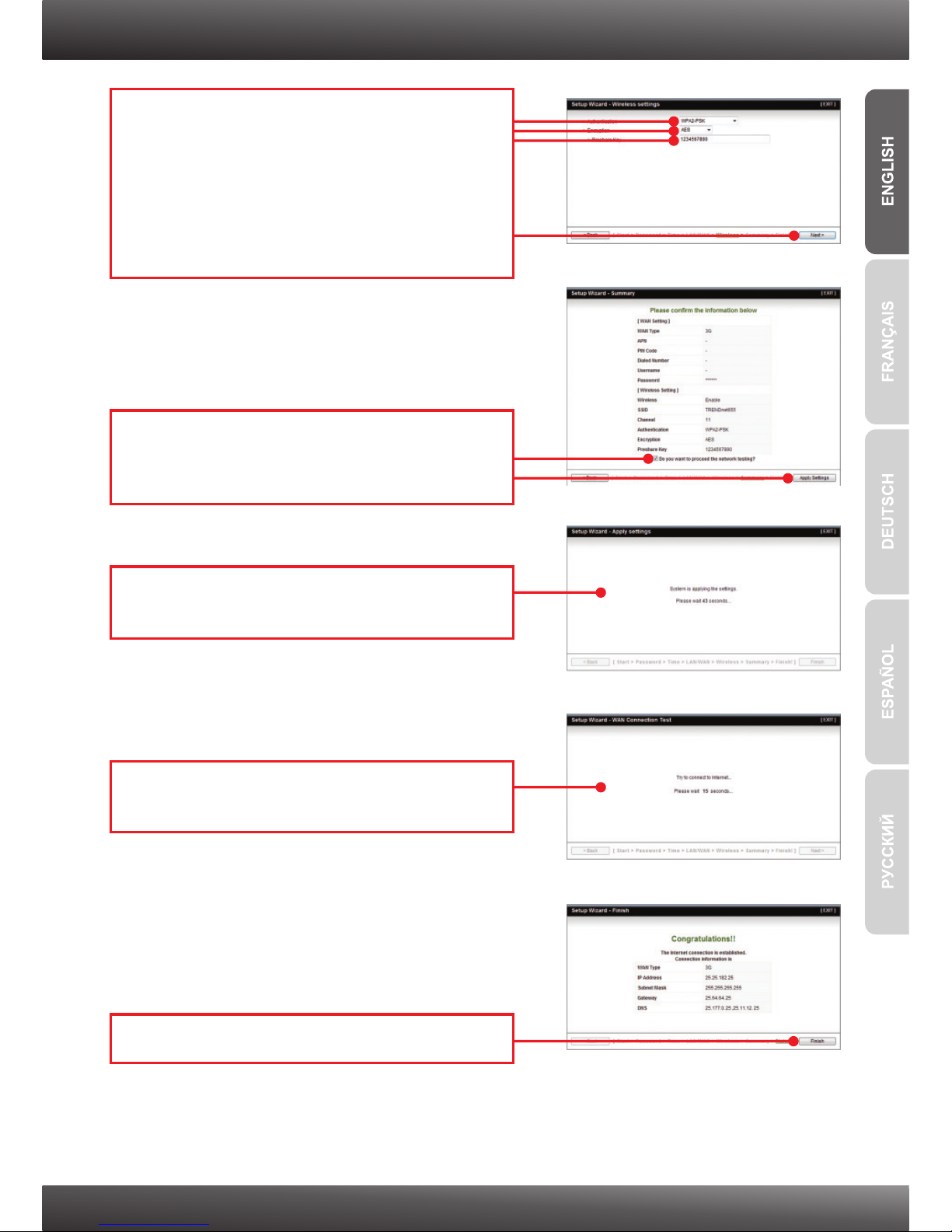

9. Select the desired Authentication mode,
select the desired Encryption type and enter
characters for your Pre-Shared key and then
click Next. For WPA-PSK or WPA2-PSK, the
Pre-Shared Key must be between 8 and 63
ASCII or 64 HEX characters. Make sure to
copy down the Pre-Shared Key.
10. Check Do you want to proceed with
network testing? and then click Apply
Settings.
11. Wait around 43 seconds while the router
reboots.
12. Wait around 15 seconds while the router tests
the Internet connection.
13. Click Finish.
