TRENDnet TEW-650AP Manual de usuario

TEW-650AP

1.01

Quick Installation Guide

Table of Contents

Version 08.04.2010

English 1

1. Before You Start

2. Hardware Installation 2

Troubleshooting 8

1. Before You Start

ŸA computer with a network adapter or wireless adapter properly installed

ŸA router with an available network LAN port

ŸAn available DHCP Server – routers usually have a built-in DHCP server

Web Browser: Internet Explorer (6 or higher)

Package Contents

ŸMulti-Language Quick Installation Guide

ŸCD-ROM (Utility and User's Guide)

ŸPower Adapter (12V DC, 0.5A)

ŸCat. 5 Ethernet Cable (0.6m / 2ft.)

TEW-650AP

System Requirements

2. Hardware Installation

1. Insert Utility CD-ROM into your computer's

CD-ROM drive.

Note:

1. Locate an optimum location for the Access Point. The best place for the Access Point

is usually at the center of your wireless network.

2. Disable any anti-virus and firewall programs before starting hardware installation.

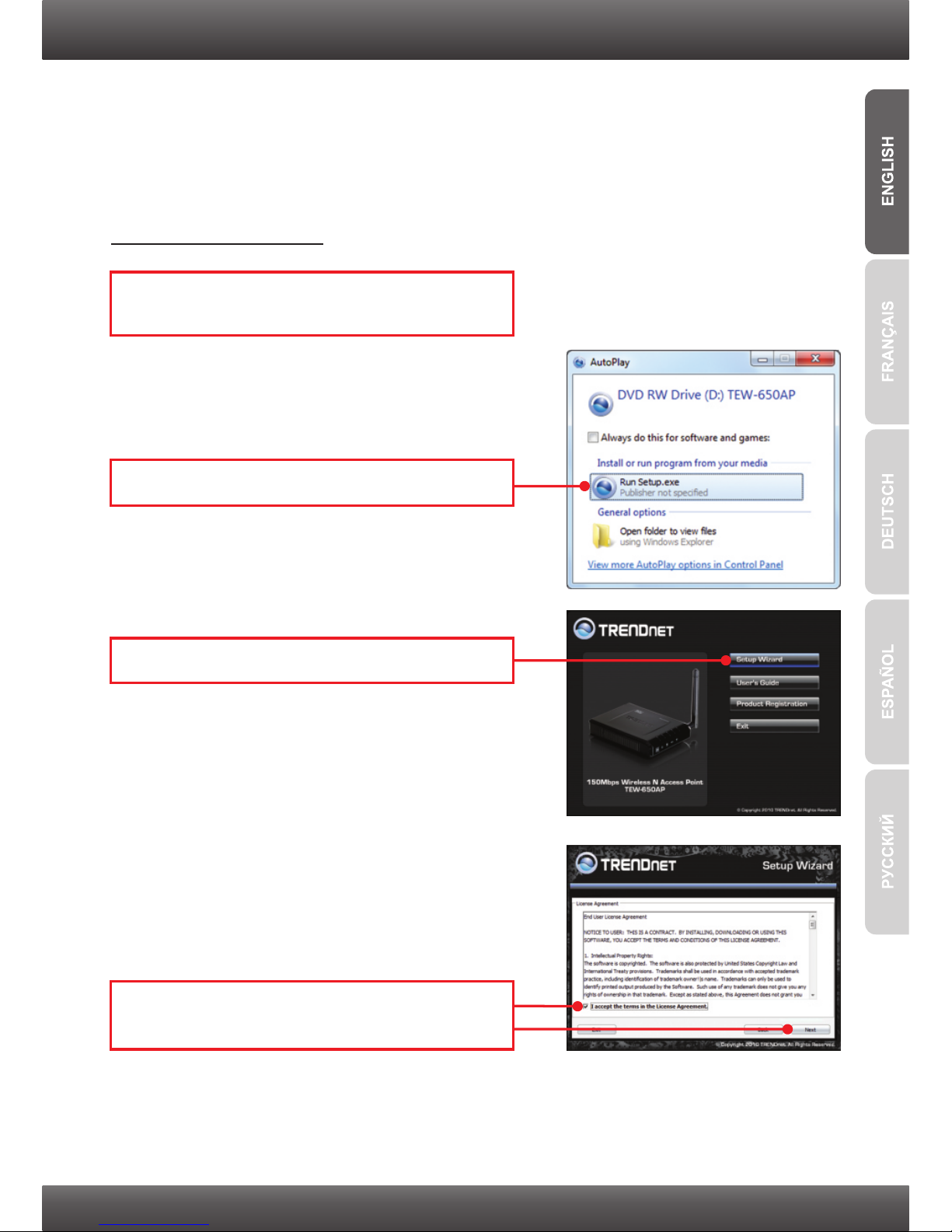

For Windows Users

2. Click Run Setup.exe (Windows 7/Vista only)

4. Click I accept the terms in the License

Agreement and then click Next.

3. Click Setup Wizard.

6. Connect a RJ-45 cable from a LAN port on your

Router to the Ethernet port on your computer.

5. Connect the provided RJ-45 cable from a LAN

port on your Router to the LAN port on the

TEW-650AP. Then click Next.

7. Connect the Power Adapter to the Access Point

and then to a power outlet and then click Next.

8. Select the TEW-650AP from the list and then

click Configure.

9. Enter a password and then click Login. By

default, there is no password.

10. Select Access Point and then click Next.

Note: For AP Client setup, please refer to the

User's Guide for step by step instructions.

The User's Guide can be found on this

product's CD-ROM.

11. Select Dynamic IP Address Configuration

and then click Configure.

12. Select Manual setup and then click Next.

13. Enter a SSID and then click Next. By default,

the SSID is TRENDnet650.

14. Select the desired Wireless Mode and then

click Next.

15. Select a Security Mode and then click Next

(example shows WPA-PSK).

16. Select the desired WPA mode, enter

characters for your Pre-Shared key and then

click Next. For WPA-PSK or WPA2-PSK, the

Pre-Shared Key must be between 8 and 63

ASCII or 64 HEX characters. Make sure to

copy down the Pre-Shared Key.

17. Click Save (optional). This saves your

configuration settings, which can be reloaded

when needed.

Note: To protect your network from any unauthorized access it is recommended to

enable security.

18. Give the file a name, then click Save

(optional).

19. Click Configure to apply the settings.

20. Click Exit.

21. Click Yes to exit.

Note: to connect a wireless computer to the TEW-650AP, please refer to the first

question in the troubleshooting section.

Your Installation is complete

To ensure the highest level of customer service and support, please take a moment to

Thank you for choosing TRENDnet

For detailed information regarding the TEW-650AP’s configuration and advanced settings,

please refer to the Troubleshooting section, User's Guide on the Utility CD-ROM, or

TRENDnet's website at http://www.trendnet.com.

22. Connect the 2dBi detachable antennas to the

TEW-650AP.

1. All the settings are correct, but I can not make a wireless connection to the

Access Point.

Double check that the wireless LED on the Access Point is lit.

2. Power cycle the Access Point. Unplug the power to the Access Point. Wait 15

seconds, then plug the power back in.

3. Contact the manufacturer of your wireless network adapter. Make sure the

wireless network adapter is configured with the proper SSID. The default SSID

of the Access Point is TRENDnet650AP. If you have enabled any encryption

on the Access Point, make sure to configure the wireless network adapter with

the same security key.

2. I am trying to connect additional wireless adapters, but I don't remember the

encryption (network) key. What should I do?

From a wired computer, log on to the access point configuration page. Click

Wireless Security. The encryption key will be listed here.

3. I have a wireless adapter that supports WiFi Protected Setup (WPS) push

button setup. How do I setup WPS between the TEW-650AP and my wireless

adapter?

1. Press on the WPS button on the front of the TEW-650AP for 10 seconds.

2. Refer to your wireless adapters for instructions on setting up WPS.

4. I inserted the Utility CD-ROM into my computer's CD-ROM Drive but the

installation menu does not appear automatically. What should I do?

1. For Windows 7, if the installation menu does not appear automatically, click on

the Windows Icon on the bottom left hand corner of the screen, click the

“Search programs and files” box, and type D:\autorun.exe, where “D” in

“D:\autorun.exe” is the letter assigned to your CD-ROM Driver, and then press

the ENTER key on your keyboard

2. For Windows Vista, if the installation menu does not appear automatically, click

on the Windows Icon on the bottom left hand corner of the screen, click on the

“Start Search” box, and type D:\autorun.exe, where “D” in “D:\autorun.exe” is the

letter assigned to your CD-ROM Drive, and then press the ENTER key on your

keyboard.

3. For Windows XP/2000 if the window does not appear automatically, click Start,

click Run and type D:\autorun.exe where “D” in “D:\autorun.exe” is the letter

assigned to your CD-ROM Drive, and then press the ENTER key on your

keyboard.

’

Troubleshooting
