TRENDnet TK-408K Manual de lista de piezas

TK-408K

Quick Installation Guide

Español .....................................................................................................

Specifications ............................................................................................

Troubleshooting ........................................................................................

1. Antes de iniciar ..................................................................................

2. Cómo conectar ..................................................................................

3. Cómo utilizar el conmutador KVM .....................................................

Table of Contents

Version 05.04.06

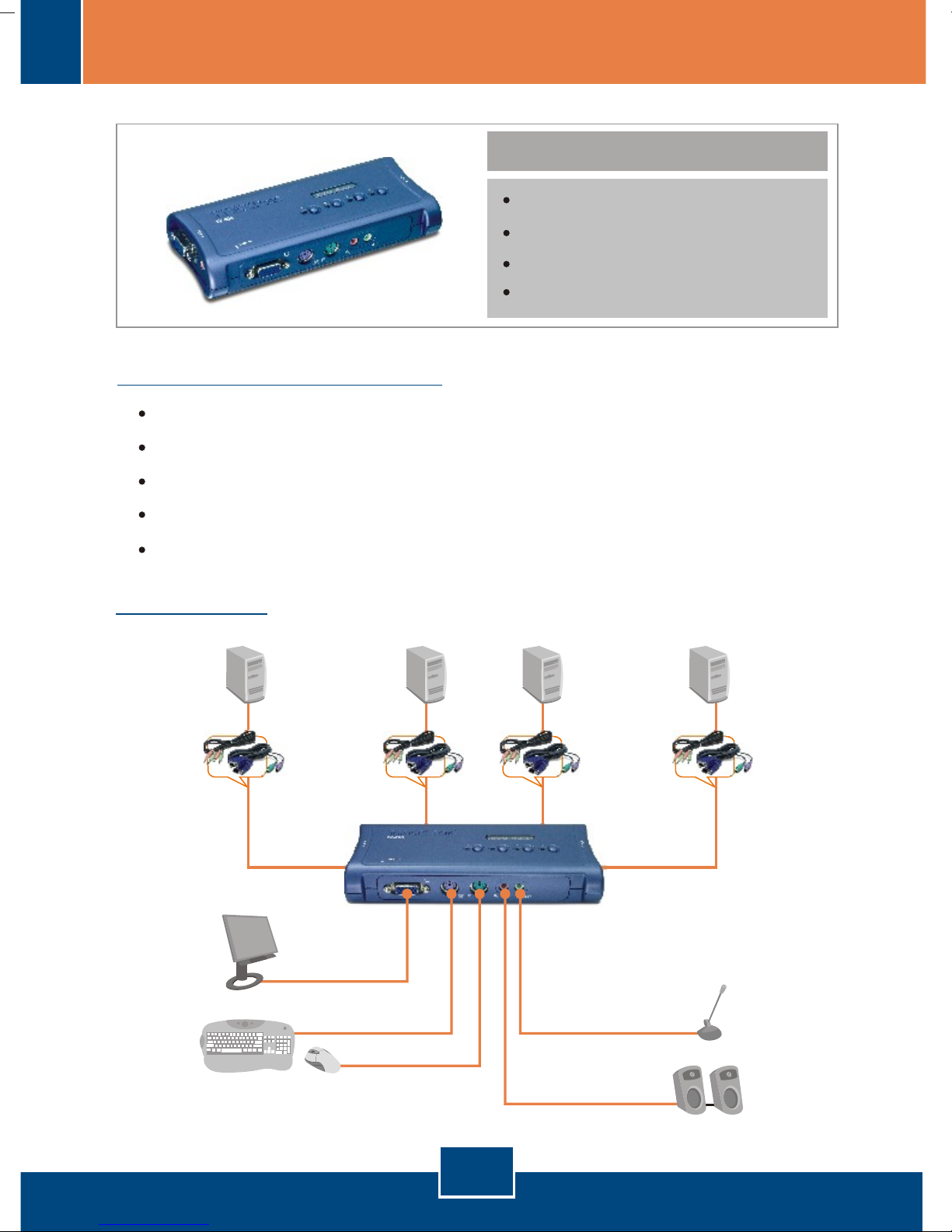

Aplicación

Monitor compatible con VGA o SVGA

Teclado PS/2 tipo Mini-Din de 6 pins

Ratón PS/2 tipo Mini-Din de 6 pins

Altavoces

Micrófono

(opcional)

Requisitos del sistema

Español

1. Antes de iniciar

TK-408

4 cables KVM combinados 3-en-1

4 Cables de Audio/Mic

Guía de instalación rápida

Contenidos del paquete

Microphone

LCD Monitor

4-Port PS/2 Audio

KVM Switch Kit

(TK-408K)

Keyboard Mouse

Speakers

Cables

PC 3 PC 4PC 1 PC 2

Cables Cables Cables

Español

2. Cómo conectar

Importante: DESCONECTE todos los PCs antes de conectarlos al conmutador

KVM. Tenga en cuenta que los cables incluidos y las conexiones del

conmutador KVM están codificados por colores para su comodidad.

La instalación ha sido completada

3. Conecte la otra punta del Cable

KVM combinado 3-en-1 al canal

de PC disponible.

5. ENCIENDA los PCs conectados y

espere hasta que le aparezca el

escritorio.

2. Conecte la punta respectiva del

Cable KVM combinado 3-en-1 y

del Cable de Audio/Mic a su PC.

1. Conecte el Monitor, Teclado,

Ratón, Micrófono y Altavoces

compartidos al puerto consola de

su conmutador KVM.

4. Conecte la otra punta del Cable de

Audio/Mic al mismo canal de PC

disponible.

Para alternar entre PCs, puede usar los Push Buttons (Botones de arranque)

en el Conmutador KVM o los comandos Hot-key (Ejecución inmediata) del

teclado.

Comandos Hotkey

Un comando hotkey del teclado consiste en pulsar tres teclas:

Comando Hotkey = ScrLk + ScrLk + Tecla(s) de comando

Después de pulsar la tecla ScrLk, dispone de 2 segundos para pulsar la tecla

ScrLk otra vez. Ahora dispone de 2 segundos para presionar una tecla de

comando. Si usted no pulsa una tecla en el plazo de 2 segundos, el

conmutador saldrá del modo hotkey.

Nota

1. El comando Hotkey sólo funciona con las teclas numéricas de la parte

superior del teclado.

2. Cuando establezca la vinculación de la conmutación entre el puerto PC y el

puerto Audio se activa la secuencia hotkey, cualquier conmutación entre PC

y Audio/Mic se establece de forma conjunta.

3. Para sistemas operativos no-PnP (Linux, Windows NT 4.0), utilice por favor

los siguientes comandos para reiniciar la configuración del ratón.

Español

3. Cómo usar el conmutador KVM

ScrLk +ScrLk +M+1

ScrLk +ScrLk +M+2

ScrLk +ScrLk +M+3

2-key mouse setting:

3-key wheel mouse setting:

5-key wheel mouse setting:

Convención Hotkey:

La pulsación de la tecla hotkey indica que debe pulsar la tecla individual

consecutivamente una después de otra, no simultáneamente.

Comando Hotkeys Descripción

Hoja de referencia rápida para el TK-208K

Seleccione PC

Seleccione el canal

Audio/Mic

Próximo canal PC

superior

Vincule la

conmutación del PC

y del Audio/Mic

Ratón de consola/

Reiniciación de

Teclado

Desvincule la

conmutación del PC

y del Audio/Mic

Auto-exploración

Próximo canal PC

inferior

Detener Auto-

exploración

ScrLk ScrLk X

+ +

x = 1 ~ 2 para el número de canal de la PC

ScrLk ScrLk

+ +

(flecha arriba)

ScrLk ScrLk

+ +

(flecha abajo)

ScrLk ScrLk

+ + W

ScrLk ScrLk

+ + End

ScrLk ScrLk

+ + S

Press any key on keyboard

Seleccione el canal PC activo.

Seleccione el canal Audio/Mic activo

Seleccione el siguiente PC inferior disponible

Active la vinculación de la conmutación del puerto PC y

del puerto Audio/Mic.

Reiniciar ratón/teclado en el lado de la consola.

(funciona únicamente con sistemas operativos no-PnP)

Active la vinculación de la

conmutación del puerto PC y

del puerto Audio/Mic.

Auto-exploración a través de cada canal conectado para

una rápida lectura en pantalla de cada canal (duración

de la exploración =10 segundos) .

Seleccione el siguiente PC superior disponible

Pulse el botón panel de mando Finalizar actividad de

Auto-exploración.

(Fx es una tecla de función) Fx= F1~F4

ScrLk ScrLk

+ +

ScrLk ScrLk

+ +

Español

Computer Connections: 4

KVM Cable Connectors

(all male):

Console Port Connectors

(all female):

Keyboard: PS/2 Keyboard 6-pin Mini Din

Mouse: PS/2 Keyboard 6-pin Mini Din

Monitor: VGA HDB 15-pin

Speaker: 3.5mm audio in/out jack

Microphone: 3.5mm microphone in/out jack

Specifications

To PC:

To KVM: 1 x VGA/SVGA HDB 15-pin

KVM

To PC:

Audio

To KVM:

Port Selection: Push Button and Hot-Key Commands

Auto-Scan Intervals: 5 seconds

Keyboard State: Saved and Restored

Power Type: PS/2 Interface Power

Dimensions: 167 x 80 x 28mm (6.6 x 3.2 x 1.1in.)

Weight: 178g (6.3oz.)

0º ~ 40ºC (32º ~104º F)Operating Temperature:

-20º ~ 60ºC (-4º ~ 140º F)Storage Temperature:

0%~90%, Non-Condensing

Humidity:

FCC and CECertifications:

KVM Cable: 4 sets of 1.8 M (6ft) KVM Cables

• 1 x PS/2 Keyboard 6-pin Mini Din

• 1 x PS/2 Mouse 6-pin Mini Din

• 1 X VGA HDB 15-pin

• 1 x 3.5mm audio in/out jack

• 1 x 3.5mm microphone in/out jack

• 1 x 3.5mm audio in/out jack

• 1 x 3.5mm microphone in/out jack

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

Where is the power supply? I did not find one in the box.

I have the KVM switch connected properly, but my keyboard and mouse don't

work.

Please make sure your PS/2 port is working properly by testing it with your

other PS/2 devices. Once you confirm that the PS/2 port is functional, please

reboot your computers, and try to use the KVM switch again.

Can I connect and disconnect the PS/2 cables while the computers are turned

on?

Will the KVM switch remember the keyboard settings between computers?

Yes, the KVM switch will remember the keyboard settings when switching

between your computers. (i.e.: Cap lock, Num key, etc.)

How do I switch from one computer to another with the KVM switch?

The TK-408K does not require a power adapter. It draws power from your

computer's PS/2 connections. As long as your KVM Switch is connected to the

PS/2 port, it will receive the necessary power to function.

Do not try to connect the KVM Switch to the computers while the computers

are in powered-on state, because the computers may have difficulty recognizing

your shared PS/2 keyboard and PS/2 mouse.

You may switch between computers by pressing the Push Buttons on the KVM

switch or by using the Hot-Key commands via keyboard. For a list of Hot-Key

commands, refer to the "Quick Reference Sheet for TK-408K".

If you still encounter problems or have any questions regarding the TK-408K, please

contact TRENDnet's Technical Support Department.

Certifications

This equipment has been tested and found to comply with FCC and CE Rules.

Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received.

Including interference that may cause undesired operation.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV

INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

Troubleshooting
