TRENDnet TK-401R Manual

TK-401R

TK-801R

TK-1601R

Quick Installation Guide

7

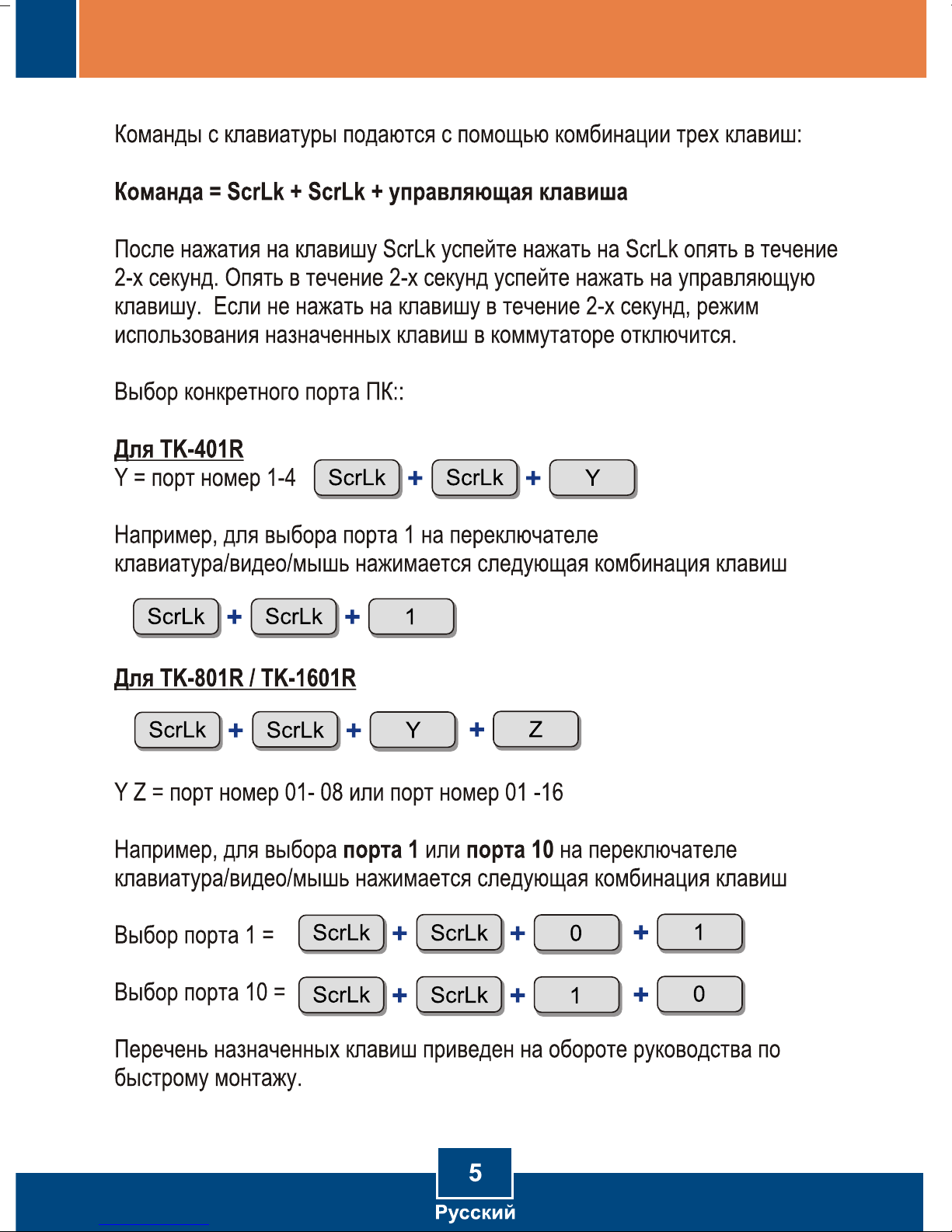

Port Selection: Push Button and Hot-Key Commands

Auto-Scan Intervals: 5 ~ 99 seconds

External AC Power Adapter: 9V DC, 1A (TK-801/TK1601 only)

Management:

TK-401R: 4 computers

TK-801R: 8 computers

TK-1601R: 16 computers

Console Port Connectors:

(all female)

1 x PS/2 keyboard 6-pin mini din

1 x PS/2 mouse 6-pin mini din

1 x VGA HDB15 15-pin

PC Port Connectors:

(all female)

4/8/16 x PS/2 keyboard 6-pin mini din

4/8/16 x PS/2 mouse 6-pin mini din

4/8/16 x VGA HDB 15-pin

VGA Resolution: 1920 x 1440

Specifications

Weight:

TK-401R : 835g (1.84lb.)

TK-801R : 1.9 kg (4.2 lbs)

TK-1601R : 2.65 kg (5.85 lbs)

0ºC ~ 40ºC (32ºF ~104ºF)Operating Temperature:

-20ºC ~ 60ºC (-4ºF ~ 140ºF)Storage Temperature:

0%~90%, Non-Condensing

Humidity:

FCC and CECertifications:

Dimensions:

TK-401R

202 x 104 x 45mm (8.0 x 4.1 x 1.8 in.)

TK-801R

407 x 165 x 45mm (16.0 x 6.5 x 1.8in.)

TK-1601R

406 x 165 x 85 mm (16.0 x 6.5 x 3.4 in.)

8

Troubleshooting

Q1:

A1:

Q2:

A2:

Q3:

A3:

Q4:

A4:

Q5:

A5:

Do I need to use the included external AC adapter?

It is recommended that you use the included external AC adapter with the

TK-801R/TK-1601R KVM switch.

I have the KVM switch connected properly, but my keyboard and mouse don't

work.

Please make sure your PS/2 ports are working properly by testing it with

another mouse or keyboard. Once you confirm that the PS/2 ports are functional,

please reboot your computers, and try to use the KVM switch again.

Can I connect or disconnect the KVM cables while the computers are turned

on?

Yes, you can connect or disconnect the KVM cables while the computers are

turned on, because the interface is Hot-Pluggable.

Yes, the KVM switch will restore the keyboard settings when switching

between computers. (i.e.: Cap lock, Num key, etc.)

Go to Section 3 Operation for more information.

If you still encounter problems or have any questions regarding the TK-401R/TK-801R/

TK-1601R please contact Trendnet's Technical Support Department.

Will the KVM switch restore the keyboard settings when switching between

computers?

How do I switch from one computer to another with the KVM switch?

You can switch PCs by pressing the push button on the KVM switch or by

using the Hot-Key commands.
