TRENDnet TEG-S16g Manual de usuario

TEG-S16g

rev: 01.24.2011

16-Port Gigabit GREENnet Switch

TEG-S16g(V1.0R)

The 16-Port Gigabit GREENnet Switch, model TEG-S16g, provides

high bandwidth performance, ease of use, and reliability, all while

reducing power consumption by up to 70%*.

GREENnet technology automatically adjusts power voltage as needed,

resulting in substantial energy savings. Embedded GREENnet

technology works right out of the box with no management requirement.

Boost ofﬁ ce network efﬁ ciency and eliminate network congestion with

Gigabit speeds and a total switching capacity of 32Gbps with

Full-Duplex mode. A built in universal power supply reduces cable

clutter and diagnostic LEDs help with network troubleshooting. Plug

and Play this sturdy metal switch for reliable high-speed network

connectivity.

FEATURES

• 16 x 10/100/1000Mbps Auto-MDIX Gigabit Ethernet ports

• On / off power switch

• Features a 32Gbps forwarding capacity

• Internal power supply reduces clutter

• GREENnet technology reduces power consumption when:

a. Ethernet port is not in use

b. Connected device is turned off

c. Connected device is in power-saving mode

d. Based on Ethernet cable length

• IEEE 802.3x Flow Control for full-duplex mode

• Back pressure Flow Control for half-duplex mode

• Store-and-Forward switching architecture with non-blocking wire-speed performance

• Integrated address look-up engine with an 8K MAC address table

• 2MBits RAM data buffer

• Operates and maximizes packet ﬁ ltering and forwarding rate

• Jumbo Frame support up to 9216Bytes

• Rackmount hardware included

• Sturdy metal housing

• Diagnostic LEDs and Plug & Play support

• 3-year limited warranty

*Max power savings compared with standard TRENDnet switches.

TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time,

16-Port Gigabit GREENnet Switch

TEG-S16g(V1.0R)

NETWORKING SOLUTIONS

CONTACT INFORMATION

20675 Manhattan Place,Torrance, CA 90501 USA

Tel: 1-310-961-5500

Fax: 1-310-961-5511

Web: www.trendnet.com

Email: [email protected]

1-888-326-6061

PACKAGE CONTENTS

TEG-S16G

Multi-Language Quick Installation Guide

Power cord (1.8m / 6ft.)

Rackmount hardware

RELATED PRODUCTS

TEW-639GR 300Mbps Wireless N Gigabit Router

TEW-S24g 24-Port Gigabit GREENnet Switch

TEG-PCITXR Gigabit PCI Adapter

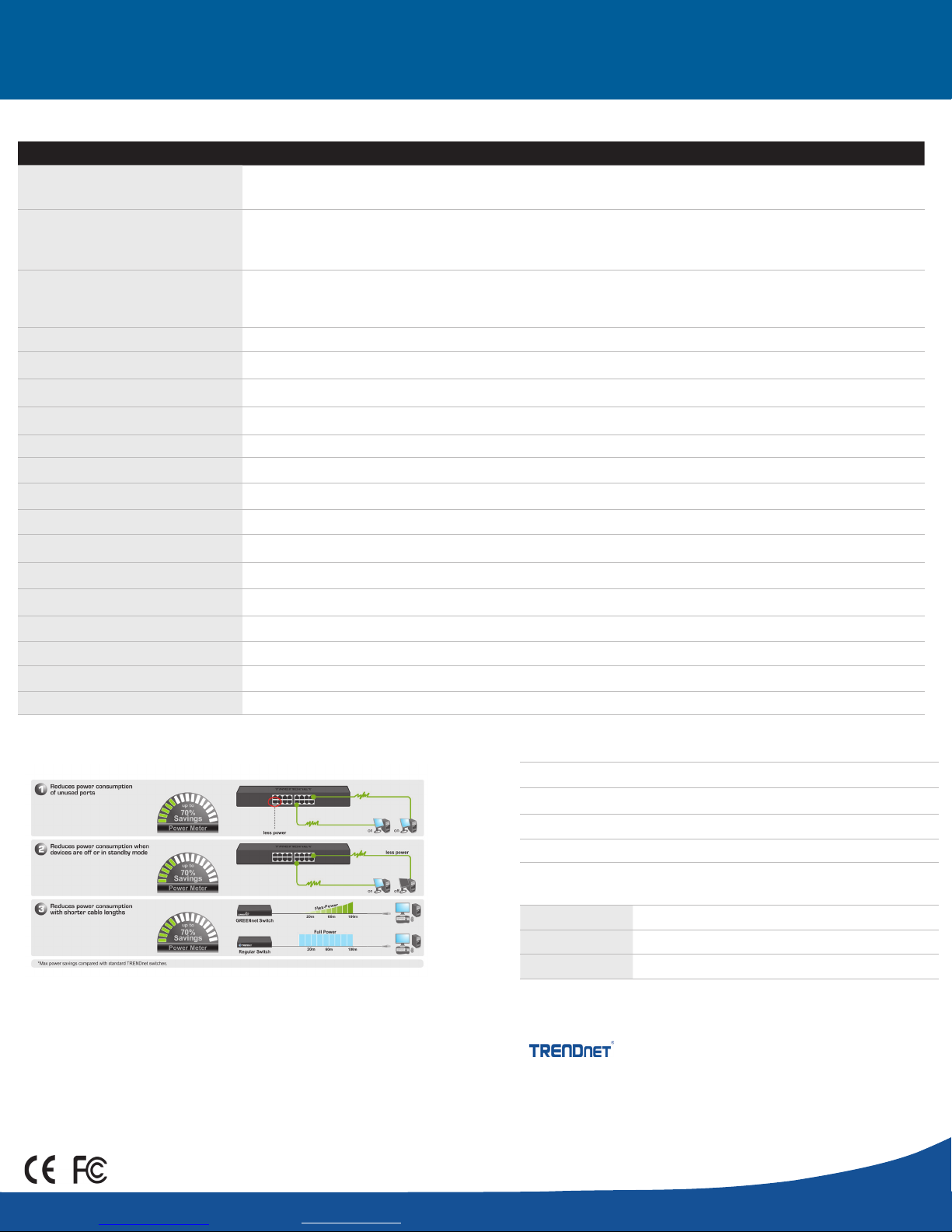

SPECIFICATIONS

HARDWARE

Standards • IEEE 802.3 10Base-T; IEEE 802.3u 100Base-TX

• IEEE 802.3ab 1000Base-T; IEEE 802.3x Flow Control;

Network Media • Ethernet: Cat. 5 up to 100 m

• Fast Ethernet: Cat. 5 and 5e up to 100 m

• Gigabit Ethernet: Cat. 5e and 6 up to 100 m

Data Rate • Ethernet: 10Mbps/20Mbps (half/full-duplex)

• Fast Ethernet: 100Mbps/200Mbps (half/full-duplex)

• Gigabit Ethernet: 2000Mbps (full-duplex)

Protocol / Topology • CSMA /CD, Star

Power Consumption • 7.2 Watts (max.)

Switch Fabric • 32Gbps

Interface • 16 x 10/100/1000Mbps Auto-MDIX RJ-45 ports

Power Button • On / off power button

Data RAM Buffer • 2MBits

Filtering Table • 8K entries

Jumbo Frame Support • Up to 9216Bytes

Diagnostic LED • Power, Link/ACT, 100Mbps, 1000Mbps

Power • 100~240VAC, 50/60Hz Internal universal switching power

Dimension • 440 x 140 x 45 mm (17.4 x 5.5 x 1.8 in.)

Weight • 1.6 kg (3.5 lbs.)

Temperature • Operating: 0° ~ 40° C (32° ~ 104° F) Storage: -10° ~ 70° C (14° ~ 158° F)

Humidity • Max. 90% (non-condensing)

Certications • CE, FCC
