TRENDnet TE100 PCIWN Manual de usuario
Copyright ©2004. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TE100-P21
Version 12.14.04
2-port USB 2.0 and 1 port Parallel Print Server
Quick Installation Guide
Guide d'installation rapide du
serveur d'impression à 2 ports USB 2.0 et 1 port parallèle
Druckserver mit 2 USB-2.0-Ports und 1 Parallelport
Kurzanleitung zur Installation
Guía de instalación rápida del
servidor de impresora de 1 puerto paralelo y 2 puertos USB 2.0
Table of Contents
English ......................................................................................................
Troubleshooting ........................................................................................
1
1
2
3
4
8
11
1. Prepare for Installation ......................................................................
2. Product Detail .....................................................................................
3. Hardware Installation ........................................................................
4. Configure the Print Server ................................................................
5. Add the Network Printer to your PC ..................................................
Thank you for purchasing TRENDnet's TE100-P21 2-port USB 2.0 and 1 port
Parallel Print Server.
This guide will help you set up your Print Server. Following the installations
should be quick and easy. If you run into problems, please refer to the
Troubleshooting section. If you need further technical support, please visit
www.TRENDNET.com or call technical support by phone.
Verify Package Contents
Minimum System Requirements
Please make sure you have everything in the box:
1. Pentium 100Mhz or faster processor
2. 8MB RAM or more
3. Windows 95/98/NT/ME/2000/XP/2003, HP-UX, Sun O.S, Solaris, SCO Unix,
AIX, Unixware, Linux, Mac O.S.
1
1. Prepare for Installation
English QIG
English
TE100-P21
Driver CD-ROM
Quick Installation Guide
Power Adapter (5 V, 2.5A)
Copyright ©2004. All Rights Reserved. TRENDware International, Inc.
TRENDnet
TRENDware, USA
What's Next in Networking
TE100-P21
Version 12.14.04
2-port USB 2.0 and 1 port Parallel Print Server
Quick Installation Guide
Guide d'installation rapide du
serveur d'impression à 2 ports USB 2.0 et 1 port parallèle
Druckserver mit 2 USB-2.0-Ports und 1 Parallelport
Kurzanleitung zur Installation
Guía de instalación rápida del
servidor de impresora de 1 puerto paralelo y 2 puertos USB 2.0
2
2. Product Detail
The Print Server has a RJ-45 connector, two USB 2.0 slots, and one parallel
port. It also has five LEDS that indicate power, network activity, and printer
activity.
English
Parallel Port
Power LED
Reset Button
Power Adapter
Connector
USB Ports
Network LED
RJ-45 Connector
Printer LEDs
3
3. Hardware Installation
1. Power off the Print Server and Printers.
2. Connect the Print Server's printer port to the printers.
3. Connect the RJ45 cable to the LAN port and to your network hub or switch.
4. Plug the AC power adapter into the power connector on the back of the Print
Server.
5. Power on the printer.
English
2
34
4

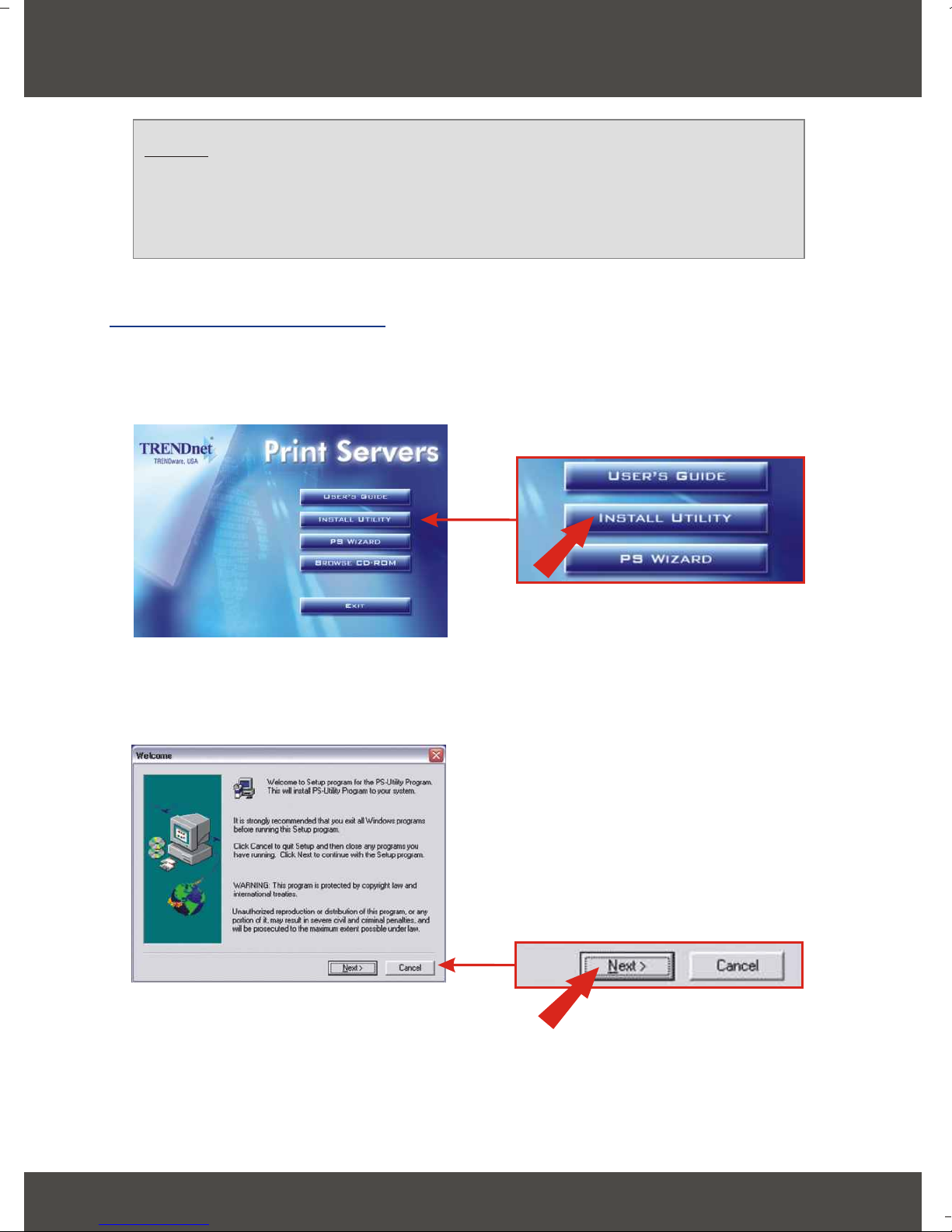

1. Insert the TE100-P21 CD-ROM into your computer's CD-ROM drive.
2. Click Install Utility.
3. Click Next.
4. Configure the Print Server
English
NOTE: For MAC Users, change your computers IP address to
192.168.0.X (where X is an available number from 1-253), and enter
192.168.0.1 in your web browser to access the Print Server's Web
Utility.
For Windows Users
5English
4. Click Next.
5. Click Yes.
6. Click Finish.
6English
7. Double-click PS-Utility icon.
8. The utility will detect any available Print Servers on the network. Select the
Print Server you need to configure and click Change IP Address.
9. Type in the IP address that applies to your existing network. Type in the
Default Gateway (i.e. your router's local IP address).
7English
10. Click OK.
11. Click Show Web Setup.
12. Please take note and write down the Server Name and the Printer Name.
If you connected a USB printer to the USB1 slot, use the Printer Name
that is by the USB1 heading in the web configuration utility. If you
connected a Parallel printer, use the Printer Name that is by the LPT3
heading in the web configuration utility.
Print Server's configuration is now complete. For detail information, please
check the User's Guide that's included on the CD-ROM.
8English
5. Add the Network Printer to your PC
1. For Windows 2000/XP, Click Start Control Panel.
For Windows 95/98/ME, Click Start Settings Control Panel.
2. Double-Click the Printers and Faxes Icon.
3. Click or Double-Click Add Printer.
4. Click Next.
5. Select Network Printer option and click Next.
Note: If you are using Windows 95/98/ME, then make sure that
NETBEUI is installed before you follow the instructions below. If you are
using Windows 2000/XP, then you can simply add your printer using the
instructions below. For TCP/IP Printing instructions, please consult the
User’s Guide on the CD-ROM for details.
For Windows 95/98/ME/2000/XP
