TRENDnet TV-IP311PI Manual de usuario

TV-IP311PI (V1)

Quick Installation Guide

Table of Content

1 English

1. Before You Start

2. Hardware Installation and Configuration

1. Before You Start

Package Contents

ŸTV-IP311PI

ŸCD-ROM (Utility and User's Guide)

ŸQuick Installation Guide

ŸMounting kit

Minimum Requirements

ŸPower over Ethernet (PoE) switch (e.g. TPE-S50) or PoE Injector (e.g. TPE-113GI)

ŸA networked computer and web browser

ŸWired network

ŸNetwork cable

Free Mobile App: TRENDnet IPView Requirements

Supported Operating Systems

Android (version 2.3.3 or above)

iOS (version 5.1.1 or above)

Note: The TV-IP311PI only works with Power over Ethernet (PoE) devices that follow the IEEE

802.3af standard.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

2. Hardware Installation and Configuration

1. Do not install or mount the IP camera until after you complete the installation steps below.

Temporarily place the IP camera next to your computer.

2. Insert the Utility CD-ROM into your CD-ROM drive.

3. Click Install Camera Utility.

Note: You can also download the utility at http://www.trendnet.com/support/TV-IP311PI.

4 Run the utility and you will see your camera is set to Inactive under security..

5. After the utility is done scanning. Click on the IP address section of the camera you would like

to access.

6. Once you get to the login page you will be prompted to change the password. Please follow the

password requirements and enter your new password.

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

7. Once you login the camera will prompt you for a password change. Please change the default

password.

8. Now you can access the camera's configuration page for Live view and additional settings. For

more details, please refer to the User's Guide.

9. Scan the QR code below to download a free mobile app to view the camera from your IOS or

Android device. Please refer to the quick install guide for instructions on how to setup your

camera in the app from your cameras download page at www.TRENDnet.com.

Android iOS

Using the TV-IP311PI with a PoE switch (TPE-S50)

ŸConnect the provided network cable from the Power over Ethernet switch (e.g. TPE-S50) to

the network port on the IP Camera.

ŸConnect the switch to your network.

TV-IP311PI

PoE

Internet

Switch

Power

ENGLISHFRANÇAISDEUTSCH

ESPAÑOLРORTUGUÊS

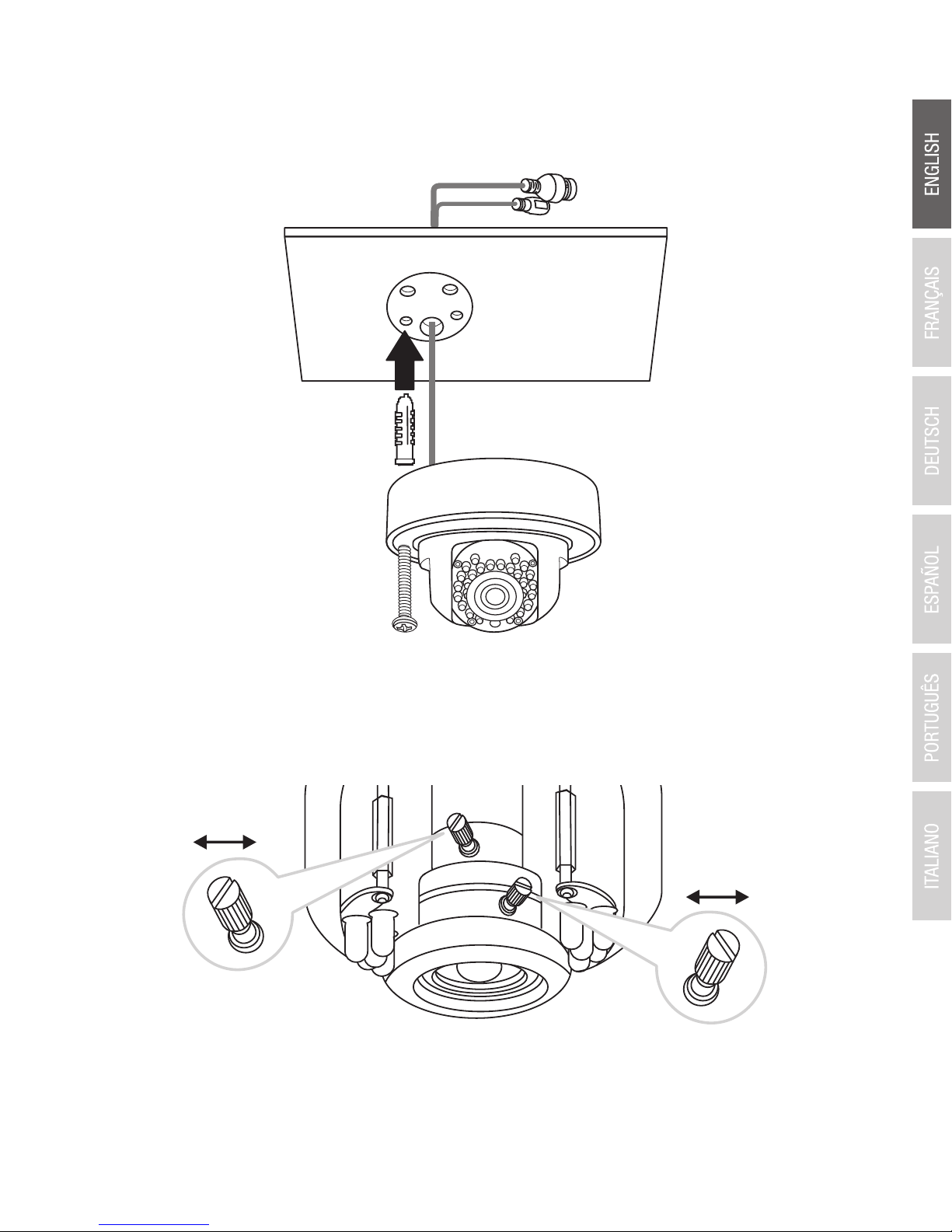

Mounting the camera

Note: For tips on capturing appropriate camera viewing angle, please refer to the user's guide.

1. Loosen the adjustable nut and manually position the camera as desire.

2. Place the provided template label on the wall or ceiling.

3. Drill holes at each marked position on the template. Make sure the drill bit matches the size of

the holes on the template.

4. Insert the provided screw anchors into the holes.

5. Insert the cables through the hole in the wall or ceiling.

6. Align the mounting bracket with the screw anchors, and then use the provided screws to

secure the camera to the mounting surface.

7. Manually adjust the zoom and focus. Using the free app, confirm the zoom and focus matches

installation requirements.

8. Refer to User's Guide for more details on installation and configuration.

Zoom

Focus

Directives:

TRENDnet hereby declare that the product is in compliance with the essential requirements and

other relevant provisions under our sole responsibility.

This product is herewith confirmed to comply with the Directives.

Product Information

Product Name:

Model Number: TV-IP311PI

Trade Name: TRENDnet

Indoor / Outdoor 3MP Full HD PoE Dome Day / Night Network Camera

EMC

Person responsible for this declaration.

Title: Director of Technology

Place of Issue: Torrance, California, USA

Name: Sonny Su

Signature:

EN 55022: 2010 + AC: 2011 Class A

EN 61000-3-2: 2006 + A1: 2009 + A2: 2009

EN 61000-3-3: 2008

EN 50130-4: 2011 + A1: 2014

Directive LVD 2014/35/EU

Directive EMC 2014/30/EU

Directive RoHS 2011/65/UE

REACH Réglement (CE) N° 1907/2006

Manufacturer’s Name and Address

TRENDnet, Inc.

20675 Manhattan Place

Torrance, CA 90501 USA

Zwolsestraat 156 2587 WB

The Hague The Netherlands

Date: January 05, 2017
