TRENDnet TE100-PS3plus Manual de instrucciones

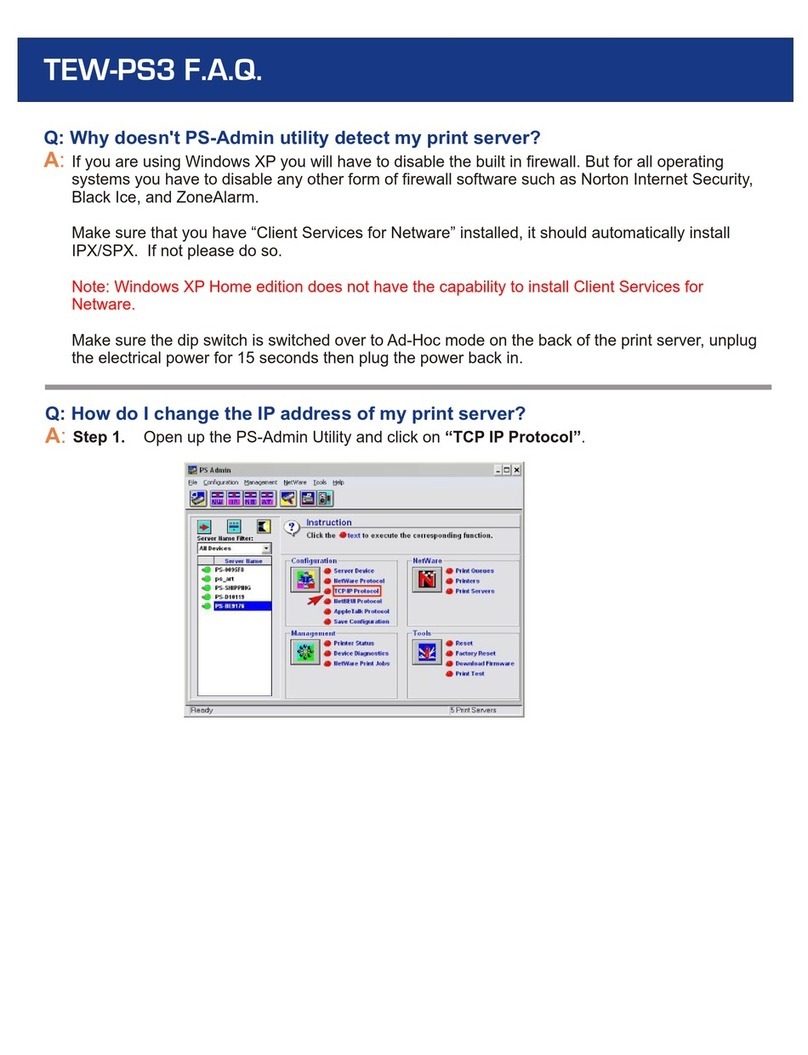

Q: Why doesn't PS-Admin utility detect my print server?

A:

Q: How do I change the IP address of my print server?

A:

If you are using Windows XP you will have to disable the built in firewall. But for all operating

systems you have to disable any other form of firewall software such as Norton Internet Security,

Black Ice, and Zone Alarm.

Make sure that you have “Client Services for Netware” installed, it should automatically install

IPX/SPX. IF not please do so. Note: Windows XP Home edition does not have the capability to

install Client Services for Netware.

Step 1. Open up the PS-Admin Utility and click on TCP IP Protocol.

Step 2. Change IP Address:

In this dialog box, you can Manually Assign. When completed, click OK.

TE100-PS3plus F.A.Q.

Q: How do I find the Port Name of the Print Server?

A:Step 1. Click on “Server Device”.

Step 2. Click on the port that you have your printer plugged into.

Step 3. Write down the Port Names for future reference.

TE100-PS3plus F.A.Q.

Q: How do I install my printer on Windows 95/98/ME?

A:In Windows 98/Me you will need to install the LPR client.

For Windows 98/ME you will also need to know the port name that you are printing to (The Port

Name is the PS-xxxxxx-P1, X being the actual number listed in the Port Name box).

Installing LPR:

Step 1. Once the file is downloaded and extracted, Go to Start > Settings > Control Panel >

double-click on Networks. Click on Add.

Step 2. Highlight Client and click on Add.

Step 3. Click on Have Disk > Browse. Browse to the location of the extracted LPR Client.

TE100-PS3plus F.A.Q.

Step 4. Click OK 3 times.

Step 5. From the list highlight LPR For TCP/IP and click on Properties.

Step 6. Click on Add Port.

TE100-PS3plus F.A.Q.

In the top field type in the IP address of your print server. In the bottom field type in the port name

of your print server, For the TEW-P1P/U the port name is lp1. For the P2U1P the port names are

lp1 for the parallel, lp2 for the top USB and lp3 for the bottom USB. Click on “OK”.

Step 7. Click on OK. Windows will ask you to restart. Click Yes.

LPR is now properly installed on your computer.

Printer Installation

Step 1. Open your printers folder. Go to Start > Settings > Printers.

Step 2. Double-click on the Add Printer icon which will launch the Add Printer Wizard.

TE100-PS3plus F.A.Q.

Select Network Printer and click on Next.

Step 3. Click on the Browse button and browse to the print server.

TE100-PS3plus F.A.Q.

Highlight the Print Server and click on OK to return to the Add Printer Wizard.

Click on Next. If you are unable to do this you can manually enter the Print Server by using two

backlashes, the IP address, one backlash and the port name of you printer.

Step 4. You will now be asked to select a printer to install.

TE100-PS3plus F.A.Q.

If you can not find your printer from the list, click on the Have Disk button and browse to the

printer drivers for your printer (floppy, CD, or downloaded).

Step 5. If you find your printer in the list, click on it and then click on OK. Windows will install the

drivers.

Step 6. Once the drivers been installed, click Finish to complete the installation. You may be

prompted for your Windows CD. If you are prompted for the CD, browse to the Win98 f

older on the Windows CD and click on OK

Step 7. After the drivers have been installed for your printer, you will be prompted to print a test

page. Select Yes and click on Finish.

Step 1. Go to Start>Settings>Printers>Add New Printer (Win XP - Start>Printers and

Faxes>Add a Printer).

Step 2. Select Local Printer. Make sure to uncheck Automatically detect and install my plug

and play printer. Click Next.

Q: How do I install my printer on Windows 2000/XP?

A:

TE100-PS3plus F.A.Q.

Step 3. Select Create a New Port and select Standard TCP/IP port. Click Next.

Step 4. Enter the IP address of the router (192.168.0.1). Leave the port name with the default

name. Click Next.

TE100-PS3plus F.A.Q.

Step 5. You will get a message saying that additional port information required.

Step 6. Select Custom and then click Settings.

Step 7. Set Protocol to LPR.

Step 8. For the LPR Settings for the TE100-PS3 Plus the “Queue Name” will be PS-xxxxxx-

P1, X being the actual number listed in the Port Name box. It is case sensitive!

TE100-PS3plus F.A.Q.
