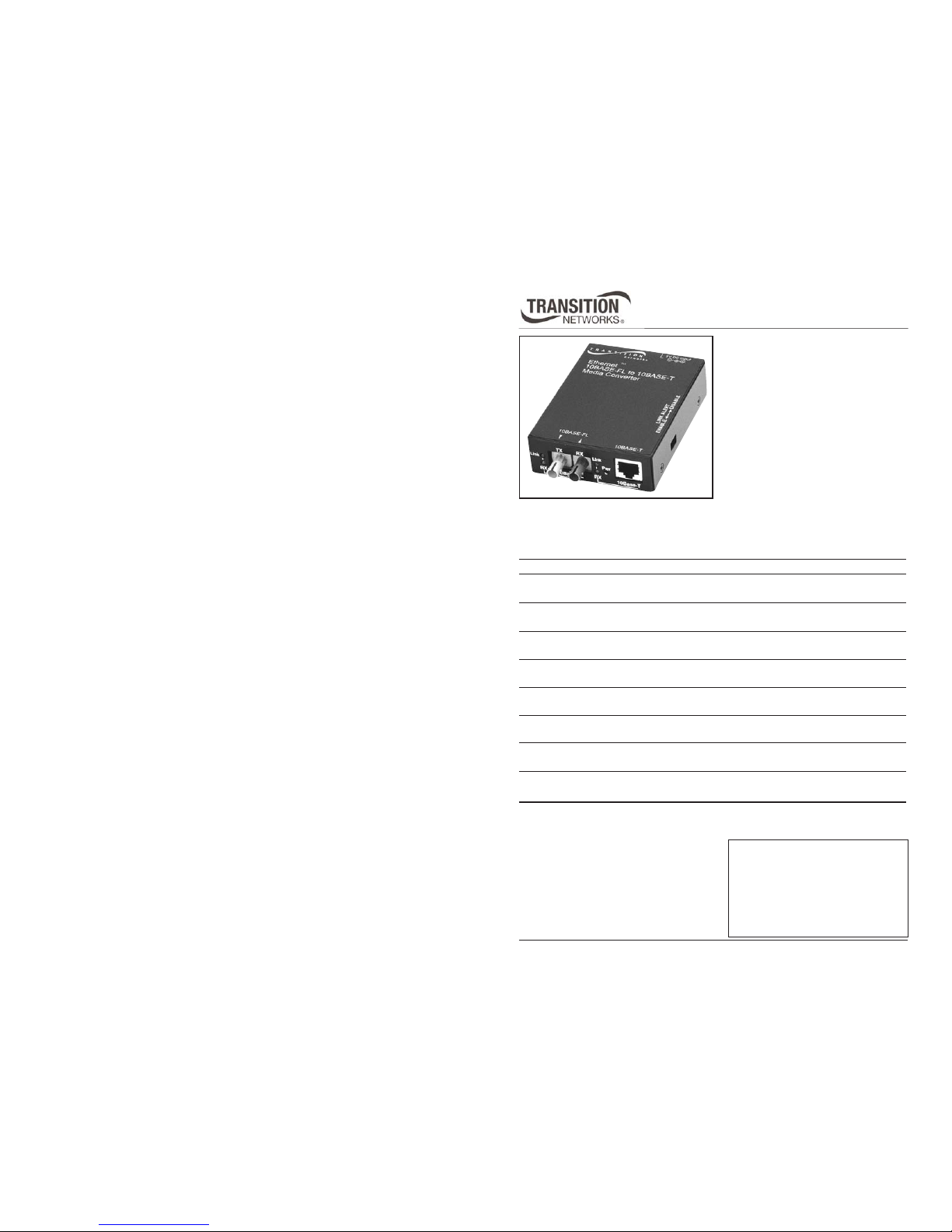

User’s Guide

E-TBT-FRL-05

Stand-Alone Media Converter

•Ethernet

• Copper to Fiber

• 10Base-T to 10Base-FL

Transition Networks E-TBT-FRL-05

series Ethernet 10Base-T to 10Base-FL

media converters connect 10 Mb/s

twisted-pair copper cable to 10 Mb/s

fiber-optic cable.

Standard Temperature Models:

The following models are designed for standard temperature environments ranging

from 0°C to 50°C (32°F to 122°F).

* Typical maximum cable distance. Actual

distance is dependent upon the physical

characteristics of the network installation. Installation . . . . . . . . . . . . . . . . . .3

Operation . . . . . . . . . . . . . . . . . . .5

Technical Specifications . . . . . . . .6

Cable Specifications . . . . . . . . . . .7

Troubleshooting . . . . . . . . . . . . .10

Compliance Information . . . . . . .12

Part Number Port One - Copper Port Two - Duplex Fiber-Optic

E-TBT-FRL-05 RJ-45, 10Base-T

100 m (328 ft)*

ST, 10Base-FL, 850 nm multimode

2 km (1.2 miles)*

E-TBT-FRL-05(L) RJ-45, 10Base-T

100 m (328 ft)*

ST, 10Base-FL, 1300 nm multimode

5 km (3.1 miles)*

E-TBT-FRL-05(LH) RJ-45, 10Base-T

100 m (328 ft)*

ST, 10Base-FL, 1310 nm singlemode

40 km (24.9 miles)*

E-TBT-FRL-05(MT) RJ-45, 10Base-T

100 m (328 ft)*

MT-RJ , 10Base-FL, 850 nm multimode

2 km (1.2 miles)*

E-TBT-FRL-05(SC) RJ-45, 10Base-T

100 m (328 ft)*

SC , 10Base-FL, 850 nm multimode

2 km (1.2 miles)*

E-TBT-FRL-05(SM) RJ-45, 10Base-T

100 m (328 ft)*

ST , 10Base-FL, 1310 nm singlemode

20 km (12.4 miles)*

E-TBT-FRL-05(XC) RJ-45, 10Base-T

100 m (328 ft)*

SC, 10Base-FL, 1310 nm singlemode

20 km (12.4 miles)*

E-TBT-FRL-05(LW) RJ-45, 10Base-T

100 m (328 ft)*

SC, 10Base-FL, 1550 nm singlemode

80km (49.7 miles)*

224-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

E-TBT-FRL-05

Optional Accessories: (sold separately)

Part Number Description

SPS-1872-SA Optional External Power Supply; 18-72VDC Stand-Alone

Output: 12.6VDC, 1.0 A

SPS-1872-CC Optional External Power Supply; 18-72VDC Piggy-Back

Output: 12.6VDC, 1.0 A

E-MCR-04 12-Slot Media Converter Rack (includes universal internal power

supply) 17 x 15 x 5 in. (432 x 381 x 127 mm)

WMBS Optional Wall Mount Brackets

Length: 3.2 in. (81 mm), Fits converter length: 3.9 in. (99 mm)

WMBV Optional Vertical Mount Bracket; 5.0 in. (127 mm)

WMBD Optional DIN Rail Mount Bracket; 5.0 in. (127 mm)

WMBD-FS Optional DIN Rail Mount Bracket (flat, small); 3.1in. (79 mm)

Extended Temperature Models:

The following models are designed for extended temperature environments ranging

from -25°C to 70°C (-13°F to 158°F):

* Typical maximum cable distance. Actual distance is dependent upon the

physical characteristics of the network installation.

Part Number Port One - Copper Port Two - Duplex Fiber-Optic

E-TBT-FRL-05(HT) RJ-45, 10Base-T

100 m (328 ft)*

ST, 10Base-FL, 850 nm multimode

2 km (1.2 miles)*

E-TBT-FRL-05(SCHT) RJ-45, 10Base-T

100 m (328 ft)*

SC , 10Base-FL, 850 nm multimode

2 km (1.2 miles)*

E-TBT-FRL-05(SMHT) RJ-45, 10Base-T

100 m (328 ft)*

ST, 10Base-FL, 1310 nm singlemode

20 km (12.4 miles)*

E-TBT-FRL-05(XCHT) RJ-45, 10Base-T

100 m (328 ft)*

SC, 10Base-FL, 1310 nm singlemode

20 km (12.4 miles)*

E-TBT-FRL-05(XLHT) RJ-45, 10Base-T

100 m (328 ft)*

SC, 10Base-FL, 1310 nm singlemode

50 km (31.1 miles)*

Installation

Set the LinkAlert™ Switch

The LinkAlert switch is located on the side of the

media converter. Use a small flat-blade screwdriver or

a similar device to set the recessed switch:

Left = Enables the LinkAlert function

Right = Disables the LinkAlert function.

The LinkAlert feature allows the media converter to monitor both the fiber and

copper RX (receive) ports for loss of signal. In the event of a loss of an RX

signal, the media converter will automatically disable the TX (transmit) signal,

thus, “passing through” the link loss. The far-end device is automatically

notified of the link loss, which prevents the loss of valuable data unknowingly

transmitted over an invalid link.

Note: The enable/disable switch allows the LinkAlert feature to be disabled.

LinkAlert may interfere with the Auto-Negotiation feature of other devices in

networks where there are two media converters installed in series.

AutoCross™ Feature

The AutoCross feature detects and configures the twisted-pair copper port on

the E-TBT-FRL-05 media converter to the correct straight-through (MDI) or

crossover (MDI-X) configuration. This feature allows either MDI or MDI-X

cable to connect the media converter to devices such as hubs, transceivers, or

network interface cards (NICs). (Requires no operator intervention).

[email protected] -- Click the “Transition Now” link for a live Web chat. 3

Media

Converter A

Media

Converter B

Near-End

Device

Far-End

Device

original fault

on the copper link media converter B

disables the copper lin

media converter A

disables the fiber TX link

media converter B

loses the fiber RX link

Enable LinkAlertTM

Disable LinkAlertT

424-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

E-TBT-FRL-05

Installation -- Continued

Install the Copper Cable

1. Locate or build 10Base-T compliant copper cables with male, RJ-45

connectors installed at both ends.

2. Connect the RJ-45 connector at one end of the cable to the RJ-45 port on

the E-TBT-FRL-05 media converter.

3. Connect the RJ-45 connector at the other end of the cable to the RJ-45

port on the other device (switch, workstation, etc.).

RJ-45 port

on the other device

(switch, work station, etc.)

RJ-45 port

on the media

converter

Install the Fiber Cable

1. Locate or build 10Base-FL compliant fiber cable with male, two-stranded

TX to RX connectors installed at both ends.

2. Connect the fiber cables to the E-TBT-FRL-05 media converter as

described:

• Connect the male TX cable connector to the female TX port.

• Connect the male RX cable connector to the female RX port.

3. Connect the fiber cables to the other device (another media converter,

hub, etc.) as described:

• Connect the male TX cable connector to the female RX port.

• Connect the male RX cable connector to the female TX port.

Connect the fiber cable

to the media converter

as shown.

Connect the fiber cable

to the other device

(media converter,

hub, etc.) as shown

[email protected] -- Click the “Transition Now” link for a live Web chat. 5

Installation -- Continued

Power the Media Converter

1. Install the power adapter cord to the back of the media converter.

2. Connect the power adapter plug to AC power.

3. Verify that the media converter is powered by observing the illuminated

LED power indicator light.

Consult the user’s guide for the Transition Networks SPS1872-xx DC external

power supply for powering the media converter.

Operation

After installation, the media converter should function without operator

intervention. Use the status LEDs to monitor media converter operation in the

network.

Pwr (Power) On = A connection to external AC power.

RX (Fiber) On = Data reception on the 10Base-FL link.

Link (Fiber) On = A good 10Base-FL link and normal operation.

Off = Lack of power or a downed 10Base-FL link.

RX (Copper) On = Data reception on the 10Base-T link.

Link (Copper) On = A good 10Base-T link and normal operation.

Off = Lack of power or a downed 10Base-T link.

Link

Pwr

10Base-T10Base-FL

10Base-FL (fiber) LEDs

10Base-T (copper) LED

RX RX

624-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

E-TBT-FRL-05

Technical Specifications

Standards IEEE 802.3™

Data Rate 10 Mb/s

Case Dimensions 3.9" x 3.0" x 1.0" (99mm x 76mm x 25mm)

Shipping Weight 6 oz. (181 g)

Power Supply E-TBT-FRL-05, E-TBT-FRL-05(SC), E-TBT-FRL-05(SM),

DC Output E-TBT-FRL-05(L), E-TBT-FRL-05(MT), E-TBT-FRL-05(LH),

E-TBT-FRL-05(XC), E-TBT-FRL-05(LW): 12VDC, 0.5 A

(minimum)

E-TBT-FRL-05(HT), E-TBT-FRL-05(SCHT),

E-TBT-FRL-05(SMHT), E-TBT-FRL-05(XCHT),

E-TBT-FRL-05(XLHT): 9VDC, 1.0 A (minimum)

minimum output regulation: 5%

Connector: 2.1mm barrel, center pin positive

MTBF 54,337 hours (MIL217F2 V5.0) (MIL-HDBK-217F)

131,255 hours (Bellcore7 V5.0)

Tmra* E-TBT-FRL-05, E-TBT-FRL-05(SC), E-TBT-FRL-05(SM),

E-TBT-FRL-05(L), E-TBT-FRL-05(MT), E-TBT-FRL-05(LH),

E-TBT-FRL-05(XC) E-TBT-FRL-05(LW): 0°C to 50°C

(32°F to 122°F)

E-TBT-FRL-05(HT), E-TBT-FRL-05(SCHT),

E-TBT-FRL-05(SMHT), E-TBT-FRL-05(XCHT),

E-TBT-FRL-05(XLHT): -25°C to 70°C (-13°F to 158°F)

Environment Storage Temperature: -20°C to 85°C (-4°F to 185°F)

Humidity: 5 to 95%, non condensing

Altitude: 0 to 10,000 feet

Warranty Lifetime

*Manufacturer’s rated ambient temperature.

Product is certified by the manufacturer to comply with DHHS Rule 21/CFR,

Subchapter J applicable at the date of manufacture.

WARNING: Visible and invisible laser radiation when open. Do not stare into the beam or

view the beam directly with optical instruments. Failure to observe this warning could result

in an eye injury or blindness.

WARNING: Use of controls, adjustments or the performance of procedures other than those

specified herein may result in hazardous radiation exposure.

IMPORTANT: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232,

RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra-building

(inside plant) link segments that are not subject to lightening transients or power faults.

Copper-based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, RS422, RS485,

DS1, DS3, Video Coax, etc., are NOT to be connected to inter-building (outside plant) link

segments that are subject to lightening transients or power faults.

The fiber optic transmitters on this device meet Class I Laser safety requirements

[email protected] -- Click the “Transition Now” link for a live Web chat. 7

Crossover Cable

Straight-Through Cable

Twisted Pair #1

Twisted Pair #2

Cable Specifications

Copper Cable

Category 3: (minimum requirement)

Gauge 24 to 22 AWG

Attenuation 11.5 dB/100m @ 5-10 MHz

Maximum Cable Distance 100 meters

• Straight-through or crossover cable may be used.

• Do not use flat or silver satin wire.

• Shielded twisted-pair (STP) or unshielded twisted-pair (UTP) may be used.

• Pins 1&2 and 3&6 are the two active pairs in an Ethernet network .

• RJ-45 Pin-out: Pin 1 = TD+, Pin 2 = TD-, Pin 3 = RD+, Pin 6 = RD-

• Use only dedicated wire pairs for the active pins:

(e.g., blue/white & white/blue, orange/white & white/orange, etc.)

824-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

E-TBT-FRL-05

Cable Specifications -- Continued

The physical characteristics must meet or exceed IEEE 802.3™ specifications.

Fiber Cable

Bit Error Rate: <10-9

Singlemode fiber (recommended): 9 µm

Multimode fiber (recommended): 62.5/125 µm

Multimode fiber (optional): 100/140, 85/140, 50/125 µm

Standard Temperature Models: 0°C to 50°C (32°F to 122°F)

E-TBT-FRL-05 850 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -10.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

E-TBT-FRL-05(L) 1300 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -15.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

E-TBT-FRL-05(LH) 1310 nm singlemode

Fiber Optic Transmitter Power: min: -15.0 dBm max: -5.0 dBm

Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm

Link Budget: 19.0 dB

E-TBT-FRL-05(MT) 850 nm multimode

Fiber-optic Transmitter Power: min: -16.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -29.5 dBm max: -7.2 dBm

Link Budget: 13.5 dB

E-TBT-FRL-05(SC) 850 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -10.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

E-TBT-FRL-05(SM) 1310 nm singlemode

Fiber Optic Transmitter Power: min: -27.0 dBm max: -10.0 dBm

Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm

Link Budget: 7.0 dB

E-TBT-FRL-05(XC) 1310 nm singlemode

Fiber Optic Transmitter Power: min: -27.0 dBm max: -10.0 dBm

Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -14.0 dBm

Link Budget: 7.0 dB

E-TBT-FRL-05(LW) 1550 nm singlemode

Fiber Optic Transmitter Power: min: -5.0 dBm max: -0.0 dBm

Fiber Optic Receiver Sensitivity: min: -34.0 dBm max: -3.0 dBm

Link Budget: 29.0 dB

[email protected] -- Click the “Transition Now” link for a live Web chat. 9

Cable Specifications -- Continued

Extended Temperature Models: -25°C to 70°C (-13°F to 158°F)

E-TBT-FRL-05(HT) 850 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -10.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

E-TBT-FRL-05(SCHT) 850 nm multimode

Fiber Optic Transmitter Power: min: -19.0 dBm max: -10.0 dBm

Fiber Optic Receiver Sensitivity: min: -32.5 dBm max: -14.0 dBm

Link Budget: 13.5 dB

E-TBT-FRL-05(SMHT) 1310 nm singlemode

Fiber-optic Transmitter Power: min: -15.0 dBm max: -8.0 dBm

Fiber-optic Receiver Sensitivity: min: -38.0 dBm max: -8.0 dBm

Link Budget: 23.0 dB

E-TBT-FRL-05(XCHT) 1310 nm singlemode

Fiber-optic Transmitter Power: min: -16.0 dBm max: -10.0 dBm

Fiber-optic Receiver Sensitivity: min: -29.5 dBm max: -7.2 dBm

Link Budget: 13.5 dB

E-TBT-FRL-05(XLHT) 1310 nm singlemode

Fiber Optic Transmitter Power: min: -5.0 dBm max: 0.0 dBm

Fiber Optic Receiver Sensitivity: min: -38.0 dBm max: -8.0 dBm

Link Budget: 33.0 dB

10 24-hour Technical Support: 1-800-260-1312 International: 00-1-952-941-7600

E-TBT-FRL-05

Troubleshooting

If the media converter fails, isolate and correct the failure by determining the

answers to the following questions and then taking the indicated action:

1. Is the power LED on the media converter illuminated?

• Is the power adapter the proper voltage and frequency for AC outlet?

Refer to “Power Supply” on page 6.

• Is the power adapter properly installed in the media converter and in

the outlet?

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 2.

2. Is the 10Base-T link LED illuminated?

• Check the twisted-pair cables for proper connection.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 3.

3. Is the 10Base-FL link LED illuminated?

• Check the fiber cables for proper connection.

• Verify that the TX and RX cables on the media converter are

connected to RX and TX ports, respectively, on the other device.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 4.

4. Is the 10Base-T RX LED illuminated?

• Disconnect and reconnect the 10Base-T cable to restart the

initialization process.

• Restart the attached device to restart the initialization process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Proceed to step 5.

5. Is the 10Base-FL RX LED illuminated?

• Disconnect and reconnect the 10Base-FL cable to restart the

initialization process.

• Restart the attached device to restart the initialization process.

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

YES

• Contact Tech Support: 1-800-260-1312, Int’l: 00-1-952-941-7600.

[email protected] -- Click the “Transition Now” link for a live Web chat. 11

Technical Support

Technical support is available 24 hours a day.

US and Canada: 1-800-260-1312

International: 00-1-952-941-7600

Transition Now

Chat live via the Web with Transition Networks Technical Support.

Log onto www.transition.com and click the Transition Now link.

Web-Based Seminars

Transition Networks provides seminars via live web-based training.

Log onto www.transition.com and click the Learning Center link.

E-Mail

Ask a question anytime by sending an e-mail to our technical support staff.

[email protected]

Address

Transition Networks

6475 City West Parkway

Minneapolis, MN 55344, U.S.A.

telephone: 952-941-7600

toll free: 800-526-9267

fax: 952-941-2322

Declaration of Conformity

Name of Mfg: Transition Networks

6475 City West Parkway, Minneapolis MN 55344 U.S.A.

Model: E-TBT-FRL-05 Series Media Converter

Part Number: E-TBT-FRL-05, E-TBT-FRL-05(SC), E-TBT-FRL-05(SM), E-TBT-FRL-05(L),

E-TBT-FRL-05(MT), E-TBT-FRL-05(LH), E-TBT-FRL-05(XC), E-TBT-FRL-05(LW),

E-TBT-FRL-05(HT), E-TBT-FRL-05(SCHT), E-TBT-FRL-05(SMHT), E-

TBT-FRL-05(XCHT),E-TBT-FRL-05(XLHT)

Regulation: EMC Directive 89/336/EEC

Purpose: To declare that the

E-TBT-FRL-05

to which this declaration refers is in

conformity with the following standards.

EN 55022:1998 Class A; EN 55024:1998; FCC Part 15 Subpart B; 21 CFR Subpart J;

EN 61000-3-2:1995+A14:2000; EN61000-3-3:1995; UL 1950

I, the undersigned, hereby declare that the equipment specified above conforms to the above

Directive(s) and Standard(s).

July 13, 2006_____

Stephen Anderson, Vice-President of Engineering Date

Compliance Information

UL Listed; C-UL Listed (Canada)

CISPR22/EN55022 Class A + EN55024; CE Mark

FCC Regulations

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference, in which case the user will be required to correct the

interference at the user's own expense.

Canadian Regulations

This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus

set out on the radio interference regulations of the Canadian Department of Communications.

Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites

applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le

brouillage radioélectrique édicté par le ministère des Communications du Canada.

European Regulations

Warning

This is a Class A product. In a domestic environment this product may cause radio

interference in which case the user may be required to take adequate measures.

Achtung!

Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb

dieses Gerätes Rundfunkstörungen auftreten. In diesem Fäll ist der Benutzer für

Gegenmaßnahmen verantwortlich.

Attention!

Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer

des interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures

spécifiques appropriées.

Trademark Notice

All trademarks and registered trademarks are the property of their respective owners.

means - graphic, electronic, or mechanical - without written permission from Transition

Networks.

Printed in the U.S.A. 33237.G

In accordance with European Union Directive 2002/96/EC of the European Parliament

and of the Council of 27 January 2003, Transition Networks will accept post usage

returns of this product for proper disposal. The contact information for this activity can

be found in the 'Contact Us' portion of this document.

CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE

PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in

damage to the public telephone network.

Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-

Mitgliedstaaten verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der

Richtlinie 91/263/EWG zur Angleichung der Rechtsvorschriften der Mitgliedstaaten über

Telekommunikationsendeinrichtungen einschliesslich der gegenseitigen Anerkennung ihrer

Konformität.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Transition Networks

Transition Networks

Transition Networks M/GE-xSW-SFP-01-xx-U Series Manual de usuario

Transition Networks

Transition Networks CGETF10XX-10X Manual de usuario

Transition Networks

Transition Networks SAPTF33 series Manual de usuario

Transition Networks

Transition Networks SPSVT26xx-100 Manual de usuario

Transition Networks

Transition Networks Stand-Alone Media Converter S4TEF10xx-11x Manual de usuario

Transition Networks

Transition Networks SBFTF1011-120 Manual de usuario

Transition Networks

Transition Networks F-SM-MM-06(XL) Manual de usuario

Transition Networks

Transition Networks M/E-PSW-FX-01SC Manual de usuario

Transition Networks

Transition Networks SPOEB1011-100 Manual de usuario

Transition Networks

Transition Networks CRS2F31-100 Series Manual de usuario

Transition Networks

Transition Networks SRS4F3111-100 Manual de usuario

Transition Networks

Transition Networks SFMFF4040-100 Manual de usuario

Transition Networks

Transition Networks SPSVT2611-100 Manual de usuario

Transition Networks

Transition Networks SI-IES-111D-LRT Manual de usuario

Transition Networks

Transition Networks ION001-A Manual de usuario

Transition Networks

Transition Networks E-100BTX-FX-05(10x) Manual de usuario

Transition Networks

Transition Networks E-TX-SX-02 Manual de usuario

Transition Networks

Transition Networks AS4TEF10xx-10x Manual de usuario

Transition Networks

Transition Networks SPS-1872-CC Manual de usuario

Transition Networks

Transition Networks CFETF1011-205 Manual de usuario

Transition Networks

Transition Networks SRS4F3111-100 Manual de usuario

Transition Networks

Transition Networks CFETF1029-205 Manual de usuario

Transition Networks

Transition Networks RS232-CF-01 Manual de usuario

Transition Networks

Transition Networks SSDTF1011-105 Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
