Transcend TS0MFLRD8B Manual de usuario

USB2.0 Internal Multi-Card Reader

Transcend Information, Inc.

Description

TS0MFLRD8B is a USB2.0 Internal Multi-Card Reader

with 4 slots, which are for CompactFlashType I/II,

Microdrive™, SmartMedia, Secure Digital, Mini SD

(with adapter), MultiMediaCard™, RS-MMC (with

adapter), Memory Stick®, Memory Stick PRO®, Memory

Stick Duo®(with adaptor) and Memory Stick PRO Duo®

(with adaptor).

Outline

System Requirements

•Desktop computer with an onboard USB pin-header and

3.5” drive bay

•One of the following operating systems:

- Win®98SE, Win®2000, Win®Me, Win®XP

- Linux kernel 2.4 or later

Features

•Front Panel: Black

•Single Power Supply: 3.3V / 5V ±10%

•Durability of Connector: 10,000 times

•Recommended Operating Temperature: 0 – 40 ℃

•Recommended Storage Temperature: -10 – 60 ℃

•Compliant with USB specification version 2.0

•Hi-Speed with transfer rate up to 480 Mbps

•Support CompactFlash™ Type I/II, IBM Microdrive,

SmartMediaCard, Secure Digital, Mini SD (with

adapter), MultiMediaCard, RS-MMC (with adapter),

Memory Stick®, Memory Stick PRO®, Memory Stick

Duo®(with adaptor) and Memory Stick PRO Duo®(with

adaptor)

•LEDs indicate card insertion and data traffic

Dimensions

Side Millimeters Inches

A 102.00 ±1.00 4.02 ±0.04

B 102.00

±1.00 4.02 ±0.04

C 26.00 ±1.00 1.02 ±0.04

USB2.0 Internal Multi-Card Reader

Transcend Information, Inc.

Block Diagram

Pinouts

Pin No. Pin Name

01 VCC

02 USB-

03 USB+

04 VSS

05 NC / SG

Pin Identification

Symbol Function

USB-

USB+

USB differential signal:

The pairs are used to transmit

Data/Address/Command

VSS Ground

VCC USB Power Input

NC / SG Not Connect / Shield Ground

USB2.0 Internal Multi-Card Reader

Transcend Information, Inc.

Absolute Maximum Ratings

Symbol Parameter Min. Max. Unit

Vcc Input Voltage 2.6 5 V

Vss Input Ground Voltage 0 0.7 V

Ta Operating Temperature 0 +40 °C

Ts Storage Temperature -10 +60 °C

DC Characteristics

(Ta = 0 °C to +40 °C, Vcc = 5V, Freq = 12MHz)

Symbol Parameter Min. Typ. Max. Unit Test Conditions

Vs Supply Voltage 3.0 3.3 3.6 V --

Voh Output High Voltage 3.0 -- -- V --

Vol Output High Voltage -- -- 0.2 V --

Above technical information is based on industry standard data and tested to be reliable. However, Transcend makes no

warranty, either expressed or implied, as to its accuracy and assumes no liability in connection with the use of this

product. Transcend reserves the right to make changes in specifications at any time without prior notice.

Otros manuales para TS0MFLRD8B

Otros manuales de Lector de tarjetas de Transcend

Transcend

Transcend USB 2.0 Compact Card Reader TS-RDS1 Manual de usuario

Transcend

Transcend Compact Card Reader S1 Manual de usuario

Transcend

Transcend Multi-Card Reader Manual de usuario

Transcend

Transcend TS0/128/256MFLRD7 Manual de usuario

Transcend

Transcend Multi-Card Reader M5 Manual de usuario

Transcend

Transcend USB2.0 Portable Card Reader TS-RDS6W Manual de usuario

Transcend

Transcend USB2.0 6-in-1 Card Reader TS0MFLRD6A Manual de usuario

Transcend

Transcend TS0MFLRD8E Manual de usuario

Transcend

Transcend TS-RDM5W/R Manual de usuario

Transcend

Transcend TS0MFLRD6E Manual de usuario

Transcend

Transcend 3-in-1 Card Reader/Writer TS0MFLRD Manual de usuario

Transcend

Transcend TS-RDP8 Manual de usuario

Transcend

Transcend m2 Instrucciones de montaje

Transcend

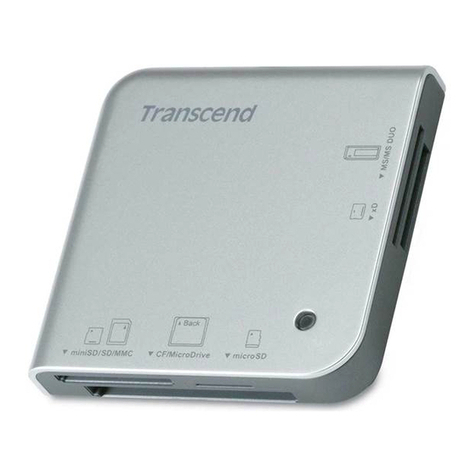

Transcend TS-RDM1 Manual de usuario
