TP-Link TL-WA701ND Manual de usuario

CONTENTS

English ··············································································1

Čeština ···········································································13

Eesti ················································································25

Latviešu···········································································37

Lietuvių···············································································49

Polski ··················································································61

Русский язык·····································································73

Romana ··············································································85

Slovenčina··········································································97

Slovenski ········································································· 109

Srpski jezik/Српски језик ·············································· 121

English

Assign a static IP address 192.168.0.100 for your computer. Please refer to

the T3 in Troubleshooting guide if you need assistance.

Connect to the Access Point with

the Ethernet cable or via

wireless.The default SSID of the

Access Point is TP-LINK_

XXXXXX. The XXXXXX is the

last 6 characters of the Access

Point’s MAC address.

Plug the provided power adapter

into the power jack on the back of

the Access Point, and the other

end to a standard electrical wall

socket.

Note If the distance between the outlet and the Access Point is too long to supply

the power, you can refer to the Power over Ethernet(PoE) solution in

Appendix B: With PoE Setup.

Note The product model shown in this QIG is TL-WA701ND, as an example.

English



000

Note If the LEDs display abnormally, please check to see if all the cable

connectors (power adapter and Ethernet cable) are well connected to you

device.

Turn on all of your network devices and then check to see if the LEDs on the

Access Point display normally as the diagram below describes.

Flashing

Solid light or flashing

Flashing if the Wireless

Radio function is enabled

Open your web browser

and type in 192.168.0.254

in the address bar and

ress Enter

Solid light

English

Click OK

Network Setting

dialog box will prompt you for the

Username and Password. Ente

the default values and click OK.

Note If the dialog box does not pop up, please refer to T3 in the Troubleshooting

guide. T2 will give you some help if you forget the password.

User name: admin

Password: admin

fter successfully logging in, this

page will then display.

You may need to change the LAN

IP address and the gateway

according to your network.

Note If you have changed the LAN IP address, please log in to the Access Point

using the new IP address.

Click Save after you have

completed the settings

Click Network

English

Operation Mode Selection

Access Point Mode

Client Mode

Repeater Mode

This Access Point provides six operational modes: Access Point mode, Multi-SSID,

Client mode, Repeater mode, Universal Repeater mode and Bridge with AP mode.

Please choose an appropriate operation mode for the Access Point.

In this mode, the Access Point will act as a wireless central hub for your wireless

LAN clients, giving a wireless extension for your current wired network. The

Multi-SSID mode is similar to Access Point mode.

In this mode, the Access Point can extend the coverage of another wireless Access

Point or Router. The universal repeater mode is for the wireless Access Point or

Router which does not support WDS function.

In this mode, the Access Point will act as a wireless card to connect with WISP.

English

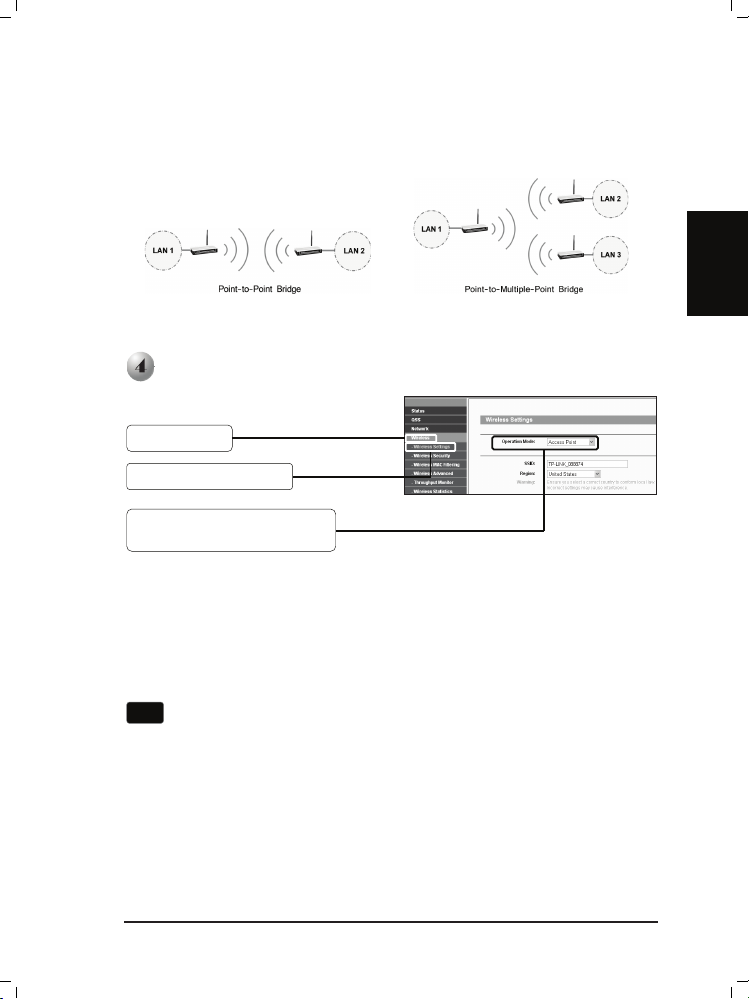

Choose the Operation Mode

appropriate to your needs

Click Wireless Settings

Bridge with AP Mode

Operation Mode Setting

Note If the wireless security is required, please refer to the Appendix A: Wireless

Security Setup to configure the Access Point after finishing the following

operation mode settings.

In this mode, the Access Point can wirelessly connect two or more remote LANs

together.

If Access Point mode is selected, please proceed to part A; If Client mode is

selected, please skip to part B; If Repeater mode is selected, please skip to part C.

Click Wireless

A. Access Point Mode

Click Save at the bottom of this page. Your setup is now complete.

B. Client Mode

This Access Point is set to Access Point mode by default. The wireless settings can

be changed as follows.

Click Search

Find the SSID of the Access Point /

Router or WISP, and click Connect

in the corresponding row

You will then return to the previous page.

The AP List page will then pop up

in a new window.

Create a unique name (SSID)

for your wireless network

Select your Region

Note The setup for Multi-SSID mode is similar to that of Access Point mode.

English

Click Save at the bottom of this page. Your setup is now complete.

C. Repeater Mode

Click Save at the bottom of this page. Your setup is now complete.

Click Search

The AP List page will then pop up

in a new window.

The BSSID of the root Access Point

/ Router will be automatically filled

into the MAC of AP box

You will then return to the previous page.

The SSID and MAC address

will be automatically filled into

the corres

ondin

box

Find the SSID of the root Access

Point / Router that you want to repeat,

and then click Connect in the

corres

ondin

row

Note The setup for Universal Repeater mode is similar to that of Repeater mode.

English

T1. How do I restore my Access Point’s configuration to its factory default settings?

T2. What can I do if I forget my password?

1) Restore the Access Point’s configuration to its factory default settings. If you

don’tknow how to do that, please refer to previous section T1;

2) Use the default user name and password: admin, admin;

3) Try to reconfigure your AP by following the instructions of this QIG.

T3. What can I do if I cannot access the web-based configuration page?

For Windows XP OS

1) Go to Start > Settings > Control Panel > Network and Internet Connections

> Network Connections;

Right-click Local Area Connection or Wireless connection > Select

Properties;

2) Double-click Internet Protocol (TCP/IP) in the item list.

Select Use the following IP address,enter the 192.168.0.100 as the IP

address, 255.255.255.0 as the Subnet mask;

Select Use the following DNS server addresses, enter the DNS server

address provided by your ISP or network administrator;

3) Click OK button to finish the settings.

With the Access Point powered on,

press and hold the RESET button on

the rear panel for 8 to 10 seconds

before releasing it.

Hold it for 8 to 10 seconds

Once the Access Point is reset, the current configuration settings will be lost

and you will need to reconfigure the Access Point.

Note

For Windows Vista OS

1) Go to Start > Settings > Control Panel > View network status and tasks;

Click View Status at the right side > Properties;

2) Double-click Internet Protocol Version 4 (TCP/IPv4) in the item list;

Select Use the following IP address,enter the 192.168.0.100 as the IP

address, 255.255.255.0 as the Subnet mask;

Select Use the following DNS server addresses, enter the DNS server

address provided by your ISP or network administrator;

3) Click OK button to finish the settings.

Now, try to log on to the Web-based configuration page again after the above

settings have been configured. If you still cannot access the configuration page,

please restore your Access Point’s factory default settings and reconfigure your

Access Point following the instructions of this QIG. Please feel free to contact our

Technical Support if the problem persists.

More detailed instructions for the IP address settings can be found in the

User Guide on the resource CD.

Note

English
