TP-Link TL-SG105 Manual de usuario

User Guide

TL-SG105

TL-SG108

5/8-Port Gigabit Desktop Switch

REV1.0.1

7106504303

Specifications are subject to change without notice.

is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other

brands and product names are trademarks or registered trademarks of

their respective holders.

No part of the specifications may be reproduced in any form or by any

means or used to make any derivative such as translation, transformation,

or adaptation without permission from TP-LINK TECHNOLOGIES CO.,

reserved.

http://www.tp-link.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses

and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including

interference that may cause undesired operation.

III

Any changes or modifications not expressly approved by the party

responsible for compliance could void the user’s authority to operate the

equipment.

CE Mark Warning

This is a class B product. In a domestic environment, this product may

cause radio interference, in which case the user may be required to take

adequate measures.

Safety Notices

Cautions:

Do not use this product near water, for example, in a wet basement or

near a swimming pool.

Avoid using this product during an electrical storm. There may be a

remote risk of electric shock from lightning.

Package Contents

The following items should be found in your package:

One TL-SG105/TL-SG108 Switch

One Power Adapter

This User Guide

Note:

The wall-mounting screws are not provided with our product. Please

contact your distributor if any of the listed items are damaged or missing.

Convention

The switch or TL-SG105/TL-SG108 mentioned in this User Guide stands

for TL-SG105/TL-SG108 5/8-port Gigabit Desktop Switch without any

explanation.

Note:

The two devices of TL-SG105 and TL-SG108 are sharing this User

Guide. For simplicity, we will take TL-SG108 for example throughout this

Guide.

The differences between TL-SG105 and TL-SG108 are shown as

following:

TL-SG105: It provides 5 10/100/1000Mbps Auto-Negotiation RJ45

ports and supports IGMP Snooping.

TL-SG108: It provides 8 10/100/1000Mbps Auto-Negotiation RJ45

ports and enjoys a Kensington Security Slot.

Chapter 1 Introduction of the Product

Thank you for choosing the TL-SG105/TL-SG108 5/8-port Gigabit

Desktop Switch.

1.1 Overview of the Product

Gigabit Desktop Switch provides the seamless network connection,

which can speed up your old network to 1000Mbps, ensuring the

graphics, CGI, CAD, or multimedia files and other applications with

bandwidth-intensive files transferred across the network almost instantly.

The non-blocking switching architecture adopted in the TL-SG105/

TL-SG108 switch greatly improves network response times as well as

significantly speed up the traffic between subnets by forwarding and

filtering packets at full wire-speed for maximum throughput.

The TL-SG105/TL-SG108 switch is plug-and-play. In addition, the Auto-

MDI/MDIX cable detection on all ports eliminates the demand of

crossover cable or Uplink port. Each port can be used as general ports

or Uplink ports, and any port can be simply plugged into a server, a hub,

a router, a switch or a PC, using the straight cable or crossover cable.

Diagnostic LEDs which display link status and activity, allowing you to

quickly detect and correct problems on the network.

The TL-SG105/TL-SG108 switch adopts Green Ethernet technology,

supports power saving features. The switch automatically powers down

the ports that have no link or are connected to the computers which

have been shut down, budgets power output for different Ethernet cable

lengths.

1.2 Features

Supports Green Ethernet technology to implement power saving

features

Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab standards

5/8 10/100/1000Mbps Auto-Sensing RJ45 ports supporting Auto-

MDI/MDIX

Supports IEEE802.3x flow control for Full-duplex Mode and

backpressure for Half-duplex Mode

Non-blocking switching architecture that forwards and filters

packets at full wire-speed for maximum throughput

IGMP snooping allows the forwarding of multicast packets such as

streaming audio and video, without increasing network broadcast

congestion

Supports QoS (802.1p/Q-based) function

4K entry MAC address table of TL-SG105/TL-SG108 with auto-

learning and auto-aging

Supports for Jumbo frames of up to 9KB

LED indicators for monitoring power, link, speed and activity

External power adapter supply

Chapter 2 Identifying External Components

This chapter describes the front panel and rear panel of the switch.

2.1 Front Panel

Figure 2-1 TL-SG108 Switch Front Panel

The following parts are located on the front panel:

Ports (1-8): The TL-SG108 switch is equipped with 8 10/100/

1000Mbps Auto-Sensing RJ45 ports where you will connect your

network devices. The working status can be indicated by the

corresponding LEDs on the panel.

Power LED: This indicator will light up when the switch powers on.

LEDs: Each 10/100/1000Mbps Auto-Sensing RJ45 port has two

corresponding LEDs.

The LED on the left side of the RJ45 port will light solid green when a

1000Mbps device is connected to the port. It flashes green when data is

being transmitted or received on the working connection.

The LED on the right side will light solid yellow when a 10/100Mbps

device is connected to the port. It flashes yellow when data is being

transmitted or received on the working connection.

Note:

The LEDs’ description above explains the device’s working status after

initialization.

2.2 Rear Panel

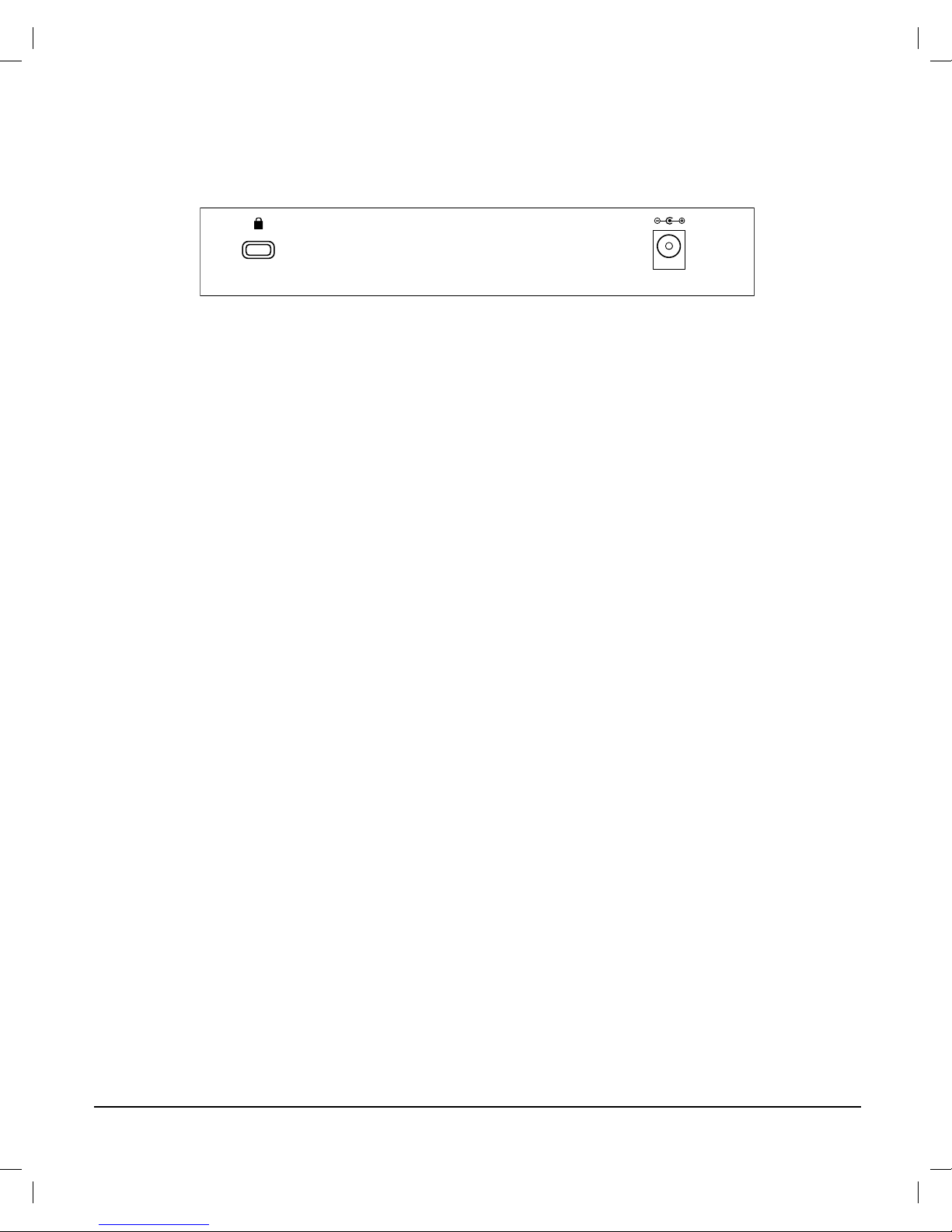

Figure 2-2 TL-SG108 Switch Rear Panel

The following parts are located on the rear panel:

Kensington Security Slot: The switch provides one security slot.

Power socket: The power socket, located at the right side of the

rear panel, is where you will connect the power adapter. Please

use the power adapter provided with the TL-SG108 switch.

Chapter 3 Installation

The switch can be either located on a desktop or mounted on a wall.

3.1 Mounting the Switch on a Desk

To locate the switch on a desktop, please follow these steps:

1) Place the switch on a flat desk.

2) Inspect the Power Adapter carefully and make sure that it is

properly connected to a power source.

3) Ensure adequate ventilation space around the switch for

dissipating heat and air.

Note:

Please avoid any heavy thing placed on the switch.
