TP-Link JetStream TL-SG3210XHP-M2 Manual de usuario

Business Networking Solution

Installation Guide

JetStream L2/L2+ Managed Switch

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the

points that should be attended to during the installation. This Installation Guide is structured as

follows:

Chapter 1 Introduction

This chapter describes the external components of the switch.

Chapter 2 Installation

This chapter illustrates how to install the switch.

Chapter 3 Connection

This chapter illustrates how to do the physical connection of the switch.

Chapter 4 Configuration

This chapter illustrates how to configure the switch.

Appendix A Troubleshooting

Appendix B Hardware Specifications

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• Some models featured in this guide may be unavailable in your country or region. For local sales

information, visit https://www.tp-link.com.

• The figures in Chapter 2, Chapter 3, and Chapter 4 are for demonstration purposes only. Your

switch may differ in appearance from that depicted.

• PoE budget calculations are based on laboratory testing. Actual PoE power budget is not

guaranteed and will vary as a result of client limitations and environmental factors.

• This guide uses the specific formats to highlight special messages. The following table lists the

notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device damage.

Remind to take notice. The note contains the helpful information for a better use of the

product.

Related Document

The User Guide and CLI Reference Guide of the product are provided on Download Center. To

obtain the latest product information, visit the official website: https://www.tp-link.com.

Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview ...........................................................01

1.2 Appearance.......................................................................01

Chapter 2 Installation ——————————— 06

2.1 Package Contents ..........................................................06

2.2 Safety Precautions .........................................................06

2.3 Installation Tools..............................................................08

2.4 Product Installation ........................................................08

Chapter 3 Connection ——————————— 10

3.1 Ethernet Port ....................................................................10

3.2 SFP/SFP+ Slot ..................................................................10

3.3 Console Port.....................................................................10

3.4 Verify Installation.............................................................11

3.5 Power On............................................................................11

3.6 Initialization........................................................................12

Chapter 4 Conguration —————————— 13

4.1 Conguration Overview................................................13

4.2 Standalone Mode............................................................13

4.3 Controller Mode...............................................................14

Appendix A Troubleshooting ———————— 17

Appendix B Specications ————————— 18

JetStream L2/L2+ Managed Switch

01Introduction

Chapter 1 Introduction

1.1 Product Overview

Designed for workgroups and departments, TP-Link JetStream L2/L2+ Managed Switch provides

wire-speed performance and abundant L2 management features. It provides a variety of service

features and multiple powerful functions with high security.

The EIA-standardized framework and smart configuration capacity can provide flexible solutions

for a variable scale of networks. ACL, 802.1x and Dynamic ARP Inspection provide robust security

strategies. QoS and IGMP snooping/filtering optimize voice and video application. Link aggregation

(LACP) increases aggregated bandwidth, optimizing the transport of business critical data. SNMP,

RMON, WEB and CLI Log-in bring abundant management policies. TP-Link JetStream L2/L2+

Managed Switch integrates multiple functions with excellent performance, and is friendly to manage,

which can fully meet the need of the users demanding higher networking performance.

TL-SG3210XHP-M2/TL-SG3428MP/TL-SG3428XMP is also a Power Sourcing Equipment (PSE*). All

the RJ45 ports on the switch support Power over Ethernet (PoE*) function, which can automatically

detect and supply power to those powered devices (PDs*) complying with IEEE 802.3af and IEEE

802.3at.

*PSE: a device (switch or hub for instance) that provides power through an Ethernet cable.

*PoE: This technology describes a system to transmit electrical power, along with data, to remote

devices over standard twisted-pair cable in an Ethernet.

*PD: a device powered by a PSE and thus consumes energy. Examples include powering network

cameras, wireless LAN access points, IP telephones, network hubs, embedded computers etc.

1.2 Appearance

■Front Panel

The front panel of TL-SG3210XHP-M2 is shown as the following figure.

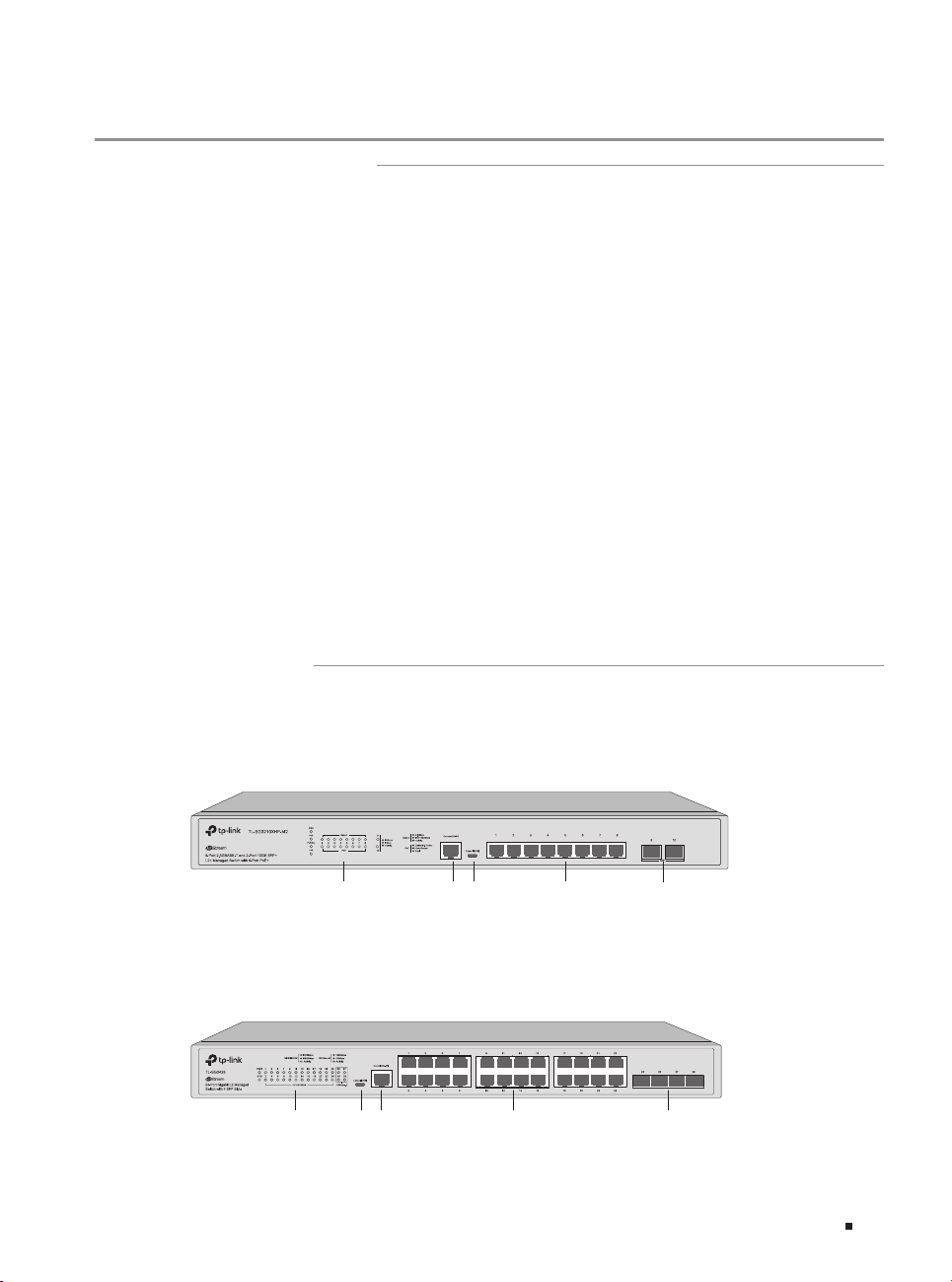

Figure 1-1 Front Panel of TL-SG3210XHP-M2

LED Console Port

(RJ45/USB)

2.5G

RJ45 Port

SFP+ Slot

The front panel of TL-SG3428 is shown as the following figure.

Figure 1-2 Front Panel of TL-SG3428

LED Console Port

(USB/RJ45)

RJ45 Port

SFP Slot

JetStream L2/L2+ Managed Switch

02 Introduction

The front panel of TL-SG3428MP is shown as the following figure.

Figure 1-3 Front Panel of TL-SG3428MP

LED Console Port

(RJ45/USB)

RJ45 Port

SFP Slot

The front panel of TL-SG3428XMP is shown as the following figure.

Figure 1-4 Front Panel of TL-SG3428XMP

LED Console Port

(RJ45/USB)

RJ45 Port

SFP+ Slot

LEDs

For TL-SG3210XHP-M2

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

PoE Max

On: The remaining PoE power is ≤ 7 W.

Flashing: The remaining PoE power keeps ≤ 7 W after this LED is on for 2 minutes.

Off: The remaining PoE power is > 7 W.

FAN Green: All the fans work properly.

Yellow: Not all the fans work properly.

Speed

Green On: Running at 2.5 Gbps, but no activity.

Green Flashing: Running at 2.5 Gbps and transmitting or receiving data.

Yellow On: Running at 100/1000 Mbps, but no activity.

Yellow Flashing: Running at 100/1000 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

JetStream L2/L2+ Managed Switch

03Introduction

LED Indication

PoE

Green On: The port is supplying power normally.

Green Flashing: The supply power exceeds the correponding port's maximum power.

Yellow On: Overload or short circuit is detected.

Yellow Flashing: Power-on self-test failed.

Off: Not providing PoE power on the port.

Port 9–10

Green On: Running at 10 Gbps, but no activity.

Green Flashing: Running at 10 Gbps and transmitting or receiving data.

Yellow On: Running at 1 Gbps, but no activity.

Yellow Flashing: Running at 1 Gbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

For TL-SG3428

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

10/100/1000M

Green On: Running at 1000 Mbps, but no activity.

Green Flashing: Running at 1000 Mbps and transmitting or receiving data.

Yellow On: Running at 10/100 Mbps, but no activity.

Yellow Flashing: Running at 10/100 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

1000Base-X

Green On: Running at 1000 Mbps, but no activity.

Green Flashing: Running at 1000 Mbps and transmitting or receiving data.

Yellow On: Running at 100 Mbps, but no activity.

Yellow Flashing: Running at 100 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

For TL-SG3428MP and TL-SG3428XMP

LED Indication

PWR

On: The switch is powered on.

Off: The switch is powered off or power supply is abnormal.

Flashing: Power supply is abnormal.

SYS Flashing: The switch works properly.

On or Off: The switch works improperly.

PoE Max

On: The remaining PoE power is ≤ 7 W.

Flashing: The remaining PoE power keeps ≤ 7 W after this LED is on for 2 minutes.

Off: The remaining PoE power is > 7 W.

JetStream L2/L2+ Managed Switch

04 Introduction

LED Indication

FAN Green: All the fans work properly.

Yellow: Not all the fans work properly.

Speed or PoE

(When the Speed

LED is on)

Green On: Running at 1000 Mbps, but no activity.

Green Flashing: Running at 1000 Mbps and transmitting or receiving data.

Yellow On: Running at 10/100 Mbps, but no activity.

Yellow Flashing: Running at 10/100 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

Speed or PoE

(When the PoE LED

is on)

Green On: The port is supplying power normally.

Green Flashing: The supply power exceeds the correponding port's maximum power.

Yellow On: Overload or short circuit is detected.

Yellow Flashing: Power-on self-test failed.

Off: Not providing PoE power on the port.

1000Base-X

Green On: Running at 1000 Mbps, but no activity.

Green Flashing: Running at 1000 Mbps and transmitting or receiving data.

Yellow On: Running at 100 Mbps, but no activity.

Yellow Flashing: Running at 100 Mbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: For TL-SG3428MP

SFP+

Green On: Running at 10 Gbps, but no activity.

Green Flashing: Running at 10 Gbps and transmitting or receiving data.

Yellow On: Running at 1 Gbps, but no activity.

Yellow Flashing: Running at 1 Gbps and transmitting or receiving data.

Off: No device is linked to the corresponding port.

Note: For TL-SG3428XMP

Console Port

Designed to connect with a computer for monitoring and conguring the switch. When the switch has an

RJ45 console port and a micro-USB console port, console input is active on only one console port at a

time. By default, the micro-USB connector takes precedence over the RJ45 connector.

100 Mbps/1000 Mbps/2.5 Gbps RJ45 Port

Designed to connect to the device with a bandwidth of 100 Mbps,1000 Mbps or 2.5 Gbps. For PoE

switches, the port can also provide power for PDs.

10/100/1000 Mbps RJ45 Port

Designed to connect to the device with a bandwidth of 10 Mbps, 100 Mbps or 1000 Mbps. For PoE

switches, the port can also provide power for PDs.

SFP/SFP+ Slot

SFP slot is designed to install the 1 Gbps SFP module. SFP+ slot is designed to install the 10 Gbps SFP+

module.

JetStream L2/L2+ Managed Switch

05Introduction

Port Feature

Model 100M/1000M/2.5G

RJ45 Port

10/100/1000 Mbps

RJ45 Port Console Port SFP Slot SFP+ Slot

TL-SG3210X HP-M2 8 / 2 / 2

TL-SG3428 /24 2 4 /

TL-SG3428 MP /24 2 4 /

TL-SG3428XMP /24 2 / 4

■Rear Panel

The rear panel is shown as the following figure. The figure is for demonstration purposes only. Your

switch may differ in appearance from the depicted.

Figure 1-5 Rear Panel

Power SocketGrounding TerminalKensington Security slot

Kensington Security Slot

Secure the lock (not provided) into the security slot to prevent the device from being stolen.

Grounding Terminal

The switch already comes with lightning protection mechanism. You can also ground the switch through

the PE (Protecting Earth) cable of AC cord or with Ground Cable. For detailed lightning protection

measures, go to https://www.tp-link.com/support, search the model number of your switch and go to

the product Support web page, refer to the Lightning Protection Guide from the Related Documents:

https://www.tp-link.com/us/conguration-guides/lightning_protection_guide/.

Power Socket

Connect the female connector of the power cord here, and the male connector to the AC power outlet.

Make sure that the voltage of the power supply meets the requirement of the input voltage (100–240 V~

50/60 Hz).

Caution:

Please use the provided power cord.

JetStream L2/L2+ Managed Switch

06 Installation

Chapter 2 Installation

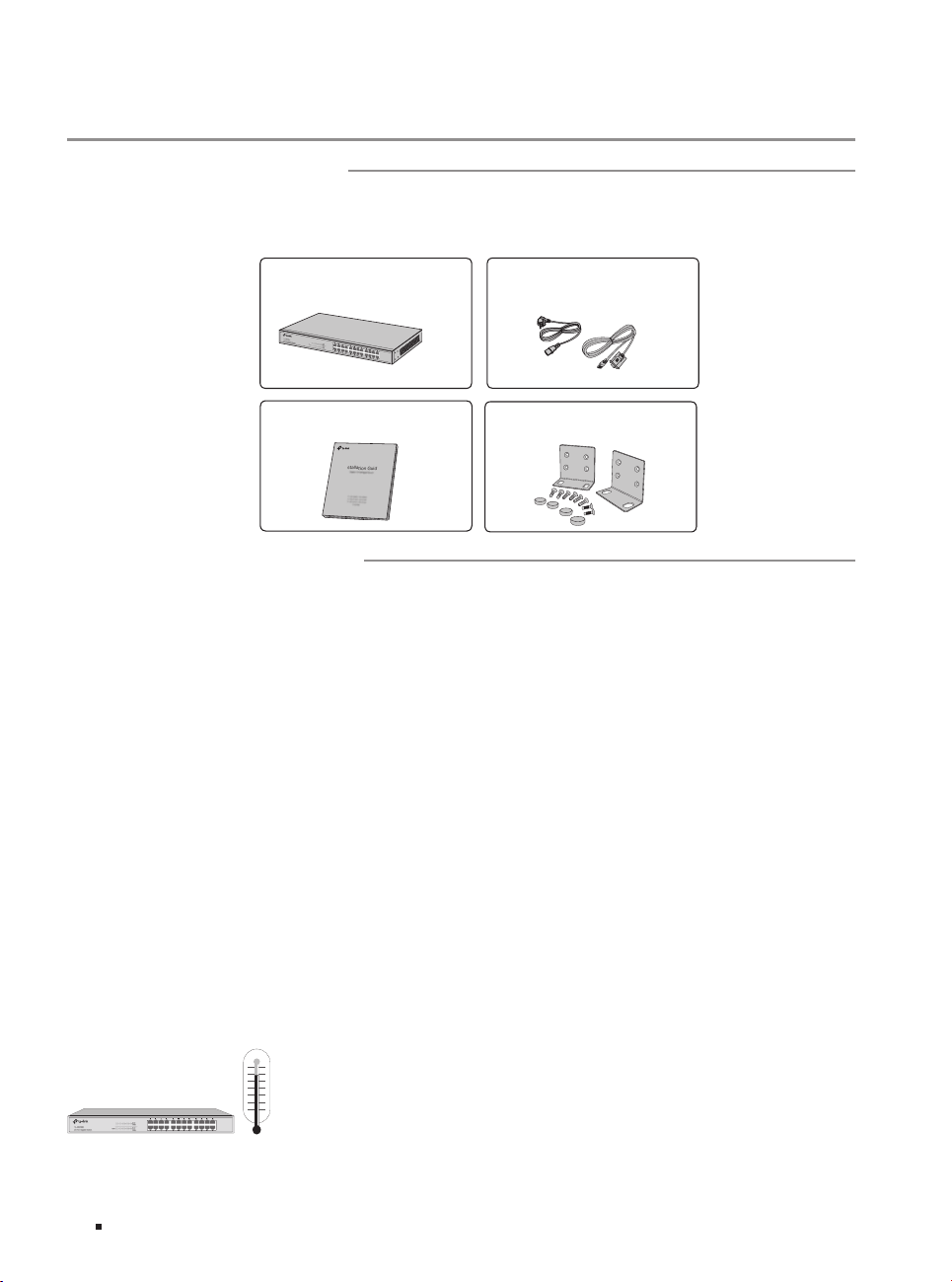

2.1 Package Contents

Make sure that the package contains the following items. Please contact your distributor, if any of

the listed items is damaged or missing.

One Switch

Installation Guide

BusinessNetworking Solution

Two Mounting Brackets, Eight

Screws and Four Rubber Feet

One Power Cord and One

Console Cable

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, you should observe the

following rules.

■Safety Precautions

■Keep the power off during the installation.

■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin contact and is

well grounded.

■Use only the power cord provided with the switch.

■Make sure that the supply voltage matches the specifications indicated on the rear panel of the

switch.

■Ensure that the switch is installed in a well-ventilated environment and its ventilation hole is not

blocked.

■Do not open or remove the cover of the switch.

■Before cleaning the device, cut off the power supply. Do not clean it by the waterish cloth, and never

use any other liquid cleaning method.

■Place the device with its bottom surface downward.

■Site Requirements

Temperature/Humidity

°C

0°C

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de TP-Link

TP-Link

TP-Link TL-SG2216 Manual de instrucciones

TP-Link

TP-Link JetStream T2600G-28TS Manual de usuario

TP-Link

TP-Link Jetstream L2 TL-SG5412F Manual de usuario

TP-Link

TP-Link JetStream T1600G-28TS Manual de usuario

TP-Link

TP-Link TL-SL1226 Manual de usuario

TP-Link

TP-Link TL-SG1005D - 5 PORT GIGABIT DESKTOP SWITCH Manual de usuario

TP-Link

TP-Link TL-SF1048 Manual de usuario

TP-Link

TP-Link TL-SG2216WEB Manual de usuario

TP-Link

TP-Link LiteWave LS1005 Manual de usuario

TP-Link

TP-Link TL-SF1005D Manual de usuario

TP-Link

TP-Link TL-SG105E Manual de usuario

TP-Link

TP-Link TL-SG2216 Manual de usuario

TP-Link

TP-Link HS200 Manual de usuario

TP-Link

TP-Link JetStream TL-SG2008 Manual de usuario

TP-Link

TP-Link JetStream T1600G-52TS Manual de usuario

TP-Link

TP-Link TL-SF1016D Manual de instrucciones de instalación

TP-Link

TP-Link TL-SG105-M2 V2 Manual de usuario

TP-Link

TP-Link T1500 Series Manual de usuario

TP-Link

TP-Link Omada DS1016G Manual de usuario

TP-Link

TP-Link TL-SG105E Manual de usuario

TP-Link

TP-Link T1600G-18TS Manual de usuario

TP-Link

TP-Link Omada DS105GP Manual de usuario

TP-Link

TP-Link TL-SX1008 V1 Manual de usuario

TP-Link

TP-Link JetStream TL-SG3424P Manual de instrucciones

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
