TP-Link TD-W8101G Manual de usuario

Power down all of your network devices, including your computer(s) and the

Modem Router. If you currently use a modem, disconnect it now - the Modem

Router will replace your current modem.

Connect your computer to the

LAN port on the Modem Route

with an Ethernet cable.

Connect the splitter to the wall

ack using a telephone line, then

use the other telephone line to

directly connect it to the LINE port

of the Modem Router and the

MODEM port of the splitter, also

have the PHONE port of the

splitter connected to a telephone.

Plug the provided Power Adapter

into the Power jack on the back of

the Modem Router and the other

end to a standard electrical wall

socket.

Note If no telephone is needed, please connect the LINE port of the Modem

Router to the wall jack using the telephone line directly.

Note Please use only wired network connections to configure the Router.

Power on all your network devices and then check to see if the LEDs of the

Router display normally as the diagram below describes.

Note If the LEDs display abnormally, please check to see if all the cable

connectors (power adapter, phone line and Ethernet cable) are well

connected to your device. With the phone line well connected, if the ADSL

LED turns off after flashing, please contact your ISP to ensure that you

internet connection is active.

To configure the device, you can either run the setup CD-ROM (method

one), or run the Web based Quick Setup Wizard (method two). TP-LINK

strongly recommends that you run the setup CD-ROM.

Note

Solid light

Solid light if the LAN

port is connected

Solid light or flashing

The configuration has now been completed. Please skip to Step 3 “Testing the

Internet Connection”.

Insert the provided Resource

CD into your CD-ROM drive.

The Setup Wizard will

automatically pop up on

your computer’s screen.

Click START, and then follow

the step-by-step instructions

until you complete the

configuration.

Please select your product

model and click Start Setup.

Then a flash video will pop up and

show you how to connect you

devices. After that, the Easy Setup

Assistant will start.

Click Quick Start

The web management page will

display after a successful login.

dialog box will prompt you fo

the User name and Password.

Enter the default values and

click OK.

Click OK

User name: admin

Password: admin

Open your web browser and

type in http://192.168.1.1/ in the

address bar and press Enter.

Note If the dialog box does not pop up, please refer to T3 in the Troubleshooting

guide. T2 will help you if you forget the password.

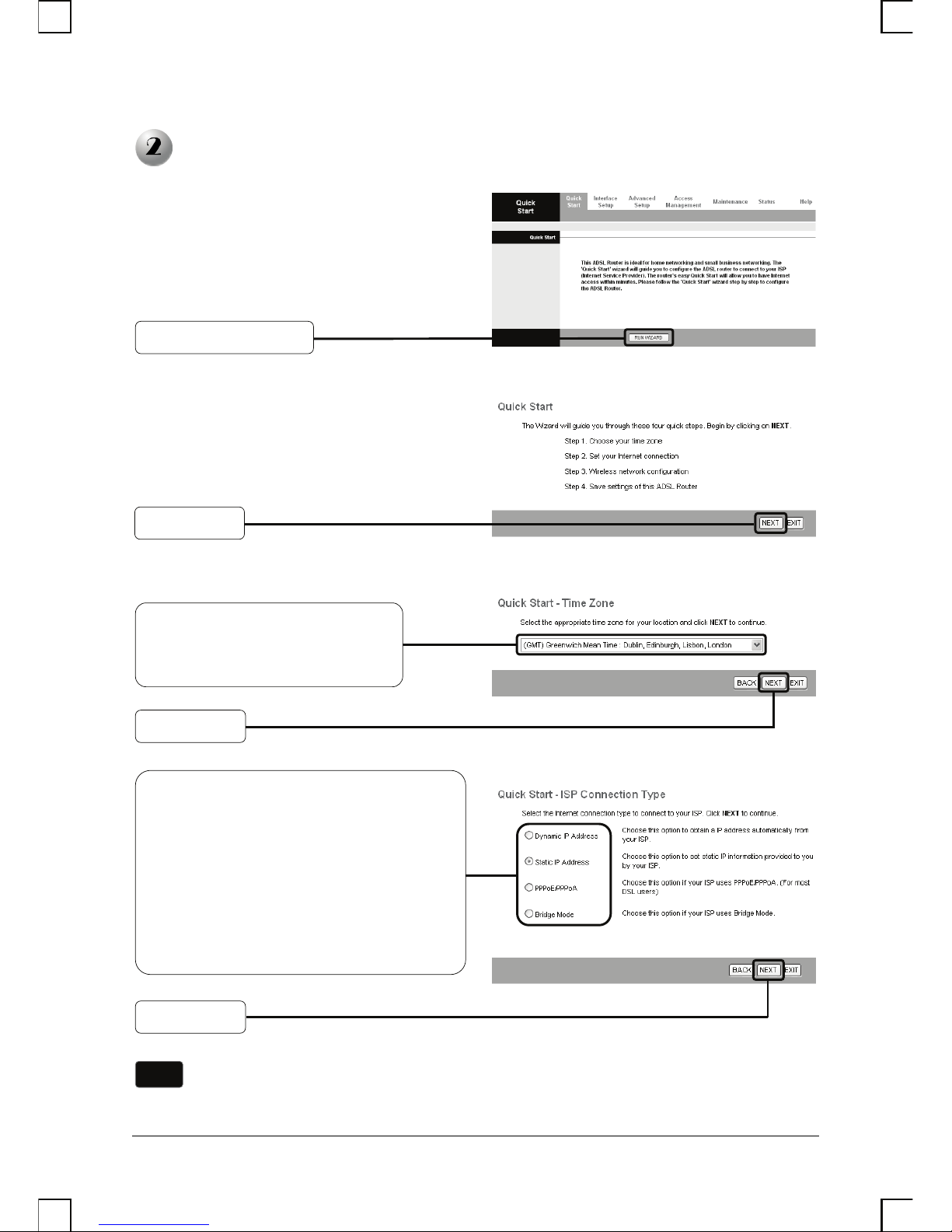

Internet Parameters Configuration

This page will then display.

Click RUN WIZARD

Bridge mode is not recommended because multiple computers are not

permitted to share Internet access in this mode.

Note

Click NEXT

Select the appropriate Time

Zone for your location from

the drop-down list.

Click NEXT

Choose the Connection Type given by

your ISP.

If PPPoE/PPPoA is selected, please

proceed to A;

If Dynamic IP is selected, please skip to

If Static IP is selectedǈplease skip to C;

If Bridge Mode is selected, please skip to

A. Configuration For PPPoA/PPPoE

B. Configuration For Dynamic IP

C. Configuration For Static IP

This page will then display.

If you did not get the VPI, VCI and Connection Type information, please

contact your ISP for this information.

Note

This page will then display.

Click NEXT

Select the dynamic connection

rovided b

our ISP.

Enter the PPPoE/PPPoA

information provided by

your ISP.

Click NEXT

Enter the Static IP information

provided by your ISP manually.

Click NEXT

D. Configuration For Bridge Mode

Wireless Settings Configuration

The wireless security is Disabled by default. You are suggested to select an

Authentication Type for security settings. WPA2-PSK is recommended.

Note

This page will then display.

fter completing the above configuration, please proceed to Quick Start

Complete.

Click NEXT

Enter the Bridge information

provided by your ISP.

This page will then display.

Create a unique and easy to

remember name for your wireless

network. You can also keep default

settings without the device being

affected.

Keep the default setting: Activated.

If you want to disable Access Point,

please select Deactivated.

Click NEXT

Select an Authentication Type.

Select an Encryption.

Enter a Security Key using

8-64 characters.

fter completing the above configuration, please proceed to Wireless Settings

Configuration.

Quick Start Complete

The basic settings for your Router are completed. Please open the web browser and

log on to the following websites:

http://www.tp-link.com

http://www.google.com

If the above websites can be accessed, it indicates that your Router has been

configured successfully and you can start to enjoy the Internet. If the websites

cannot be accessed, please refer to “T4. What can I do if I cannot access the

Internet?” in the Troubleshooting guide.

To continue, the following page will

be dis

ed.

For the advanced configurations，please refer to the User Guide on the

CD-ROM provided.

Note

The above configurations only need to be set once. If you want other

computers in your LAN to access the Internet, please connect the desired

computer to the ADSL Router directly. If the additional computer can not

access the Internet, please set that computer referring to”T3. What can I do

if I cannot access the web-based configuration page?” in the

Troubleshooting guide.

Note

Click NEXT

Click CLOSE

Now, your Modem Router has been configured and is rebooting. Please do not turn

off the Modem Router while it’s rebooting.

Note

T1. How do I restore my Router’s configuration to its factory default settings?

T2. What can I do if I don’t know or forgot my password?

1) Restore the Router’s configuration to its factory default settings. If you don’t

know how to do that, please refer to section T1.

2) Use the default user name and password: admin, admin.

3) Try to configure your Router once again by following the instructions in the

previous steps of the QIG.

T3. What can I do if I cannot access the web-based configuration page?

1) Configure your computer’s IP Address.

For Windows XP OS

Go to Start > Control Panel,

you will then see the

following page.

Click Network and Internet

Connections

Once the Router is reset, the current configuration settings will be lost and

you will need to re-configure the Router.

With the Router powered on, press

and hold the Reset button on the

rear panel for 8 to 10 seconds

before releasing it.

Press it for 8 to 10 seconds

Double-click Internet

Protocol

(

TCP/IP

)

Click Properties

Right-click Local

Area Connection

Click Network

Connections
