TP-Link SafeStream TL-ER5120 Manual de usuario

Business Networking Solution

Installation Guide

Gigabit Business Router

TL-ER5120/TL-ER6120

About this Installation Guide

This Installation Guide describes the hardware characteristics, installation methods and the

points that should be attended to during the installation. This Installation Guide is structured as

follows:

Chapter 1 Introduction

This chapter describes the external components of the switch.

Chapter 2 Installation

This chapter illustrates how to install the switch.

Chapter 3 Lightning Protection

This chapter illustrates how to prevent lightning damage.

Chapter 4 Connection

This chapter illustrates how to do the physical connection of the switch.

Chapter 5 Configuration

This chapter illustrates how to log in and set up the router.

Appendix A Troubleshooting

Appendix B Hardware Specifications

Audience

This Installation Guide is for:

Network Engineer Network Administrator

Conventions

• Some models featured in this guide may be unavailable in your country or region. For local

sales information, visit http://www.tp-link.com.

• The figures in Chapter 2 to Chapter 4 are for demonstration purposes only. Your switch may

differ in appearance from that depicted.

• This guide uses the specific formats to highlight special messages. The following table lists

the notice icons that are used throughout this guide.

Remind to be careful. A caution indicates a potential which may result in device damage.

Remind to take notice. The note contains the helpful information for a better use of the

product.

Related Document

This Installation Guide is also available in PDF on our website. To obtain the latest

documentation and product information, please visit the official website:

http://www.tp-link.com

Contents

Chapter 1 Introduction ——————————— 01

1.1 Product Overview ...........................................................01

1.2 Appearance.......................................................................01

Chapter 2 Installation———————————— 04

2.1 Package Contents ..........................................................04

2.2 Safety Precautions .........................................................04

2.3 Installation Tools..............................................................06

2.4 Product Installation ........................................................07

Chapter 3 Lightning Protection ——————— 09

3.1 Cabling Reasonably........................................................09

3.2 Connect to Ground.........................................................11

3.3 Equipotential Bonding...................................................12

3.4 Use Lightning Arrester..................................................13

Chapter 4 Connection ——————————— 15

4.1 WAN Port............................................................................15

4.2 LAN Port .............................................................................15

4.3 Verify Installation ...........................................................15

4.4 Power On............................................................................13

4.5 Initialization........................................................................14

Chapter 5 Conguration —————————— 17

5.1 Preparations......................................................................17

5.2 Login ....................................................................................17

Appendix A Troubleshooting ———————— 19

Appendix B Hardware Specications ————— 20

Gigabit Business Router

Introduction

Chapter 1 Introduction

1.1 Product Overview

The Gigabit Business Router TL-ER5120/TL-ER6120 providing three adjustable gigabit

ports, which enable the users to configure the amount of WAN ports based on need

and connect multiple Internet lines for bandwidth expansion. The router possesses

excellent data processing capability and multiple powerful functions including IPsec/

PPTP/L2TP VPN (TL-ER6120), Load Balance, Access Control, Bandwidth Control,

Session Limit, IM/P2P Blocking, 802.1Q VLAN and so on, which consumedly meet the

needs of small and medium enterprise, hotels and communities with volumes of users

demanding a efficient and easy-to-manage network with high security.

1.2 Appearance

■Front Panel

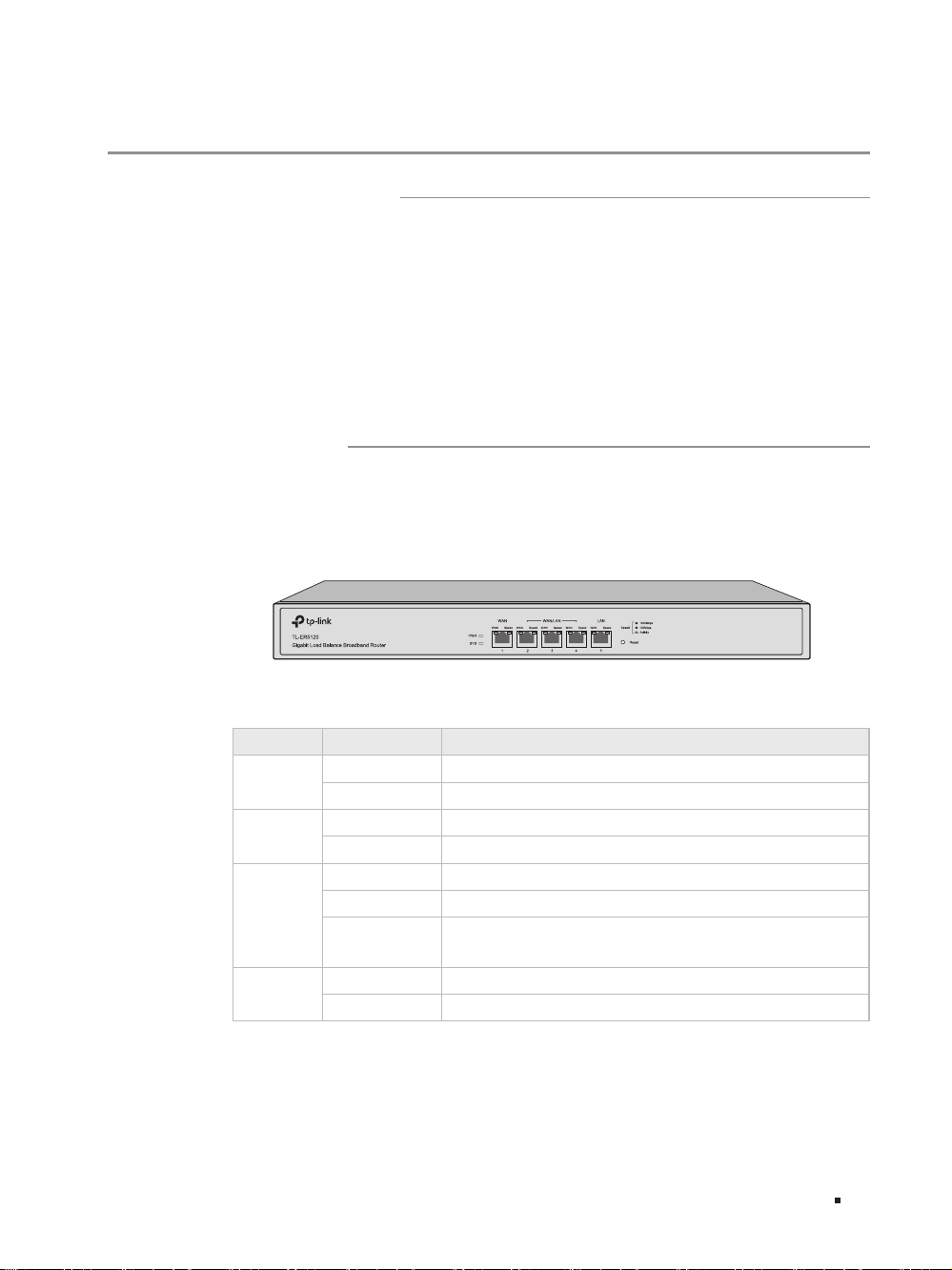

The front panel of TL-ER5120 is shown as the following figure.

Figure 1-1 Front Panel of TL-ER5120

LEDs

LED Status Indication

PWR On The router is powered on

Off The router is powered off or power supply is abnormal

SYS Flashing The router works properly

On/Off The router works improperly

Speed

On (Green) The port is running at 1000Mbps

On (Yellow) The port is running at 100Mbps

Off There is no device linked to the corresponding port or

the port is running at 10Mbps

WAN On The port is working in WAN mode

Off The port is working in LAN mode

Gigabit Business Router

Introduction

Interface Description

WAN The WAN port is designed to connect the router to a DSL/Cable

modem or Ethernet by the RJ45 cable

LAN The LAN port is designed to connect the router to the local PCs or

switches by the RJ45 cable

Reset

Use the button to restore the router to the factory defaults. With the router powered

on, use a pin to press and hold the Reset button (about 4~5 seconds). After the

SYS LED goes out, release the Reset button. If the SYS LED is flashing with a high

frequency about two or three seconds, it means the router is restored successfully.

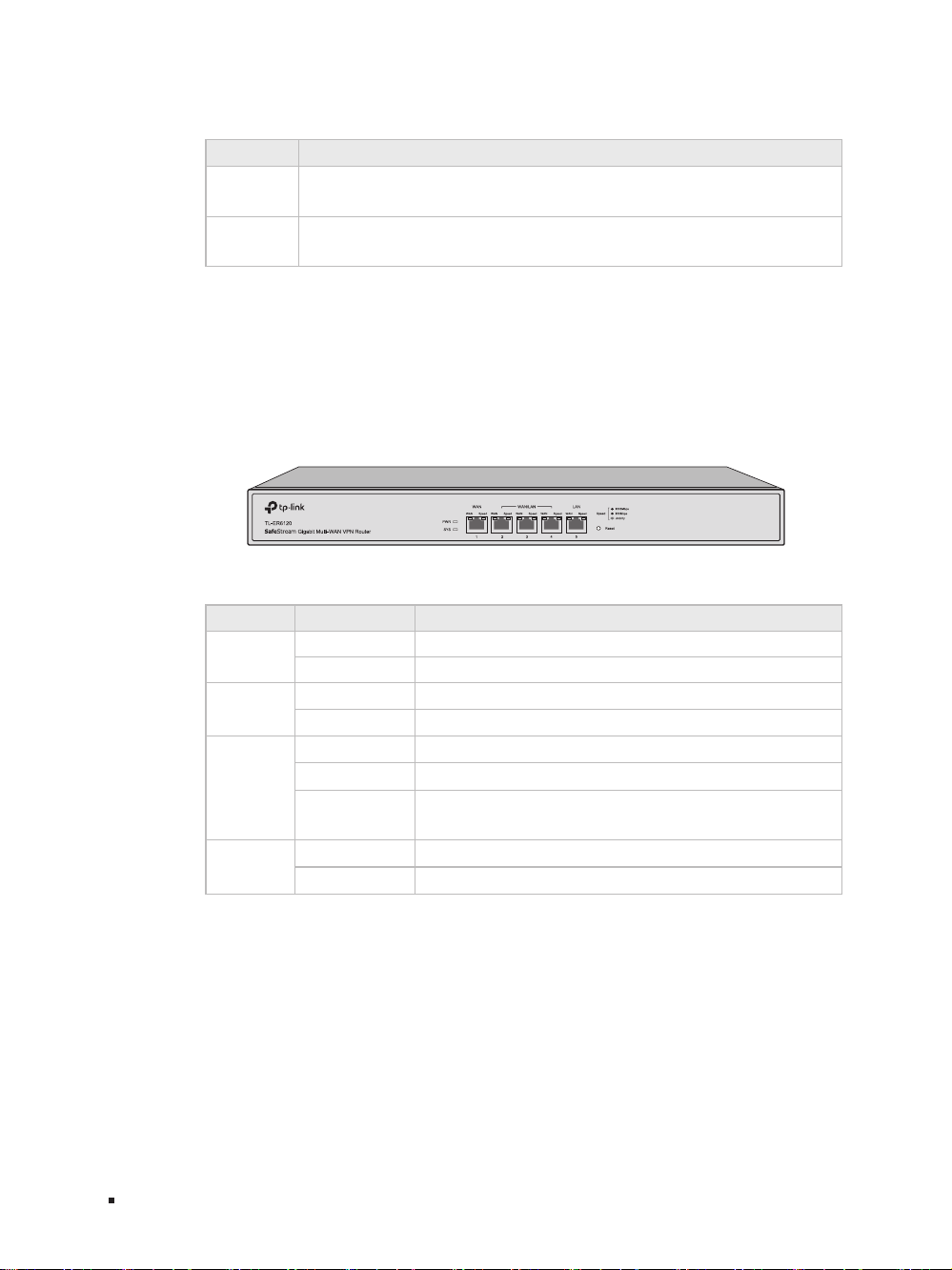

The front panel of TL-ER6120 is shown as the following figure.

Figure 1-2 Front Panel of TL-ER6120

LEDs

LED Status Indication

PWR On The Router is powered on

Off The Router is powered off or power supply is abnormal

SYS Flashing The Router works properly

On/Off The Router works improperly

Speed

On (Green) The port is running at 1000Mbps

On (Yellow) The port is running at 100Mbps

Off There is no device linked to the corresponding port or the

port is running at 10Mbps

WAN On The port is working in WAN mode

Off The port is working in LAN mode

Gigabit Business Router

Introduction

Interface Description

WAN The WAN port is designed to connect the router to a DSL/Cable modem

or Ethernet by the RJ45 cable

LAN The LAN port is designed to connect the router to the local PCs or

switches by the RJ45 cable

Reset

Use the button to restore the router to the factory defaults. With the router powered

on, use a pin to press and hold the Reset button (about 4~5 seconds). After the

SYS LED goes out, release the Reset button. If the SYS LED is flashing with a high

frequency about two or three seconds, it means the router is restored successfully.

■Rear Panel

The rear panel of TL-ER5120/TL-ER6120 is shown as the following figure.

Figure 1-3 Rear Panel

100-240V~ 50/60Hz 0.2A

Power Socket

Connect the female connector of the power cord here, and the male connector to

the AC power outlet. Please make sure the voltage of the power supply meets the

requirement of the input voltage (100-240V~ 50/60Hz).

Grounding Terminal

The router already comes with lightning protection mechanism. You can also ground

the router through the PE (Protecting Earth) cable of AC cord or with Ground Cable.

For detailed information, please refer to Chapter 3 Lightning Protection.

Kensington

The kensington lock port is used to connect to a kensington lock to secure your

router.

Caution:

Please use the provided power cord.

Gigabit Business Router

Installation

Chapter 2 Installation

2.1 Package Contents

Make sure that the package contains the following items. If any of the listed items is

damaged or missing, please contact your distributor.

One Router One Power Cord This Installation Guide

Two mounting brackets and the

ttings

Installation Guide

BusinessNetworking Solution

Gigabit Business Router

2.2 Safety Precautions

To avoid any device damage and bodily injury caused by improper use, please observe

the following rules.

■Safety Precautions

■Keep the power off during the installation.

■Wear an ESD-preventive wrist strap, and make sure that the wrist strap has a good skin

contact and is well grounded.

■Use only the power cord provided with the router.

■Make sure that the supply voltage matches the specifications indicated on the rear

panel of the router.

■Ensure the vent hole is well ventilated and unblocked.

■Do not open or remove the cover of the router.

■Before cleaning the device, cut off the power supply. Do not clean it by the waterish

cloth, and never use any other liquid cleaning method.

■Site Requirements

To ensure normal operation and long service life of the device, please install it in an

environment that meets the requirements described in the following subsection.

Gigabit Business Router

Installation

Temperature/Humidity

ȭ

ȭ

Please keep a proper temperature and humidity in the equipment room. Too high/low

humidity may lead to bad insulation, electricity leakage, mechanical property changes

and corrosions. Too high temperature may accelerate aging of the insulation materials

and can thus significantly shorten the service life of the device. For normal temperature

and humidity of the device, please check the following table.

Environment Temperature Humidity

Operating 0℃to 40℃10% to 90%RH Non-condensing

Storage -40℃to 70℃5% to 90%RH Non-condensing

Clearness

The dust accumulated on the router can be absorbed by static electricity and result

in poor contact of metal contact points. Some measures have been taken for the

device to prevent static electricity, but too strong static electricity can cause deadly

damage to the electronic elements on the internal circuit board. To avoid the effect of

static electricity on the operation of the router, please attach much importance to the

following items:

■Dust the device regularly, and keep the indoor air clean.

■Keep the device well grounded and ensure static electricity has been transferred.

Electromagnetic Interference

Electronic elements including capacitance and inductance on the device can be

affected by external interferences, such as conducted emission by capacitance

coupling, inductance coupling, and impedance coupling. To decrease the interferences,

please make sure to take the following measures:

■Use the power supply that can effectively filter interference from the power grid.

■Keep the device far from high-frequency, strong-current devices, such as radio

transmitting station.

■Use electromagnetic shielding when necessary.

Gigabit Business Router

Installation

Lightening Protection

Extremely high voltage currents can be produced instantly when lightning occurs and

the air in the electric discharge path can be instantly heated up to 20,000℃.As this

instant current is strong enough to damage electronic devices, more effective lightning

protection measures should be taken.

■Ensure the rack and device are well earthed.

■Make sure the power socket has a good contact with the ground.

■Keep a reasonable cabling system and avoid induced lightning.

■Use the signal SPD (Surge Protective Device) when wiring outdoor.

Note:

For detailed lightning protection measures, please refer to Chapter 3 Lightning

Protection.

Installation Site

When installing the device on a rack or a flat workbench, please note the following

items:

■The rack or workbench is flat and stable, and sturdy enough to support the weight of

5.5kg at least.

■The rack or workbench has a good ventilation system. The equipment room is well

ventilated.

■The rack is well grounded. Keep the power socket less than 1.5 meters away from the

device.

2.3 Installation Tools

■Phillips screwdriver

■ESD-preventive wrist wrap

■Cables

Otros manuales para SafeStream TL-ER5120

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Enrutador de red de TP-Link

TP-Link

TP-Link Deco S1900 Manual de usuario

TP-Link

TP-Link Archer C20 Manual de usuario

TP-Link

TP-Link Archer VR2800 Manual de usuario

TP-Link

TP-Link Archer A6 Manual de usuario

TP-Link

TP-Link ARCHER C3150 Manual de usuario

TP-Link

TP-Link Archer AX4400 Manual de usuario

TP-Link

TP-Link TD-W9960v Manual de usuario

TP-Link

TP-Link SafeStream TL-R600VPN Manual de usuario

TP-Link

TP-Link Archer D50 Manual de usuario

TP-Link

TP-Link Archer C5400X Manual de usuario

TP-Link

TP-Link Archer C2600 Manual de usuario

TP-Link

TP-Link Archer C8 Manual de usuario

TP-Link

TP-Link Archer C88 Manual de usuario

TP-Link

TP-Link Archer AC1200 Manual de usuario

TP-Link

TP-Link Archer AX55 Manual de usuario

TP-Link

TP-Link Deco X10 Manual de usuario

TP-Link

TP-Link TL-WR841N Manual de usuario

TP-Link

TP-Link TD-W8960N Manual de usuario

TP-Link

TP-Link AXE5400 Manual de usuario

TP-Link

TP-Link ARCHER C60 Manual de usuario

TP-Link

TP-Link TL-MR3020 Manual de usuario

TP-Link

TP-Link Archer VR600v Manual de usuario

TP-Link

TP-Link LB1 Series Manual de usuario

TP-Link

TP-Link TL-ER604W Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad

LevelOne

LevelOne FBR-1416 Manual de usuario
