Totevision LCD-1042VB Manual de usuario

TFT LCD COLOR MONITOR

User’s manual

Model: LCD-1042VB 10.4”

Model: LCD-1211VB 12.1”

Model: LCD-1512VB 15.1”

1319 Dexter Avenue N., Suite 020

Seattle, WA 98109

TEL:206/623-6000

FAX:206/623-6609

Thank you for Purchasing this ToteVision product.

Before attempting to operate your video Monitor,

please carefully read this manual.

Content

1. Precautions

2. Package contents

3. Location of Controls

4. Monitor Use

5. Cleaning instructions

6. Adjust the monitor

7. Specifications

3. Location of Controls

10.4” Front View

10.4” Rear View

10.4” Vesa View

7. SPECIFICATION:

zOn screen display for: brightness, contrast, back light, hue & Tint

zS-video capability

zSunlight readable Very High Brightness LCD panel

zFor color applications

zWide viewing angle

zHigh contrast ratio

zActive matrix technology eliminates distortion

Miscellaneous：

Signal Source：To choice signal for D-SUB、CVBS or S-VIDEO.

Mode Select：To choice mode by 640x400 or 720x400.

Reset：Select this function can make the monitor have the best

efficiency.

Volume：Without audio function.

EXIT OSD：Exit the OSD function selection main menu.

Note：You don’t need to use AUTO CONFIG function when in the

VIDEO IN mode.

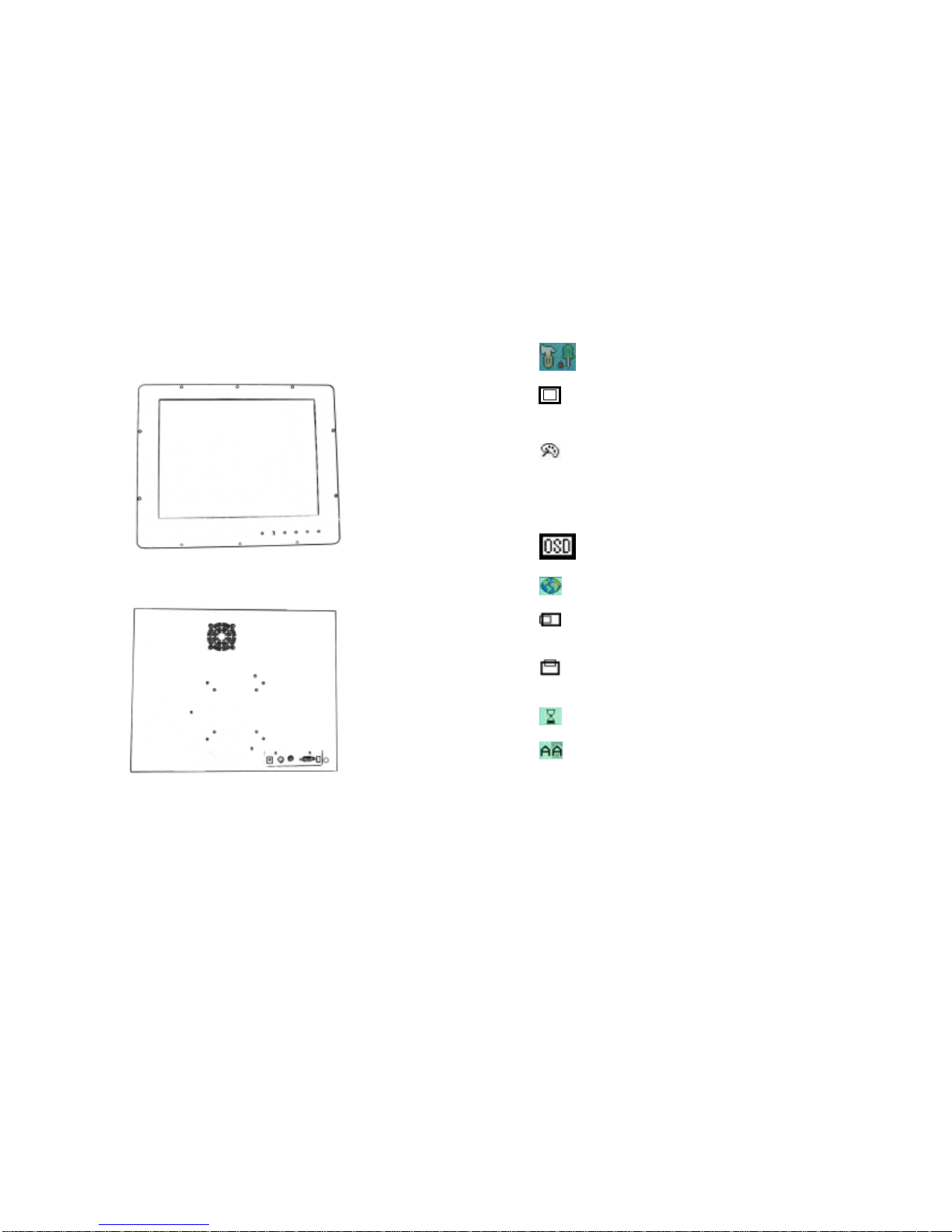

12.1” Front View

12.1” Rear View

12.1” Vesa View

15.1” Front View

15.1” Rear View

Function：

AutoAdjust：Select this function can make the monitor have

the best efficiency.

Auto Colour：Select this function can make the color have the

best efficiency.

OSD Menu：

Language：There are 8 type languages can be selected.

OSD H. Position：Pressing ＋moves the OSD menu to right;

Pressing －moves the OSD menu to left.

OSD V. Position：Pressing ＋moves the OSD menu upward;

Pressing －moves the OSD menu downward.

OSD Timer：To choice on or off the OSD list timer.

Translucent：To choice on or off the OSD list translucent.

OSD

Colour：

Contrast：Adjust the contrast using ＋and －buttons.

Brightness：Adjust the brightness using ＋and －buttons.

Colour Adjust：

9300：set current color temperature as 9300K.

6500：set current color temperature as 6500K.

USER：

RED Color：Red range.

GREENColor：Green Range.

BLUEColor：Blue Range.

Picture：

H POSITION：Pressing ＋moves the display image to right;

Pressing －moves the display image to left.

V POSITION：Pressing ＋moves the display image upward;

Pressing －moves the display image downward.

Sharpness：Adjust the sharpness using ＋and －buttons.

Phase：Adjust input video sampling clock’s phase using ＋and

－buttons.

CLOCK：Adjust input video sampling clock using ＋and －

buttons.

4. Monitor use

a. Make sure your video source ( CCD CAMERA,VTR, e.t.c.)

power is on

b. Connect your video source to video input (VGA, RCA video

or S-video)

c. Push the Power Switch ON

5. Cleaning instructions

Turn off the monitor before cleaning the LCD screen. Use a Slightly

damp (not wet) cloth.

Do not use an aerosol spray directly on the LCD screen because

over-spray may cause electrical shock.

6. Adjusting the monitor

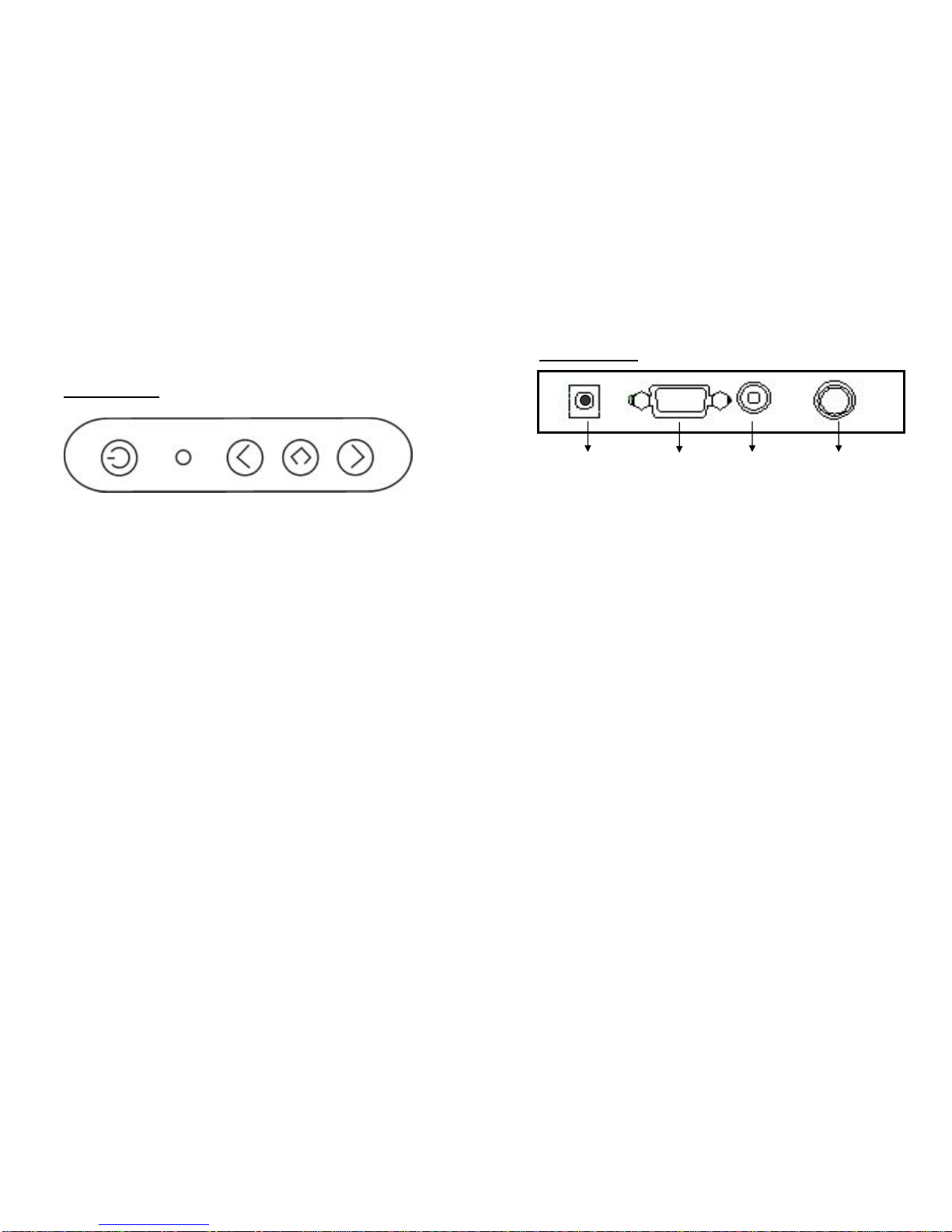

Control Button

1.Power Switch：Pressing this button turns the display system power

onoroff.

2.Power LED：This Power LED indicates different status when this

unit operates in different modes. It shows the orange

color in standby mode and it shows the green color in

power-on mode.

3.Decrease (－)：This button is used to select OSD control option and

to adjust the decreasing value of selected OSD

controloption.

4.Menu / Enter：Pressing this button pops up the menus on the screen,

and used to select the control options on the screen.

5.Increase (＋)：This button is used to select OSD control option and

to adjust the increasing value of selected OSD

controloption.

Power

Switch Power

LED Menu / Enter

Decrease

( - ) Increase

( + )

Inputs Diagram

【1】【2】【3】【4】

【1】DC IN：This is for connecting the power cable.

【2】RGB ANALOG IN：This can be connected with the D-Sub 15 pin

signal connector.

【3】COMPOSITE VIDEO：This can be connected to the composite

video-out connector of any video resource.

【4】S-VIDEO：This can be connected to the S-video-out connector

of any video resource.
