Toshiba IK-WD12A Manual de usuario
NETWORK CAMERA
Model: IK-WD12A
Quick Start Guide and Important Safeguards
This guide describes the hardware installation.
Refer to the user's manual (PDF le) contained in the CD-ROM for settings, operations
and other information.
The application Adobe Reader is needed to view PDF les. If you do not have this
application, download it from the Adobe Systems Incorporated website.
n http://www.adobe.com/
For information on our latest products and peripheral devices, refer to the following
Website:
n http://www.toshibasecurity.com
If the URL changes, refer to the Toshiba website (http://www.toshiba.com).
22
Introduction
FCC (USA)-INFORMATION
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
l Consult the dealer or an experienced radio/TV technician for help.
Shielded interface cables must be used in order to comply with emission limits.
USER-INSTALLER CAUTION: Your authority to operate this FCC veried
equipment could be voided if you make changes or modications not expressly approved by
the party.
3
Thank you for purchasing the IK-WD12A Network Camera. Before you start using
the camera, read this quick start guide carefully to ensure correct usage. Once you
have nished reading this quick start guide, keep it in a convenient place for future
reference.
The design, specications, software, and quick start guide contents are subject to
change without prior notice.
Terms and Trademarks
l The term "OS" is used in this manual to indicate operating systems compatible
with this product.
-- Windows® XP: Microsoft® Windows® XP operating system
-- Windows Vista®: Microsoft® Windows Vista® Business operating system
-- Windows 7®: Microsoft® Windows 7® Professional operating system
l The formal name of Windows® is Microsoft® Windows® Operating System.
l Microsoft®, Windows® and Windows Vista® are trademarks or registered
trademarks of Microsoft® Corporation in the United States and other countries.
l Adobe® is a registered trademark and Adobe Reader® is a trademark of Adobe
Systems Incorporated.
l Other product names appearing in this quick start guide may be trademarks or
registered trademarks of their respective holders.
NOTE
l The performance of the network camera may vary depending on the network
environment.
44
Table of Contents
Introduction 2
FCC (USA)-INFORMATION .......................................................................................2
Terms and Trademarks ..............................................................................................3
Table of Contents.............................................................................................. 4
Important Safeguards ....................................................................................... 5
Notes on Use and Installation........................................................................... 8
Setting the Network Camera Environment ....................................................... 9
Items needed for network camera monitoring ...........................................................9
Contents ......................................................................................................... 10
Physical Description .......................................................................................11
Hardware Installation ..................................................................................... 12
Network Deployment ..................................................................................... 13
Assigning IP Address ...................................................................................... 15
Retrieving Images........................................................................................... 16
Adjusting the Lens .......................................................................................... 17
Completion ..................................................................................................... 19
5
Important Safeguards
1. Read Instructions
Read all the safety and operating instructions before operating the product.
2. Retain Instructions
Retain the safety instructions and user's manual for future reference.
3. Warnings
Comply with all warnings on the product and in the user's manual.
4. Follow Instructions
Follow all operating and use instructions.
5. Cleaning
Disconnect this camera from the power supply before cleaning.
6. Attachments
Do not use attachments not recommended by the camera manufacturer as they may pose
safety risks.
7. Water and Moisture
Do not use this camera near water. Some examples are: near a bath tub, wash bowl,
kitchen sink, or laundry tub, in a wet basement, or near a swimming pool.
8. Accessories
Do not place this camera on an unstable cart, stand, tripod, bracket or table. The camera
may fall, causing serious injury to a person, or serious damage to the product. Use only
with stand, tripod,bracket,or table recommended by the manufacturer, or sold with the
camera. Any mounting of the product should follow the manufacturer's instructions, and
should use a mounting accessory recommended by the manufacturer.
9. Ventilation
This camera should never be placed near or over a radiator or heat register. If this product
is placed in a built in installation verify that there is proper ventilation so that the camera
temperature operates within the recommended temperature range.
10. Power Sources
This camera should be operated only from the type of power source indicated on the
information label. If you are not sure of the type of power supply at your location, consult
your product dealer.
11. Power-Cord Protection
Power cords should be routed so that they are not likely to be walked on or pinched by
items placed upon or against them. Pay particular attention to cords at plugs, screws and
the point where they exit the product.
12. Installation
Install this camera on a secure part of the ceiling or wall. If installed on an unsecured
location, the camera could fall causing injury and damage.
66
13. Lightning
For additional protection on this camera during a lightning storm, or when it is left
unattended and unused for long periods of time, unplug it from the wall outlet and
disconnect the power supply and cable system. This will prevent damage to the camera
due to lightning and power-line surges. If lightning occurs, do not touch the unit or any
connected cables in order to avoid electric shock.
14. Overloading
Do not overload the power supply or extension cords as this can result in a risk of re or
electric shock.
15. Object and Liquid Entry
Never push objects of any kind into this camera through openings as they may touch
dangerous electrical points or short-out parts that could result in a re or electrical shock.
Never intentionally spill liquid of any kind on the camera.
16. Servicing
Do not attempt to service this camera yourself as opening or removing covers may expose
you to dangerous electrical or other hazards. Refer all servicing to qualied service
personnel.
17. Damage Requiring Service
Disconnect this camera from the power supply and refer servicing to qualied service
personnel under the following conditions.
a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the camera.
c. If the camera has been submerged in water.
d. If the camera does not operate normally by following the operating instructions in the
user's manual. Adjust only those controls that are covered by the user's manual as
an improper adjustment of other controls may result in damage and will often require
extensive work by a qualied technician to restore the camera to its normal operation.
e. If the camera has been dropped or the cabinet has been damaged.
f. When the camera exhibiting a distinct change in performance which indicates a need for
service.
g. Other trouble.
18. Other trouble. Replacement Parts
When replacing parts be sure the service technician uses parts specied by the
manufacturer or have the same characteristics as the original part. Unauthorized
substitutions may result in re, electric shock or other hazards.
19. Safety Check
Upon completion of any service or repairs to this camera, ask the service technician to
perform safety checks to determine that the camera is in proper operating condition.
7
Important Safeguards (Cont.)
CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning ash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of
sufcient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
FIELD INSTALLATION MARKING:
WORDED: “THIS INSTALLATION SHOULD BE MADE BY A QUALIFIED SERVICE
PERSON AND SHOULD CONFORM TO ALL LOCAL CODES.”
88
Notes on Use and Installation
l Do not aim the camera at the sun
Never aim the camera at the sun even with the camera power off.
l Do not shoot intense light
Intense light such as a spotlight may cause a bloom or smear. A vertical stripe
may appear on the screen. However, this is not a malfunction.
l Treat the camera with care
Dropping or subjecting the camera to intense vibration may cause it to
malfunction.
l Never touch internal parts
Do not touch the internal parts of the camera other than the parts specied.
l Keep the camera installation away from video noise
If cables are wired near electric lighting wires or a TV set, noise may appear in
images. In this event relocate cables or reinstall equipment.
l Check the ambient temperature and humidity
Avoid using the camera where the temperature is hotter or colder than the
specied operating range. Doing so could affect the internal parts or cause the
image quality to deteriorate. Special care is required to use the camera at high
temperature and humidity.
l Should you notice any trouble
If any trouble occurs while you are using the camera, turn off the power and
contact your dealer. If you continue to use the camera when there is something
wrong with it, the trouble may get worse and an unpredictable problem may
occur.
99
Setting the Network Camera Environment
Items needed for network camera monitoring
l Administrator's personal computer
The personal computer that allows setting, operating, monitoring and other
functions with the network camera is called the "administrator's personal
computer" in this guide.
* The personal computer for viewing monitored images is called the "user's
personal computer" in this quick start guide. The network camera can be
viewed by more than one personal computer at the same time.
l Recommended personal computer system requirements:
-- Windows® XP, Vista Business, or Windows 7 professional.
-- Internet Explorer Ver 8.0
-- CPU: Minimum of 2GHz CPU
-- Memory: 1GB RAM and 512MB Graphics Adapter
l Connection equipment such as LAN cables, and switch or router.
-- The LAN cable type differs depending on the connection method.
l Camera search application "Installation Wizard"
-- Install this application from the CD-ROM supplied as an accessory (Double-click
"Setup.exe" in the CD-ROM and install the application by following the onscreen
instructions.)
-- This application is the tool to discover the IP address of a camera. Using this
application, the IP address of a camera can be easily determined.
1010
IK-WD12A
Ver. WD12-01

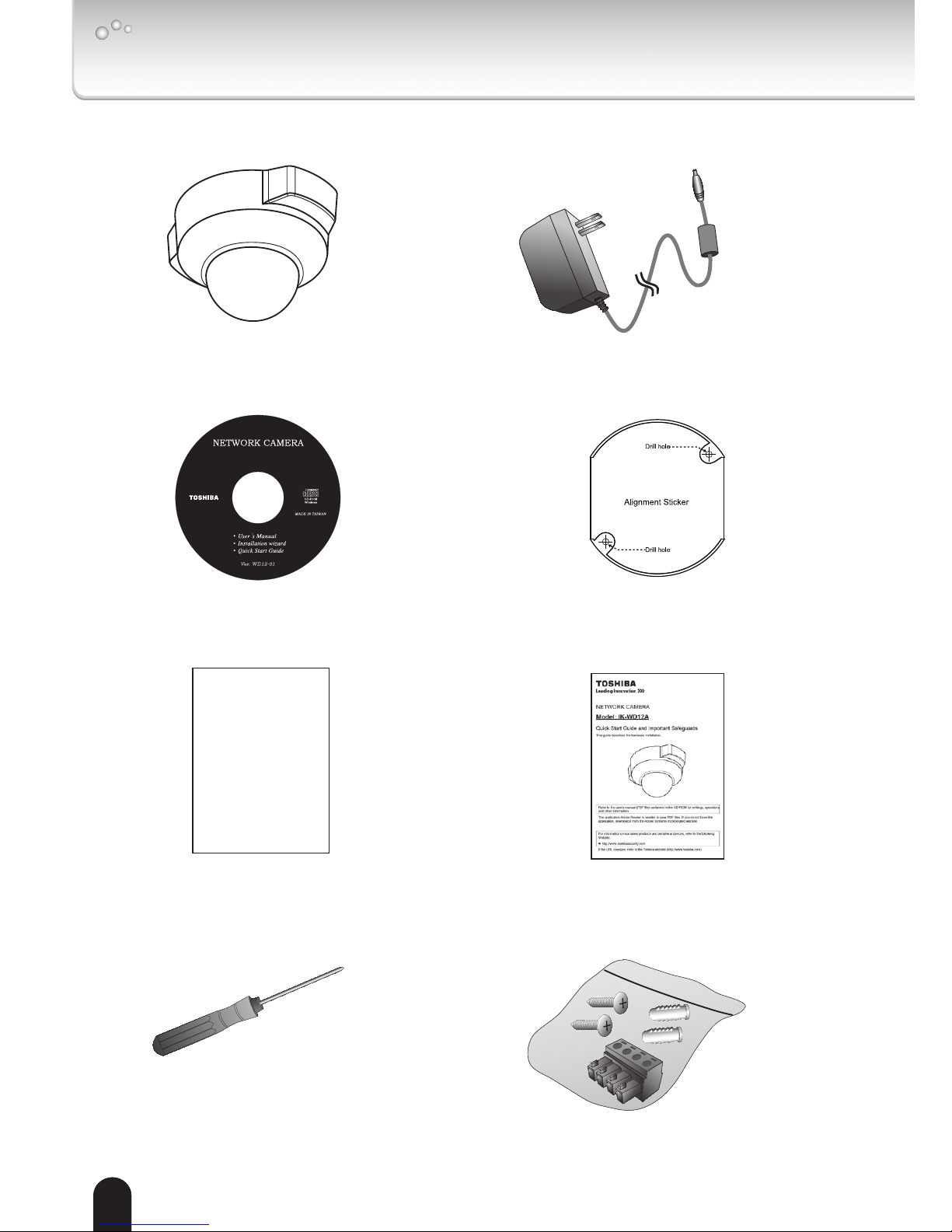

l IK-WD12A
l Torx driver
l AC Adapter
l Warranty Card l Quick Start Guide and Important
Safeguards
Screws and I/O Connector
Contents
l CD-ROM l Alignment Sticker
Otros manuales para IK-WD12A
2
Tabla de contenidos
Otros manuales de Cámara de seguridad de Toshiba
Toshiba
Toshiba IK-WB11A Manual de operación y mantenimiento
Toshiba
Toshiba IK-WB30A Manual de usuario
Toshiba
Toshiba IK-65WDA Manual de usuario
Toshiba
Toshiba IK-528A Manual de usuario
Toshiba
Toshiba IK-TU40A Manual de usuario
Toshiba
Toshiba IK-WR04A Manual de usuario
Toshiba
Toshiba IK-WB70A - IP/Network Camera, PoE Manual de usuario
Toshiba
Toshiba IK-64DNA Manual de usuario
Toshiba
Toshiba IK-WB01A Instrucciones de montaje
Toshiba
Toshiba CCD Monochrome Camera IK-539A Manual de usuario
Toshiba
Toshiba IK-64WDA Manual de usuario
Toshiba
Toshiba IK-1000 - Starlight Color Video Camera CCTV Manual de usuario
Toshiba
Toshiba IK-WB15A - IP Network Camera Manual de usuario
Toshiba
Toshiba IK-WB16A Manual de usuario
Toshiba
Toshiba IK-WR05A Manual de usuario
Toshiba
Toshiba WR01A - PoE Vandal Resistant Network Dome... Manual de usuario
Toshiba
Toshiba IK-HD1 Manual de usuario
Toshiba
Toshiba IK-542XD Manual de usuario
Toshiba
Toshiba IK-HD1 Manual de usuario
Toshiba
Toshiba CS9001 SERIES Manual de usuario
