Finally, an “Ice Cube” camera

with Progressive Scan

and VGA resolution!

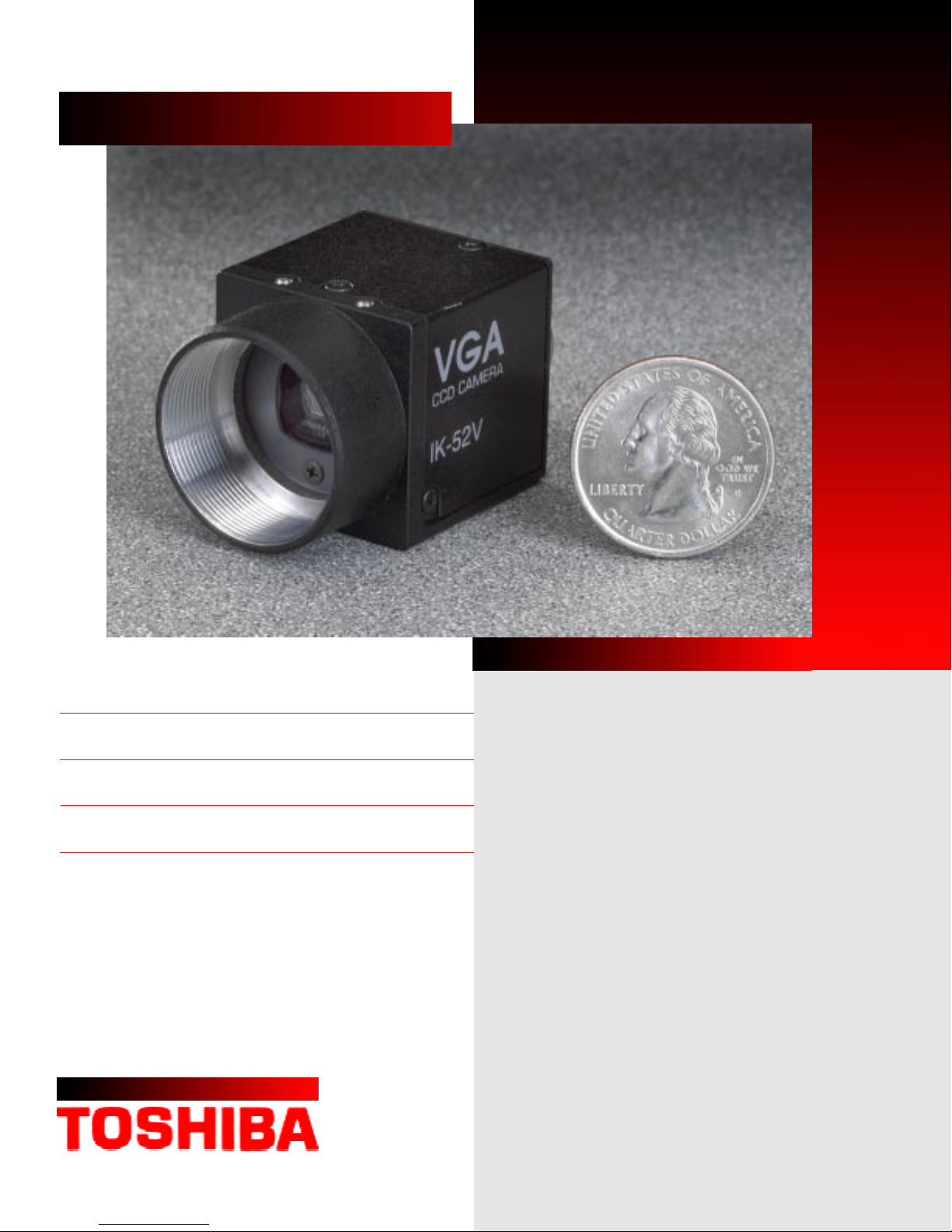

Incredibly small, the IK-52V and

IK-53V deliver better results than

cameras twice their size

The Toshiba IK-52V and IK-53V combine non-interlaced

Progressive Scan imaging with ultra-compact

dimensions for superior performance in a wide range of

quality-sensitive applications.

•Progressive Scan

•VGA output to frame grabber or direct to a VGA Monitor

•(1/60 sec. Non Interlaced)

•Measures only 29mm square

•Weighs 46g (1.59 oz.)

•1/3-inch (IK-53V) and 1/2-inch (IK-52V) CCD formats

•C-Mount Lens Mount

•659(H) x 494(V) resolution

•1 [email protected] sensitivity

•60 dB S/N Ratio

Imaging Video Products Group

features

IK-52V/IK-53V

Power Supply 12 VDC (+10.5VDC - +15VDC)

Power Consumption 120mA (DC + 12V)

Image Sensor IK-52V: Progressive Scan 1/2 inch CCD

IK-53V: Progressive Scan 1/3 inch CCD

Effective Pixels 659 (H) x 494 (V)

Horizontal Resolution 500 TV Lines

Pixel Size IK-52V: 9.9 µm (H) x 9.9 µm (V)

IK-53V: 7.4 µm (H) x 7.4 µm (V)

Scan Frequency Horizontal: 31.469 kHz, Vertical: 59.94 Hz

Synchronizing System Internal/External (HD/VD) (HD/VD inut/output area selected

by rear panel switch

Sync Modes All pixels scanning, Partial scanning, 1-pulse trigger sync-reset,

Pulse width trigger sync-reset, 1-pulse trigger sync-nonreset,

Pulse width trigger sync-nonreset, Reset restart

Standard Subject Illumination 400 lux F5.6 (Gain off)

Minimum Subject Illumination 1 lux, F1.4, manual gain set to maximum

S/N Ratio 60dB

Video Output 1.0V (p.p)

Output Impedance 75 Ohm, unbalanced

IR Filter None

Lens Mount C-Mount

Gain Switch Off (0dB) / On (0 to 18dB)

Electronic Shutter Settings Off (1/60),1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000,

1/50000, 1/100000

Rear Panel Settings Mode/Sensitivity/Sync in-out

Weight 45g (1.59 oz.)

Dimensions 29mm (W) x 29mm (H) x 29mm (D)

Connector Hirose Part Number: HR10A-10R-12PB

Environmental Operating Temperature: 0°to +40°Centigrade

Storage Temperature: -20°to +60°Centigrade

Humidity: less than 90% relative

Vibration: 70m/S2(10 to 200 Hz)

Shock; 700m/S2

specifications

Spectra Sensitivity Characteristics

IK-53V 1/3-Inch CCD Camera

400 500 600 700 800 900 1000

Relative Sensitivity

Wave Length (nm)

1.14"

1.14" 1.14"

.49"

1.63"

.31"

IK-52V/IK-53V

of Toshiba America Information Systems, Inc. and/or Toshiba Corporation. All other

products and names mentioned are the property of their respective owners. All

In Touch With Tomorrow

Toshiba America Information Systems, Inc.

Imaging Systems Division

9740 Irvine Boulevard, Irvine, California 92618

1-949-461-4986 • www.cameras.toshiba.com

➤

1.1" ➤

➤

Spectra Sensitivity Characteristics

IK-52V 1/2-Inch

CCD Camera

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

Relative Sensitivity

Wave Length (nm)

1.0

0.9

0.8

0.7

0.6

0.5

0.4

0.3

0.2

0.1

400 500 600 700 800 900 1000
