Topfield CBI-2070 Manual de usuario

CBI-2070

User Guide

High Deﬁnition

Digital Cable Receiver

USB PVR-Ready

IRDETO Advanced Security CAS Embedded

Default PIN: 2010

The lightning ﬂash with arrowhead symbol, in an equilateral triangle, is intended to alert the

user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of

suﬃcient magnitude to constitute a risk of electric shock to a person.

The exclamation point, in an equilateral triangle, is intended to alert the user to the presence of

important operation and maintenance instructions in the literature accompanying the product.

Precautions

• Read, keep and follow these instructions.

• Heed all warnings.

• Clean with a dry cloth only.

• Do not block any of the ventilation openings.

• Do not install near any heat sources or in direct sunlight as this will impair cooling.

• Do not operate this product near water. Do not place any of the objects ﬁlled with liquids, such as

vases on this unit.

• Do not try to change the plug or defeat its safety purpose. If the provided plug does not ﬁt into

your outlet, consult an electrician for replacement of the obsolete outlet.

• This product is designed for indoor use only.

• Place the digital receiver on a ﬁrm and level surface.

• Do not lay any objects such as magazines on this unit.

• Do not overload power outlets. Doing so may result in a risk of ﬁre or electrical shock.

• Never open this unit’s casing under any circumstances, or the warranty will be void.

• Unplug this unit during lightning storms or when unused for long periods of time.

• Refer all servicing to qualiﬁed service personnel. Servicing is required when the unit has been

damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or

objects have fallen into the unit, the unit became wet from rain or moisture, does not operate

normally, or has been dropped.

• Batteries, including those which contain no heavy metals, may not be disposed with other

household wastes. Please dispose of used batteries in an environmentally sound manner. Find

out the legal regulations which apply in your area.

iii

About this user guide

Thank you for purchasing our digital receiver. Please read this user guide carefully before you use the

digital receiver and keep it handy for future reference.

This User Guide covers the model CBI-2070 .

• Illustrations pictured in this manual may not be exactly the same as the actual product.

• The screenshots used in this manual may not be exactly the same as those you see on the actual

on-screen displays.

• Designs and speciﬁcations of the digital receiver and other accessories are subject to change with-

out any notice in order to introduce new features or improve the functionality of the product.

iv CONTENTS

Contents

Contents iv

1 Introduction 1

1.1 Features .............................. 1

1.2 Controlling the digital receiver .................. 2

1.2.1 Front panel ........................ 2

1.2.2 Remote control ...................... 4

1.3 Subscription card information .................. 6

2 Setup 7

2.1 Unpacking ............................. 7

2.2 Safety precautions ......................... 7

2.3 Rear panel connections ...................... 8

2.4 Connecting up your digital receiver ............... 9

2.4.1 Connecting to the broadcasting cable .......... 10

2.4.2 Connecting to your television set ............ 10

2.5 Switching on for the ﬁrst time .................. 12

3 Service Search 14

3.1 Searching for broadcasting services ............... 14

3.2 Resetting to factory settings ................... 15

3.3 Resetting to user settings ..................... 16

3.4 Clearing the services list ..................... 17

4 Preference Settings 18

CONTENTS v

4.1 Language settings ......................... 18

4.1.1 Menu language ...................... 18

4.1.2 Subtitle language ..................... 18

4.1.3 Audio language ...................... 19

4.2 Video and audio settings ..................... 19

4.2.1 High deﬁnition television ................ 19

4.2.2 Television aspect ratio .................. 20

4.2.3 Audio mode ........................ 21

4.3 Local time setting ......................... 22

4.4 Parental control .......................... 23

4.5 Options for recording ....................... 25

4.6 Options for playback ....................... 26

4.7 Options for on-screen display .................. 27

5 Every Day Use 28

5.1 Volume control .......................... 28

5.2 Watching television ........................ 28

5.2.1 The services list ...................... 28

5.2.2 The favourite service lists ................ 30

5.2.3 Viewing programme information ............ 31

5.2.4 Selecting audio tracks .................. 32

5.2.5 Selecting subtitle tracks ................. 32

5.2.6 Viewing teletext ...................... 32

5.3 Viewing electronic programme guide .............. 33

5.4 Using time-shift .......................... 33

6 Organising Services 36

6.1 Editing the services list ...................... 36

6.2 Editing the favourite lists ..................... 38

6.3 How to use on-screen keyboard ................. 39

7 Recording and Playback 40

7.1 Recording a programme ..................... 40

7.1.1 Instant recording ..................... 41

7.1.2 Timer recording ...................... 42

7.1.3 Scheduling recordings using the programme guide . . 44

vi CONTENTS

7.1.4 Recording a pay service programme .......... 45

7.2 File archive ............................. 45

7.2.1 To delete a recording ................... 46

7.2.2 To sort recordings ..................... 46

7.2.3 To lock a recording .................... 46

7.2.4 To rename a recording .................. 47

7.2.5 To make a new folder ................... 47

7.2.6 To move a recording to another folder ......... 47

7.3 Playing back a recording ..................... 47

7.3.1 To navigate using the progress bar ........... 48

7.3.2 To play in slow motion .................. 49

7.3.3 To play in fast motion ................... 49

7.3.4 To make a bookmark ................... 49

7.3.5 To play back a recording repeatedly .......... 50

7.3.6 To play back recordings in sequence .......... 50

7.3.7 To play back a scrambled recording ........... 51

7.4 Copying a recording ....................... 51

7.5 Formatting the hard disk ..................... 51

8 Firmware Update 53

8.1 From your computer via RS-232 port .............. 53

A Universal Remote Control 55

A.1 TV .................................. 57

A.2 VCR ................................. 62

A.3 DVD ................................ 64

Chapter 1

Introduction

The CBI-2070 digital receiver is fully compliant with the inter-

national Digital Video Broadcasting (DVB) standard, and thus

is able to receive digital broadcasts of that standard.

NOTE

In general we equate a channel with a frequency. However,

unlike analogue broadcasts, digital broadcasts are not all

assigned to their own frequencies; instead, multiple televi-

sion broadcasts are transmitted through a single frequency.

The frequency in digital broadcasting is usually called trans-

ponder or multiplex. To reduce confusion in this manual,

the word service is preferably used than channel as a term

to indicate one television or radio broadcast.

1.1 Features

This digital receiver has the following features:

• Can store up to 2,000 television and radio services.

• You can edit the services list.

• Can create lists of your favourite services.

2 Introduction

• Can view information about the current television or ra-

dio programme.

• Has an electronic programme guide that provides an

overview of scheduled programmes.

• Time-shift is a special technical feature available on this

digital receiver. You can pause a programme you are

watching and resume it again at a later time. Then you

can quickly go to any part of the current programme by

fast forward or rewind search.

• If you have an external hard drive connected to the dig-

ital receiver via the USB port, you can record television

programmes into it.

1.2 Controlling the digital receiver

You can operate the digital receiver with the remote control or

the buttons on the front panel.

NOTE

When the digital receiver is oﬀ but plugged into a wall

socket, we say that it is in standby mode; on the other hand,

when it is on, it is in active mode. Even when you are not

using the digital receiver, you should keep it plugged into

a wall socket to be in standby mode so that it can run timer

events at any time.

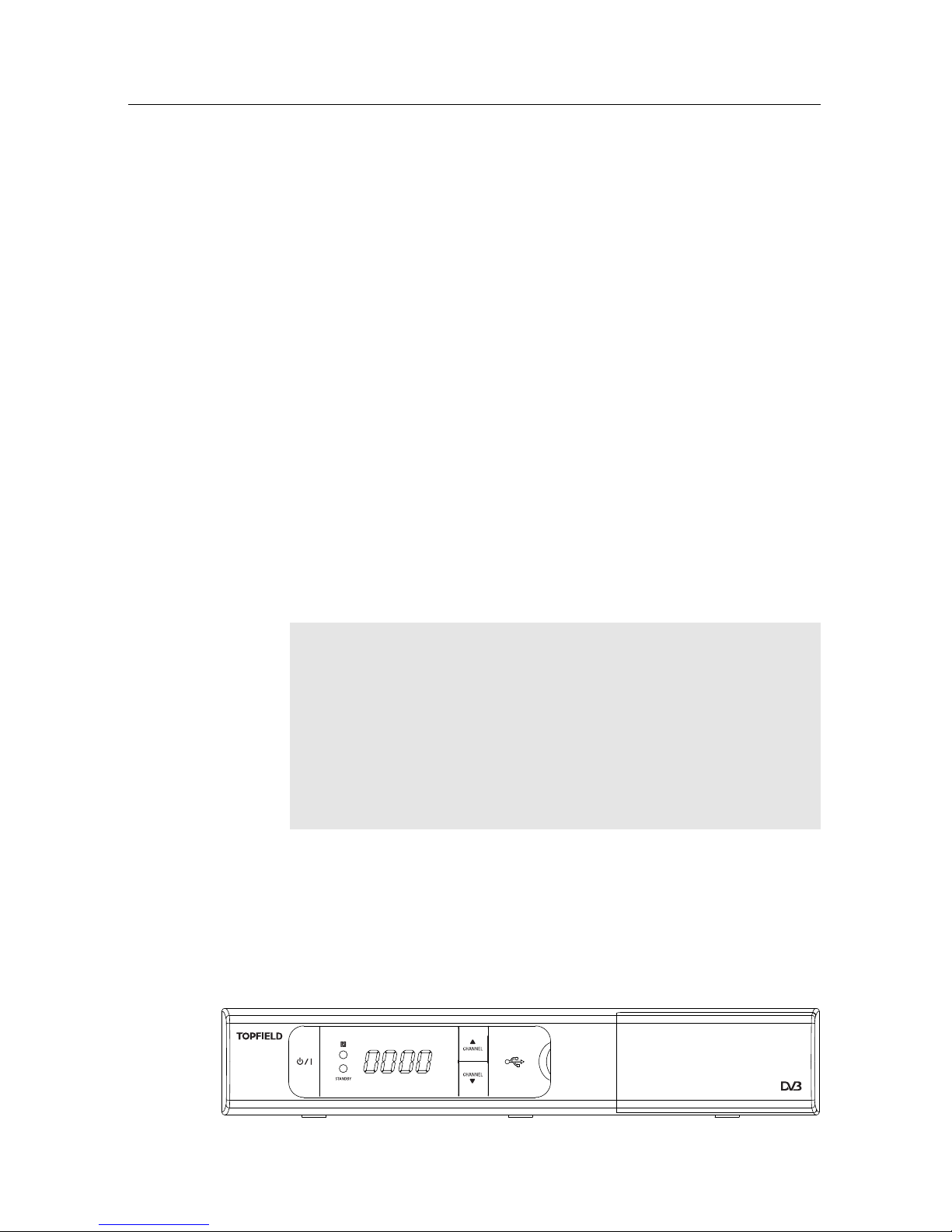

1.2.1 Front panel

The front panel of the digital receiver has buttons to control

the digital receiver, speciﬁc lights and a display to indicate its

status. The following indicates what they mean.

1.2 Controlling the digital receiver 3

button switches the digital receiver between standby mode

and active mode.

light blinks every time you press a button on the remote

control.

STANDBY light lights up while the digital receiver is in standby

mode.

Front display shows the current time in standby mode, and

displays the current service in active mode.

CHANNEL

buttons switch to the previous or next ser-

vice.

There is a ﬂap on the middle of the front panel that protects

the USB port behind it from dust, into which you can plug a

USB device like a memory stick.

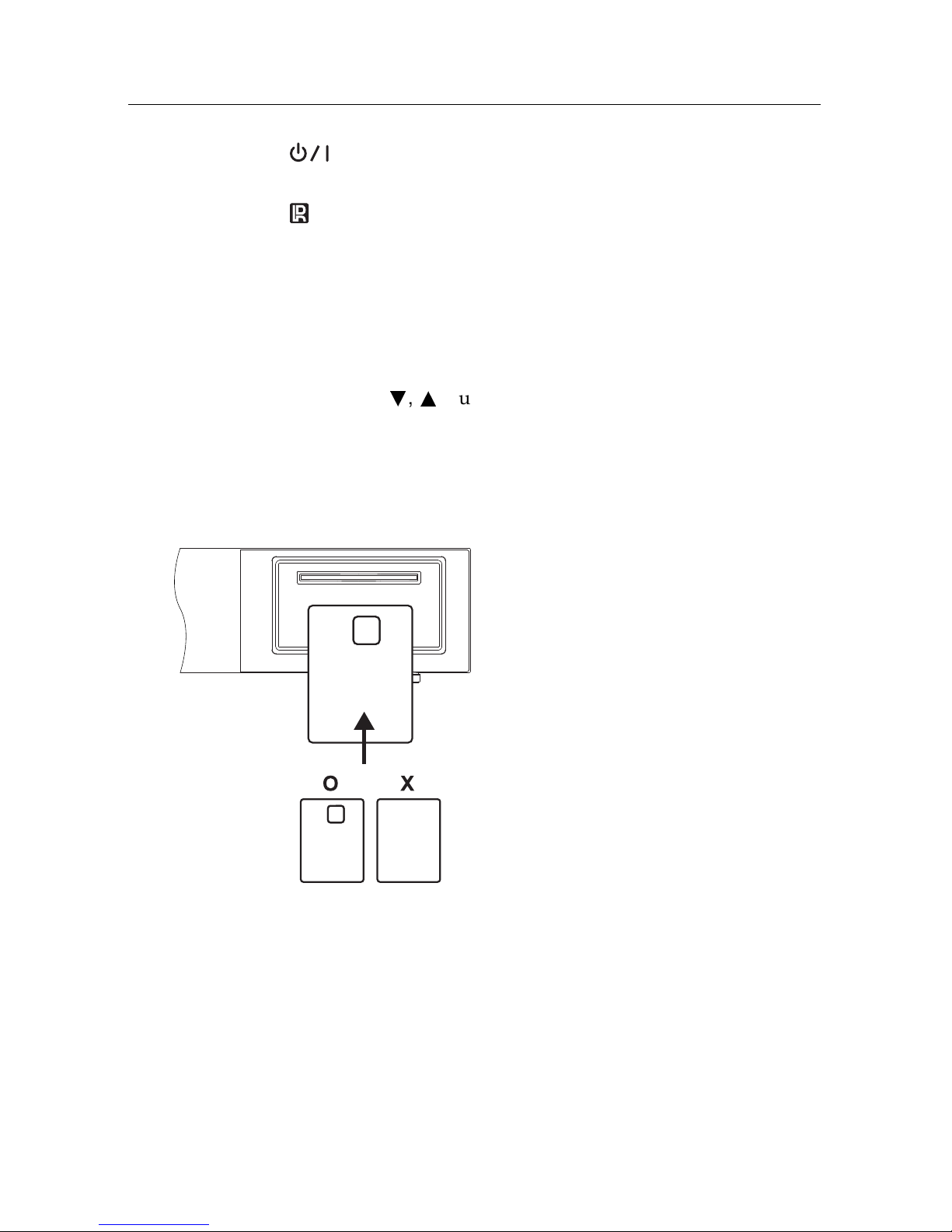

If you want to watch pay services, pull

the right edge of the front panel to open

the ﬂap, then insert your subscription

card into the front slot.When you in-

sert the subscription card, the side on

which the chip is mounted must face

upward.

4 Introduction

1.2.2 Remote control

• button switches the digital receiver between

standby mode and active mode.

•







INPUT selects an input to your television.

•







TV switches the remote control to television mode to op-

erate your television.

•







VCR switches the remote control to VCR mode to operate

your video recorder.

•







DVD switches the remote control to DVD mode to oper-

ate your DVD player.

•







STB switches the remote control to receiver mode to op-

erate the digital receiver.

• Numeric buttons are used to enter a service number for

service change or to specify values for menu options.

• switches over between the current service and the

previously viewed one.

•







FAV displays the favourite lists.

• mutes the sound. Press again to switch it back on.

• switches over between television services and radio

services.

• , buttons decrease or increase the volume.

• , buttons switch to the previous or next service.

• Navigation buttons are used to navigate in menus or to

change values for menu options.

•







OK displays the services list. See §5.2.1 for more details.

It is also used to select a menu item.

•







MENU displays the main menu. It is also used to return

to the previous menu from a submenu.

•







EXIT is used to exit a menu or to hide on-screen informa-

tion.

•







GUIDE displays the electronic programme guide.

Tabla de contenidos

Otros manuales de Receptor de Topfield

Topfield

Topfield CBV-7100 Manual de usuario

Topfield

Topfield TF 6000 PVR ES Manual de usuario

Topfield

Topfield CRC-2400 Manual de usuario

Topfield

Topfield TF 6000 VI Manual de usuario

Topfield

Topfield TRF-2100 Manual de usuario

Topfield

Topfield TF 7710 HSCI Manual de usuario

Topfield

Topfield TF5000CI Manual de usuario

Topfield

Topfield TF 6010PVR Manual de usuario

Topfield

Topfield TF MMDS100 Manual de usuario

Topfield

Topfield TF-S3000CHD Manual de usuario

Topfield

Topfield TF 5000 CIP Manual de usuario

Topfield

Topfield Digital Satellite Receiver TF 6000 PVR Manual de usuario

Topfield

Topfield CBC-5150 Manual de usuario

Topfield

Topfield TBF-100HD Manual de usuario

Topfield

Topfield SBP-2000 Manual de usuario

Topfield

Topfield CBC-5200 Manual de usuario

Topfield

Topfield TF 6000 COT Manual de usuario

Topfield

Topfield TF 5000 PVRt Masterpiece Manual de usuario

Topfield

Topfield SBI-2070 Manual de usuario

Topfield

Topfield TF 6000PVR Manual de usuario

Topfield

Topfield TF 4410 PVRt Manual de usuario

Topfield

Topfield TF 4000 T Manual de usuario

Topfield

Topfield TF 6000 PVRt Manual de usuario

Topfield

Topfield TF6500F Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
